Titanium Target
- Category: >>>
- Supplier: Baoji Haoyu Metal Material Co. Ltd.
Share on (10000008683204):
Product Overview
Description

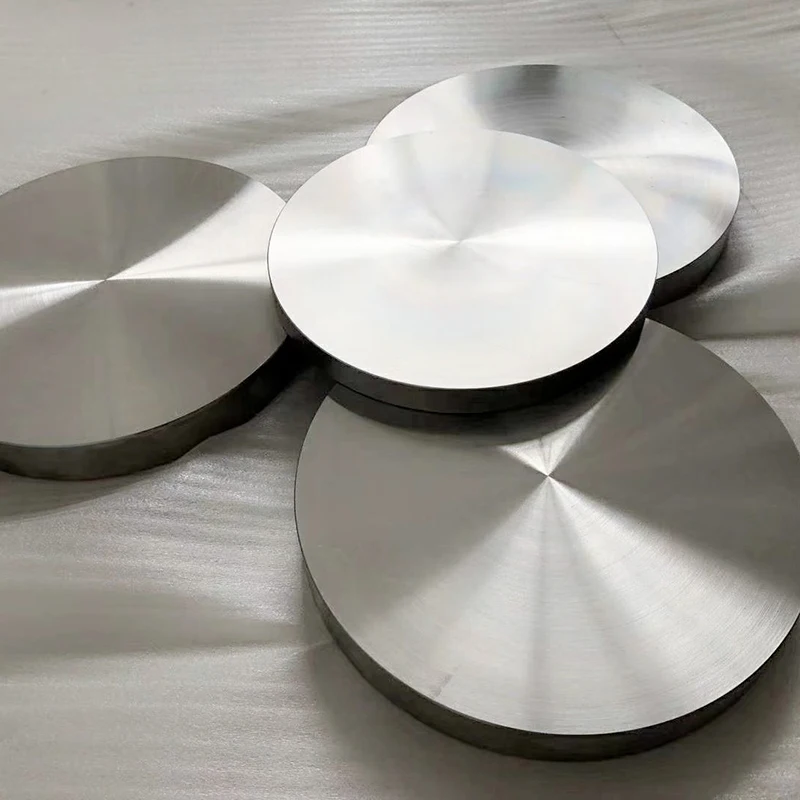

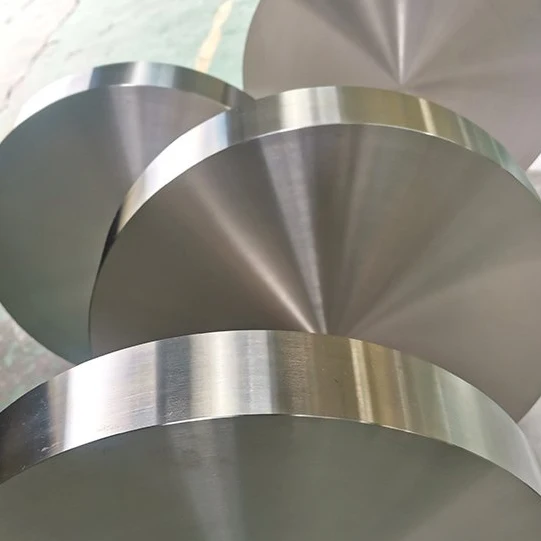

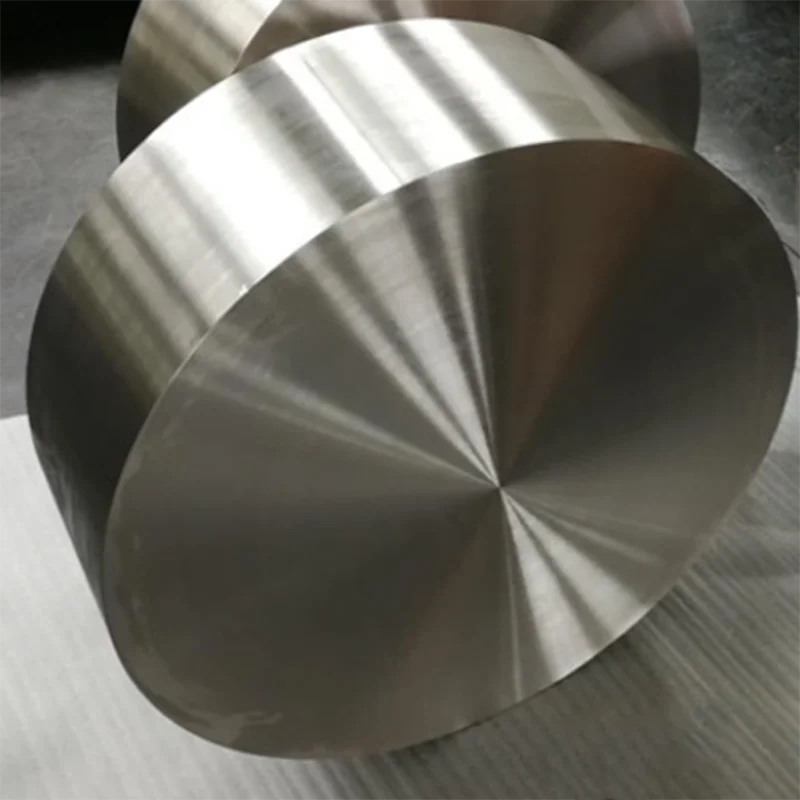

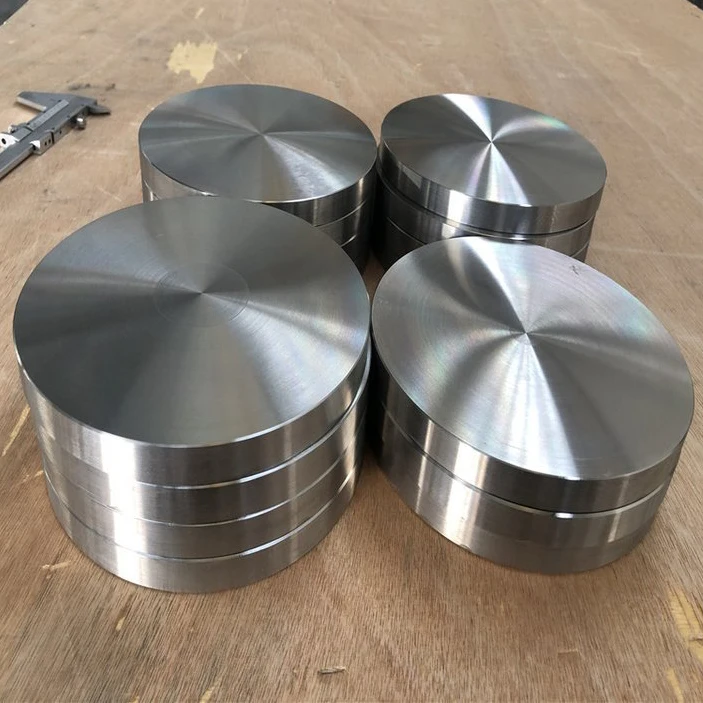

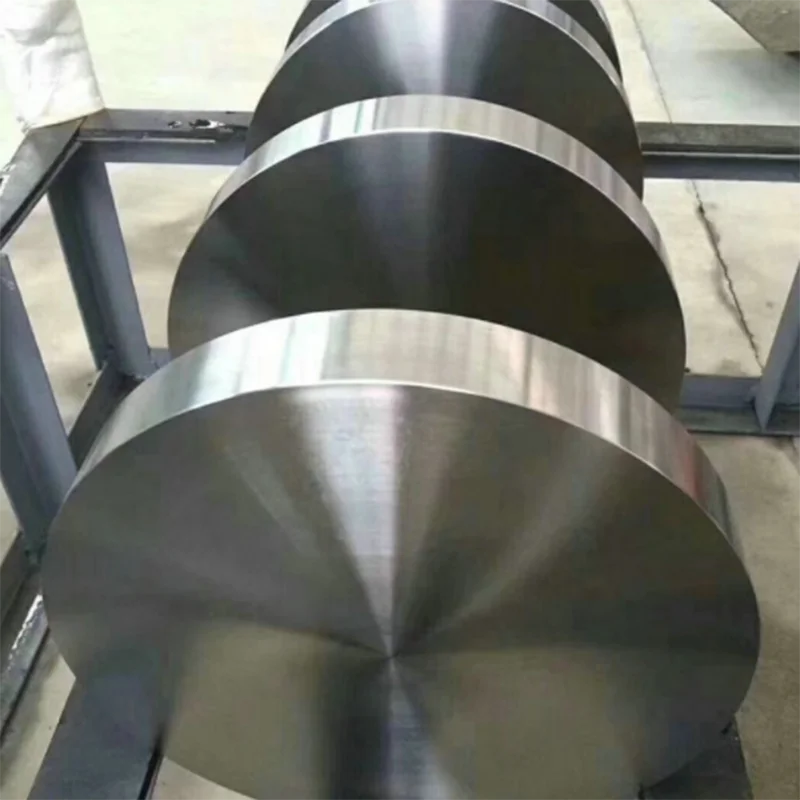

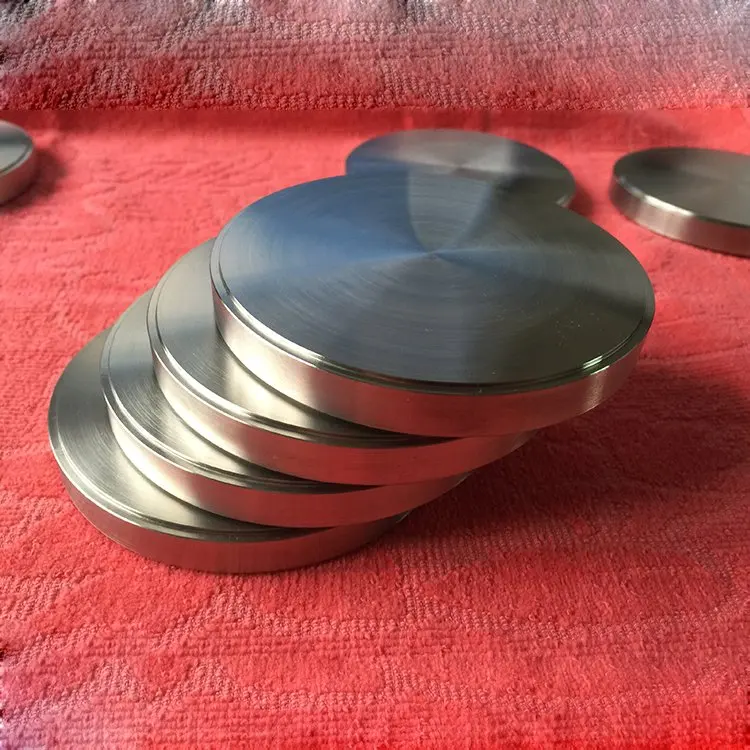

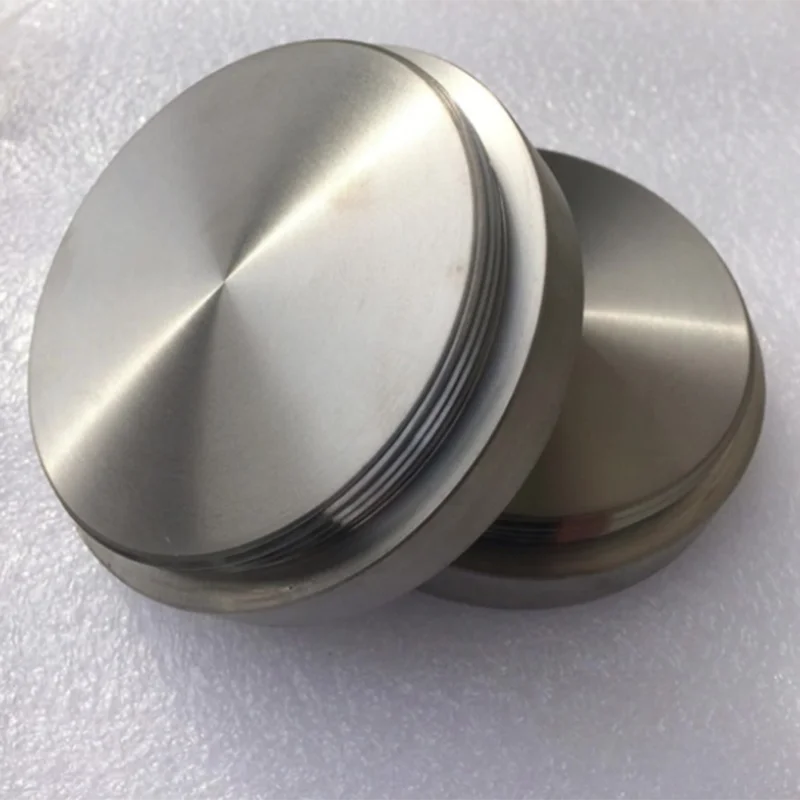

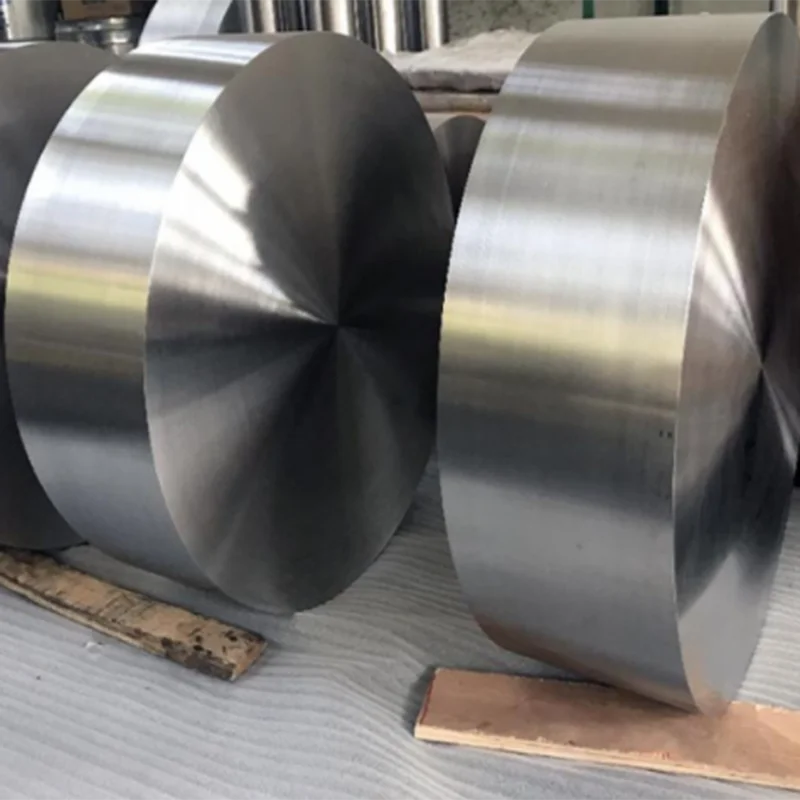

Titanium Target
Titanium target is a kind of titanium product. Titanium is used as raw material to make titanium sputtering target by various methods. It is widely used in high-tech fields such as electronics, information industry, home decoration, automobile glass manufacturing and so on. In these industries, titanium targets are mainly used to coat surface panel displays of integrated circuits, flat panels and other components, or as decorations and glass coatings.
Chemical Composition | ||||||||||||||||||
Grade | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |||||||||
Gr1 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal | |||||||||
Gr2 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Bal | |||||||||
Gr5 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | Bal | |||||||||
Gr7 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | Bal | |||||||||
Gr9 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | Bal | |||||||||
Gr12 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | Bal | |||||||||
Mechanical Property | ||||||||
Grade | Tensile strength Rm/MPa(>=) | Yield strength Rp0.2(MPa) | Elongation A4D(%) | Reduction of areaZ(%) | ||||
Gr1 | 240 | 138 | 24 | 30 | ||||
Gr2 | 345 | 275 | 20 | 30 | ||||
Gr3 | 450 | 380 | 18 | 30 | ||||
Gr4 | 550 | 483 | 15 | 25 | ||||
Gr5 | 895 | 828 | 10 | 25 | ||||
Specification
item | value |
Place of Origin | Shaanxi,China |
Brand Name | Baoji Haoyu Metal Material Co., Ltd. |
Application | Industrial |
Technique | Forging |
Material | Titanium Gr1gr2 Gr5 Gr9 Gr10 Gr12 |
Standard | ASTM B381 |
Application | Industrial |
Package | Standard Seaworthy Package |
Lead Time | 7-15Days |
1.Are u a manufacturer or just trading company？
A:Our company is specialized in designing, manufacturing and supplying titanium materials.2.How to ensure the quality of your products？
A:We have a series of tests to ensure the quality of the product,such as DPI,PMI,RT,Hardness test,Bending test,Hydrostatic etc.

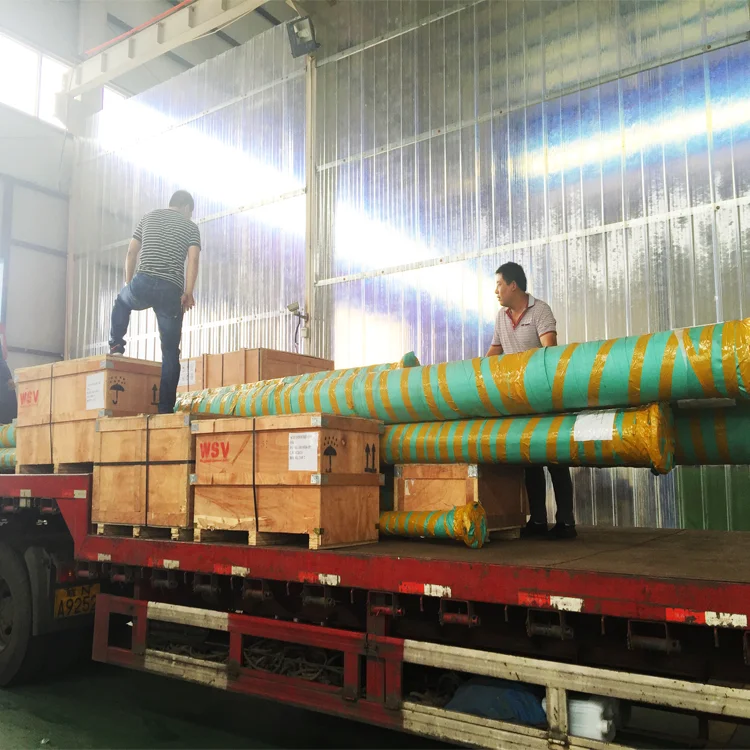

3.We would like to know how you will pack the product?
A:Our packing is as follows:
➢IPPC standard wooden case
➢Wrap pipe, fittings, and flange with plastic bag
➢Put sponge cushion at the bottom of the wooden case
➢Put goods in the case and cushion the surrounding to assure the goods unmovable in the case
➢Nail the case, stick the tags, marks or required logos on the case
➢Special package upon request
4.We need below information to quote for you:
A:1) Product name
2) Standard
3) Material Grade (chemical composition)
4) Dimension
5) Quantity
6) The diawing for special parts
