High Power 200W 6 Color in 1 LED
- Category: >>>
- Supplier: SUPER BRITE LTD.
Share on (10000008701606):
Product Overview
Description
Specification

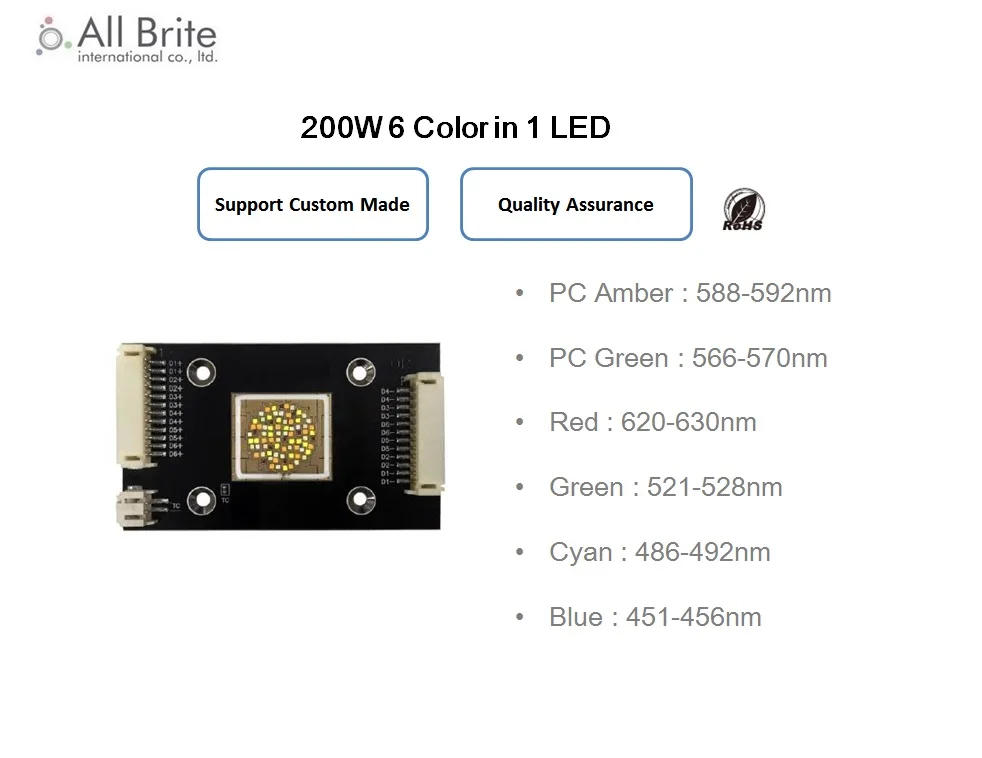

200W 6 Color in 1 LED
AT4676LM-200LEC6-12A
Product Description

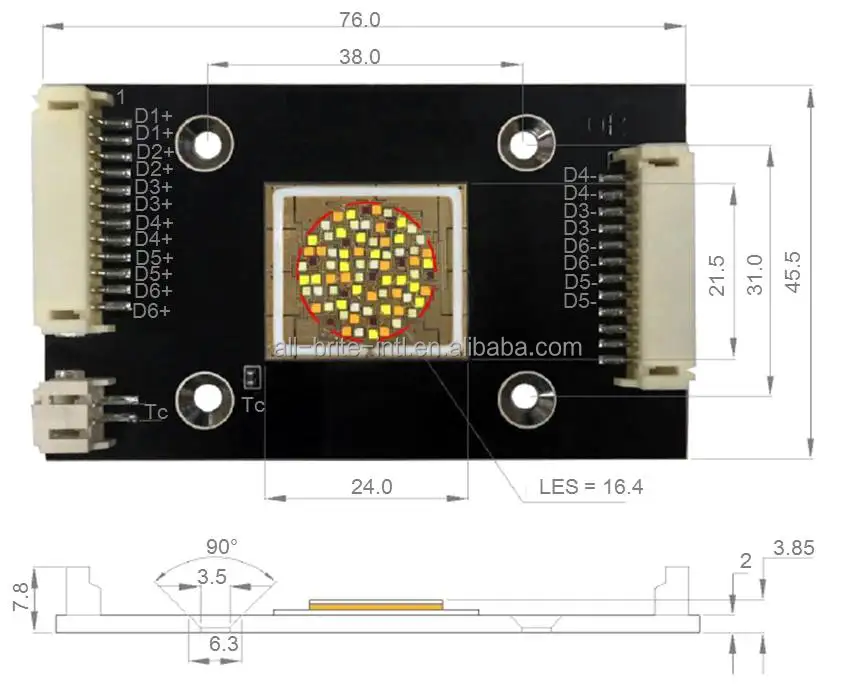

Mechanical Dimensions
Features
• High power density of lighting source
• Good color uniformity• Compact light source
• RoHS compliant
Absolute Maximum Ratings
Parameter | PC Amber | PC Green | Red | Green | Cyan | Blue | |||||
DC Forward Current (mA) | 100-1600 | 100-1600 | 50-800 | 50-800 | 50-800 | 50-800 | |||||
Peak Pulsed Forward Current (mA) | 1800 | 1800 | 900 | 900 | 900 | 900 | |||||
(less than 1/10 duty cycle@1KHz) | |||||||||||
ESD Sensitivity (HBM per MIL-STD-883E Method 3015.7) | ±2000 V | ||||||||||
LED Junction Temperature | 135 °C | ||||||||||
Operating Board Temperature at Maximum DC Forward Current | -40°C - 80°C | ||||||||||
Storage Temperature | -40°C - 80°C | ||||||||||
Reverse Voltage | Not designed to be driven in reverse bias | ||||||||||

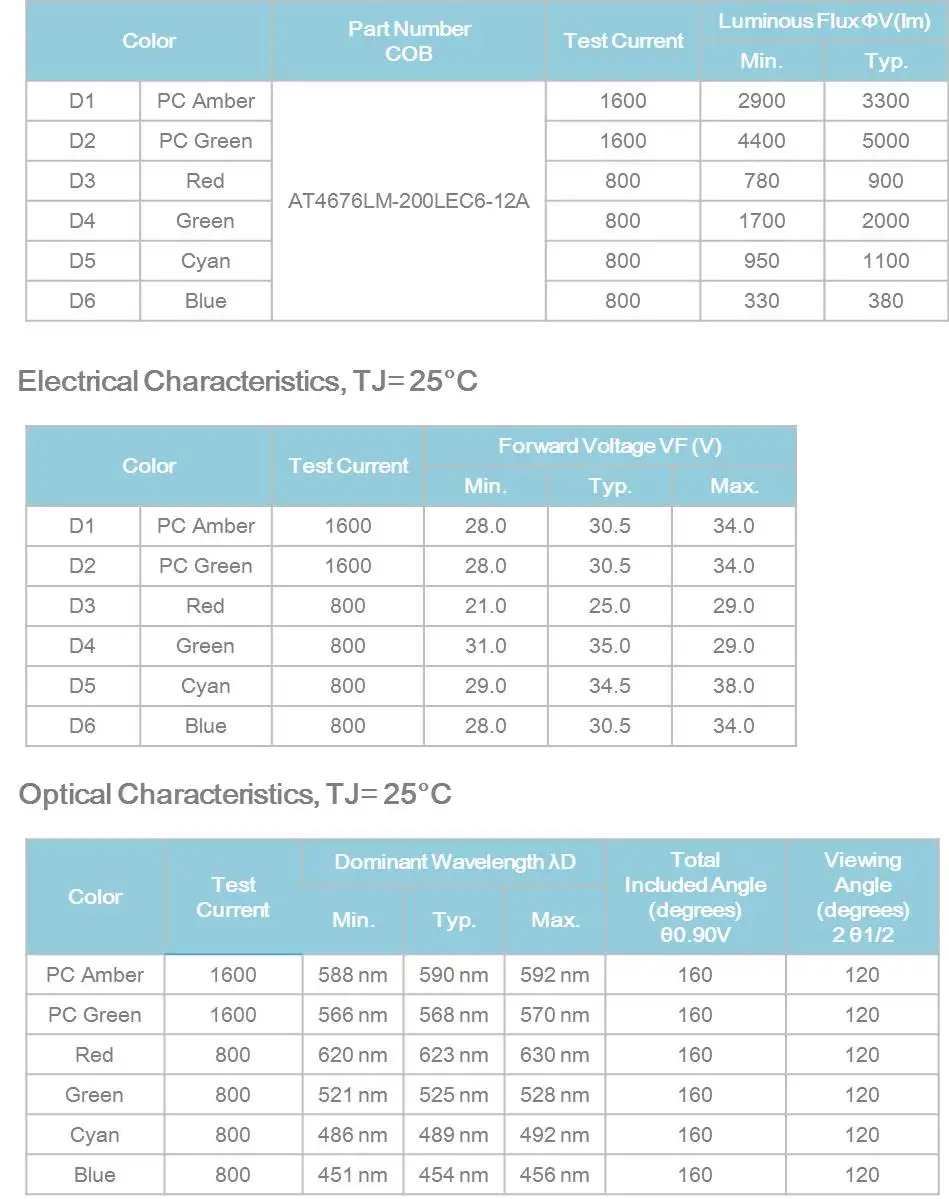

Flux Characteristics , TJ= 25°C
