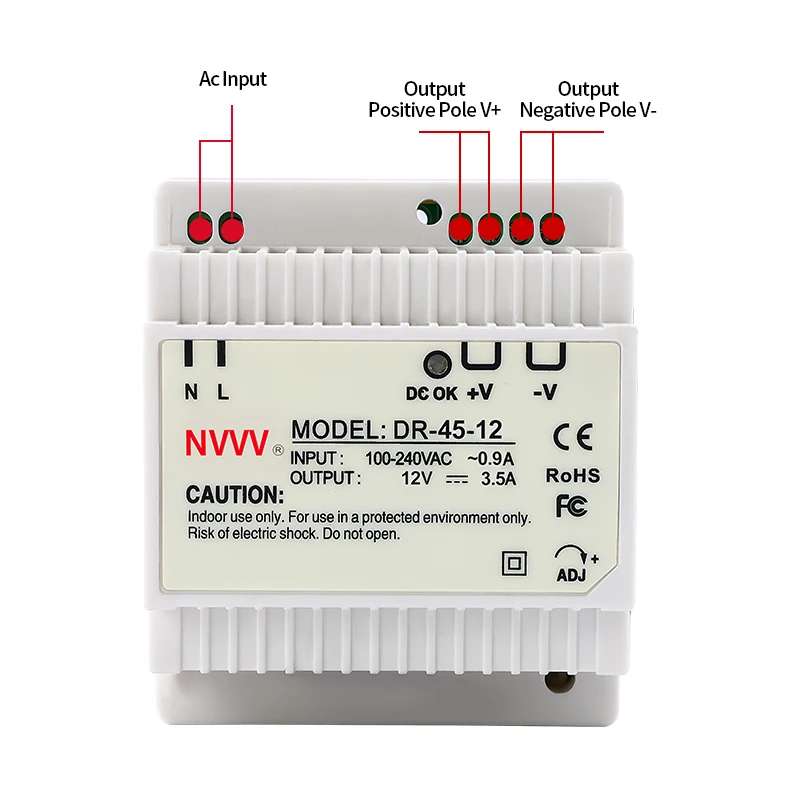

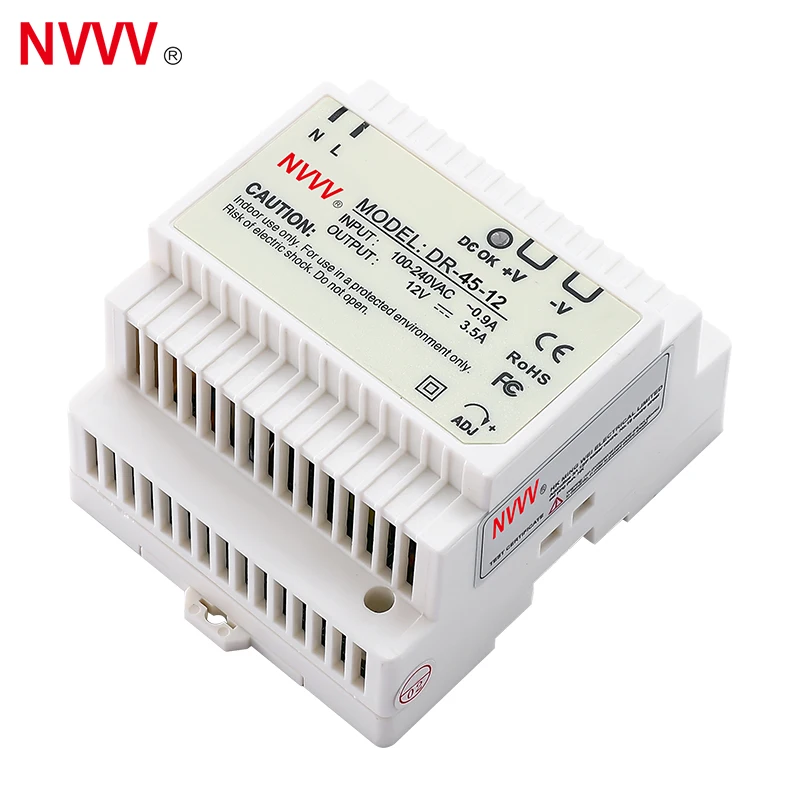

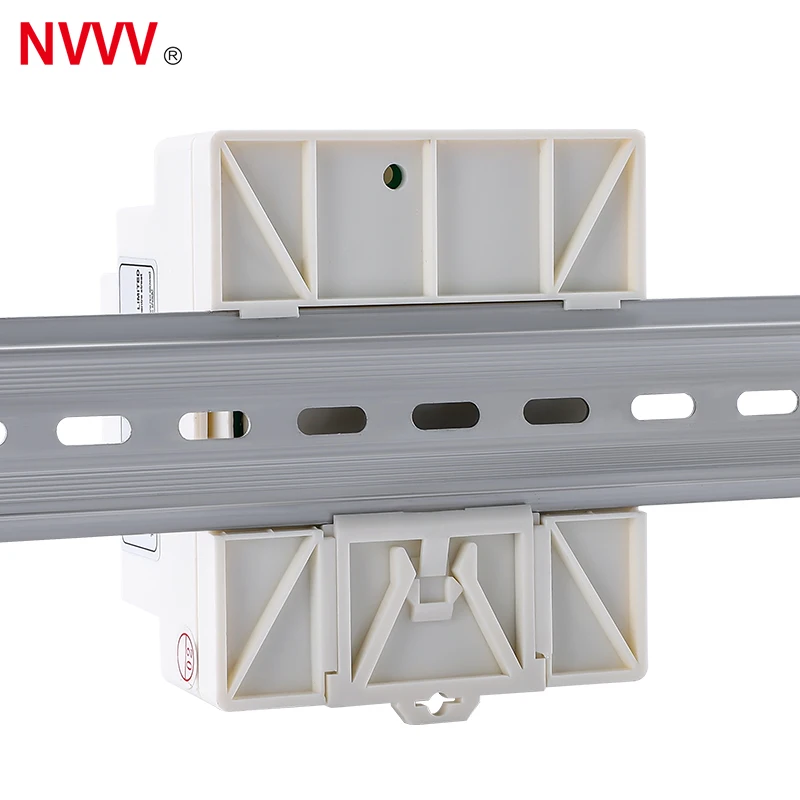

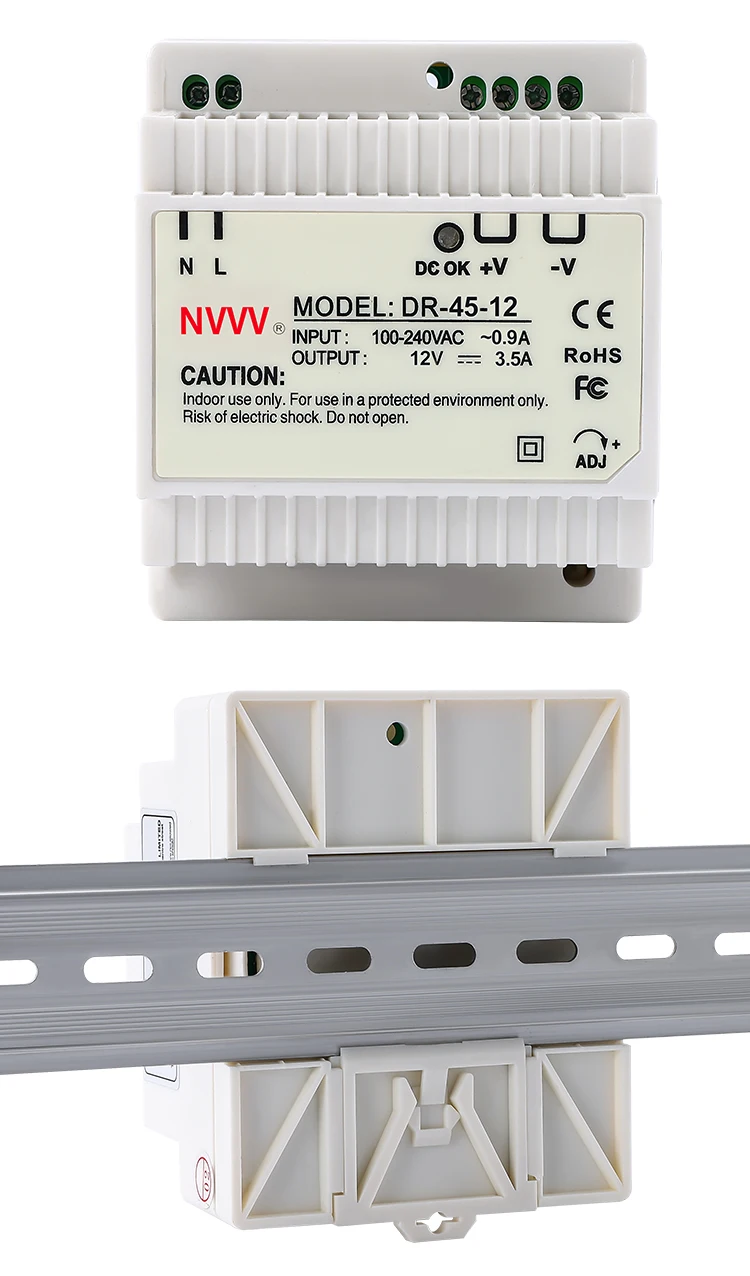

DR 45w 12v AC to DC 45W Transformer Industrial DIN Rail 12vdc power supply din rail for industrial DR 45 12
- Category: >>>
- Supplier: Zhejiang Junlin Electric Technology Co. Ltd.
Share on (10000008703525):
Product Overview
Description
Product Description
Specification
DR-45 45W Rail Type Switching Power Supply | ||||||||||
Project | Technical index | |||||||||
Output | DC voltage | 12V | 24V | |||||||
Rated current | 3.5A | 2A | ||||||||
Rated power | 42W | 48W | ||||||||
Ripple and noise ① | ＜120mV | ＜150mV | ||||||||
Voltage accuracy | ±1% | |||||||||
Output voltage regulation range | ±10% | |||||||||
Load adjustment rate | ±1% | |||||||||
Linear adjustment rate | ±1% | |||||||||
Input | Voltage range | 85-264VAC 47Hz～63Hz (120VDC～370VDC) | ||||||||
Efficiency (typical) ② | ＞82% | ＞84% | ||||||||
Working current | ＜1A 110VAC ＜0.5A 220VAC | |||||||||
Impulse current | 110VAC 15A， 220VAC 30A | |||||||||
Start, rise, hold time | 100ms、30ms、21ms ：110VAC/100ms、30ms、100ms ：220VAC | |||||||||

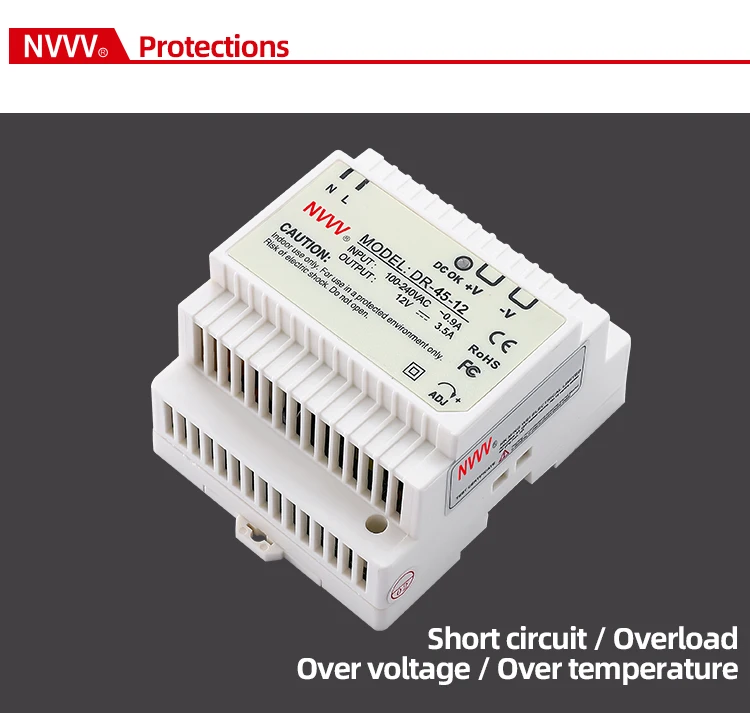

Protect | overload protection | ≥ 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | ||||||||
Short circuit protection | +VODrop to undervoltage point to close output | |||||||||
Environmental Science | Working temperature and humidity | -10℃～+50℃；20%～90RH | ||||||||
Working temperature and humidity | -20℃～+85℃；10%～95RH | |||||||||
Safety regulations | Withstand voltage | Input output: 3kVac: 0.5kvac for 1 minute | ||||||||
Isolation resistance | Input output, input shell, output shell: 500VDC / 100M Ω | |||||||||

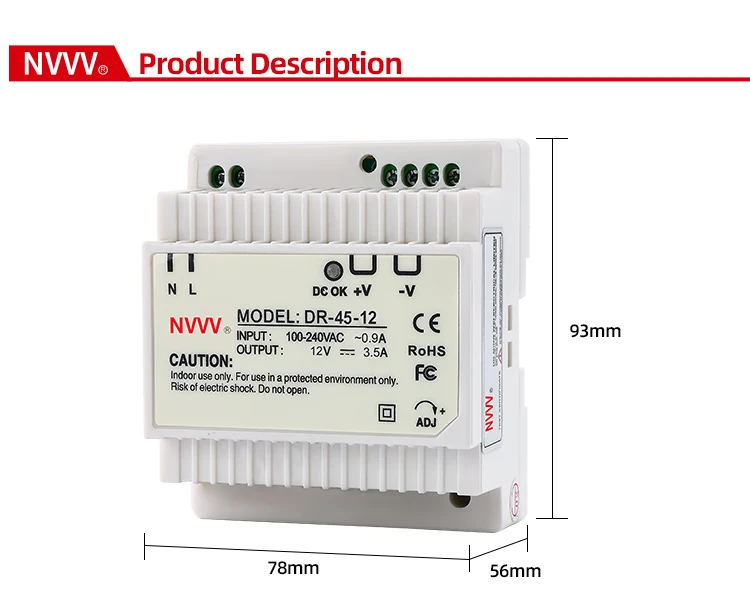

Other | Size | 78*93*56mm | ||||||||
Net/Gross weight | 270/290g | |||||||||
Company Profile
Our Team
Packaging & Shipping
FAQ
Q1:How many Voltage you can supply?
A: 12v , 24v , 48v , 50v , 60v , 110v (Depend on items).
A: 12v , 24v , 48v , 50v , 60v , 110v (Depend on items).
Q2：Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable. At the same time, we have overseas warehouses so that you can get the products faster.
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable. At the same time, we have overseas warehouses so that you can get the products faster.
Q3：Do you have any MOQ limited for the order?
A: Low MOQ, 1pc for sample checking is available.
A: Low MOQ, 1pc for sample checking is available.
Q4：How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or EMS. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
A: We usually ship by DHL, UPS, FedEx, or EMS. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5：Do you offer a guarantee for the products?
A: Yes, we offer a warranty on our products.
A: Yes, we offer a warranty on our products.
Q6: How to deal with the faulty?
A: Firstly, our products are produced in a strict quality control system and the defective rate will be less. Secondly, during the guarantee period, we will send new products with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
A: Firstly, our products are produced in a strict quality control system and the defective rate will be less. Secondly, during the guarantee period, we will send new products with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
