20TPD complete set combined Rubber roller rice mill
- Category: Grain Processing Machinery >>>
- Supplier: Hunan Sunfield Machinery Co. Ltd.
Share on (10000008724498):
Product Overview
Description
Products Description

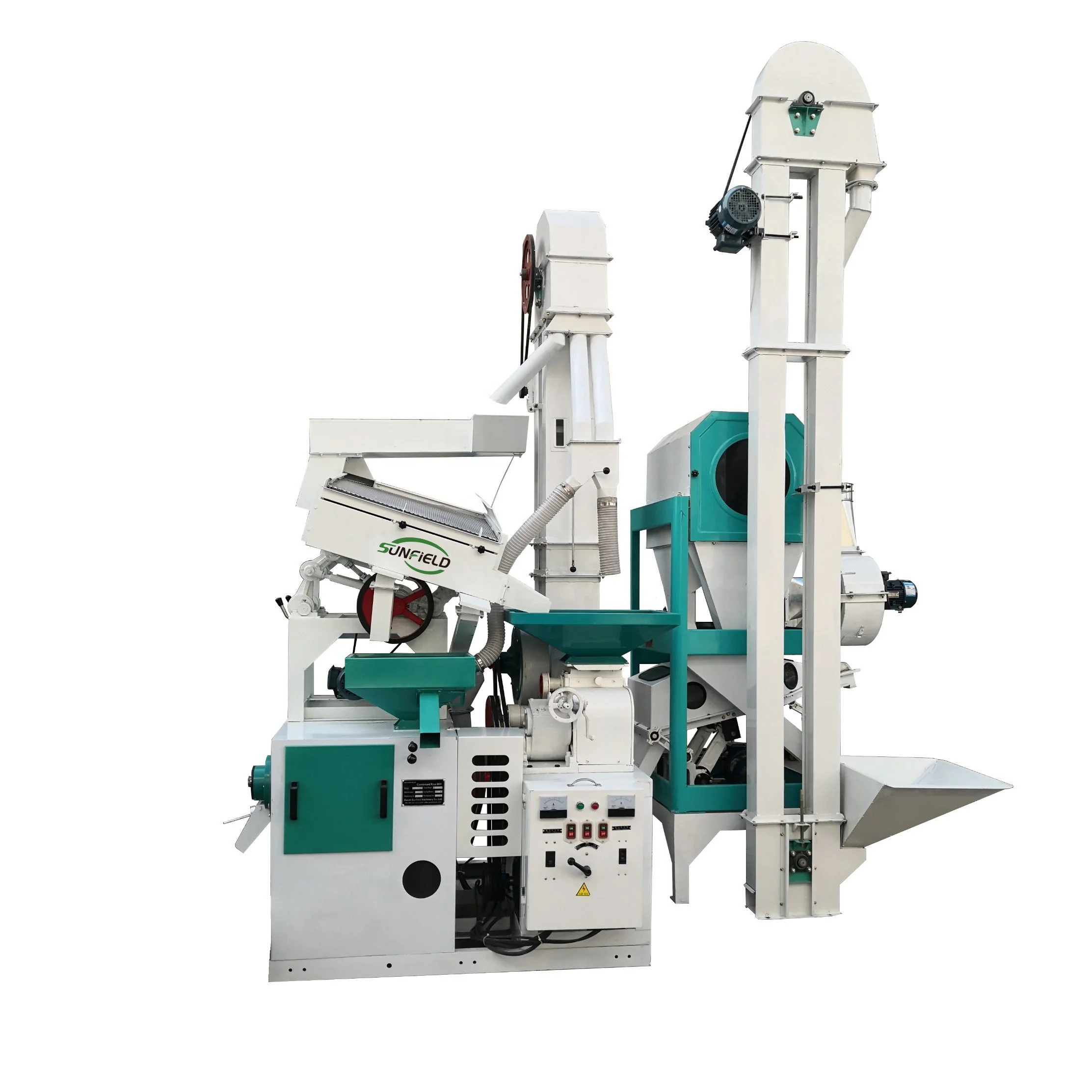

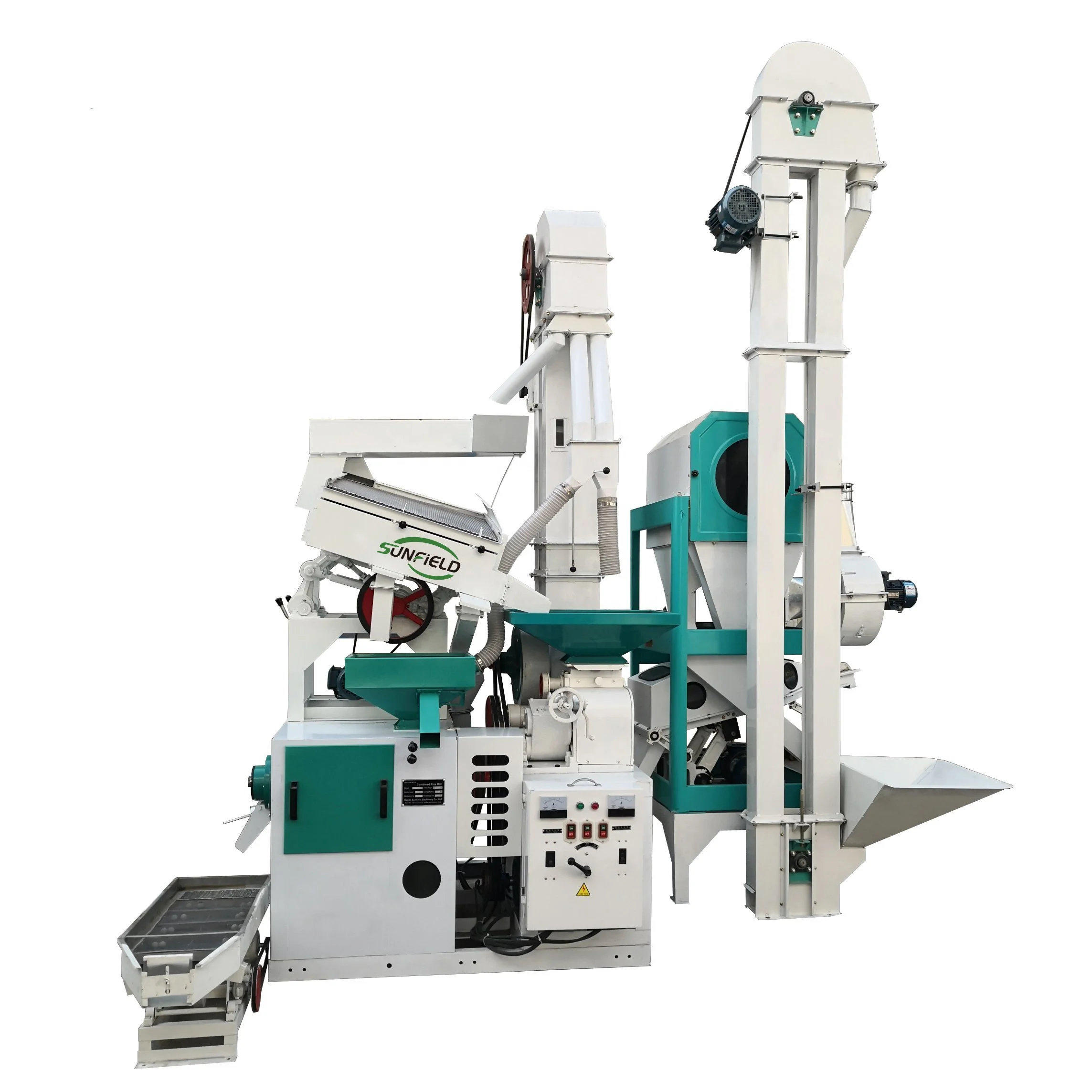

800-1000kg/h Combined Rice Milling Machine

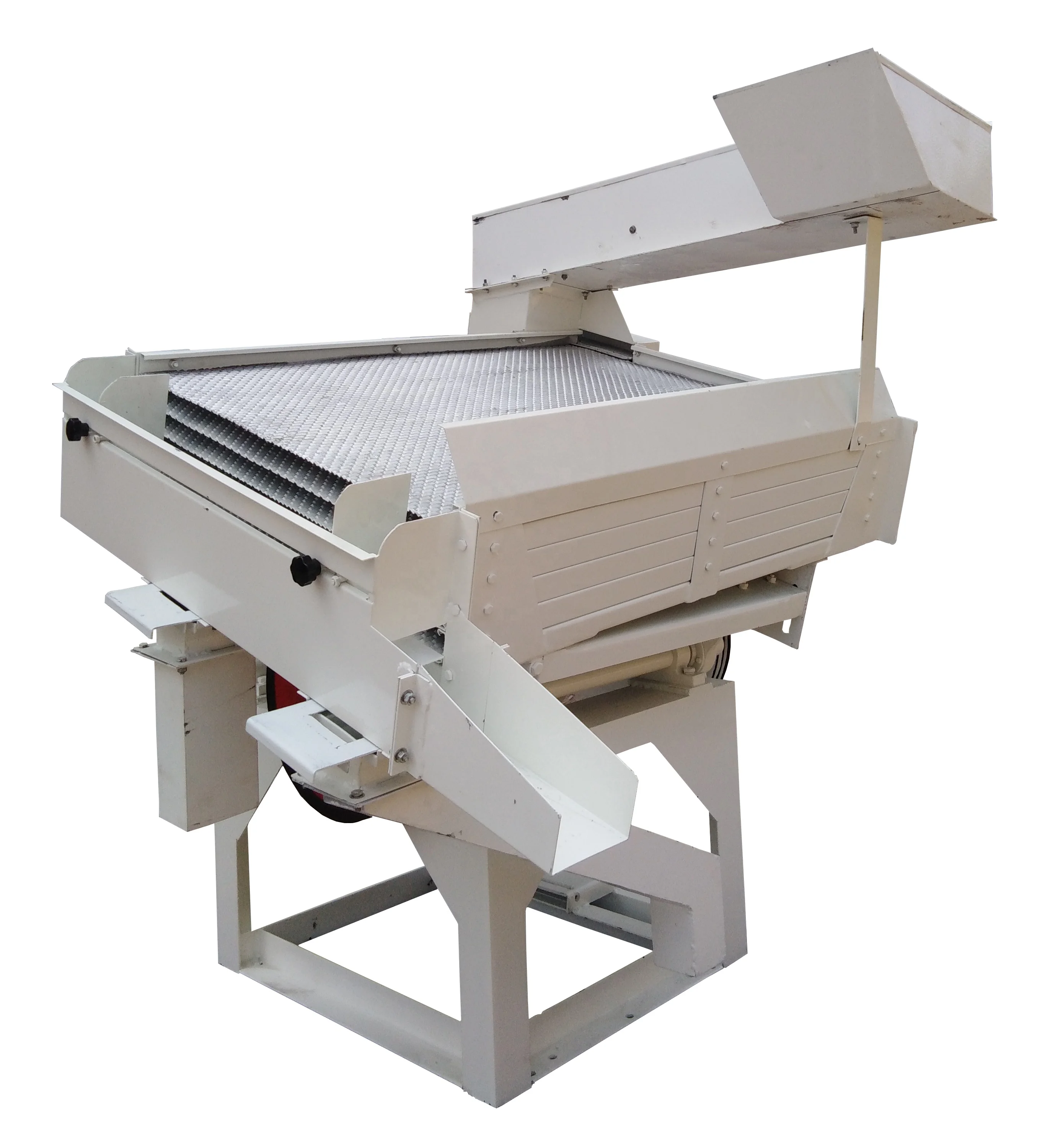

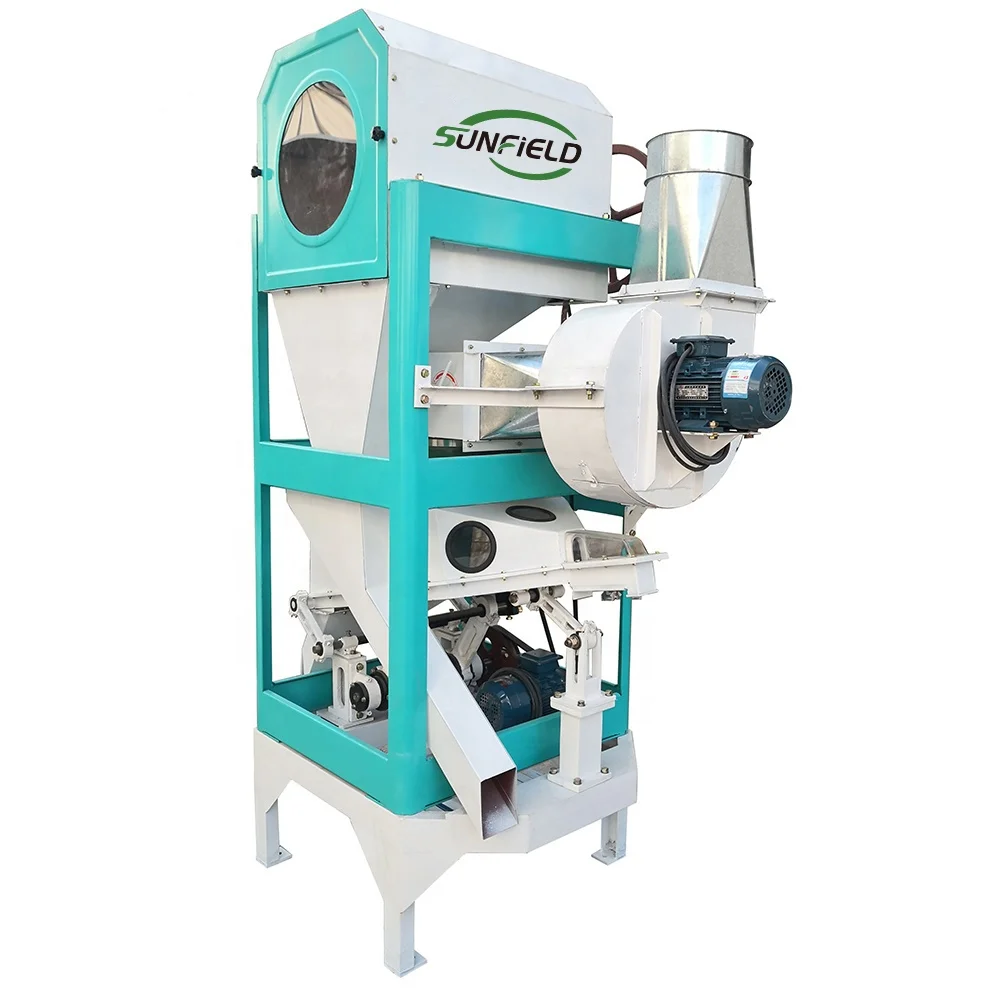

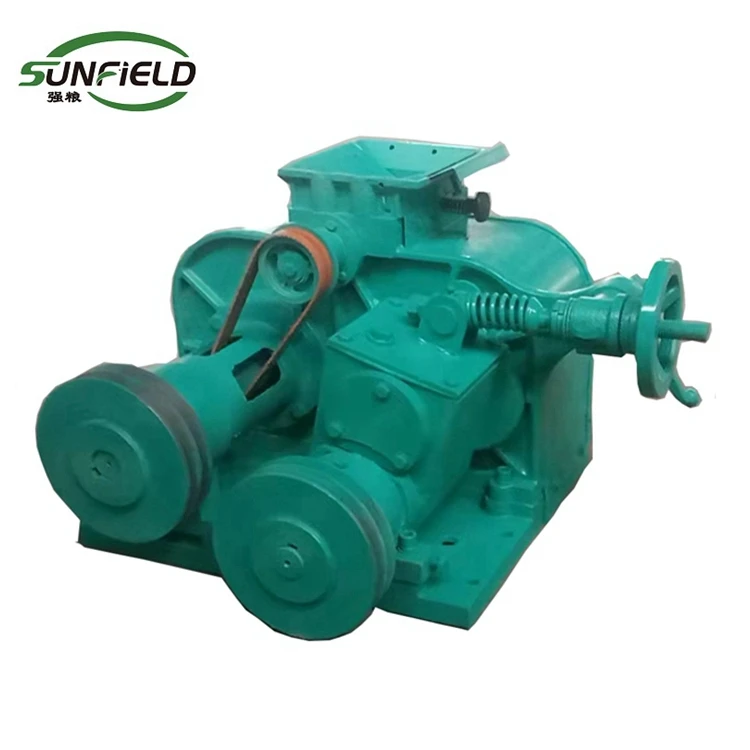

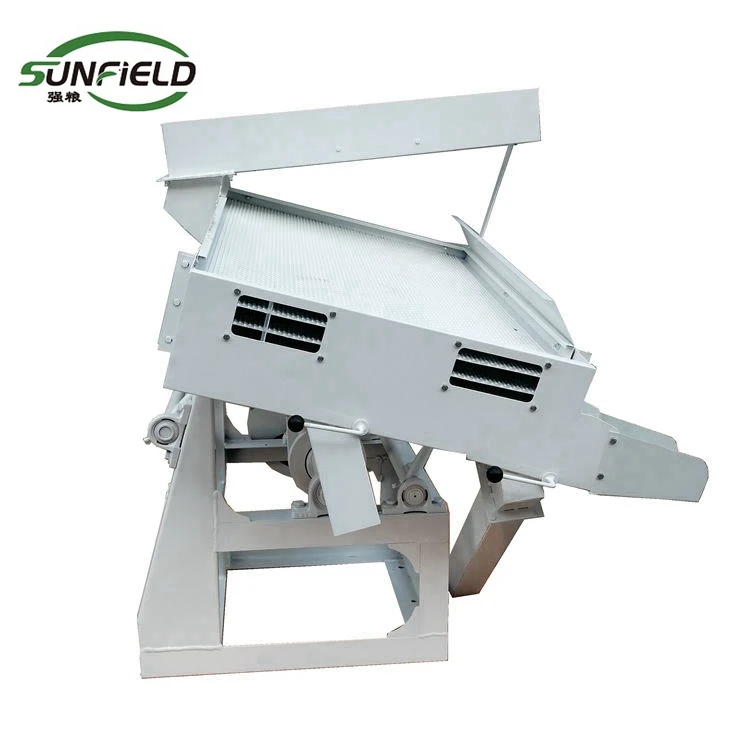

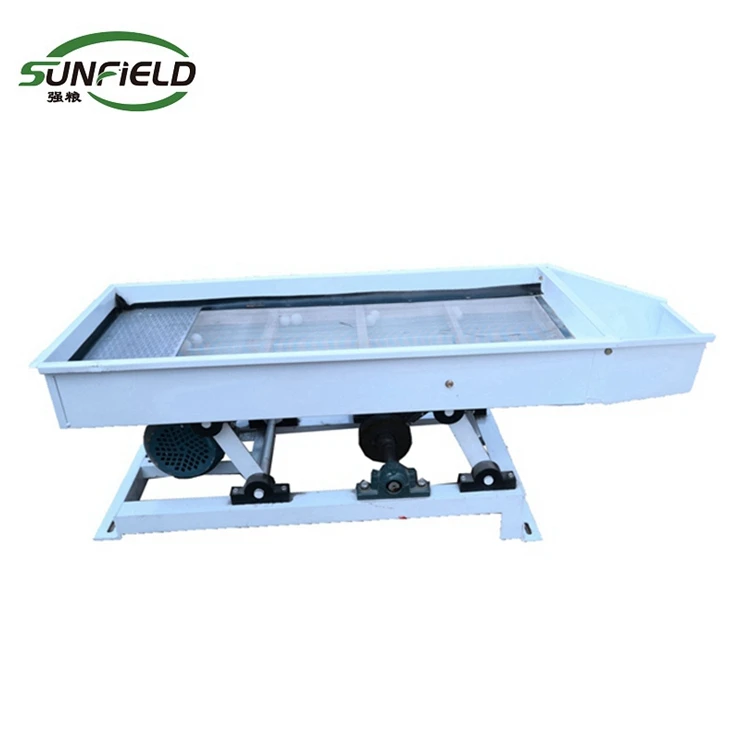

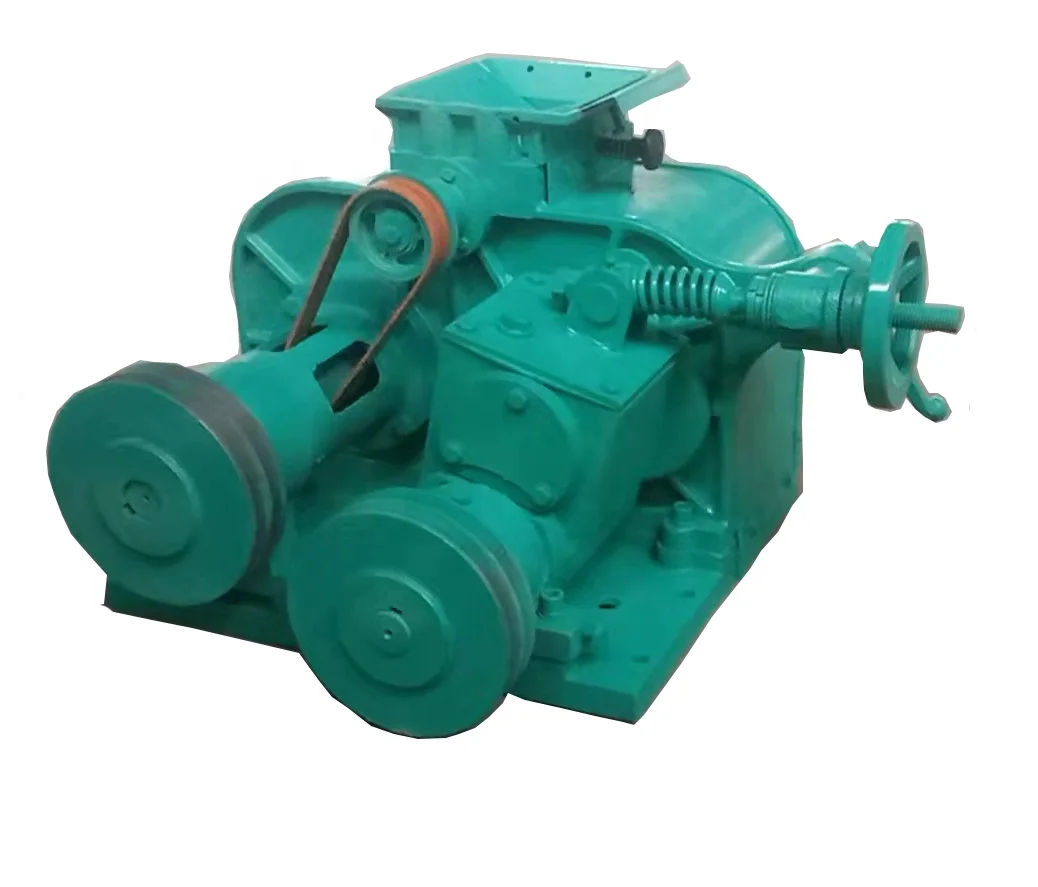

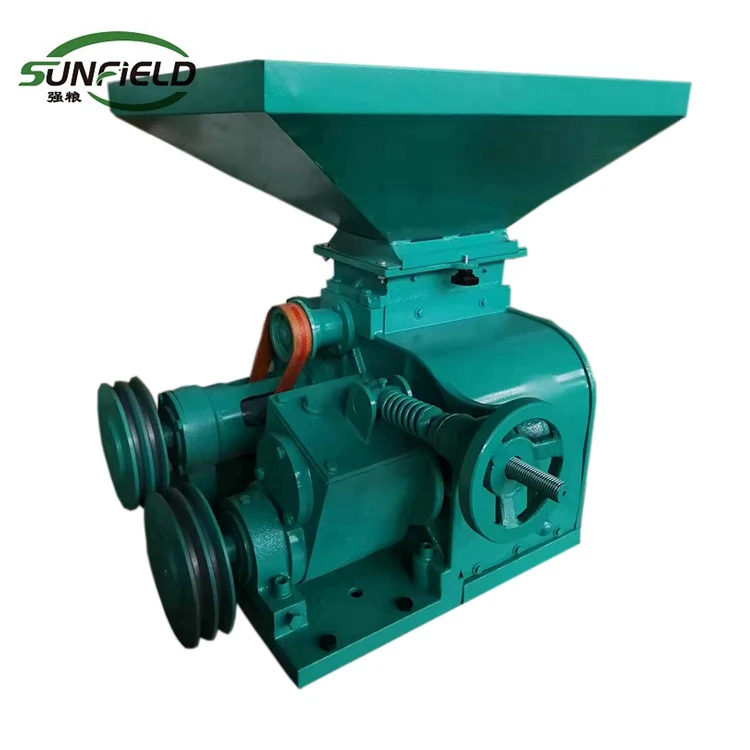

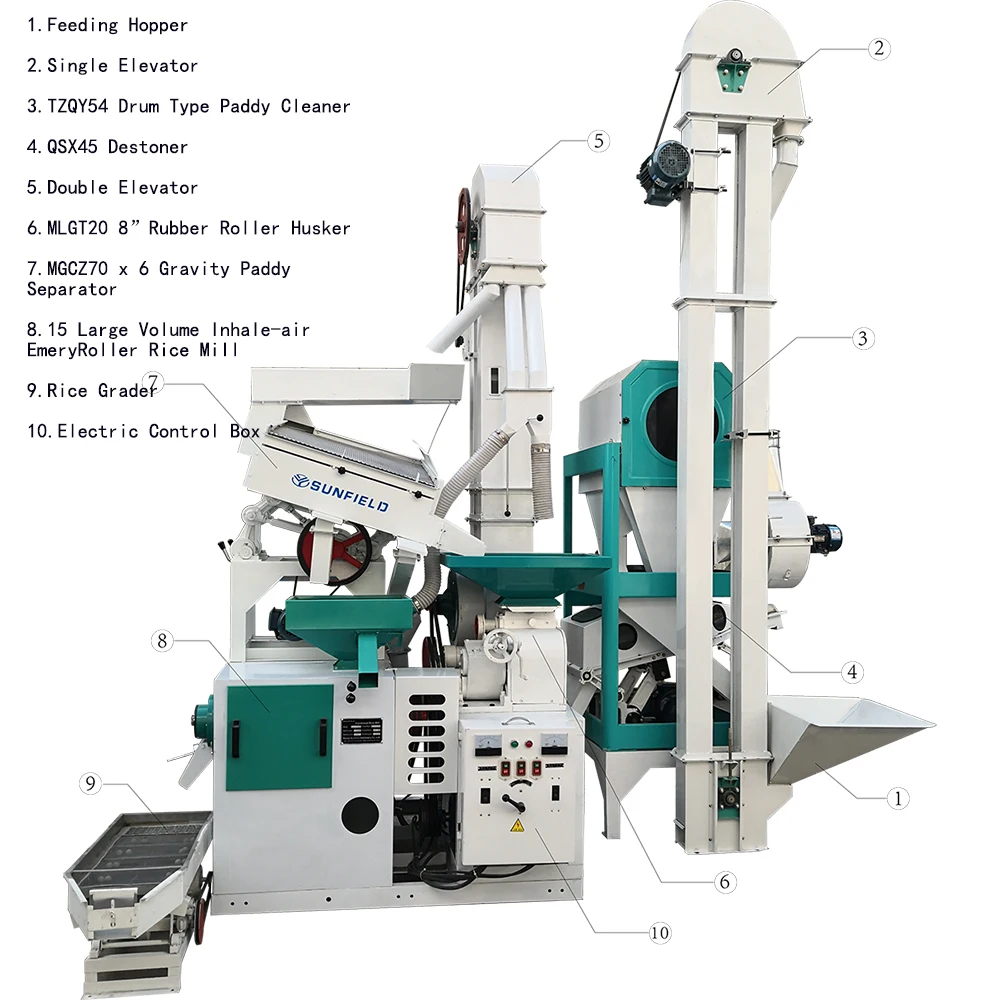

6LN-20/15SA Combined Rice Milling Machine is combined by TZQY54 drum paddy cleaner, QSX45 de-stoner, 8-inch rubber roller husker, gravity
paddy separator, large volume inhale-air emery roller rice mill, rice grader, Elevators. Revolutionally equipped with drum type cleaning machine which engifted very strong cleaning efficiency, great brown rice separating and rice whitening performance, easy
operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level; with direct optional brown rice outlet, provides users with a flexible multifunctional rice milling solution. At the meantime, we reserved the possibility to
match the follow up equipment such as multi-layer rice grader, rice polisher, color sorter etc., to improve the milling performance or extending its functions
paddy separator, large volume inhale-air emery roller rice mill, rice grader, Elevators. Revolutionally equipped with drum type cleaning machine which engifted very strong cleaning efficiency, great brown rice separating and rice whitening performance, easy
operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level; with direct optional brown rice outlet, provides users with a flexible multifunctional rice milling solution. At the meantime, we reserved the possibility to
match the follow up equipment such as multi-layer rice grader, rice polisher, color sorter etc., to improve the milling performance or extending its functions
Technical Parameters
Model | 6LN-20/15SA |
Rated output ( kg/h) | 800-1000 |
Matched power (kW) | 25.32 |
Rice milling rate | 68-72% |
Small broken rice rate | <2% |
Rubber roller dimension(mm) | φ225×152 |
Emery roller dimension(mm) | φ200×400 |
Overall weight（kg） | 1350 |
Overall dimension(L×W×H)(mm) | 3300×1200×3400 |
Packing Size(L×W×H)(mm) | 1530×1320×2280 1200×750×2000 |
Product Features
* Unibody base designed for convenient transportation and installation, stable operation, low space occupation, it improves
production efficiency by the unique re-hulling leftover paddy design.
* Innovative emery roller whitening technology, low rice temperature, less bran remains, improves the rice quality.
* Smooth processing flow, easy operation for just one person.

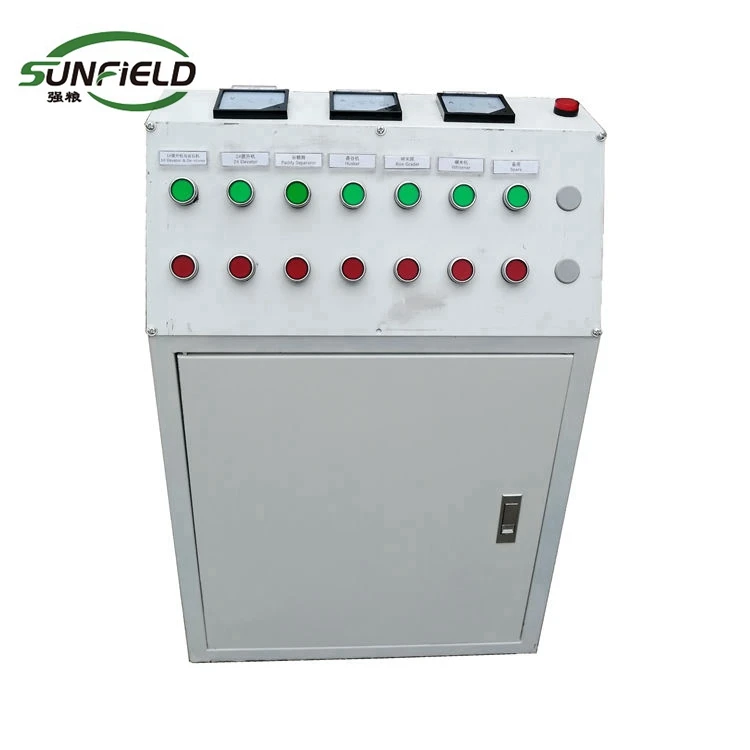

* Independent safe electric control system for more convenient operation.
* Improved transmission system extends duration of consumption parts
* Modula design, reserves connectivity with follow up equipment to double mill, grade and sort for better rice quality.
* Low investment and high yield
production efficiency by the unique re-hulling leftover paddy design.
* Innovative emery roller whitening technology, low rice temperature, less bran remains, improves the rice quality.
* Smooth processing flow, easy operation for just one person.
* Independent safe electric control system for more convenient operation.
* Improved transmission system extends duration of consumption parts
* Modula design, reserves connectivity with follow up equipment to double mill, grade and sort for better rice quality.
* Low investment and high yield

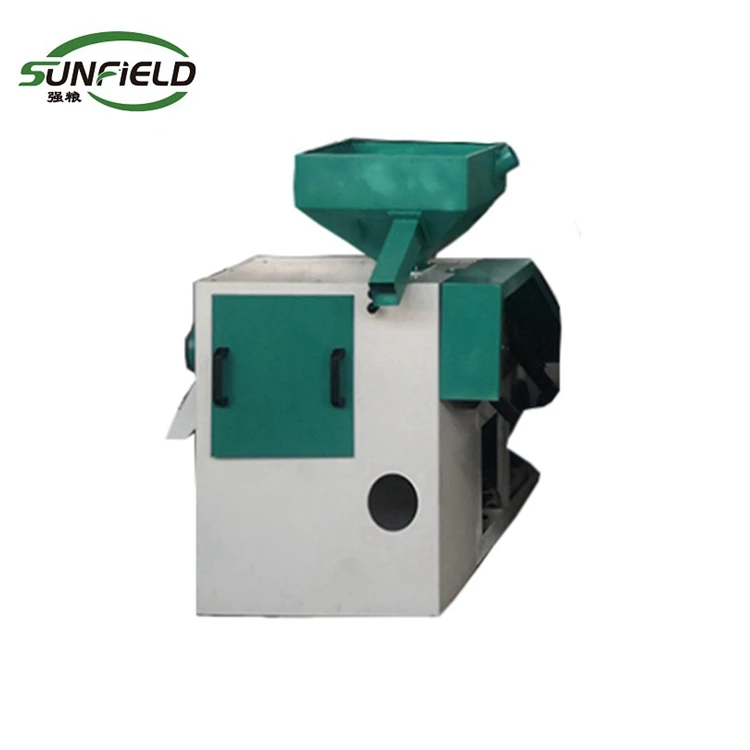

Details Images

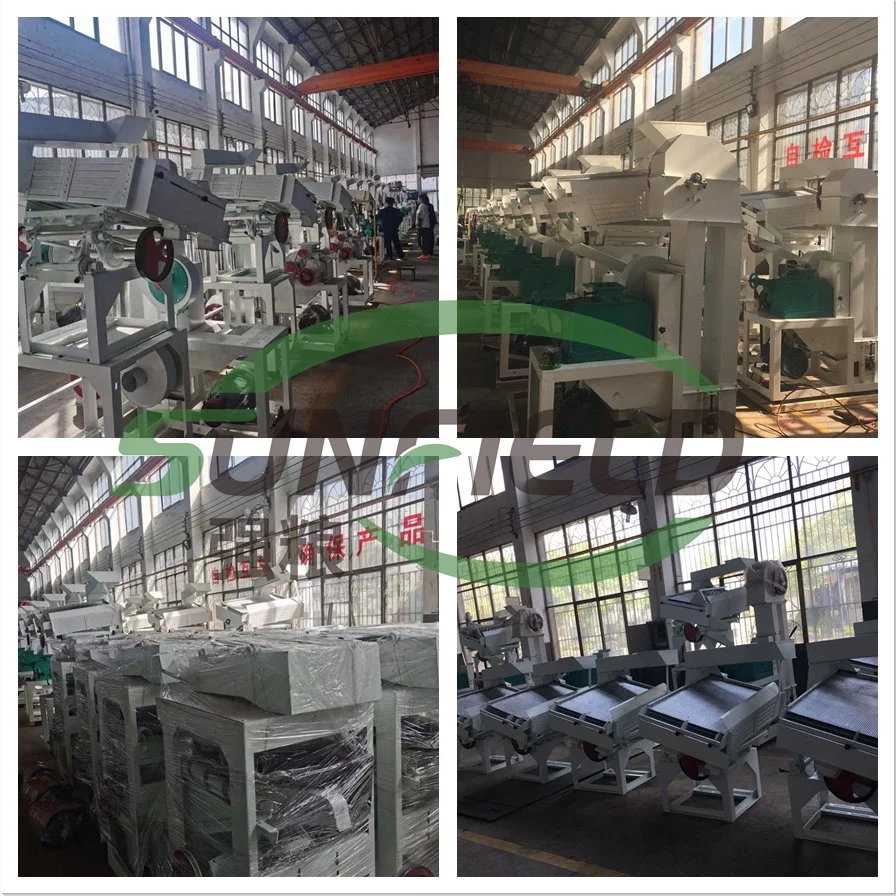

Company Profile
Who are we?
Hunan Sunfield Machinery Co., Ltd. is a high-tech and professional manufacturer of Combined Rice Milling Machines and Complete-set Rice Milling Equipment, covering the whole processing from paddy cleaning, de-stoning, husking, separation, rice milling,
polishing, grading, color sorting to packing.
As a Chinese leading manufacturer andexporter of rice milling machines, our products include the 400kg per hour to 1,000kg per
hour Combined Rice Milling machines and 20 ton per day to 120 ton per day Complete-set Rice Milling Equipment, which are multifunctional, user-friendly,cost-effective and good performance, produced under dozens of product patents in design and
technology.
polishing, grading, color sorting to packing.
As a Chinese leading manufacturer andexporter of rice milling machines, our products include the 400kg per hour to 1,000kg per
hour Combined Rice Milling machines and 20 ton per day to 120 ton per day Complete-set Rice Milling Equipment, which are multifunctional, user-friendly,cost-effective and good performance, produced under dozens of product patents in design and
technology.

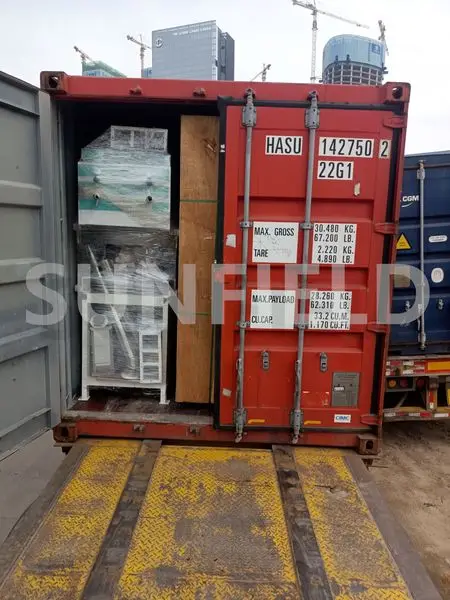

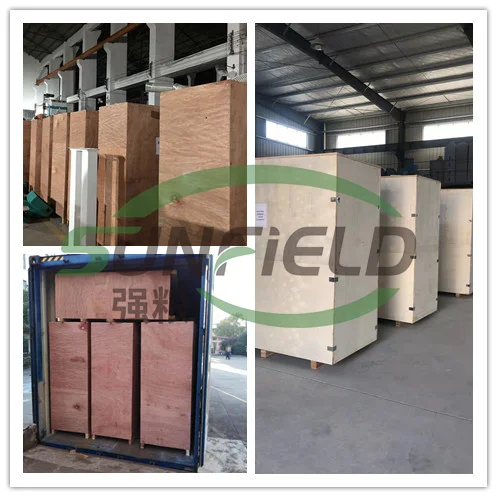

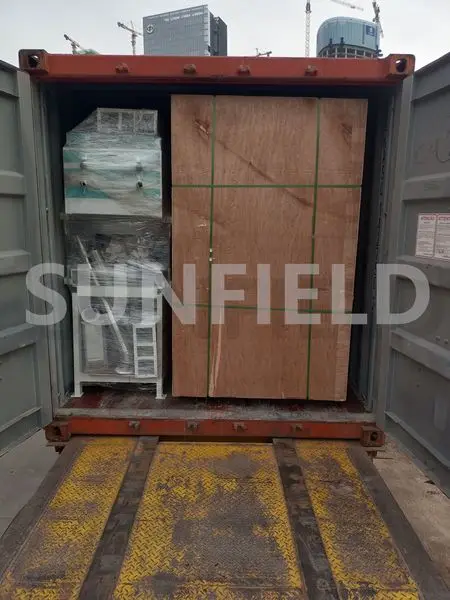

Packing & Delivery
Delivery
Products will be finished in 15-20 working days after payment. It depends on your order quantity. And the shipping time to the port is about 1-2 days
