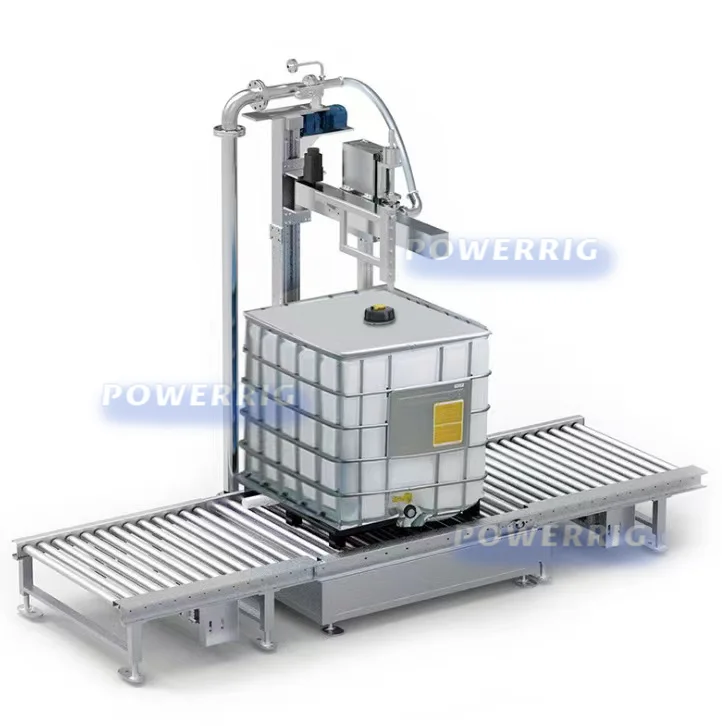

Automatic 200L 1000L Motor Lube Oil Lubricant Drum And Tank Weighing Ibc Filling Machine
- Category: >>>
- Supplier: Changzhou Powerrig Machinery Technology Co. Ltd.
Share on (10000008729298):
Product Overview
Description
The computerized quantitative filling machine has feeding system, weighing system, frame, pneumatic control, control system, powerless roller, etc.
Feeding method: continuous and stable feeding is required (feeding pump is used for pressurized feeding)
Feeding mechanism is executed by solenoid valve through cylinder for fast and slow feeding respectively.
Filling method: ordinary conventional filling and lifting submerged filling (choose according to the need when ordering)
Weighing system consists of weighing bracket, sensor, weighing platform equipped with non-powered roller and rack support and filling system.
Pneumatic control system: control fast and slow feeding valve.
The weighing platform is not allowed to be subjected to additional additional external forces during use.
Feeding method: continuous and stable feeding is required (feeding pump is used for pressurized feeding)
Feeding mechanism is executed by solenoid valve through cylinder for fast and slow feeding respectively.
Filling method: ordinary conventional filling and lifting submerged filling (choose according to the need when ordering)
Weighing system consists of weighing bracket, sensor, weighing platform equipped with non-powered roller and rack support and filling system.
Pneumatic control system: control fast and slow feeding valve.
The weighing platform is not allowed to be subjected to additional additional external forces during use.
Filling capacity | 8-12 BBL / h |
Filling capacity | 200kg-1 ton |
Filling accuracy | 0.3% |
Power supply | L1, L2, L3, N PE |
Voltage | 380V 50HZ |
Power supply | 7.5kW |
Weight | 260kg |
Overall Size | 1400 * 2300 * 2200mm (length * width * height) |

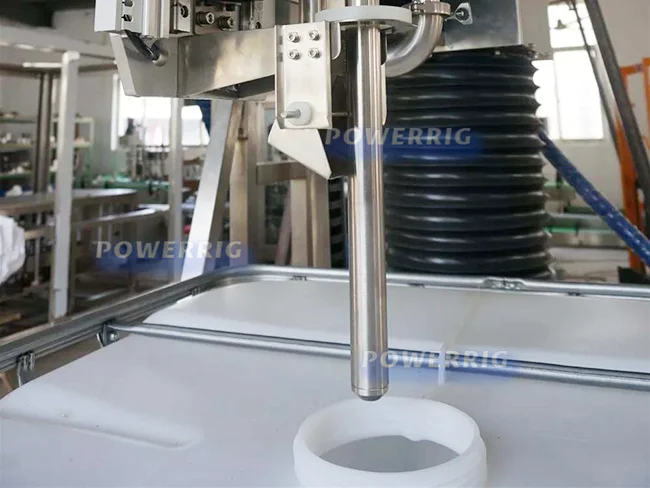

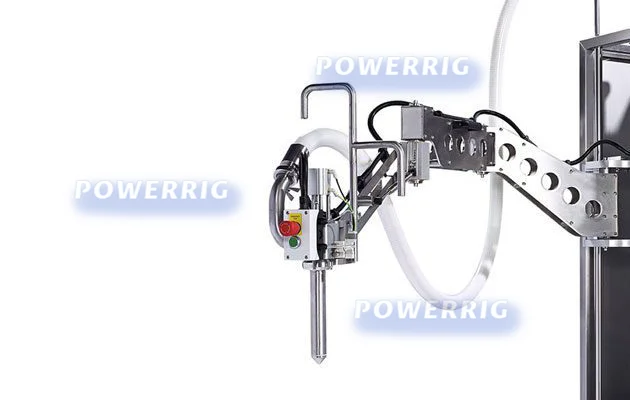

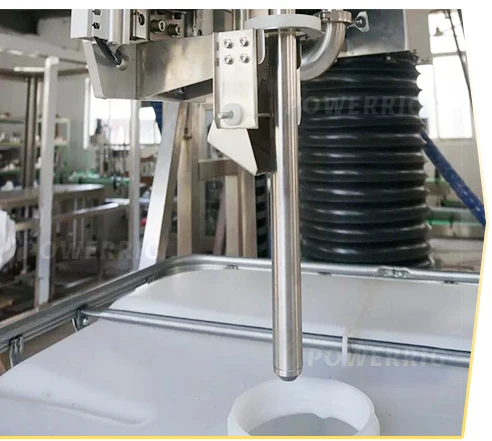

Filling head
Automatic diving, quantitative precision filling

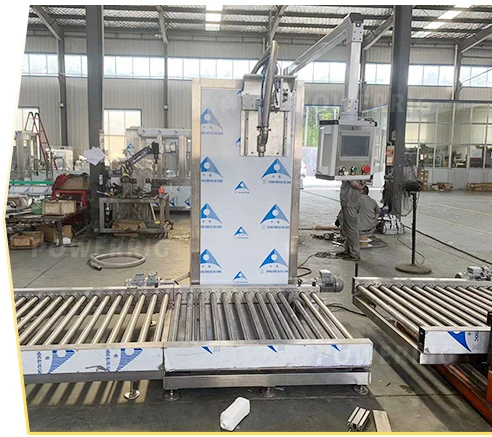

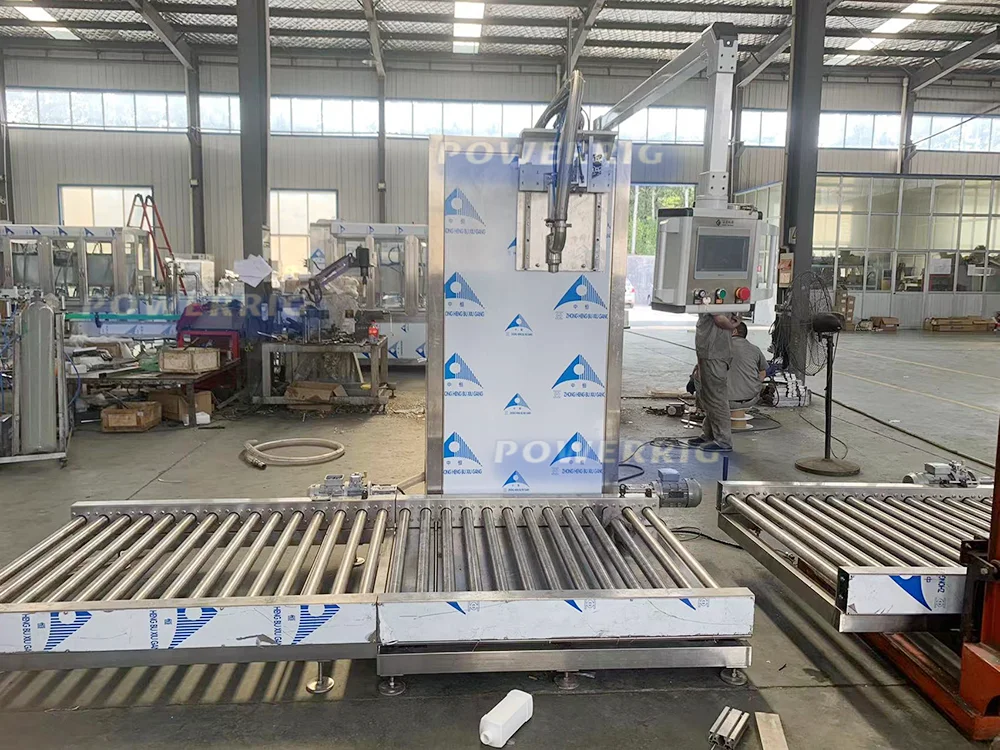

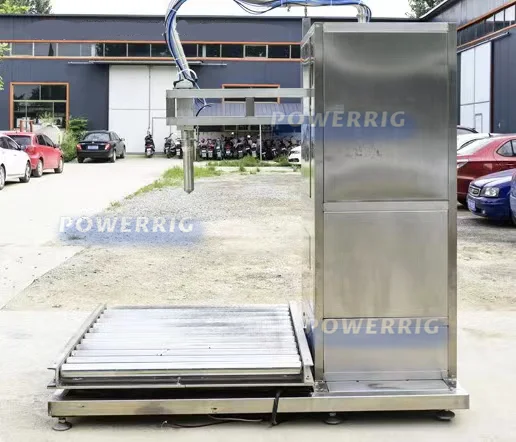

Roller conveyor

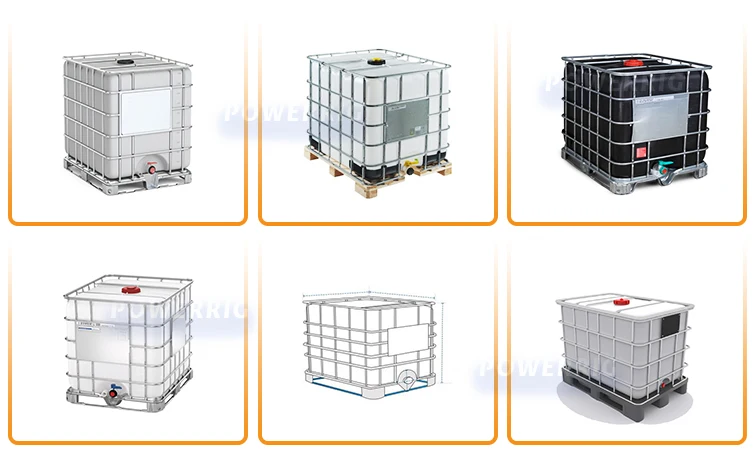

Suitable for high weight IBC, equipped with weighing device, automatically stop filling when detected weight reaches the set amount.
