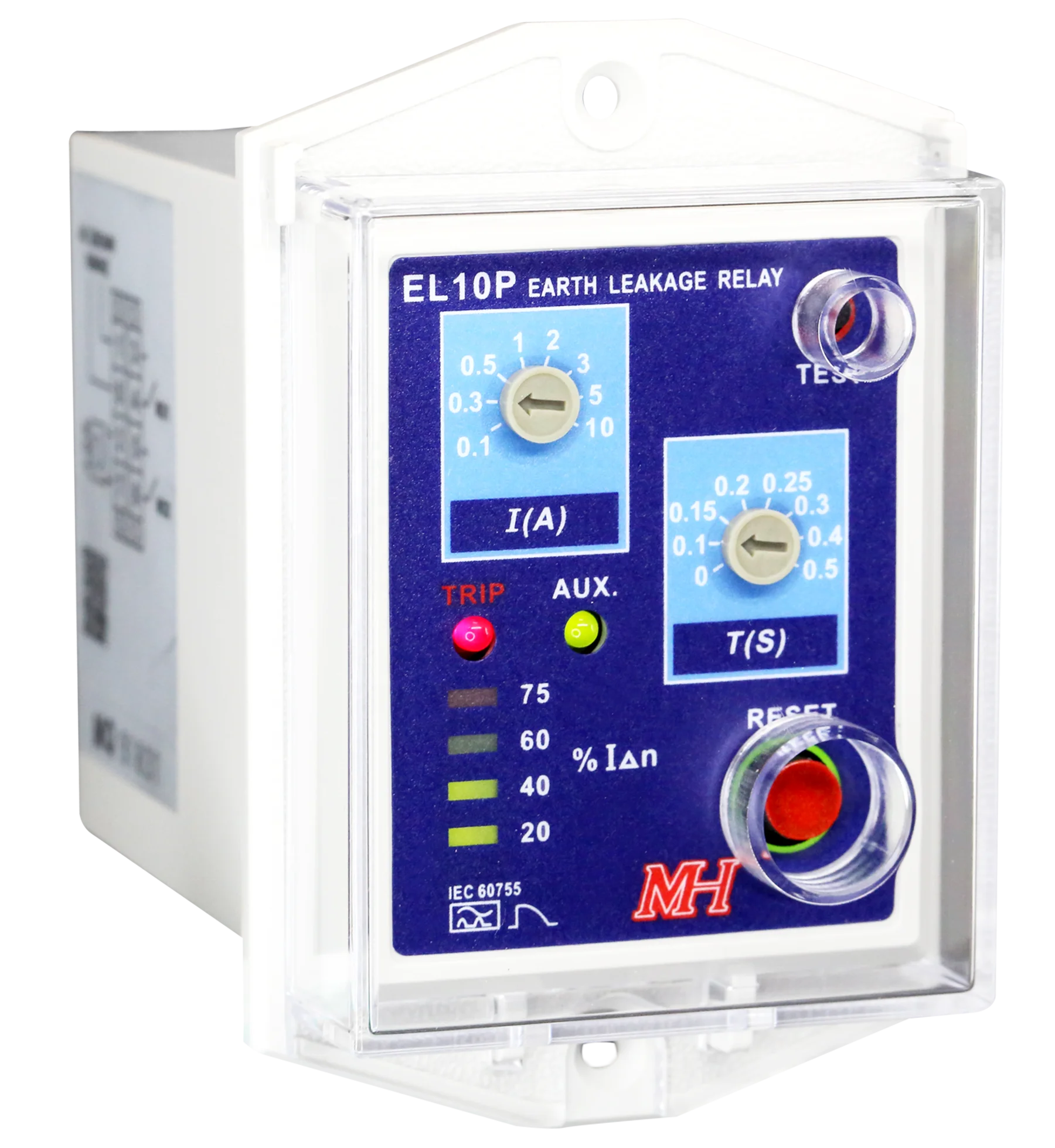

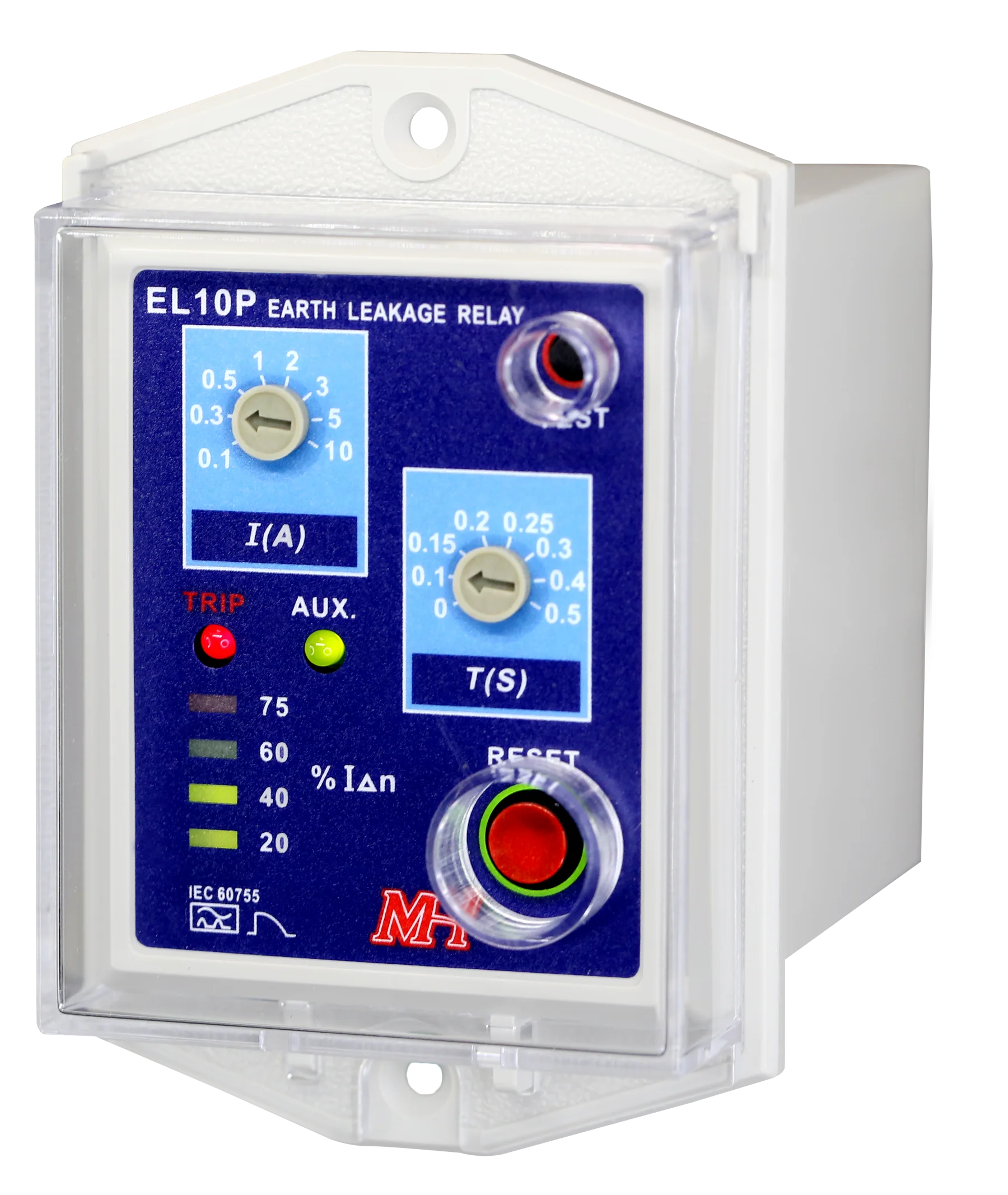

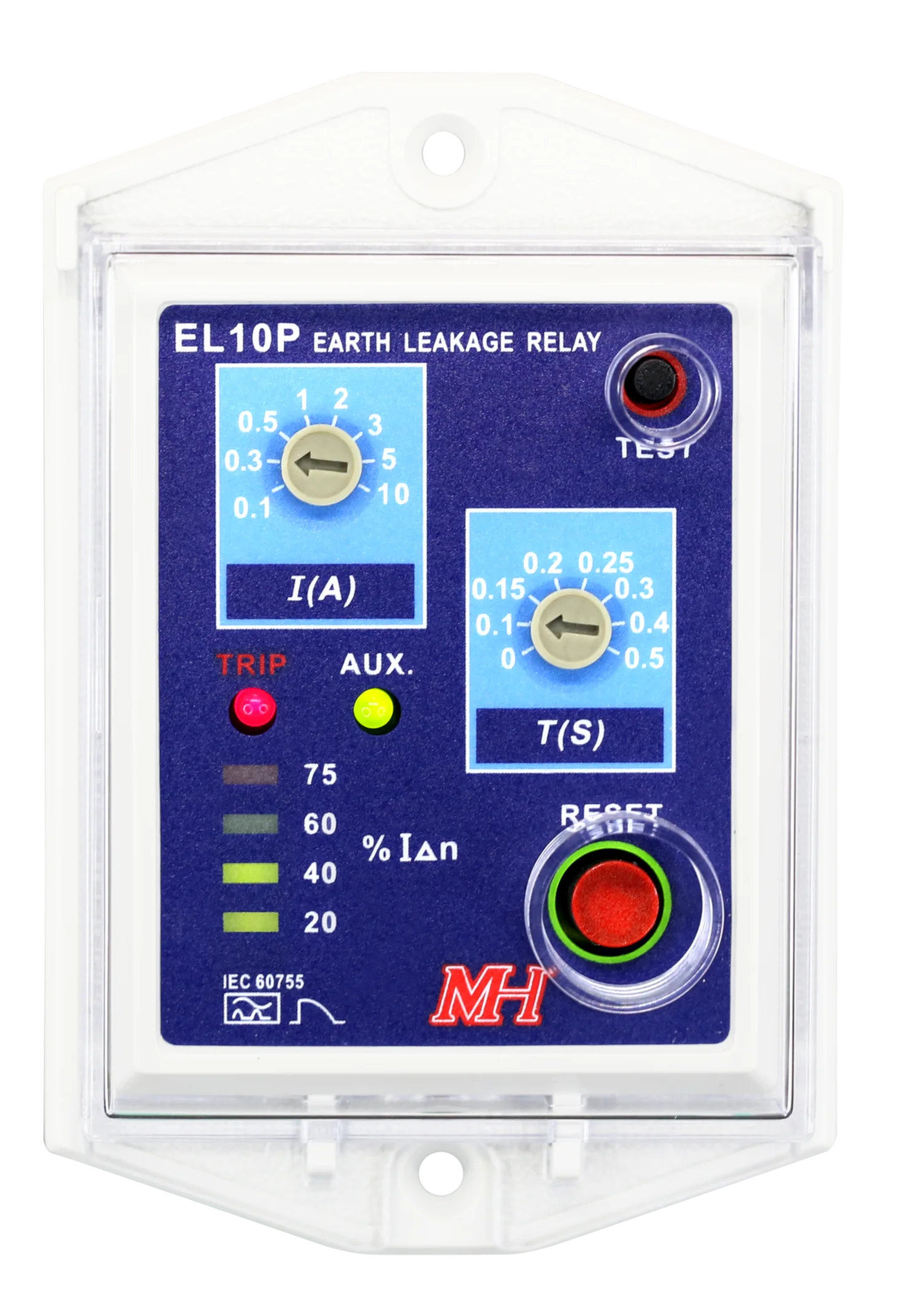

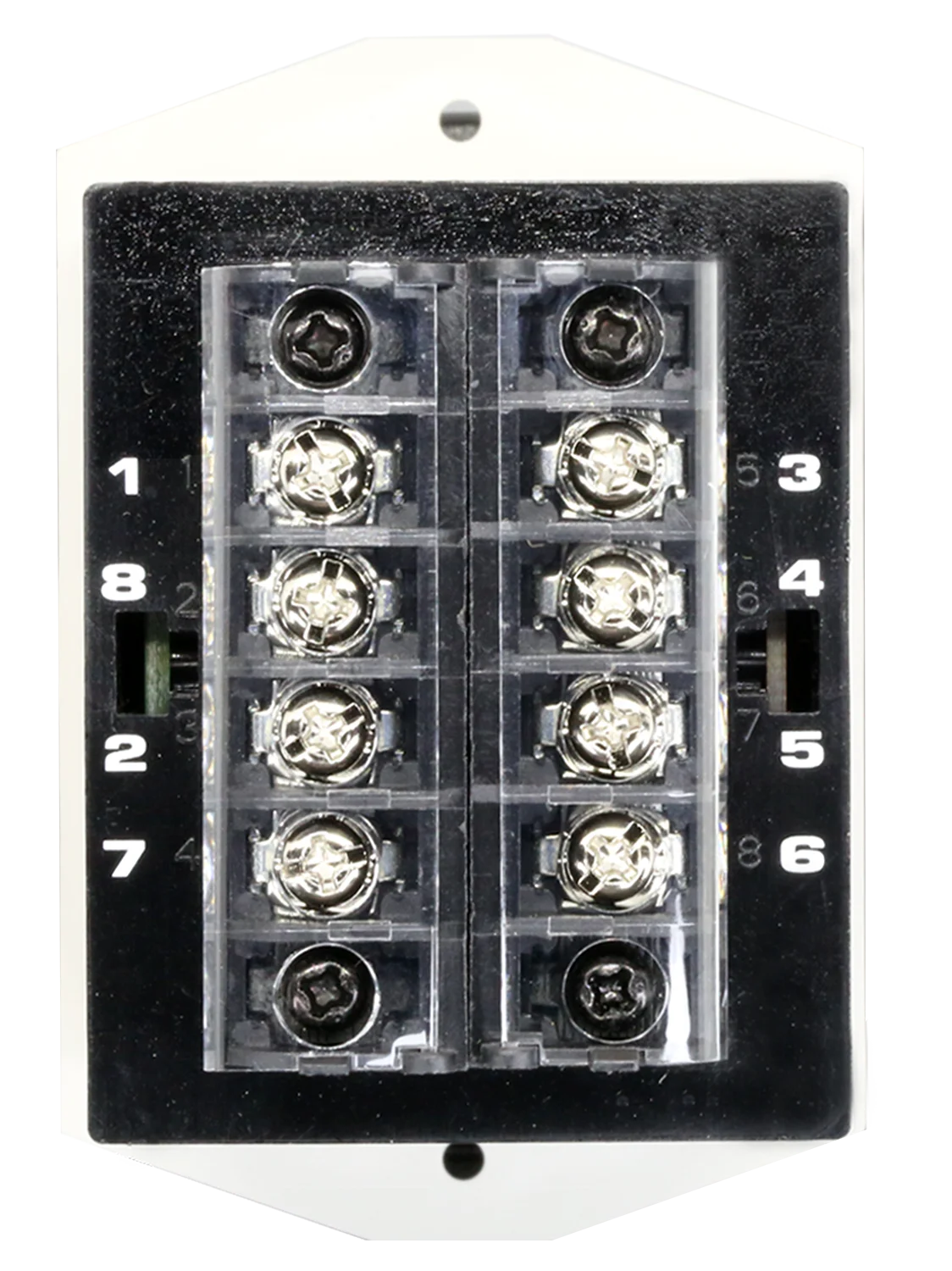

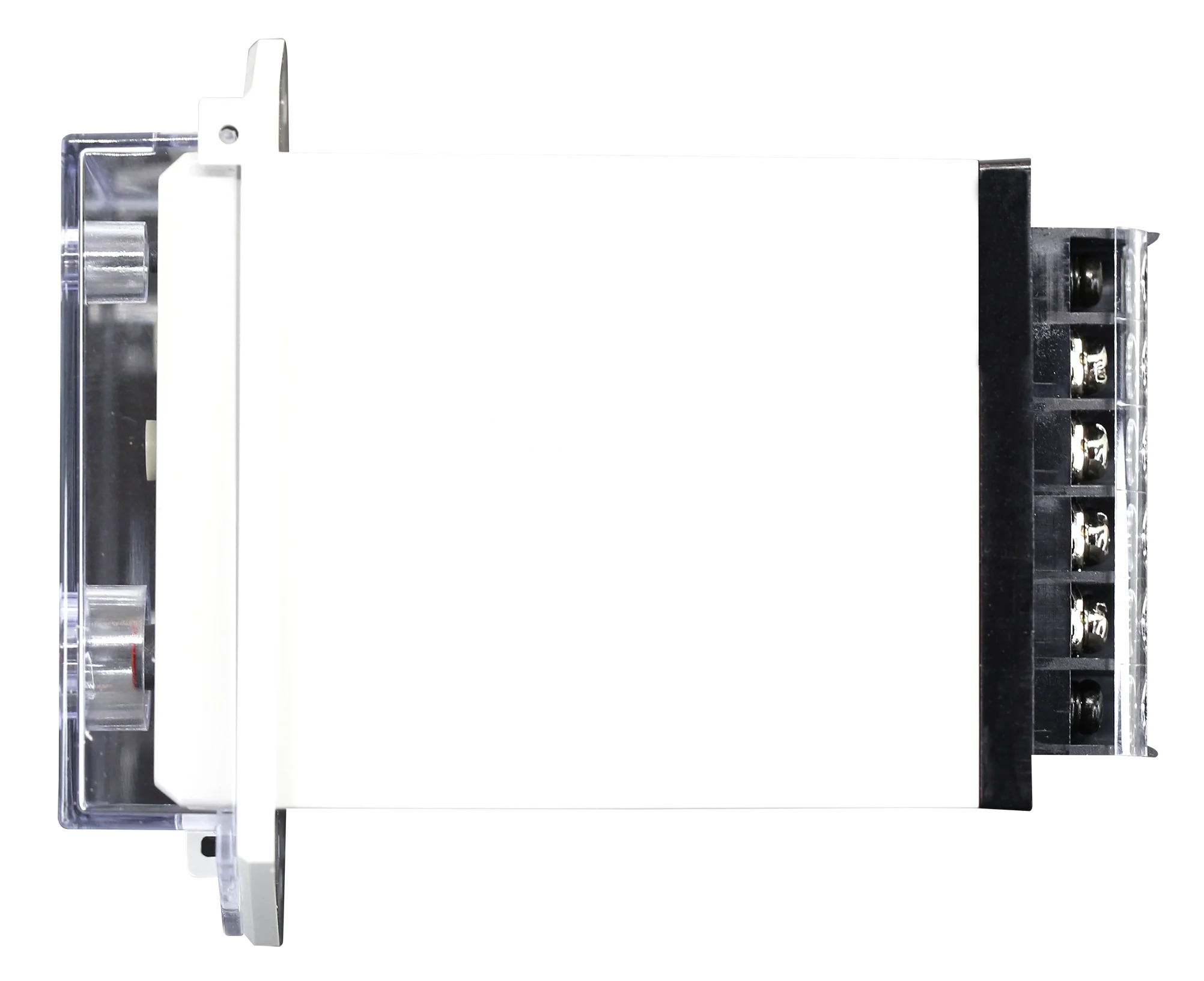

MH Earth Leakage Relay EL 03P & 10P & 30P Residual Current Device Rated Residual Operating Current 0.03 to 30A
- Category: Electrical Instruments >>>
- Supplier: MUN HEAN SINGAPORE PTE LTD
Share on (10000008739385):
Product Overview
Description
Products Description
The MH EL P Series is a panel-mounted earth leakage relay. It is designed to monitor and protect the low voltage distribution system through the use of a zero-sequence current transformer. MH EL P Series is designed in accordance with IEC 60755 Type A & AC operation. It provides a real-time monitoring of earth leakage current, alarm for ZCT input
error and comes with two output contacts.
Highlights of EL P Series
- Earth Leakage Current protection
- IEC 60755 Type A and AC performance
- Self diagnostic with alarm for ZCT input error
- IEC 60755 Type A and AC performance
- Self diagnostic with alarm for ZCT input error
- Panel Mount
- Simple, compact and user friendly
- Fully type tested by accredited laboratory
- Simple, compact and user friendly
- Fully type tested by accredited laboratory
Applications
Incoming feeder protection
Outgoing feeder protection
Earth Leakage protection
Product Parameters
Characteristic | EL03P | EL10P | EL30P | ||||
Protection functions | Earth Leakage Protection, Residual Current Monitoring | ||||||
Power Supply | 230VAC ±15% (other voltages available on request) | ||||||
Operating frequency | 50 / 60 Hz | ||||||
Power consumption | Approximately 2.5VA | ||||||
Rated operating current setting | 0.03A / 0.1A / 0.3A / 0.5A / 1A / 1.5A / 2A / 3A | 0.1A / 0.3A / 0.5A / 1A / 2A / 3A / 5A / 10A | 0.5A / 1A / 3A / 5A / 10A / 15A / 20A / 30A | ||||
Definite time delay setting | Instantaneous / 0.1s / 0.15s / 0.20s / 0.25s / 0.30s / 0.40s / 0.50s(0 to 5 sec available on request) | ||||||
Operating temperature range | -10 to 55°C | ||||||
Relative humidity | <93%, non-condensing | ||||||
Degree of protection | IP31 (front), IP20 (back) | ||||||
Output | Relay output | 2 x N/O (normally open) contacts | |||||
Contact rating | 5A at 250VAC | ||||||
LED status indication | Normal operation, fault current detected or ZCT input error | ||||||
Housing material | ABS resin complying with UL94V0 | ||||||
Net weight | Approximately 300g | ||||||
Dimensions | 59mm (width) x 88mm (height) x 105mm (depth) | ||||||
Panel cut-out | 51mm (width) x 65mm (height) | ||||||
Standard compliance | IEC60255, CE Marking | ||||||
Connection Diagram
3P4W
3P3W
