40ml/mim, 4 rollers, 12V Peristaltic Pump with Exchangeable Pump Head, and PharMed BPT Peristaltic Tube

Product Overview

Description



We Know Peristaltic Pumps!!!

We provide Custom-Made Service & Technical Support 24 hours every day.



We are an original manufacturer with 30+ years of experience and ISO9001 certification.



We provide OEM/ODM/Custom-made services.



We build the samples in three working days and ship those samples from the factory in China

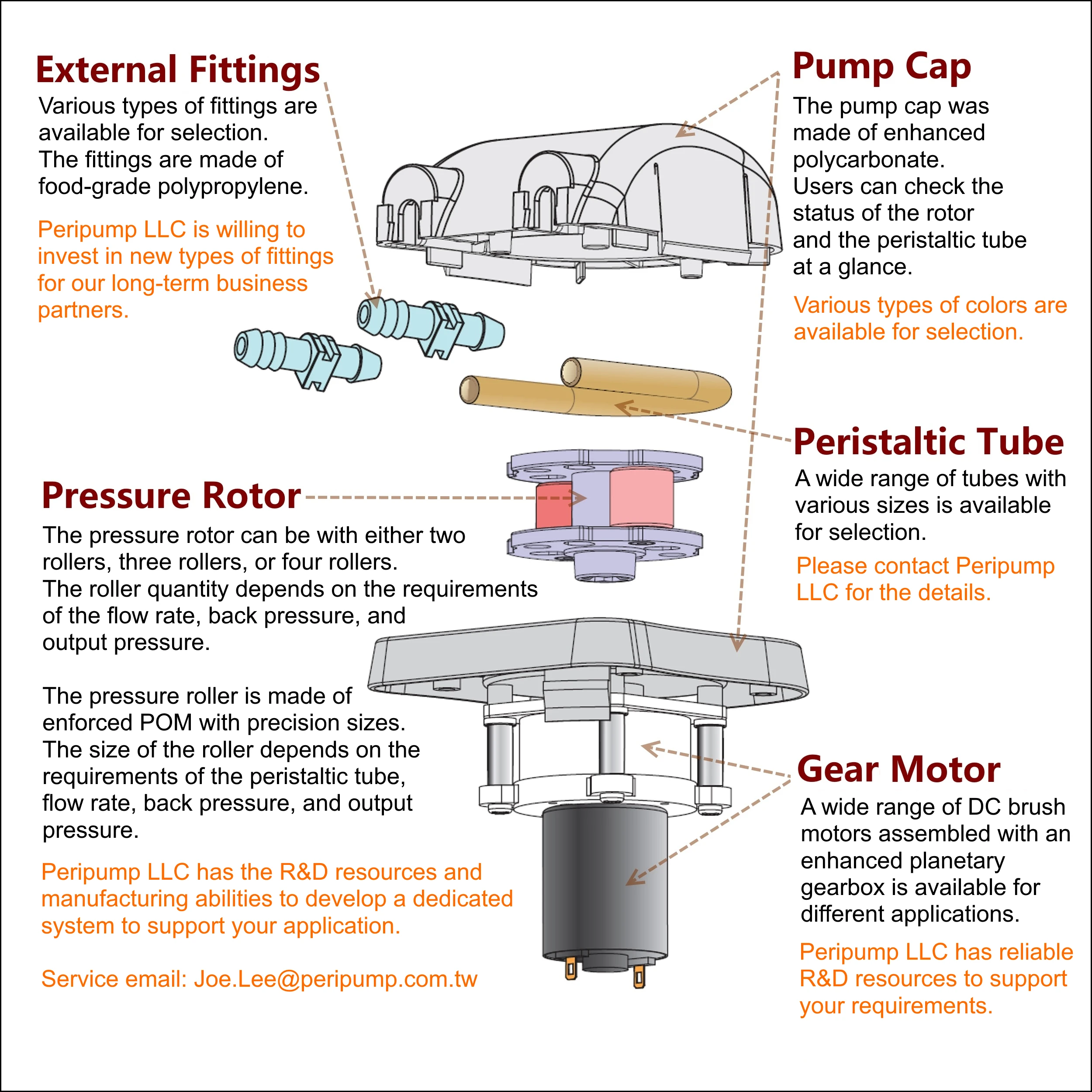

Constructions of the pump



















Features

• Precise 40ml +/- 8% water per minute flow rate


• Exchangeable pump head in transparent


• Pressure rotor made of POM and with 4 rollers


• House made DC motor with quality assurance


• High quality PharMed BPT peristaltic tube


• Pre-assembled NPT fittings made of food-grad polypropylene with 3.2mm(ID) x6.0mm(OD) x 300mm(L) PVC tube


• Wide customization options


• Quick tube replacement (no tools required)


• Quiet operation


• Long maintenance free operation life


• High quality manufacturing and materials


• Cover lock for bi-directional operation


• Sleek design


• 18 months manufacturer warranty


• Easy installation


• ISO 9001 supplier


• RoHS compliant


• Low cost

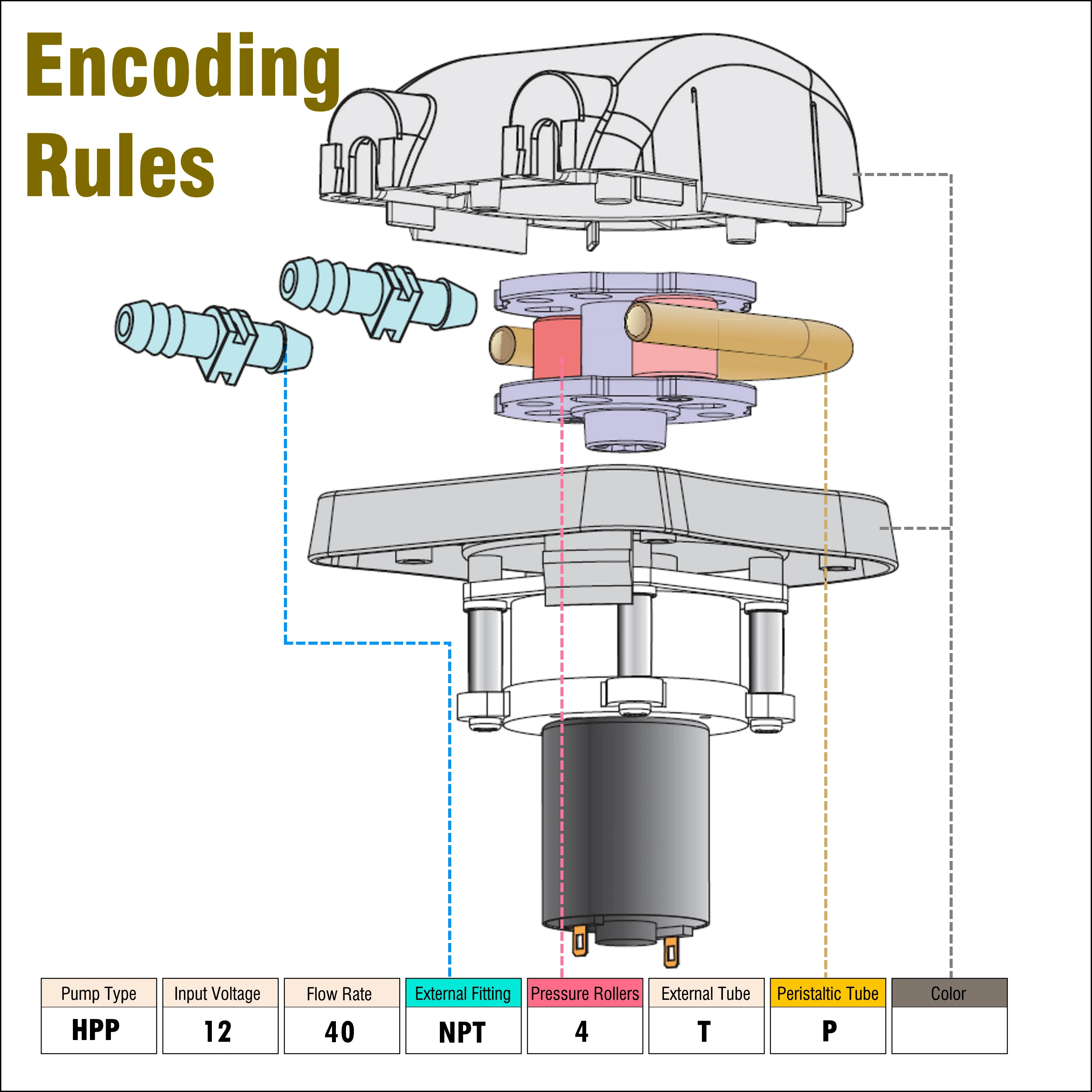

 Model Number for Ordering

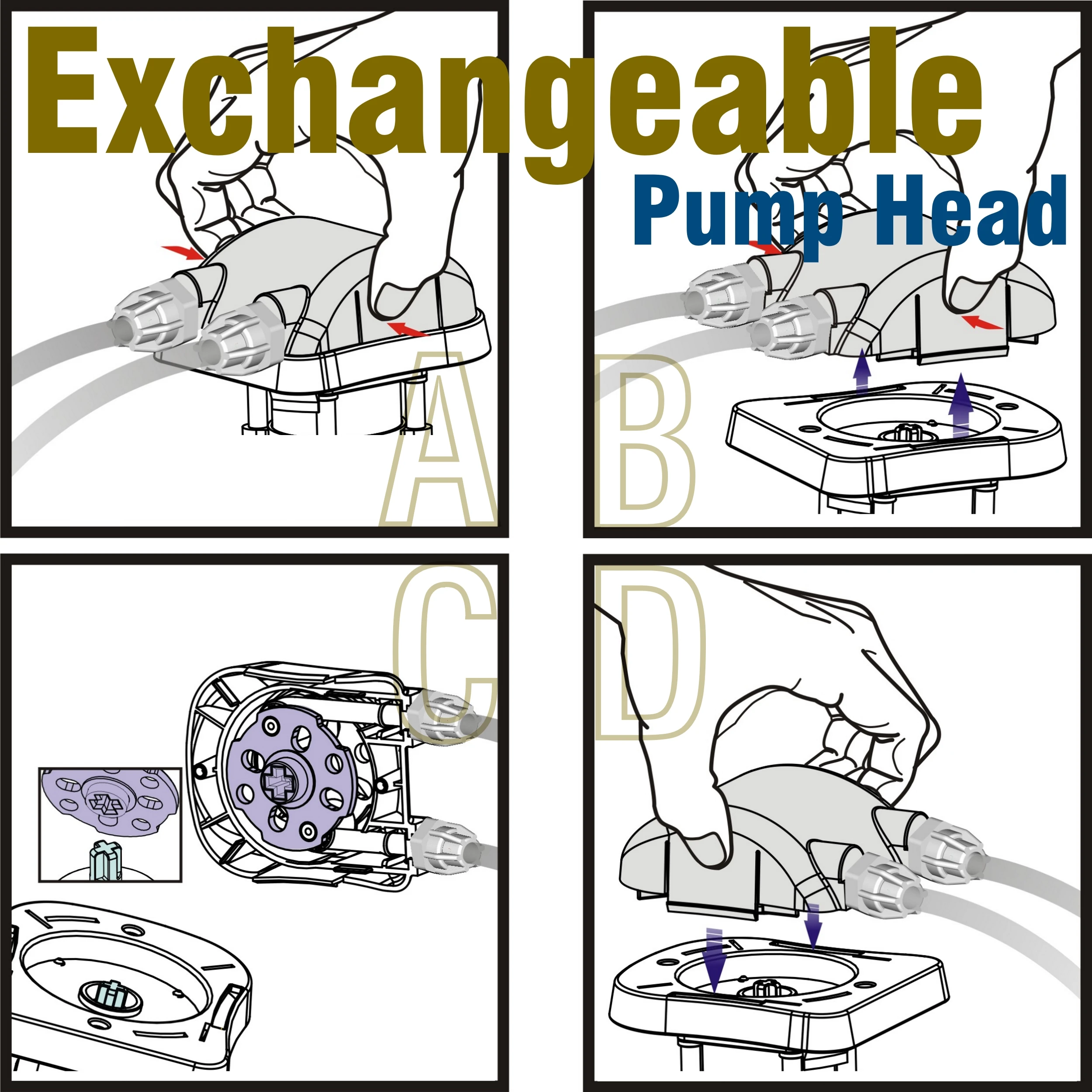

 Exchangeable Pump Head

• The processes of the pump head replacement only take less than 5 seconds


• The best solution to deal with the difficulties from the tube replacement


• The best way to stay away from the pollution during the tube replacement

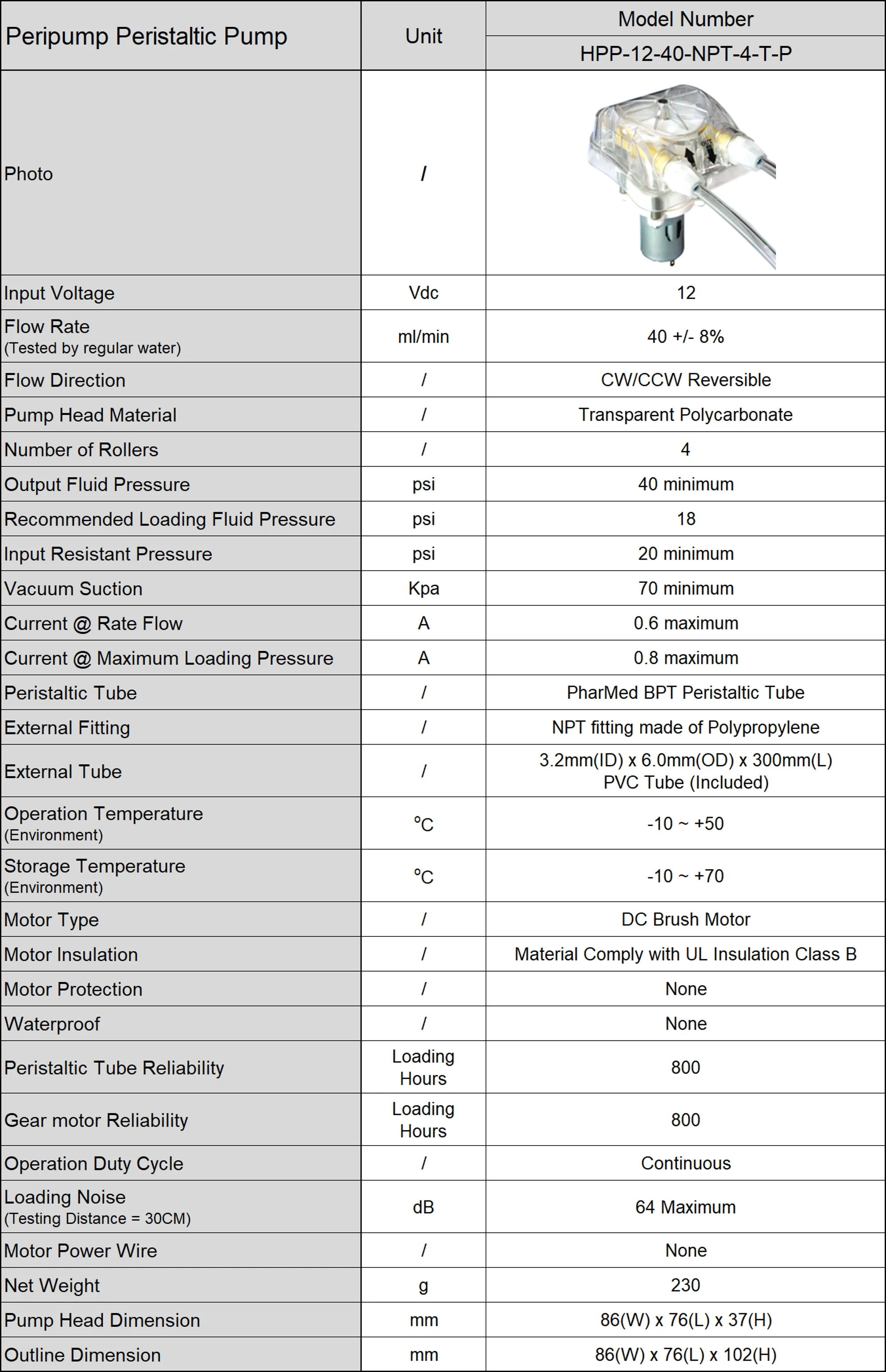

Specifications of the pump

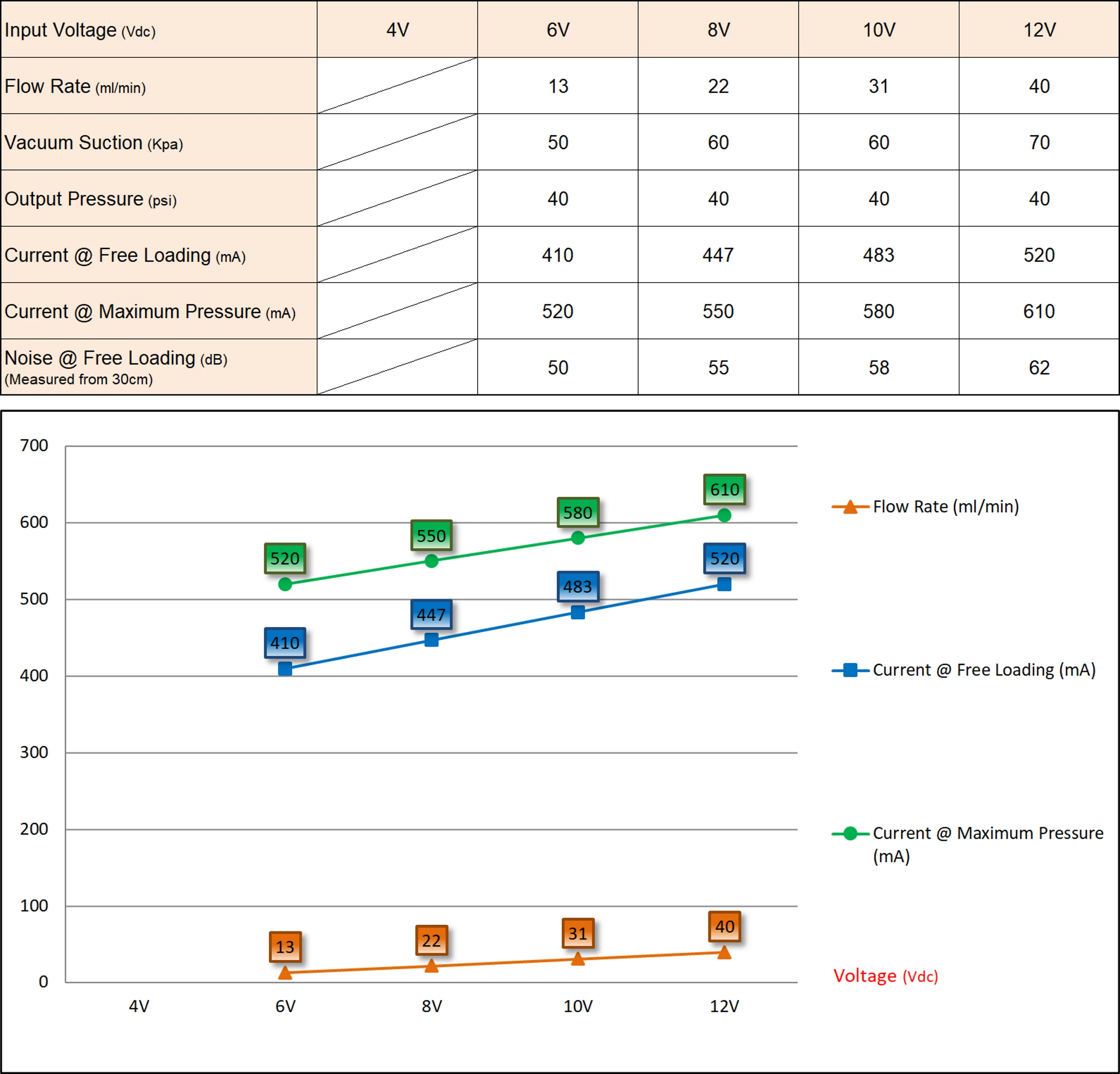

Performances of the pump



















Outstanding External Design

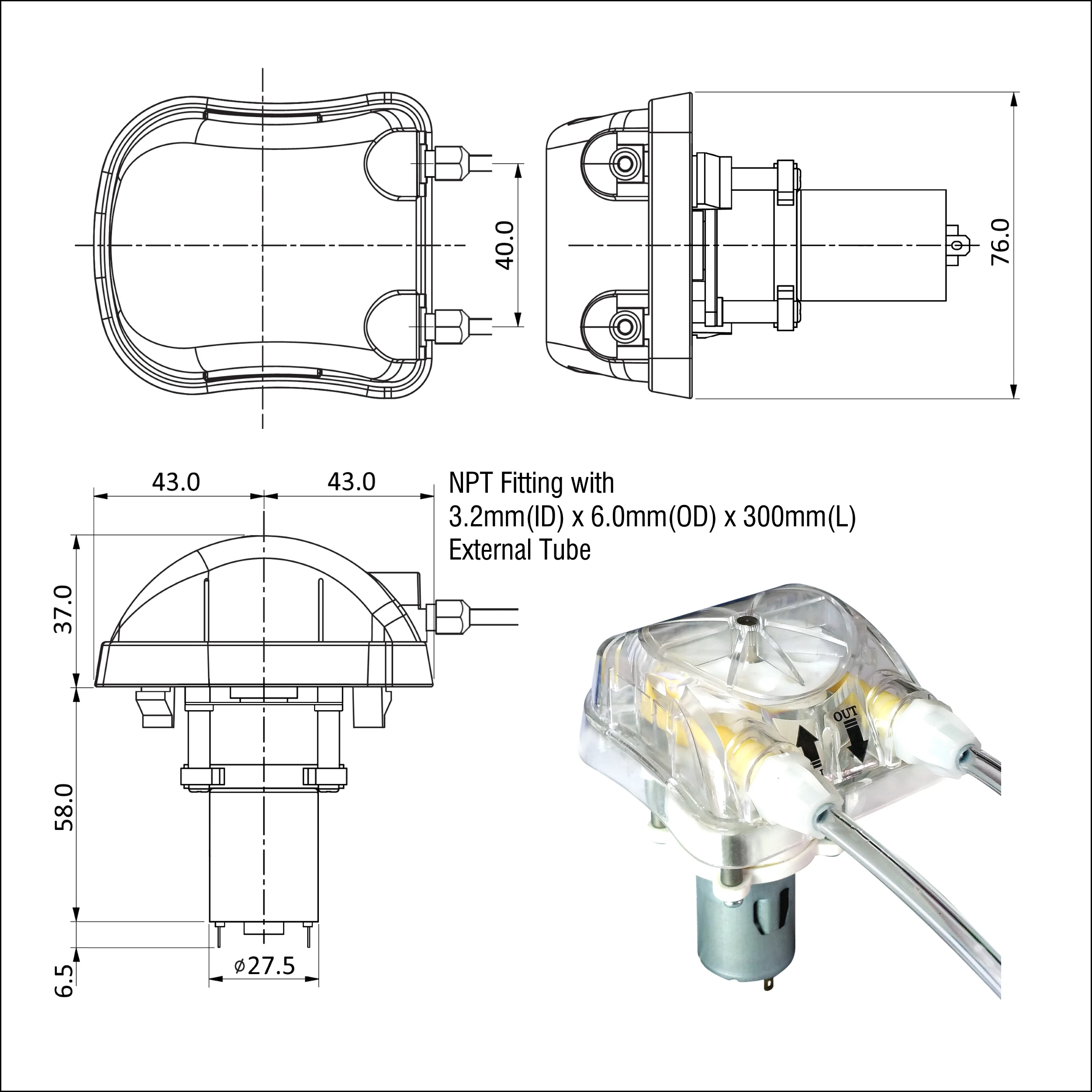

Compact Sizes

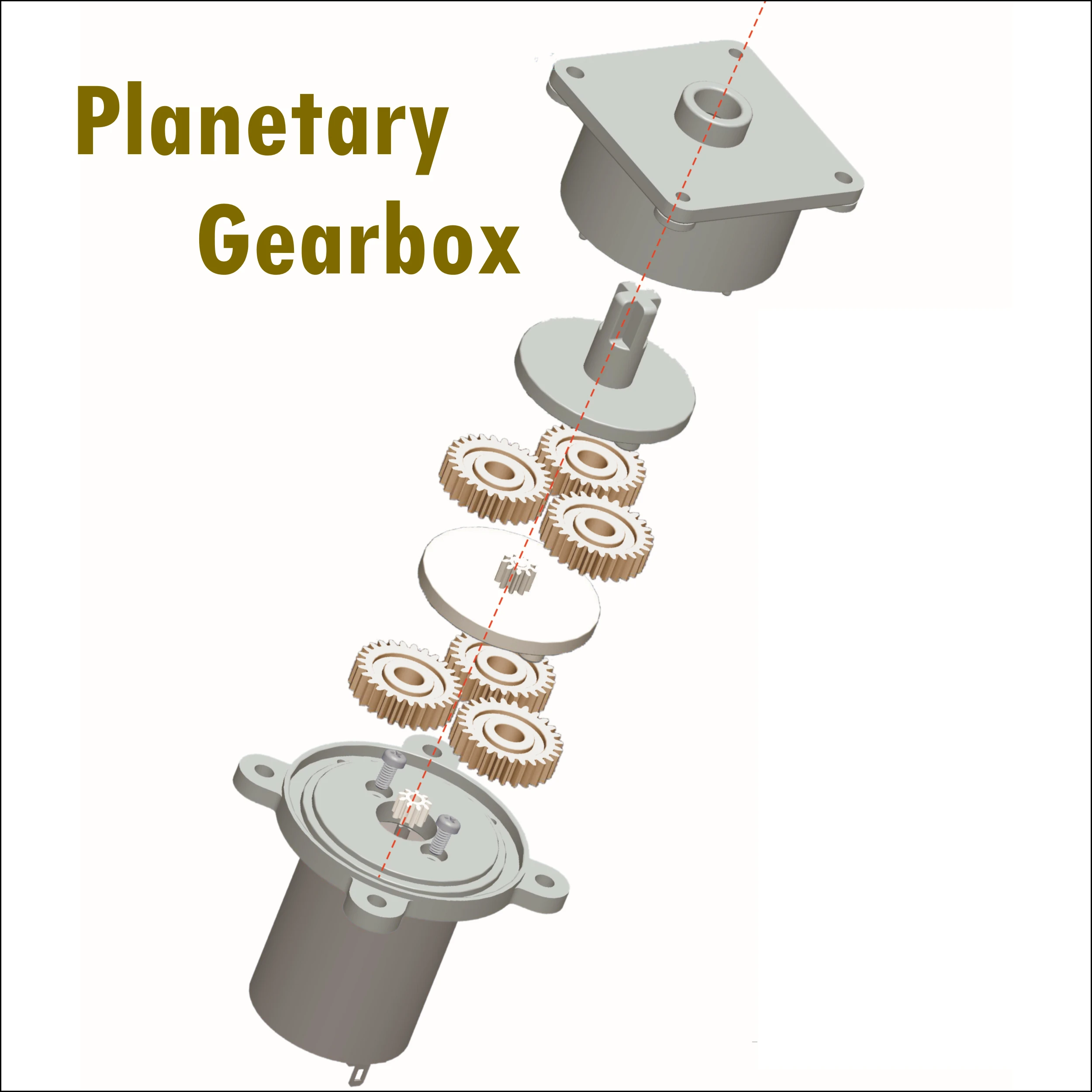

Enhanced DC Brush Motor with Plantary Gearbox

• Peripump offered different speed DC brush motors for different flow rate pumps.


• Please contact Peripump service desk if you have special requirements for the motor

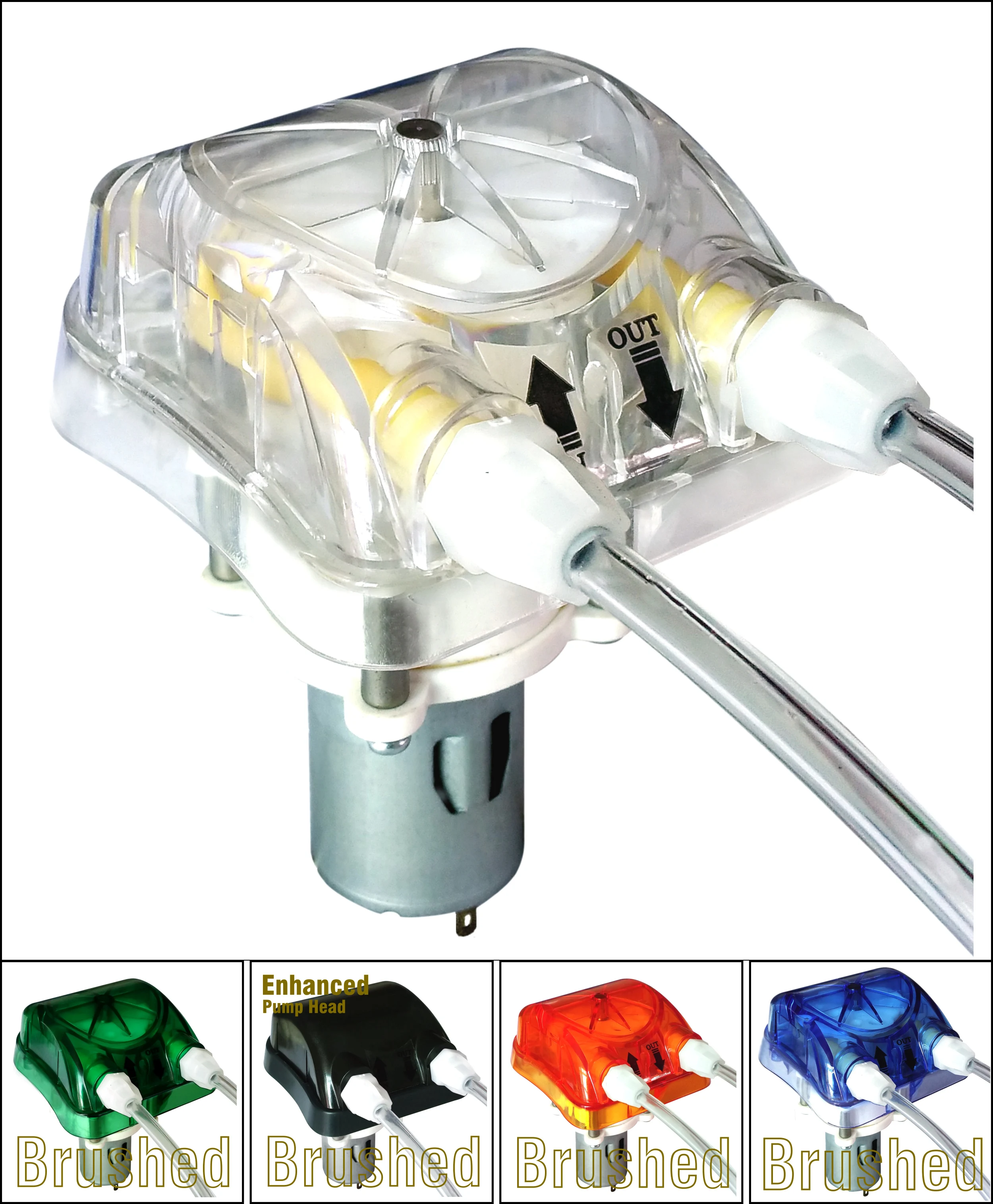

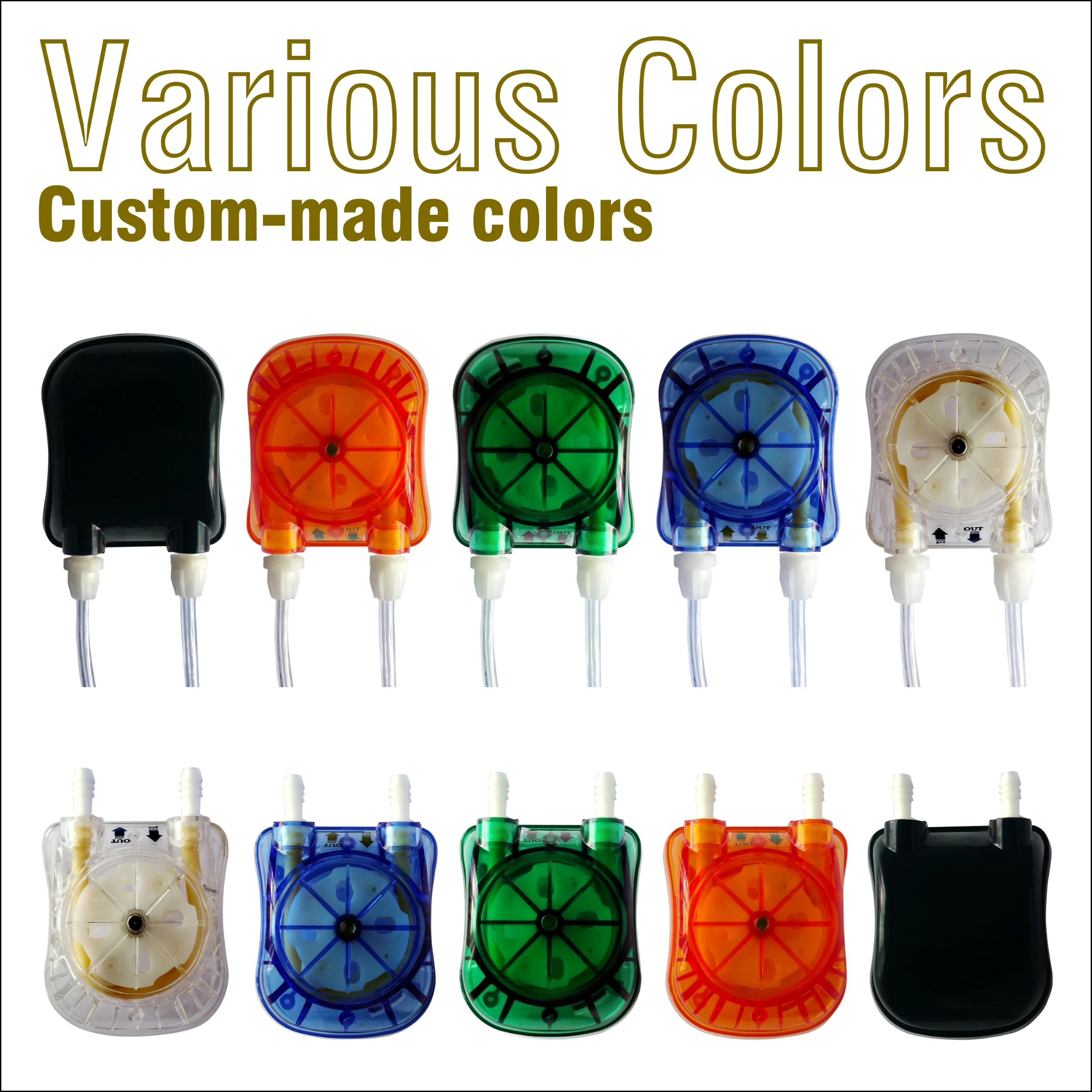

Color Options for the Pump Caps

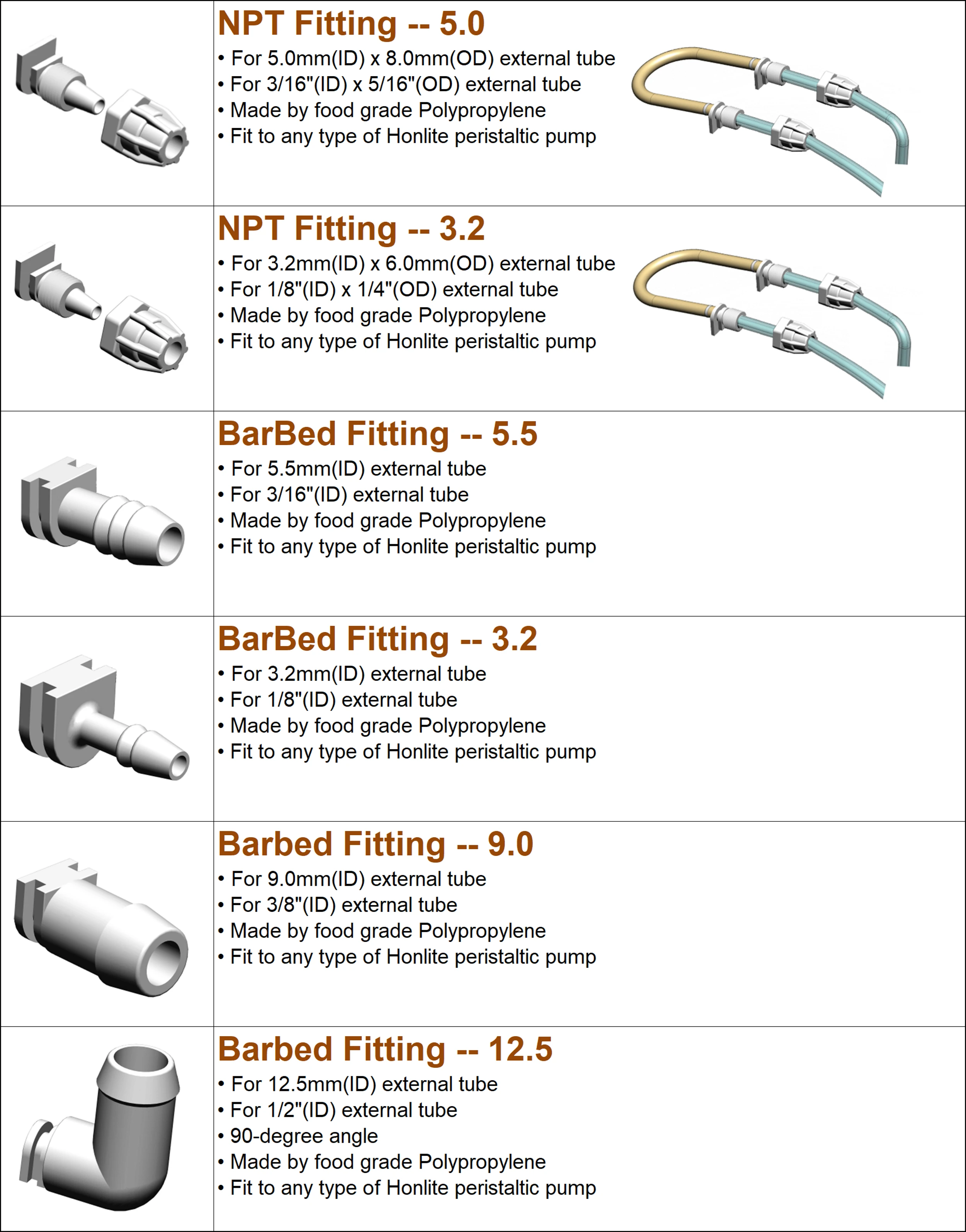

Fitting Options

• Peripump is willing to invest the new types of fitting for the long-term business partners.


• Peripump is willing to change the fitting material for the long-term business partners.

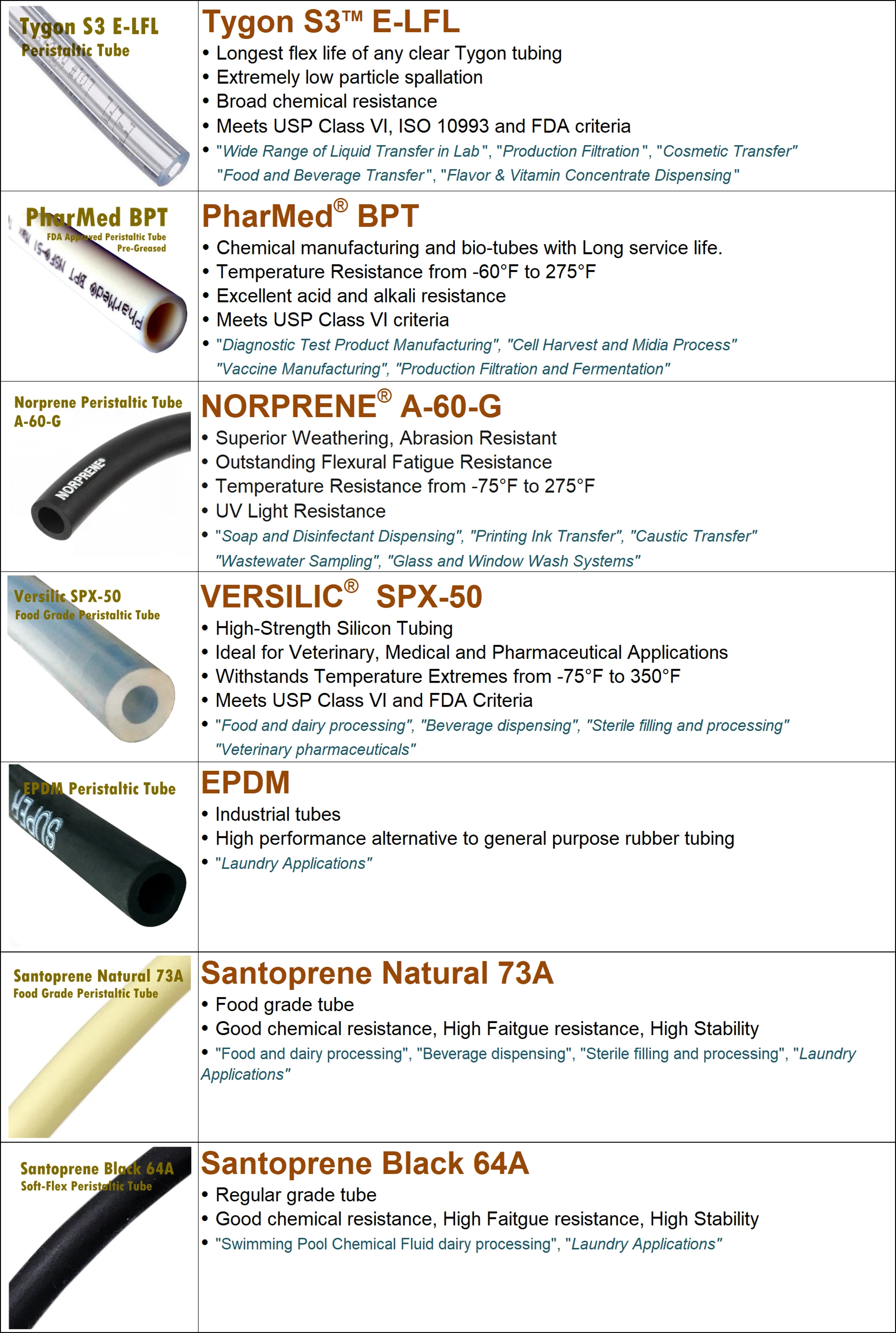

Various Types of Peristaltic Tubes for Different Applications

• Peripump is willing to check the possible chemical resistance for the long-term business partners.


• Peripump is willing to keep the different types of tube in inventory for the long-term business partners.

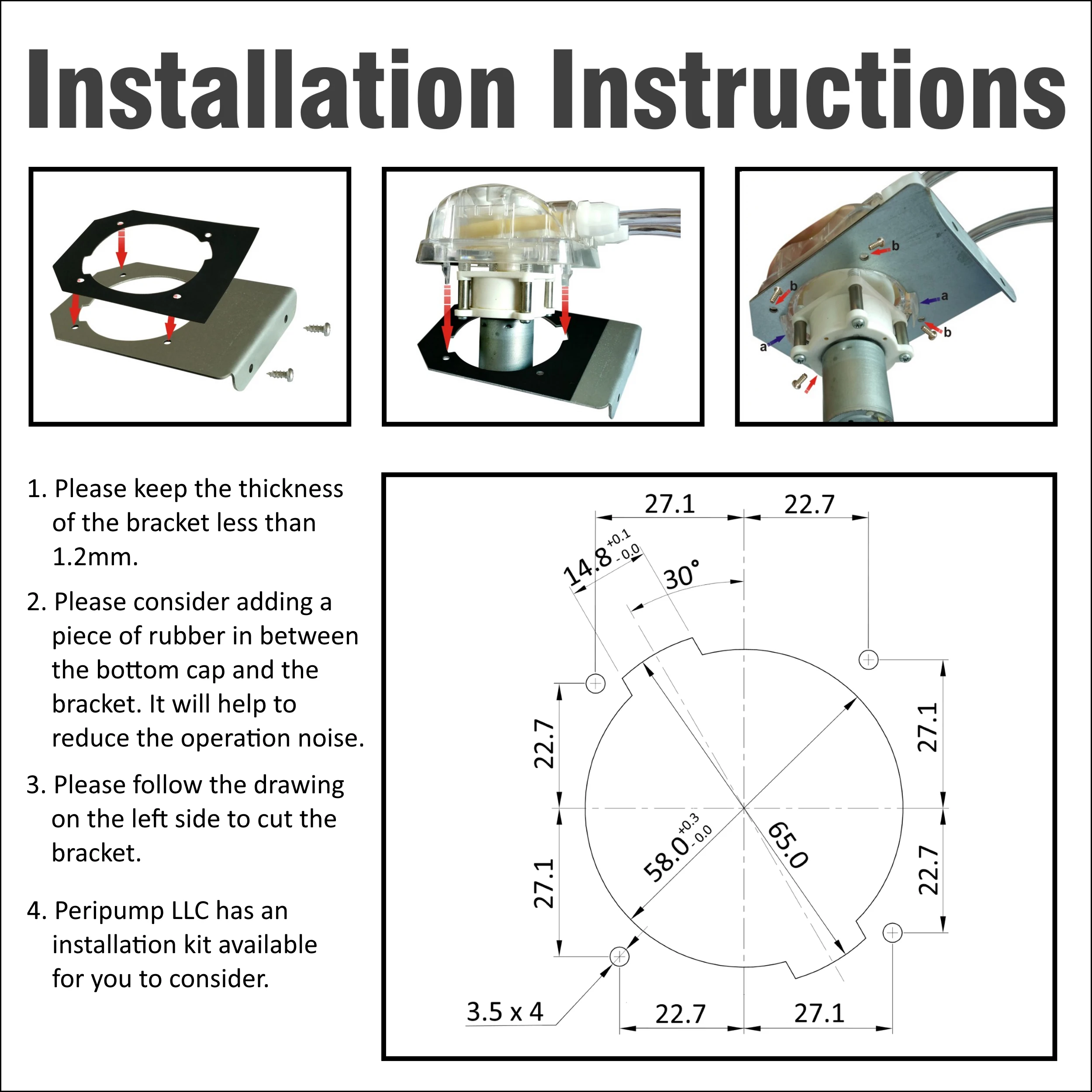

Easy Installation

• The standard pack does not include the installation kit.


• Please follow the dimensions as following drawing to cut the related holes on your enclosure for installation purposes.


• A piece of rubber in between the pump cap and your enclosure to work as a sponge will be highly recommened. It is the way to reduce the virbration noise.


• Peripump also offers the installation kit for sales. Please contact service desk for the details.





















 Sterilization Methods for the Peristaltic Tube

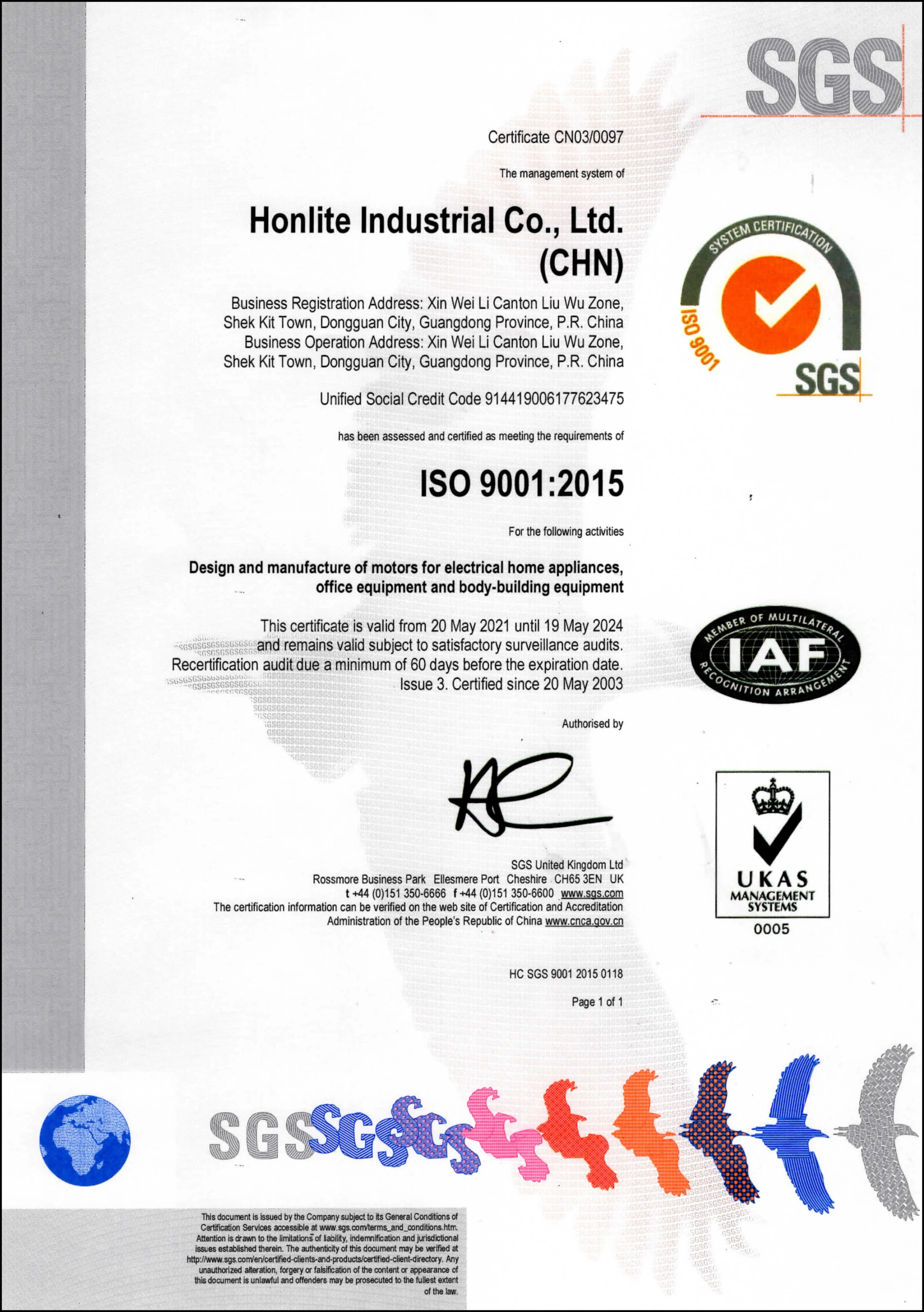

ISO9001 Certification for Product Development and Manufacturing

• Peripump has an ISO9001 factory and commits to producing quality pumps.


• Peripump has the abilities and experiences to develop pumps for business partners


• Peripump always stands behind the pumps we sold.























For samples, pricing and further information please contact:

Peripump LLC
