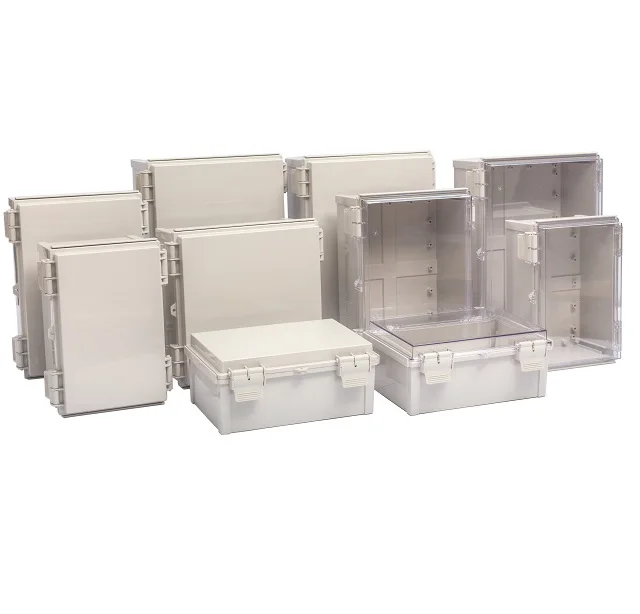

IP66/67 plastic enclosure for electronic Made in Korea Q series Electronic & Instrument Enclosures Distribution Box

Share on (10000008761378):


Price:$5.00 - $50.00

Quantity:


Product Overview

Description

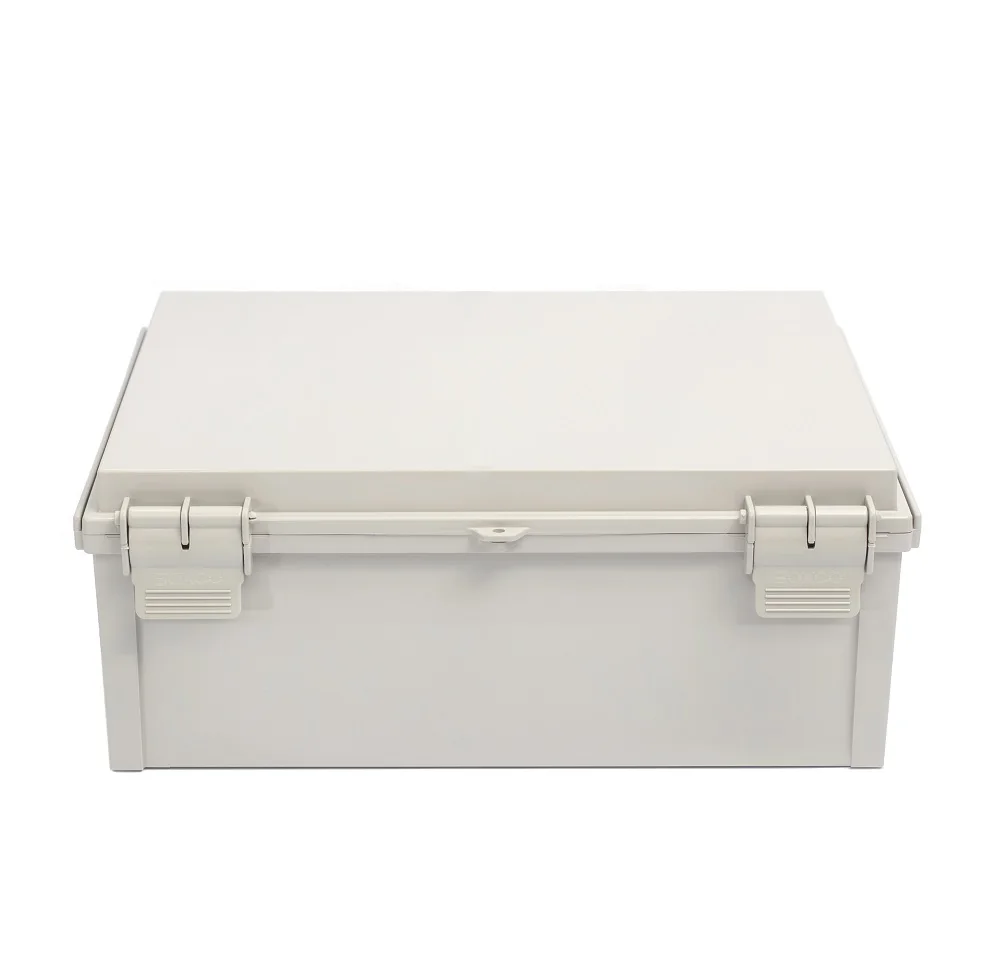

<Q series>-Plastic hinge&latch type
1. Dimension : 100x150x90mm~400x500x200mm
2. Material : ABS, Polycarbonate
3. Type : Hinged cover
4. IP rating : IP66/67





Plastic enclosure, Electric Distribution Box, Electrical and Electronics box, Switch box, Control box, Terminal box, Terminal block box, Aluminium enclosure, IP66/67 enclosure, Distribution box, Junction box, Telecommunication box, High quality enclosure, Project box electronic enclosure, Plastic housing.





Model and Size














































































































W×L×H
(mm)



W×L×H
(inch)



ABS
Grey cover



ABS
Transparent cover



100×150×90



3.94×5.91×3.54



BC-AGQ-101509



BC-ATQ-101509



150×150×90



5.91×5.91×3.54



BC-AGQ-151509



BC-ATQ-151509



150×150×120



5.91×5.91×4.72



BC-AGQ-151512



BC-ATQ-151512



160×210×100



6.30×8.27×3.94



BC-AGQ-162110



BC-ATQ-162110



160×210×130



6.30×8.27×5.12



BC-AGQ-162113



BC-ATQ-162113



210×210×130



8.27×8.27×5.12



BC-AGQ-212113



BC-ATQ-212113



200×300×130



7.87×11.81×5.12



BC-AGQ-203013



BC-ATQ-203013



200×300×150



7.87×11.81×5.91



BC-AGQ-203015



BC-ATQ-203015



200×300×180



7.87×11.81×7.09



BC-AGQ-203018



BC-ATQ-203018



250×350×160



9.84×13.78×6.30



BC-AGQ-253516



BC-ATQ-253516



300×300×160



11.81×11.81×6.30



BC-AGQ-303016



BC-ATQ-303016



300×400×160



11.81×15.75×6.30



BC-AGQ-304016



BC-ATQ-304016



300×400×180



11.81×15.75×7.09



BC-AGQ-304018



BC-ATQ-304018



350×450×200



13.78×17.72×7.87



BC-AGQ-354520



BC-ATQ-354520



400×500×160



15.75×19.69×6.30



BC-AGQ-405016



BC-ATQ-405016



400×500×200



15.75×19.69×7.87



BC-AGQ-405020



BC-ATQ-405020












Q drawing.png
