TA SN 7/0.03 Conductor 0.35 PET Jacket Medical MMCX
- Category: >>>
- Supplier: PRO-DATA INTERNATIONAL CORP.
Share on (10000008767897):
Product Overview
Description

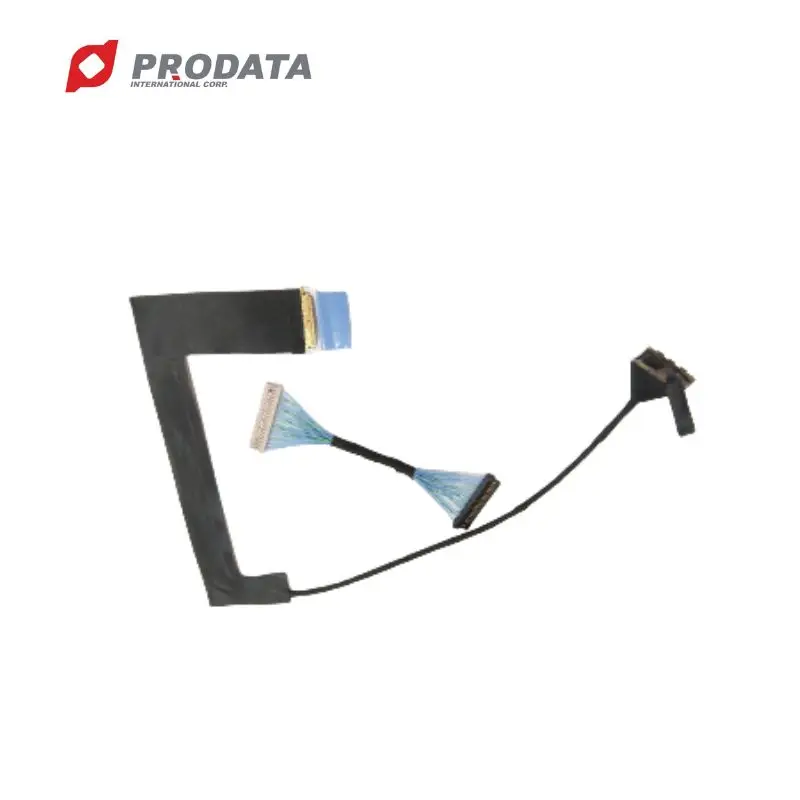

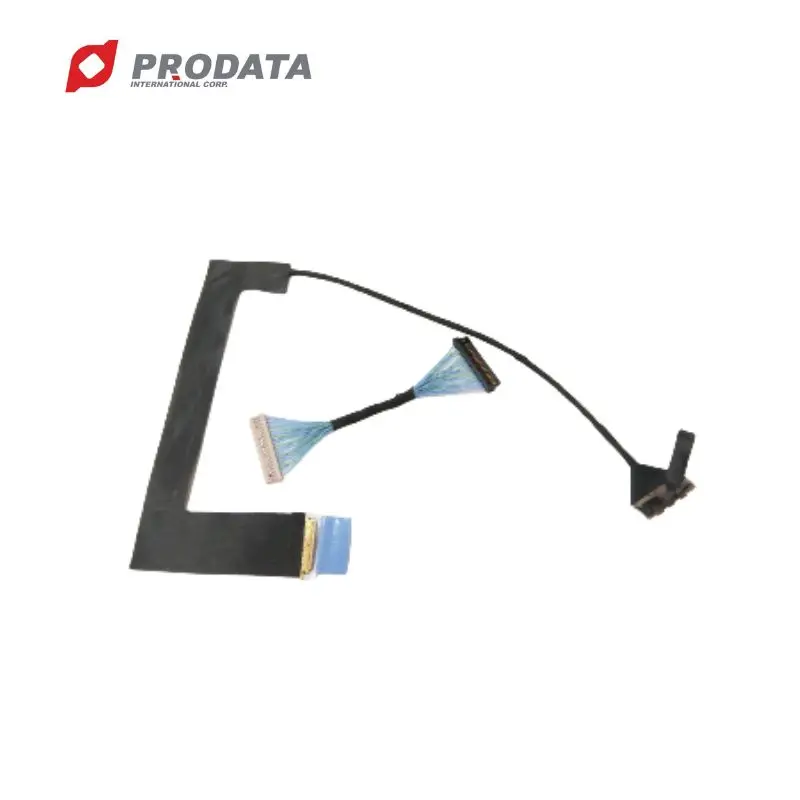

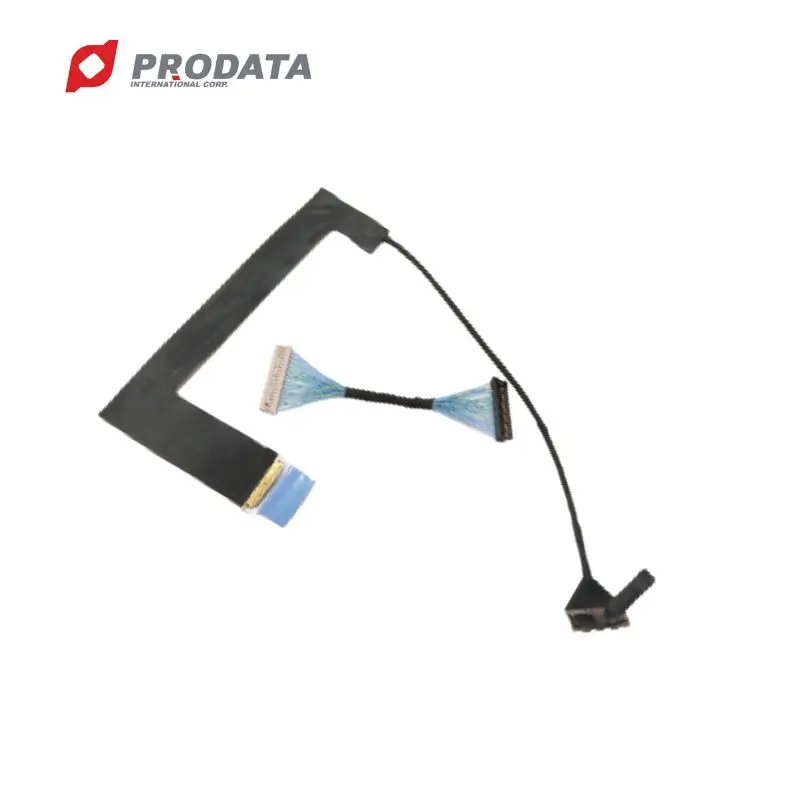

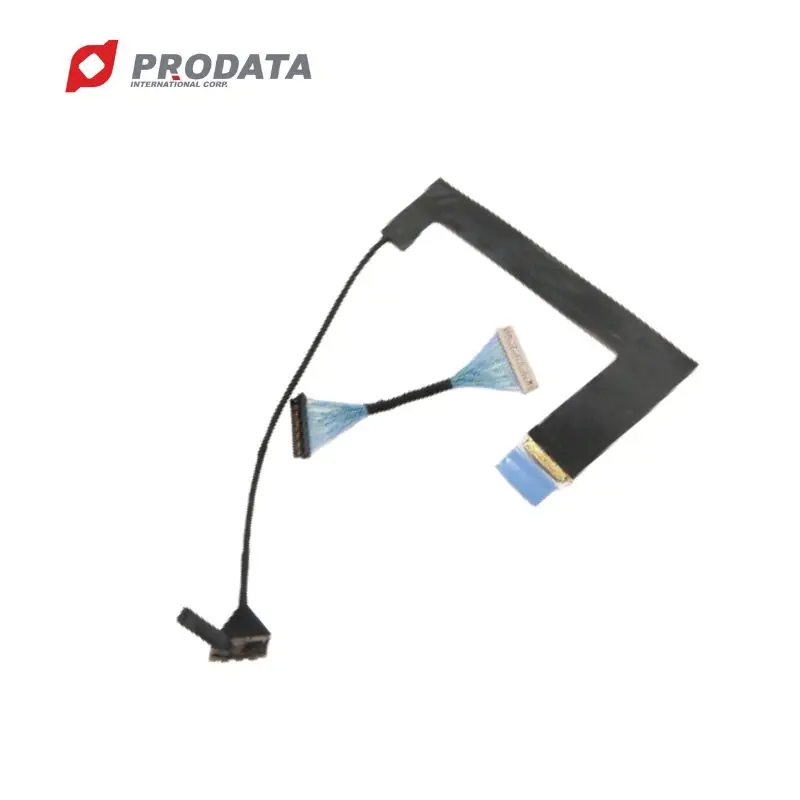

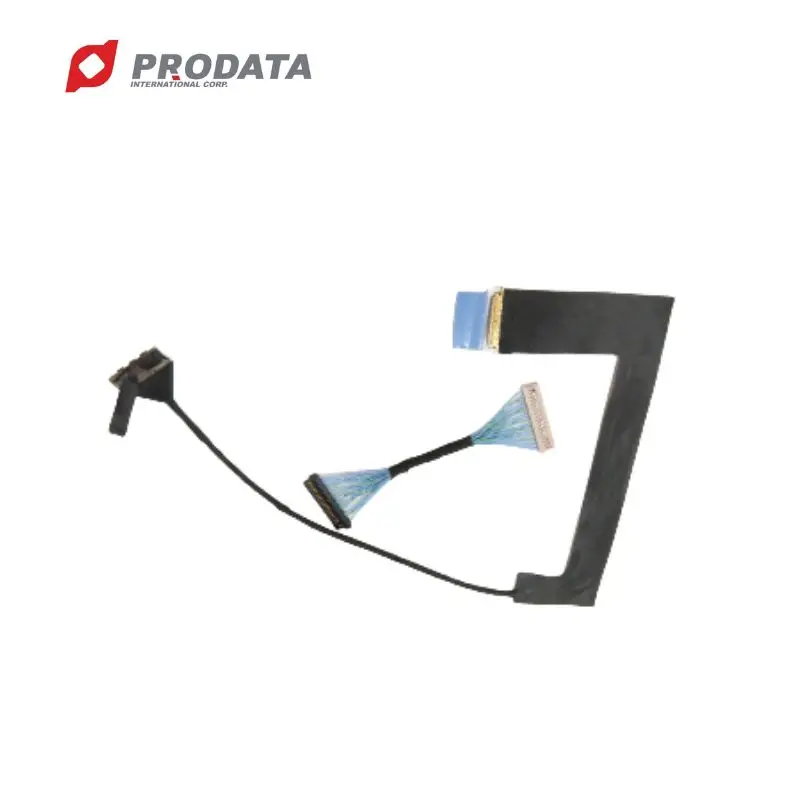

TA-SN 7/0.03 Conductor 0.35 PET Jacket Medical MMCX
Details Images
Application
Product Description
MCX coaxial Cable | ||||||||||||||||||
ITEM | Inner Conductor | Insulation | Outer Conductor | Jacket | ||||||||||||||
ITEM | Size(AWG) | Standing | Material | Material | Diameter | Material | Thick | Material | Diameter | |||||||||
1 | 36 | 7/0.05 | TC | PFA or FEP | 0.38 | TC | 0.03 | PFA | 0.54 | |||||||||
2 | 36(Tape) | 7/0.05 | TC | PFA or FEP | 0.29 | TC | 0.03 | PET | 0.4 | |||||||||
3 | 38 | 7/0.04 | TA-SN | PFA or FEP | 0.3 | TC | 0.03 | PFA | 0.44 | |||||||||
4 | 40 | 7/0.03 | TA-SN | PFA or FEP | 0.24 | TA-SN | 0.03Braid | PFA | 0.38 | |||||||||
5 | 40(Tape) | 7/0.03 | TA-SN | PFA or FEP | 0.24 | TA-SN | 0.03 | PET | 0.44 | |||||||||
6 | 40(Tape) | 7/0.03 | TA-SN | PFA or FEP | 0.24 | TA-SN | 0.03 | PET | 0.35 | |||||||||
7 | 42 | 7/0.025 | GA-SN | PFA or FEP | 0.18 | TA-SN | 0.03 | PFA | 0.31 | |||||||||
8 | 42(Tape) | 7/0.025 | GA-SN | PFA or FEP | 0.18 | TA-SN | 0.03 | PET | 0.29 | |||||||||
9 | 44 | 7/0.02 | GA-SN | PFA or FEP | 0.16 | TA-SN | 0.025 | PFA | 0.26 | |||||||||
10 | 46 | 7/0.016 | GA-SN | PFA or FEP | 0.12 | TA-SN | 0.025 | PFA | 0.23 | |||||||||
11 | 48 | 3/0.02 | GA-SN | PFA or FEP | 0.093 | GA-SN | 0.016 | PFA | 0.16 | |||||||||
Company Profile
Our Customers
Product Packaging
FAQ
1.Can we have our own tailor-made project?
2.Where do you produce those product?
We produce most of our product in Taiwan, with some material supplier-chain both in Taiwan & China, this ensure us to organize your custom project efficiently and economically.
3.What's the MOQ?
MOQ is 100 PCS. But it also depends on the material you specify, some might need higher MOQ to make it available , while others can be available with low q'ty for the first trial order .
4.Why Choose us?
a. Dedicating most cutting edge solution and apply state- of -the-art equipment enable us to offer you quality product and efficient production.
b. Experienced staff fully recognize your needs & fulfill your tailor made project and concept.
c. We can organize local resource both in Taiwan & China to offer you cost effective solution, you name it and we make it !
d. Integrity is the most important value that we bring it to every work and deliver it with our commitment.
Yes, PRODATA is an experienced OEM/ODM wire harness & cable assembly supplier. And with assorted materials available in stock & well-organized supplier chain, we can support your custom project.
2.Where do you produce those product?
We produce most of our product in Taiwan, with some material supplier-chain both in Taiwan & China, this ensure us to organize your custom project efficiently and economically.
3.What's the MOQ?
MOQ is 100 PCS. But it also depends on the material you specify, some might need higher MOQ to make it available , while others can be available with low q'ty for the first trial order .
4.Why Choose us?
a. Dedicating most cutting edge solution and apply state- of -the-art equipment enable us to offer you quality product and efficient production.
b. Experienced staff fully recognize your needs & fulfill your tailor made project and concept.
c. We can organize local resource both in Taiwan & China to offer you cost effective solution, you name it and we make it !
d. Integrity is the most important value that we bring it to every work and deliver it with our commitment.
