DaierTek 19mm IP65 1NO 1NC 5 Pins Lighted Waterproof Latching Metal Push Button Switch With 12V Blue LED For Car
- Category: >>>
- Supplier: Wenzhou Daiertek Electric Co. Ltd.
Share on (10000008768036):
Product Overview
Description
Product Description
Name | Metal Push Button Switch |
Protection Level | IP65 |
Max.Current | 5A |
Max.Voltage | 12VDC;125VAC |
Certificate | CE,Rohs,CQC |
Electrical Life | 100,000Cycles |
OEM&ODM | Yes |
* Package Includes : only one switch
Model | 19mm illuminated latching IP65 push button switch |
Rating | 5A 12VDC; 5A 125VAC |
Function | Latching |

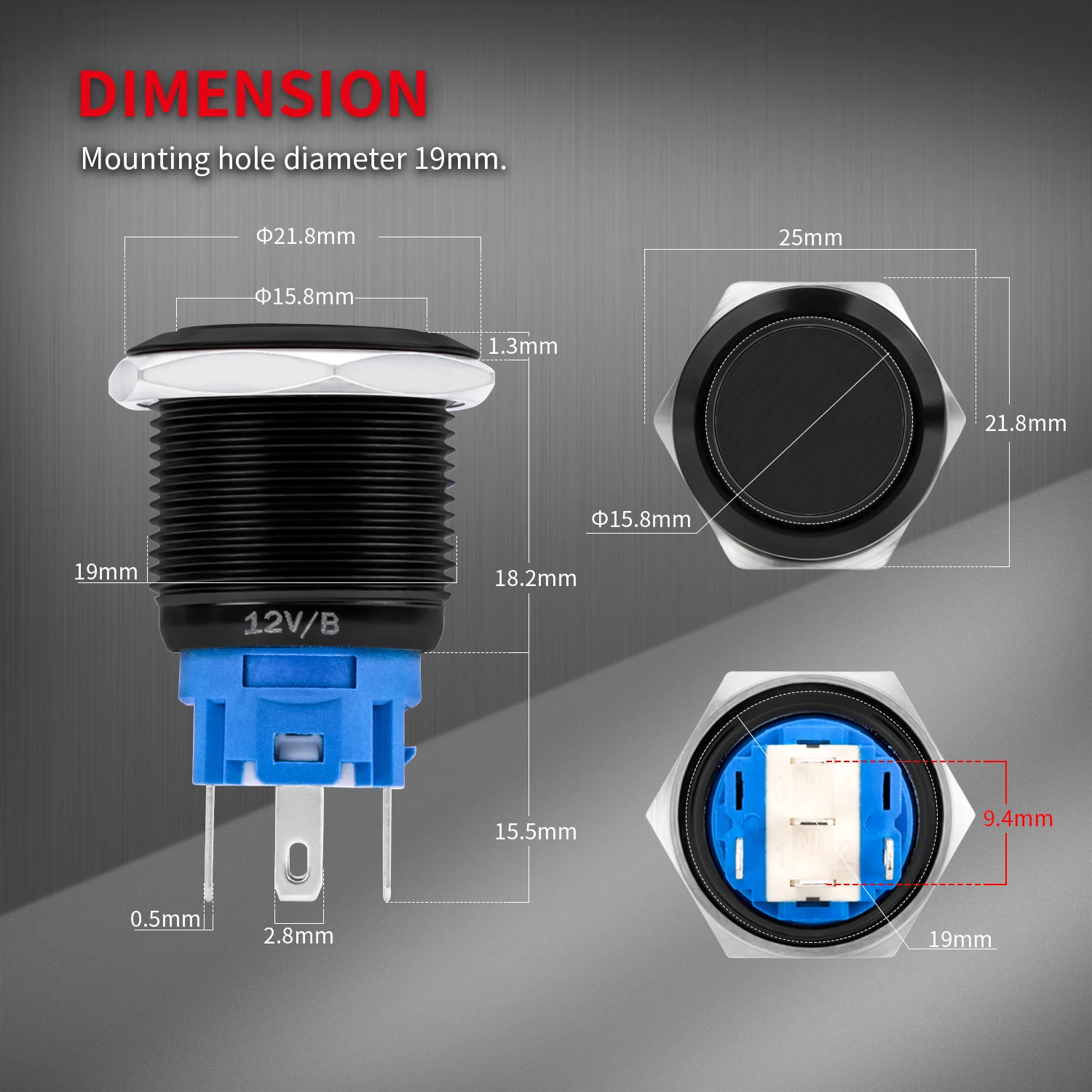

Button Size | 19mm |
Led Lamp Color | Blue |
Product Show

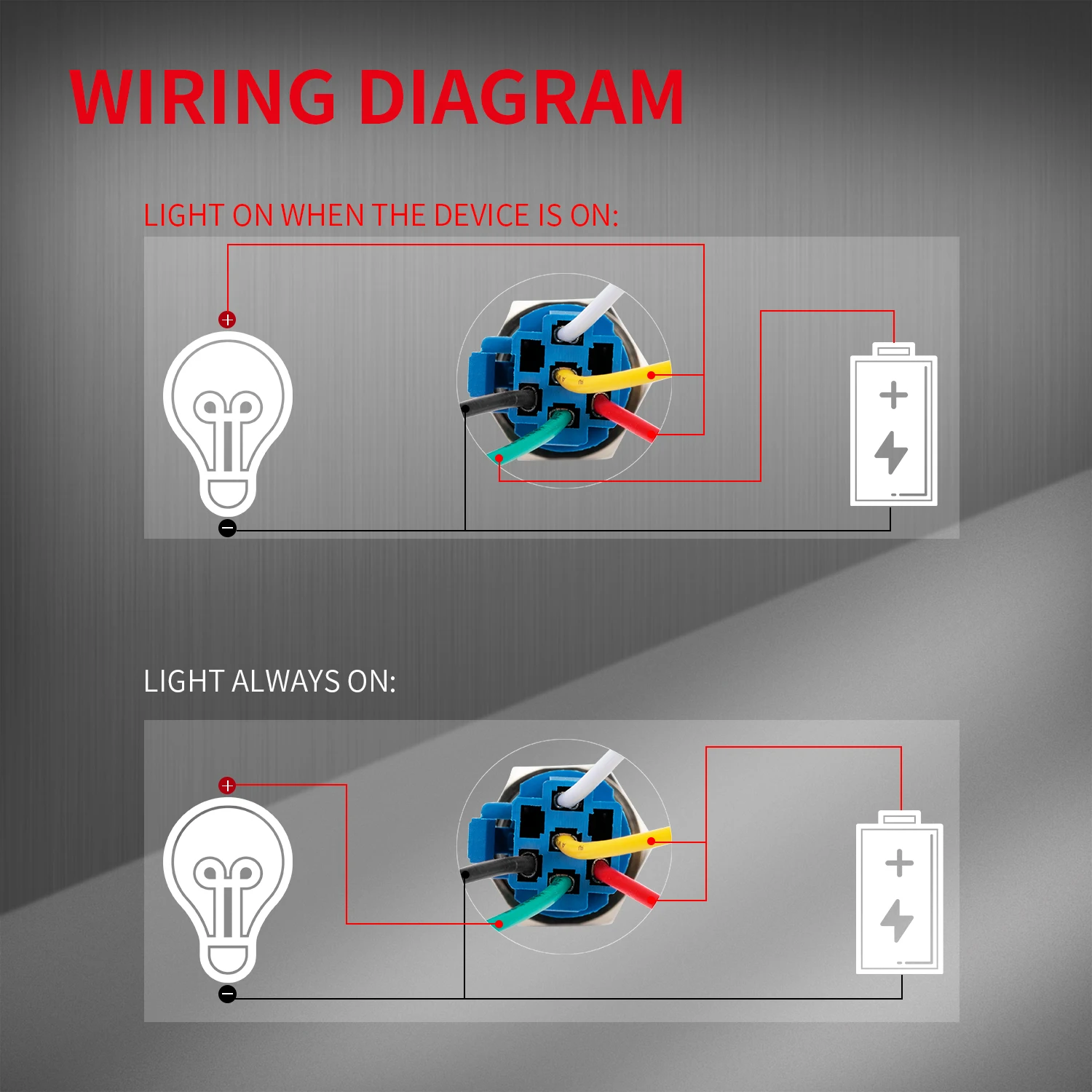

LED 12V Push Button Switch
This switch has a blue LED ring light, you can choose to be always on or open and close according to the switch, depending on your
wiring method.
wiring method.

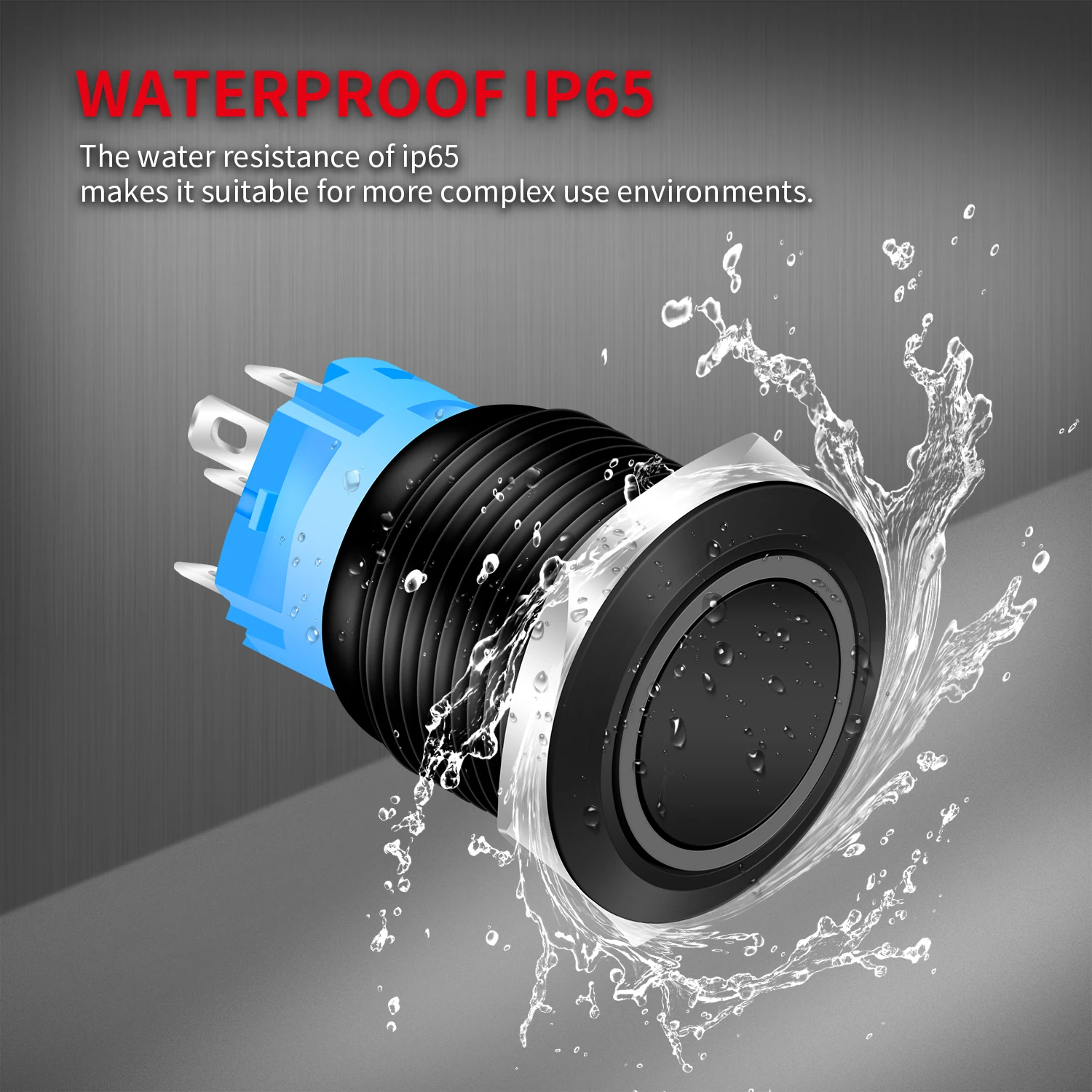

Waterproof Push Button Switch
The water resistance of ip65 makes it suitable for more complex use environments.

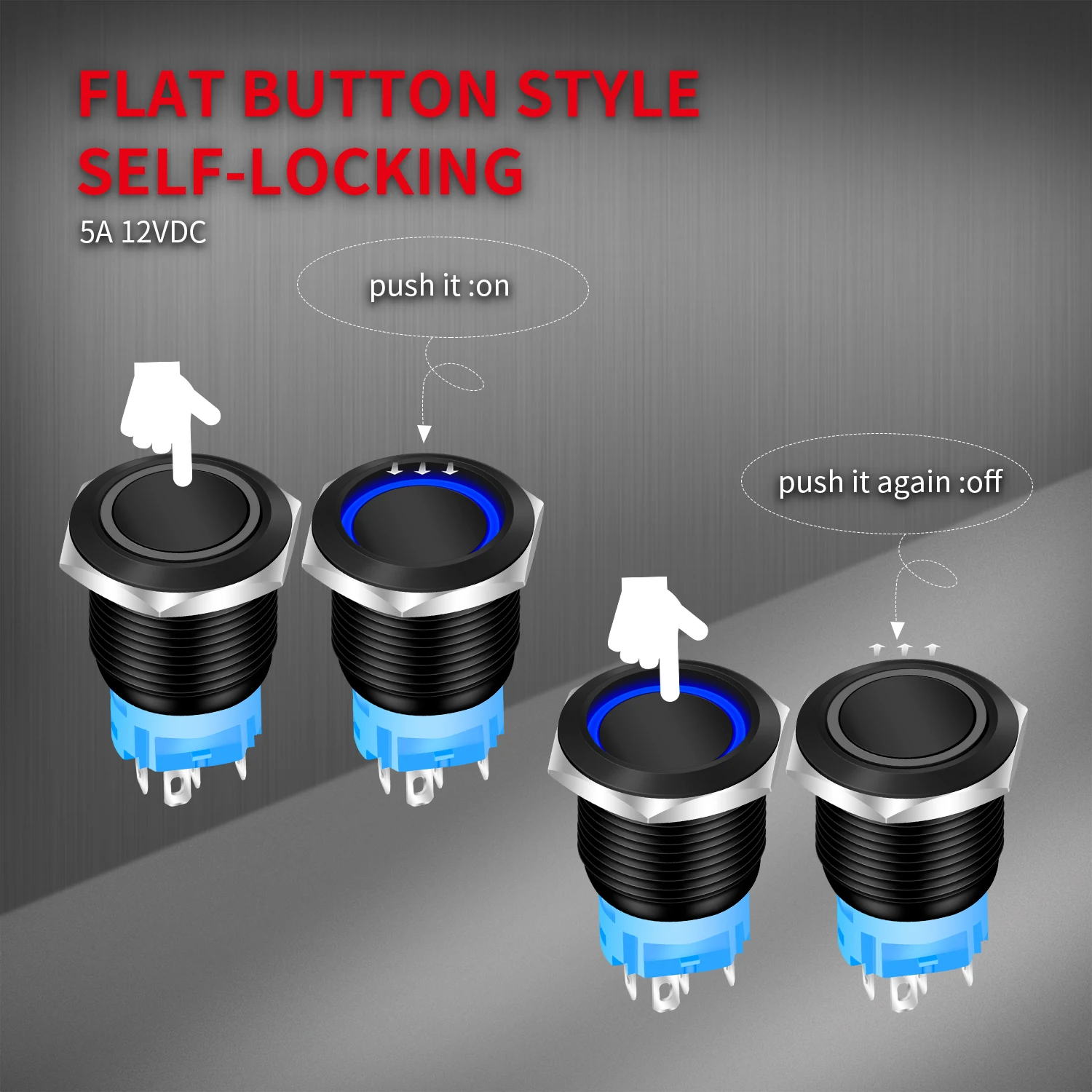

Latching Push Button Switch
The rating of the switch is 5A 12VDC. If you want to use it in an AC environment, please connect a 150KΩ resistor in series to the
LED pin.
LED pin.
