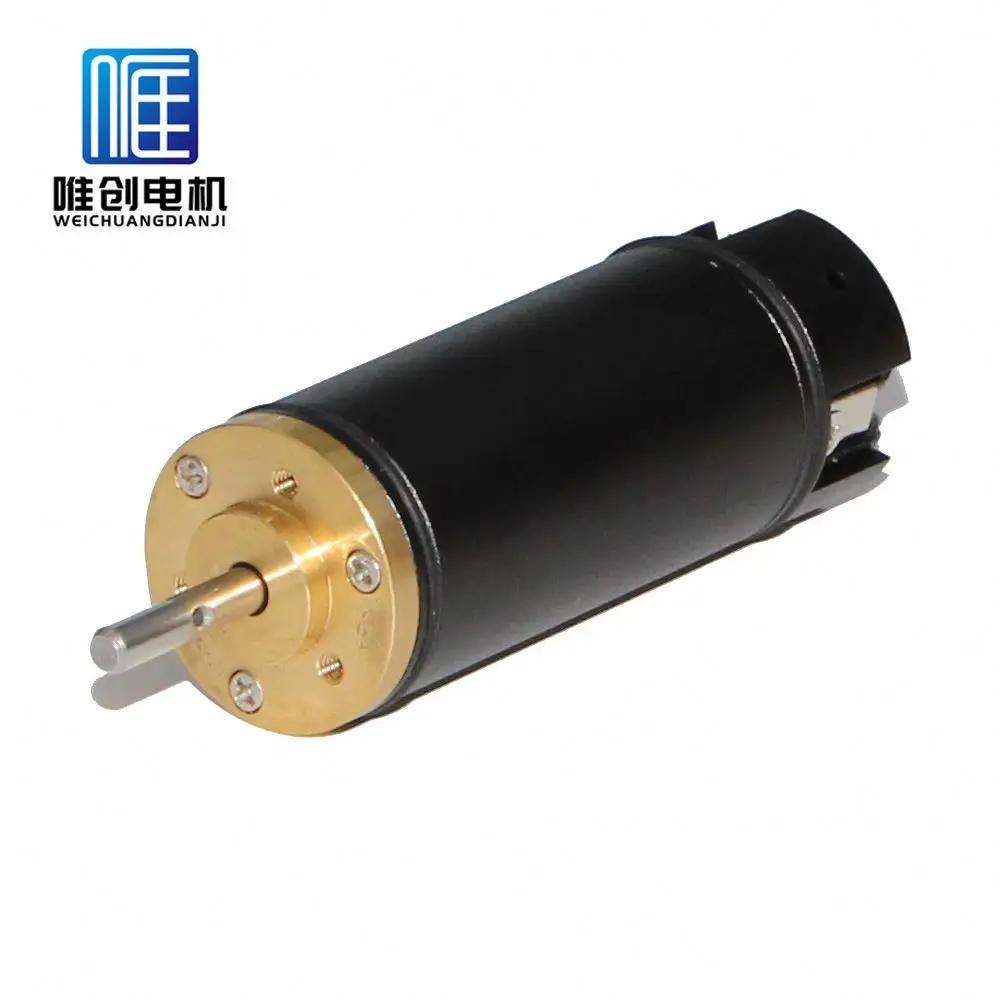

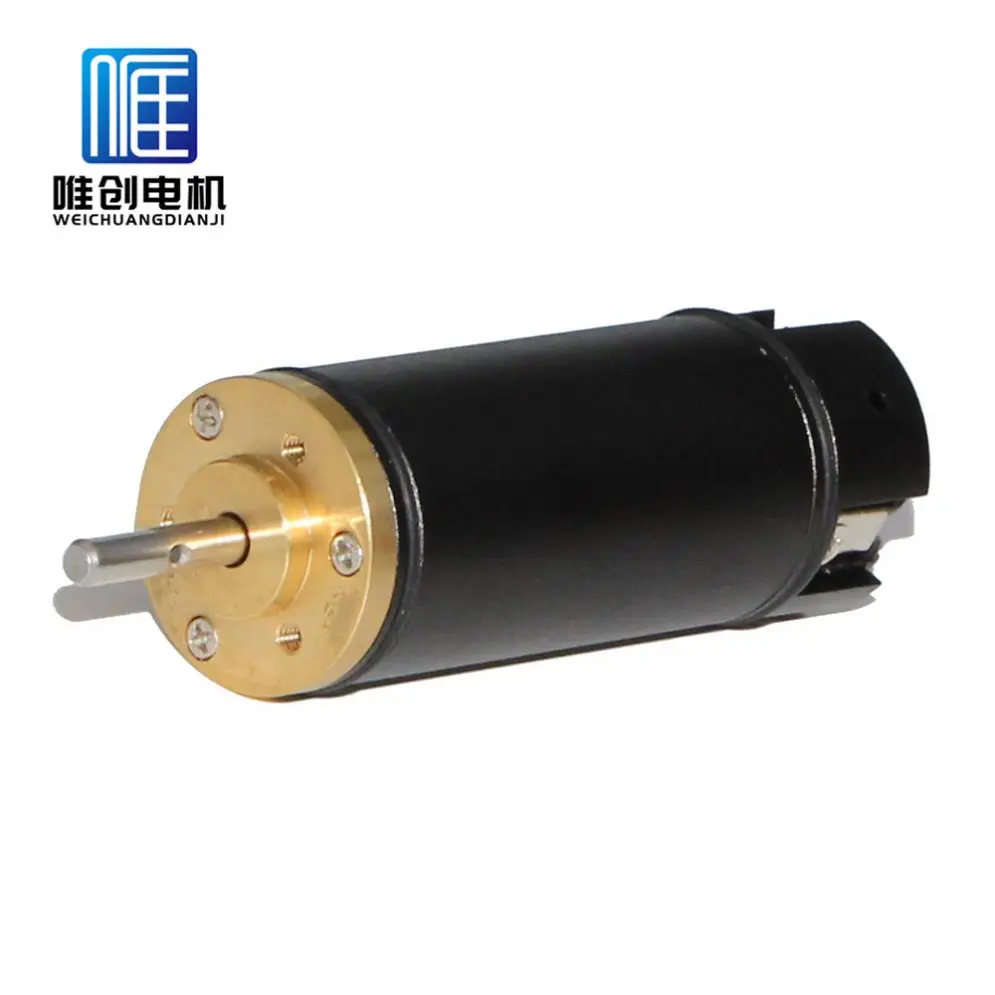

Micro brushless dc gear motor for dental

Product Overview

Description

M 1:1
240130
Motor Data
Value at rated voltage
1	Nominal voltage	V/DC	36
2	No load speed	rpm	56973
3	No load current	mA	105
4	Nominal speed	rpm	53319
5	Nominal torque	mNm	8.57
6	Nominal current	A	1.53
7	The output power	W	47.9
8	Stall torque	mNm	133.7
9	Starting current	A	22.36
10	Max.efficiency	%	87

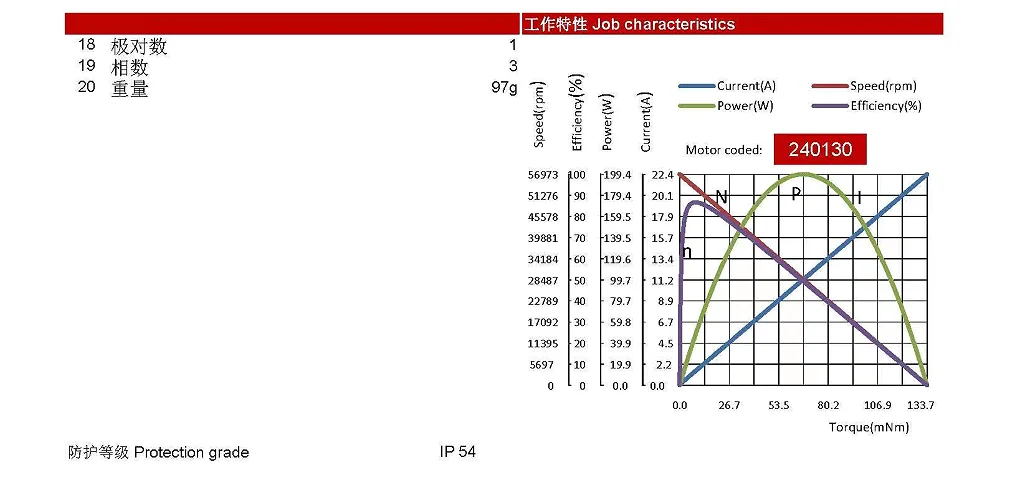

	Characteristics
11	Terminal resistance	Ω	1.61
12	Terminal inductance	mH	0.227
13	Kt	mNm/A	6.006
14	Ke	V/krpm	0.629
15	Speed/torque gradient	rpm/mNm	426
16	Mechanical time constant	ms	20.18
17	Rotor inertia	gcm²	4.52
