Dawei Tissue Doppler Imaging THI TDI Veterinary Color Doppler Ultrasonic System
- Category: >>>
- Supplier: Dawei Veterinary Medical (Jiangsu) Co. Ltd.
Share on (10000008788217):
Product Overview
Description
Products Description
For bovine, ovine, equine, canine, feline and other domestic animals, animals for experiments, wildlife, and some aquatic animals. It is applicable for the inspection of various animals' clinical abdomen, thoracic cavity, heart, tendon, small organs, eyes, reproductive system, urinary system for animal hospitals and scientific institutions.
·4 activated probe connectors
·Enriched veterinary probe types
·Professional veterinary software
·Smart veterinary data management system
·Excellent veterinary clinical application

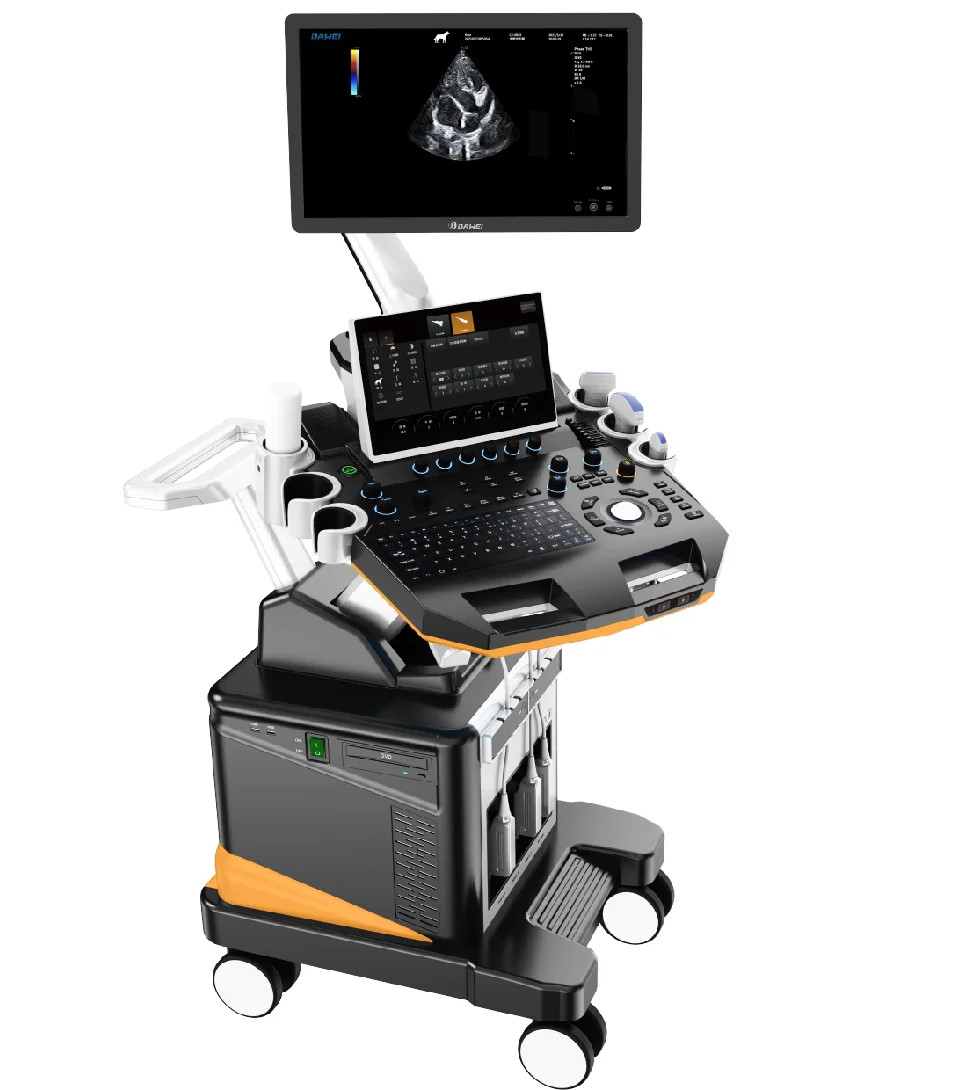

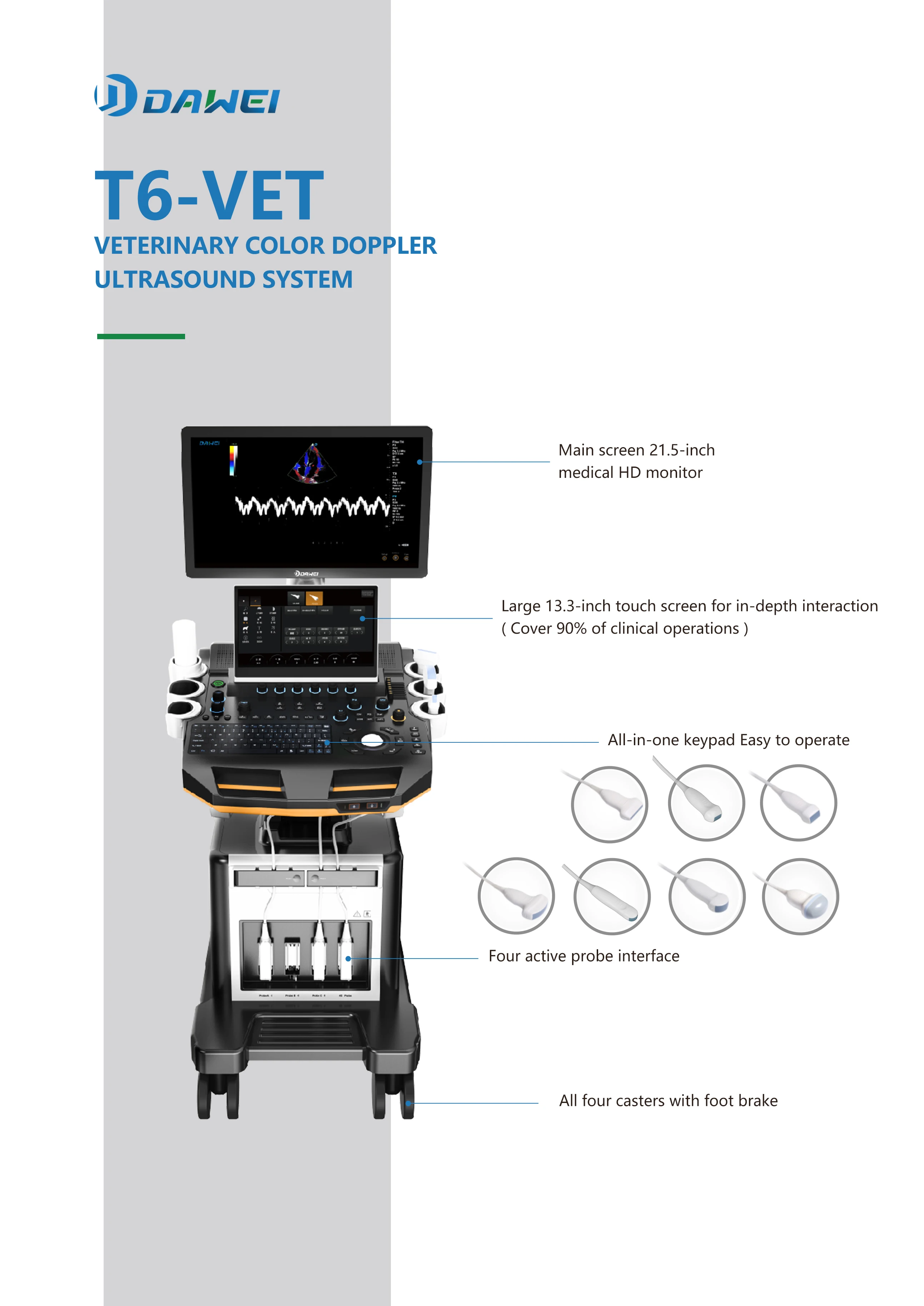

·Dual screen: 21.5 inch HD medical display and 13.3 inch touch screen
·Multiple languages, support EN/FR/RU/SP
·Built-in 128G solid state drive, external USB storage
·Image Optimization, Multi-Beam, IMT, Trapezoidal Imaging
·High sensitivity touch screen, make doctors more enjoyable in clinical applications
Probe Options
CONVEX PROBE
Used for abdominal organs and pregnancy examination of pigs, sheep and large dogs.
MICRO-CONVEX PROBE
Used for abdominal organ and pregnancy examination of cats and small and medium-sized dogs.
LINEAR PROBE
Used for abdominal organs, musculoskeletal and subcutaneous tissues of small animals.
RECTAL PROBE
Used for pregnancy check and reproductive system of cattle and horses.
BACK FAT PROBE
Used for back fat and muscles of pigs and cattle.
PHASED ARRAY PROBE
Used for cardiac diagnosis.

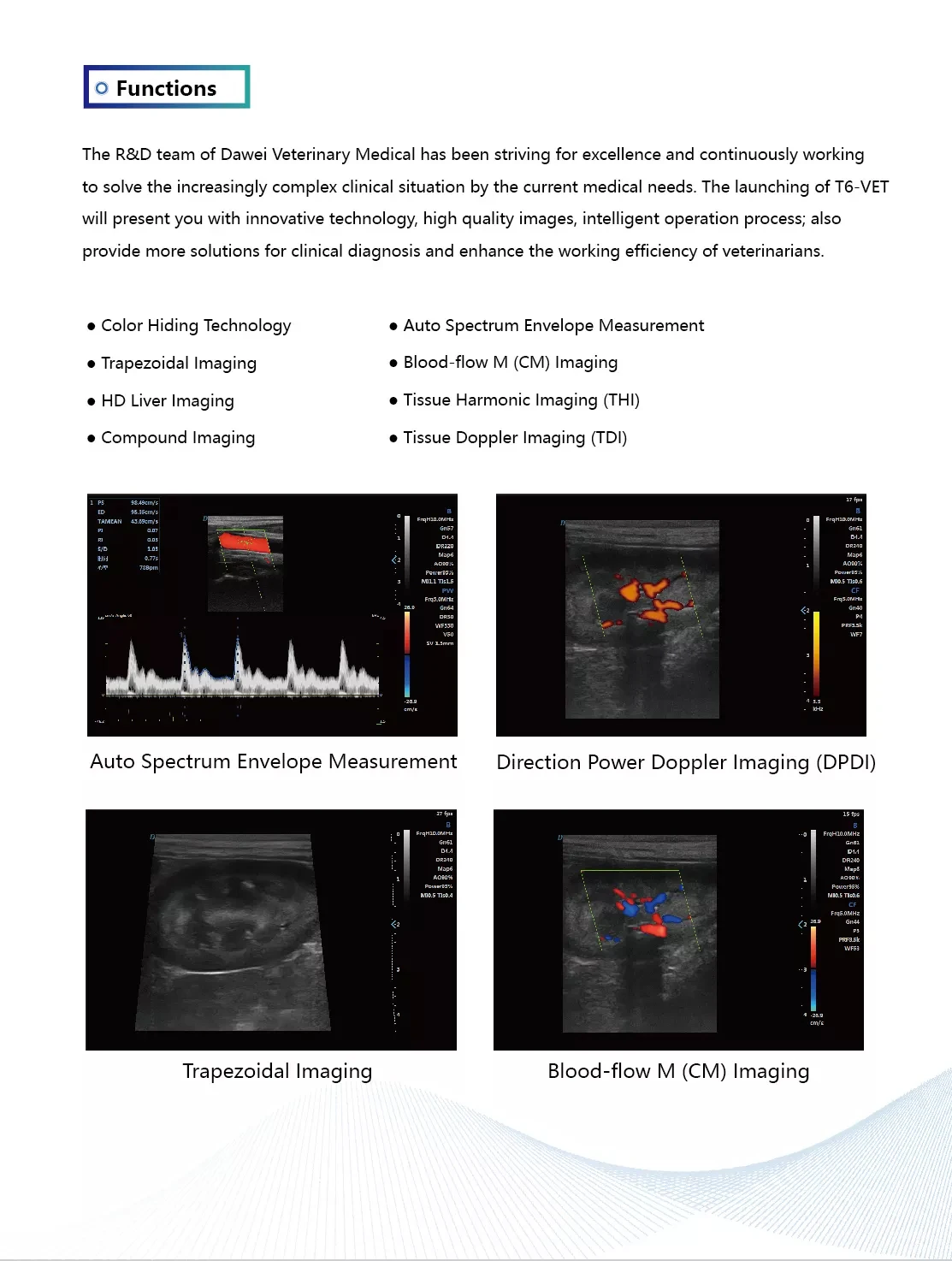

Imaging

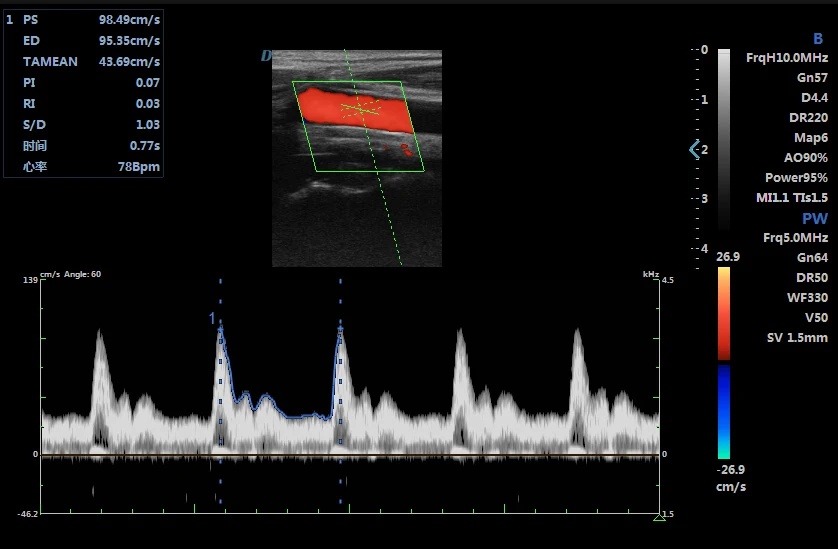

Auto Spectrum Envelope Measurement
Trapezoidal Imaging

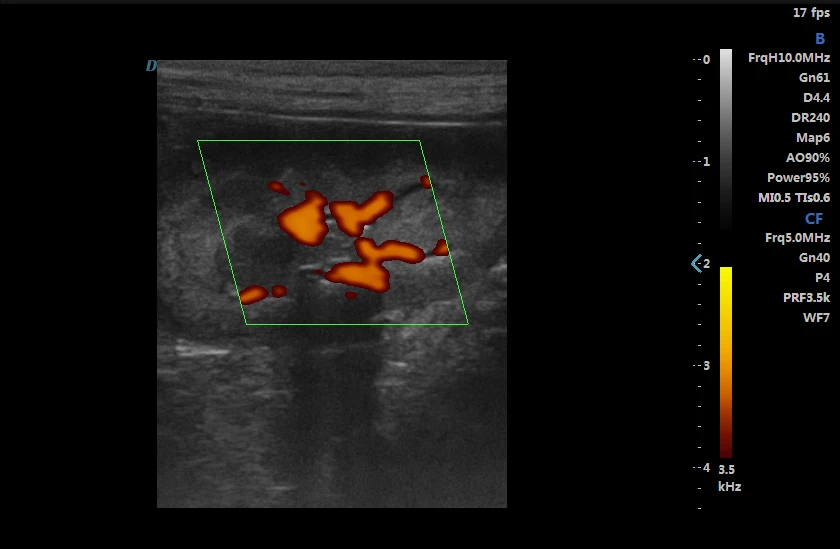

Direction Power Doppler Imaging (DPDI)

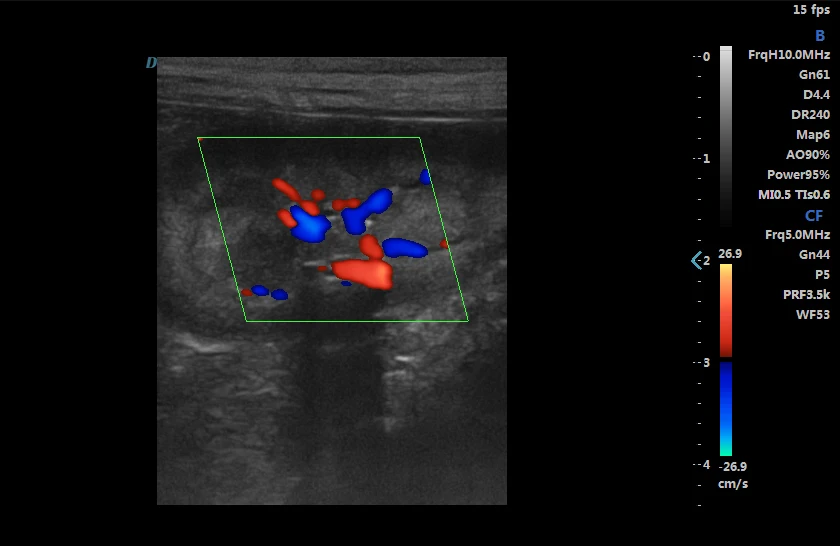

Blood-flow M (CM) Imaging
Weight | 86kg |
Size | 607*976*1458mm |
Interface | 4 USB, 1 Video, 1 S-Video, 1 DVI, 1 HDM, 1 RJ-45 |
Display | 21.5 inch medical display, 13.3 inch touch screen |
Display mode | B, BB, 4B, M, BM |
Color doppler display mode | B/C, B/C/M, B/POWER, B/C/PW |
Language | CN, EN, FR, RU, SP |
System | Win 8 |
Obstetric measurement | Bovine(BTD, BUD), Equine(EGSD、ESD), Swine(HLA、SLA), Ovine(SCRL), Canine(HD、BD、GSD、CRL), Feline(HD、BD) |
Company Profile
After more than 10 years, Dawei has developed into a leading domestic manufacturer of High-tech Ultrasound Equipment. Now our products are sold to more than 30 domestic provinces and exported to over 160 countries and regions."Profession creates more splendidness." Dawei has met the standards of ISO13485, received CE certification, and also gainedvarious of invention patents and software copyrights.
Production Line
Matherboard
Probe Assembly
QC
Warehouse
Certifications
CE
ISO
FAQ
Which organs can be diagnosed by T6-VET?
For bovine, ovine, equine, canine, feline and other domestic animals, animals for experiments, wildlife, and some aquatic animals.
What is the waterproof rating of probe?
IP7(soaking-proof)
What is the warranty？
Two-year free warranty, lifetime paid warranty.
What kind of technical support is provided？
We provide online technical support, all your problems are solved satisfactorily.
What is the waterproof rating of probe?
IP7(soaking-proof)
What is the warranty？
Two-year free warranty, lifetime paid warranty.
What kind of technical support is provided？
We provide online technical support, all your problems are solved satisfactorily.
