DaierTek 22mm IP65 1NO 1NC 5 Pins Waterproof Latching Black Metal Push Button Switch With 12V Blue LED For Car
- Category: >>>
- Supplier: Wenzhou Daiertek Electric Co. Ltd.
Share on (10000008796018):
Product Overview
Description
Product Description
Name | Metal Push Button Switch |
Protection Level | IP65 |
Max.Current | 5A |
Max.Voltage | 12VDC;125VAC |
Certificate | CE,Rohs,CQC |
Electrical Life | 100,000Cycles |
OEM&ODM | Yes |
* Package Includes : only one switch
Model | 22mm illuminated latching IP65 metal push button switch |
Rating | 5A 12VDC; 5A 125VAC |
Function | Latching |

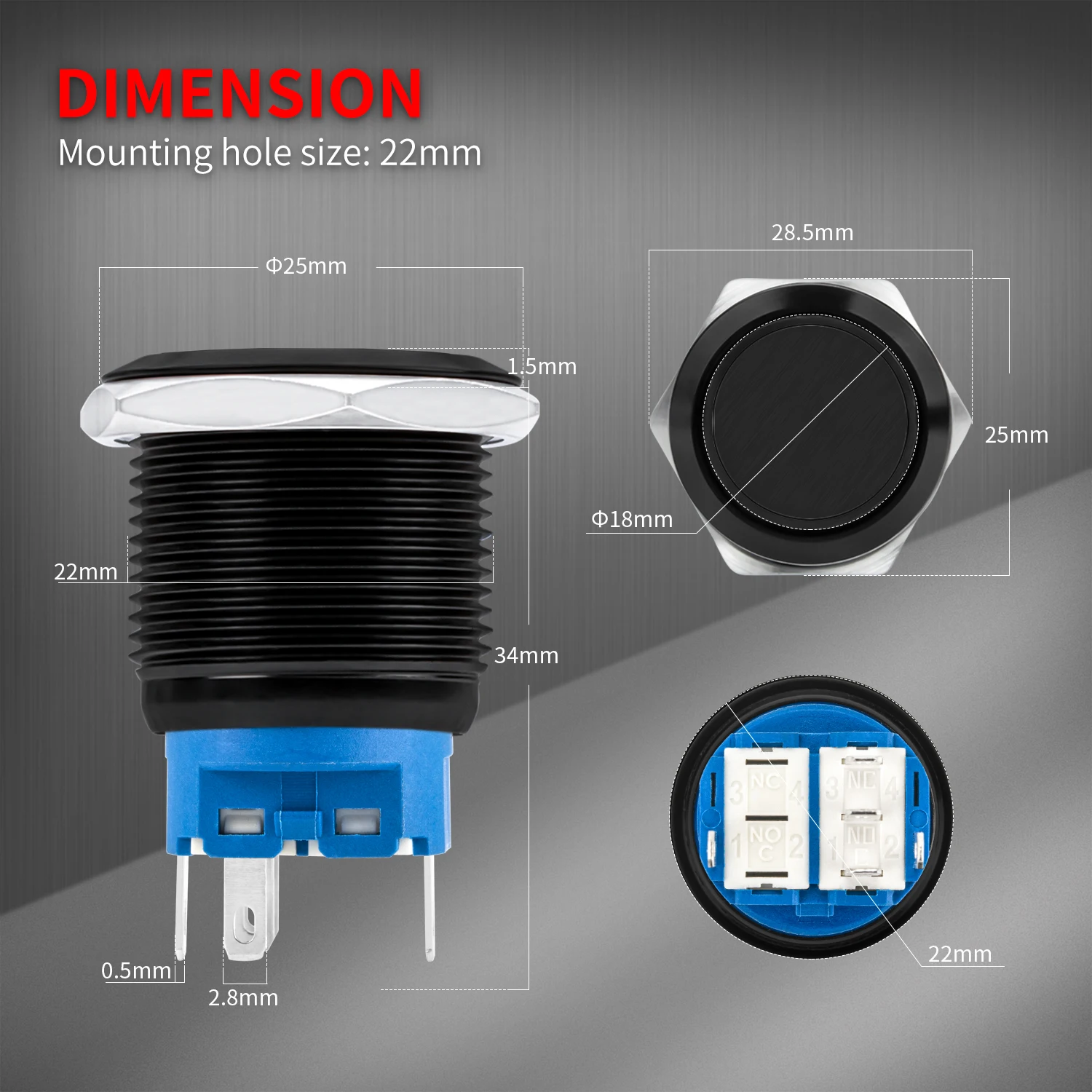

Button Size | 22mm |
Led Lamp Color | Blue |
Product Show

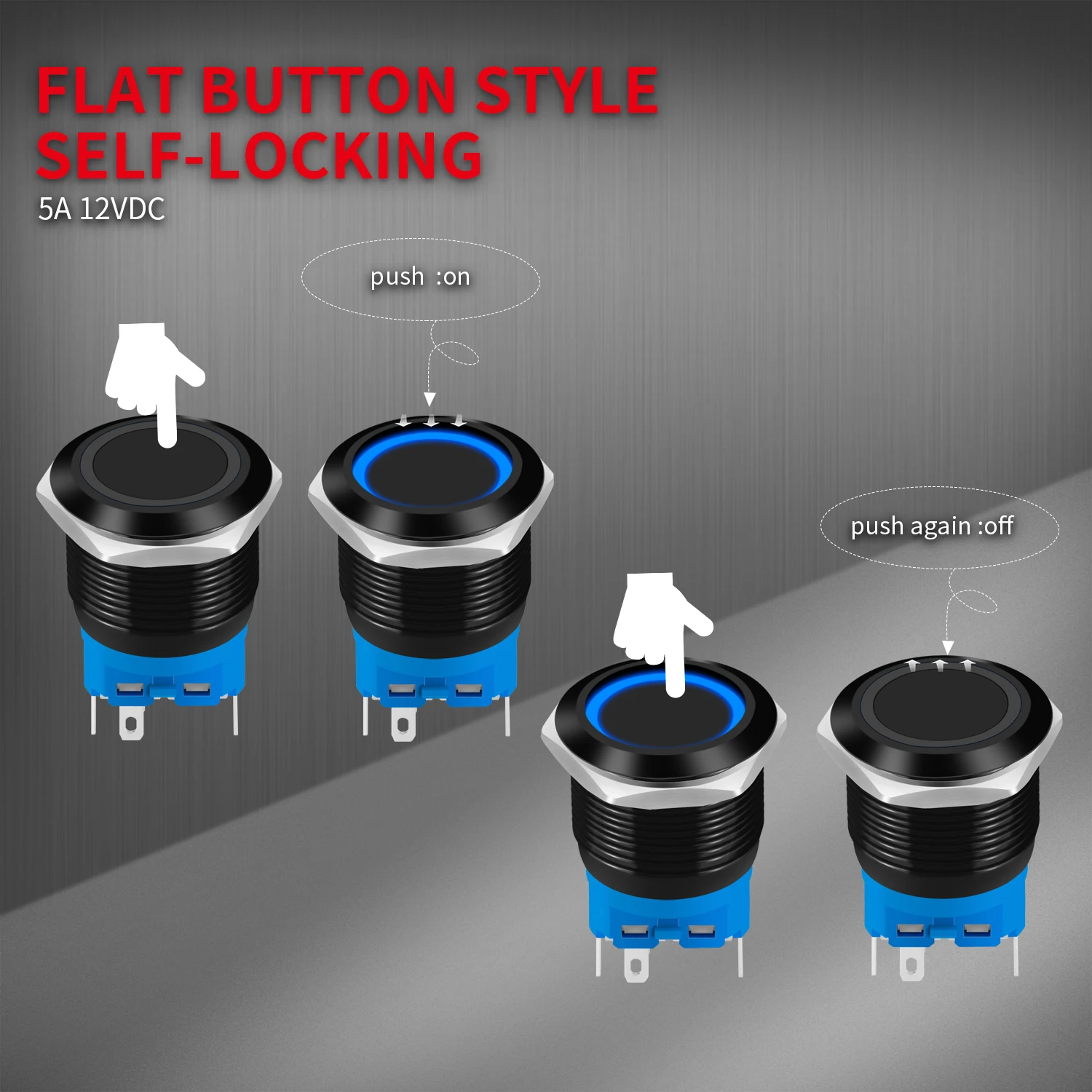

Latching Push Button Switch
The rating of the switch is 5A 12VDC. If you want to use it in an AC environment, please connect a 150KΩ resistor in series to the LED pin.
LED 12V Push Button Switch

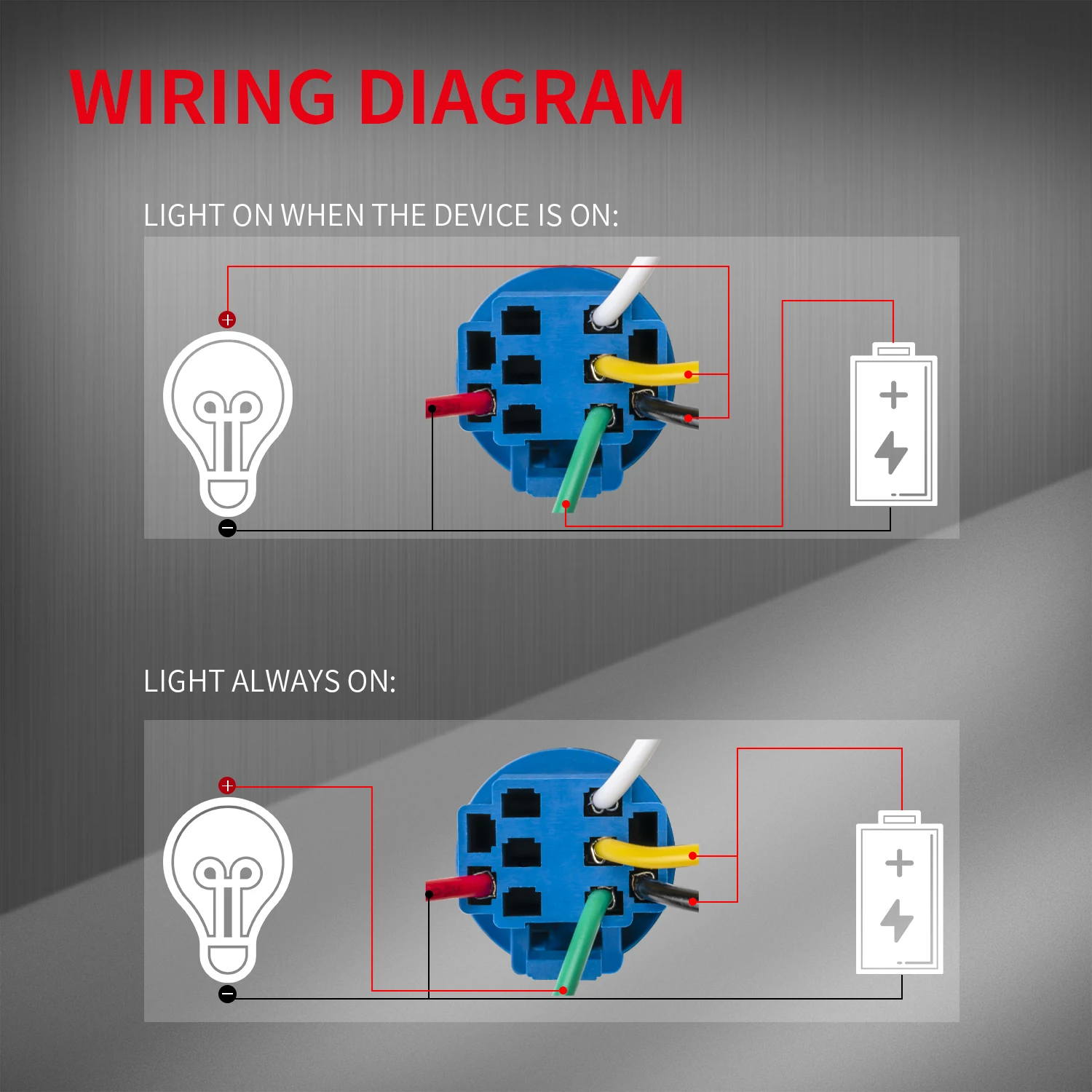

This switch has a blue LED ring light, you can choose to be always on or open and close according to the switch, depending on your wiring method.

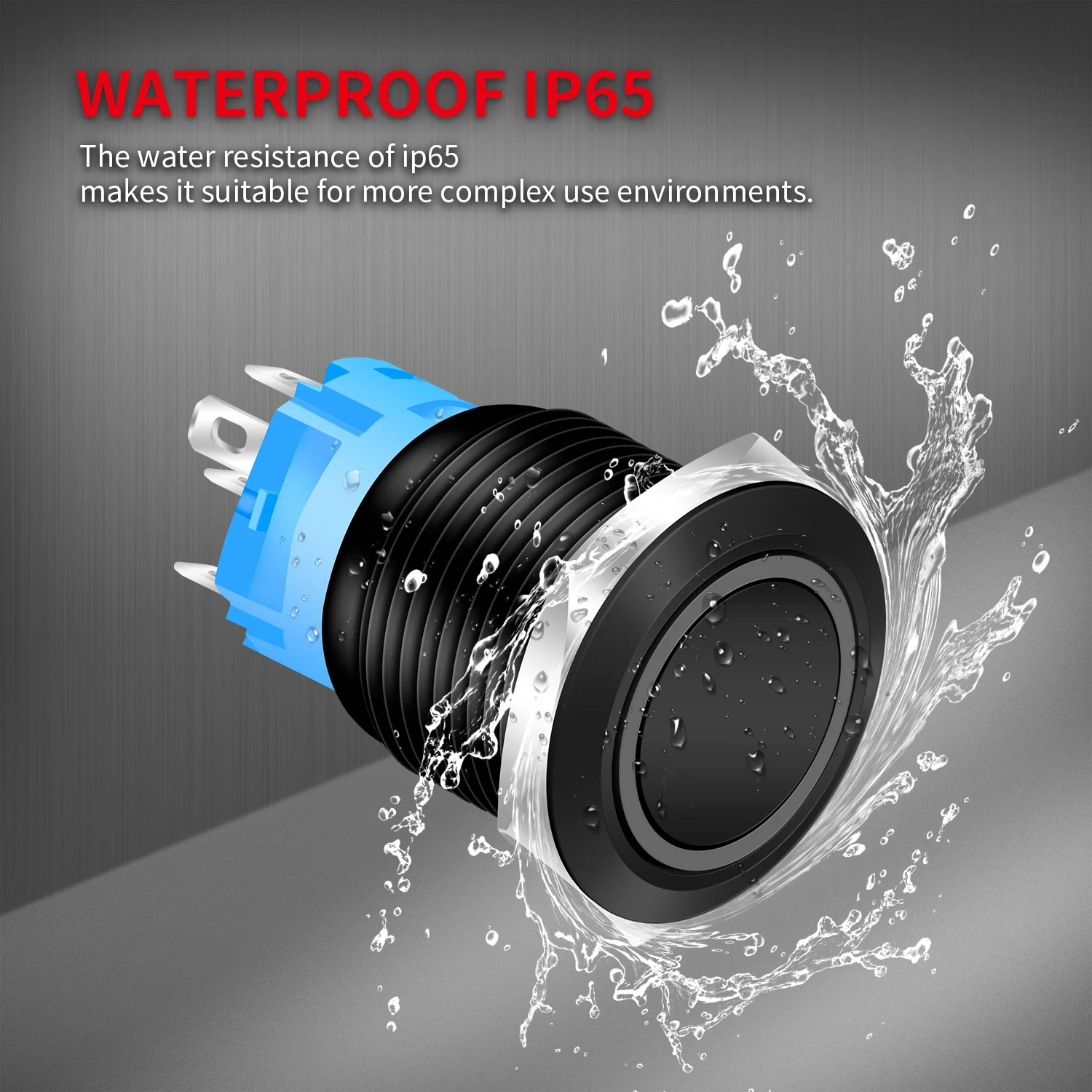

Waterproof Push Button Switch
The water resistance of ip65 makes it suitable for more complex use environments.

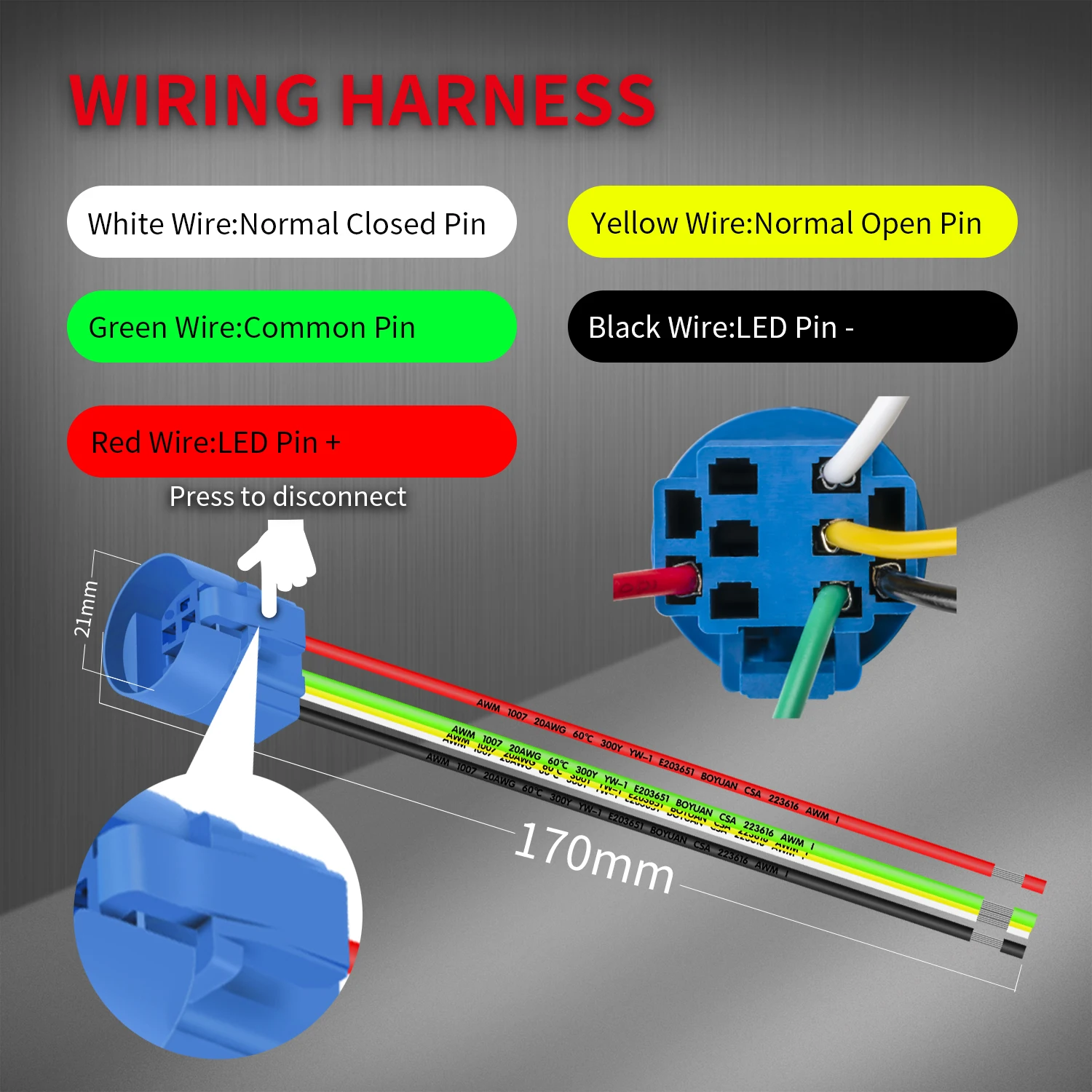

Pre Wired Push Button Switch
Wiring Harness makes an easy connection.
Pushbutton Switch Application
This ON OFF 12V Push Switch Button can be applied to Boat, Marine, RV, Vehicle, Truck, Car, Auto, Motorcycle, Industrial Equipment, Home Lamps, etc.
