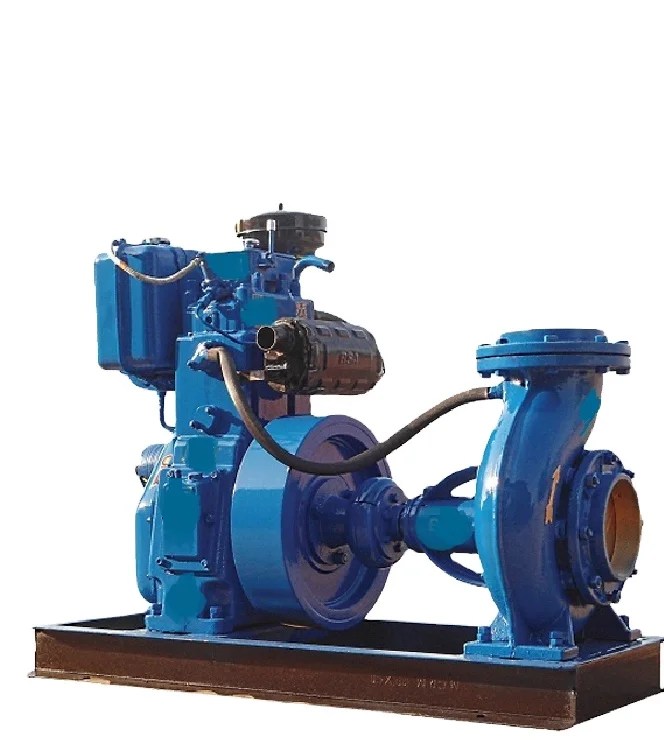

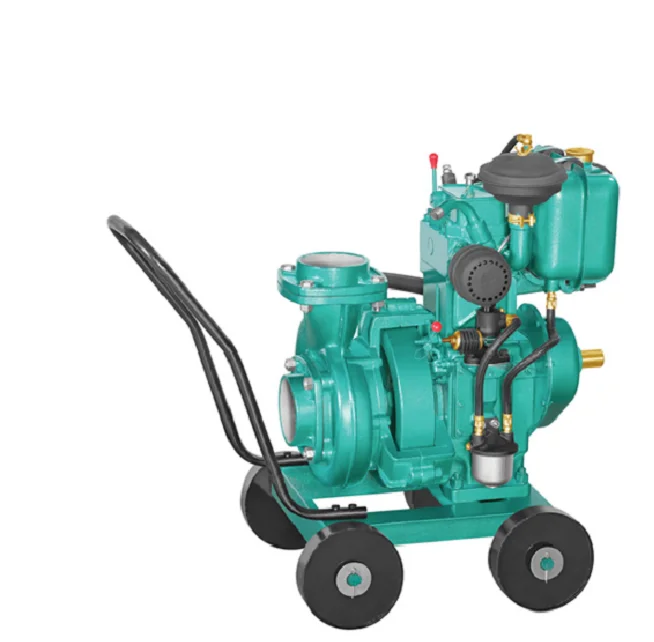

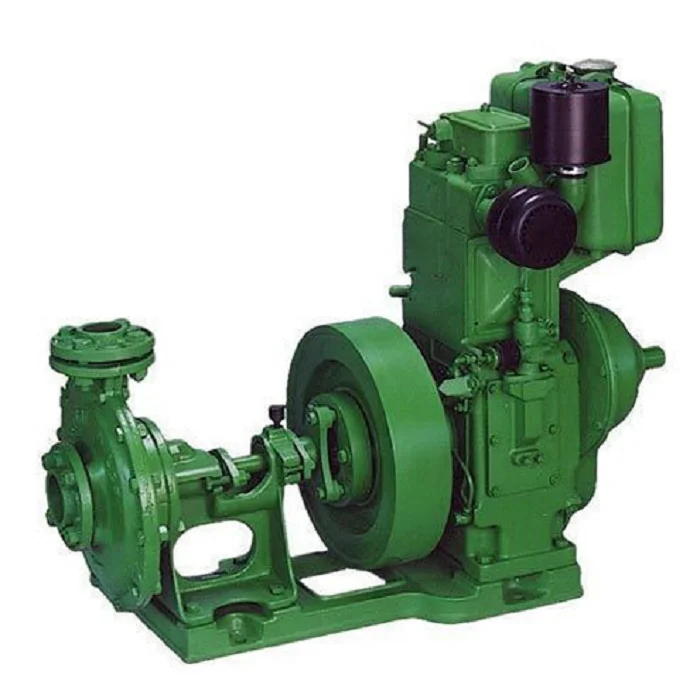

High capacity low price Single cylinder 3 HP Water cooled Diesel engine pump for water transfer applications
- Category: >>>
- Supplier: C-WAY EXPORTS
Share on (10000008805031):
Product Overview
Description
Item | Value |
Warranty | 1year |
Customized support | OEM |
Brand Name | C-Way |
Model Number | C-Way |
Place of Origin | India |
Telangana | |
Application | Drinking water treatment, HVAC OEM, Industrial Boilers, Irrigation and Agriculture, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution |
Horsepower | 3HP |
Power Source | Diesel Engine |
Pressure | High Pressure |
Structure | PISTON PUMP |
Cable Length | Customize |
Outlet Size | Standard/Customer Size |
Voltage | N/A |
Power | 2.2KW |
motor | N/A |
Power Source | Diesel Engine |
Feature | Anticorrosion |
Application scope | Industrial Utilities, Irrigation and Agriculture, Raw Water Intake, Wastewater |
Type | Forged Threaded |
Color | Customer Specifications |
Advantage | High Efficiency Low Cost |
Thickness | As Per Required |
Surface | Anti-rust |
Finish | Polished |
3 HP Water Cooled Diesel Pump
Summary:-
Features:
Summary:-
C-Way Exports are one of the leading manufacturers and suppliers of Diesel engine Pump Set. We offer Diesel engine with pump set is specially designed for agricultural purposes. The pump set is provided with a powerful motor for pulling the underground water to the ground surface. These pumps require very less maintenance. With a leading name in Diesel Engine Water Pump industry, we provide you with best quality products for all types of requirements.
Product Description:- 3 HP air cooled diesel engine water pump set, The powerful engine pumps water up to a height of 30 feet with incredible force, and its durable construction ensures long-lasting use. it includes LED light, makes it easy to see in the darkness, so you can get the job done without any hassle. When there is no power and you need to pump the liquid then this pump set that can help you out, turn to the Diesel Engine Pump Set, water Cooled, 3 HP. This pump comes with an water cooled motor that makes it energy efficient, allowing you to work longer on less fuel. The easy-to-use controls make it simple to operate, while the 3 HP output ensures that you'll be able to handle even the most demanding of tasks.
* Optimal fuel efficiency
* Less maintenance
* Easy Handel
* Compact and Simple design.
* Foot and Flange mounting options.
* Self-priming pump.
* Single helical gear design.
* Optionally available in double helical gear design
* Bi-directional positive displacement pump.
* With relief valve design.
* Optional high-temperature version up to 200º c.
Application:-
* Oil filtration systems.
* Pumping and Heating systems.
* Cleaning and Cooling systems.
* Centralize lubrication systems.
* Petroleum industries.
* Machine tools industries.
* Pump sets, Aquaculture, Fire pumps, High pressure washers
* Less maintenance
* Easy Handel
* Compact and Simple design.
* Foot and Flange mounting options.
* Self-priming pump.
* Single helical gear design.
* Optionally available in double helical gear design
* Bi-directional positive displacement pump.
* With relief valve design.
* Optional high-temperature version up to 200º c.
Application:-
* Oil filtration systems.
* Pumping and Heating systems.
* Cleaning and Cooling systems.
* Centralize lubrication systems.
* Petroleum industries.
* Machine tools industries.
* Pump sets, Aquaculture, Fire pumps, High pressure washers
Technical specification
Item | Technical Data |
Method of Cooling | Water |
No. of Cylinder | 1 |
Rated Power - H. P. / kW | 3.5 / 2.2 |
Bore (mm) | 76.0 |
Stroke (mm) | 76.0 |
Rated R. P. M. | 1500 |
Swept Volume (CC) | 365 |
Compression Ratio | 16.7:1 |
Bearing Type | TRB |
Method of Starting | Cold Starting with the help of Starting Handle |
Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
Governor Type / Class | Centrifugal / B1 Class |
Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
Fuel Tank Capacity | 3.75 Lts. |
Fuel Injection Timing by Spill Cut Off Method | 24° BTDC |
Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 294 |
Sp. Fuel Consumption gms / bhp - hr | 185 |
Sp. Fuel Consumption gms / Kwhr | 252 |
Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
Bumping Clearance (mm) | 1.00 - 1.10 |
Valve Tappet Clearance Inlet (mm) | 0.20 |
Valve Tappet Clearance Exhaust (mm) | 0.25 |
Air Clearaner | Oil Bath Washable Type |
Silencer | Muffler Type |
Lubrication System | Plunger Pump |
Lub. Oil Sump Capacity (Lts.) | 1.300 |
Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
Lub. Oil Grade | Temp 5° C & Below - SAE 10 |
Crank Shaft Height (mm) | 150 |
Foundation Bolt Spacing (mm) | 225 x 120 |
Engine Net Weight (kg) | 73 |
Engine Gross Weight (kg) | 110 |
Overall Dimensions (L x W x H) | 571 x 521 x 778 |
Overall Packing Dimensions (L x W x H) (mm) | 572 x 521 x 705 |
Pump Size (mm) | 65 x 50 |
Head Range (mts.) | 9.5 to 12.8 |
Head (mts.) | 11.5 |
Discharge (lps) | 9.5 |
Efficiency (%) | 63.0 |
Pump Set Net Weight (kg) | 110.0 |
Pump Set Gross Weight (kg) | 185.0 |
Overall Packing Dimensions (L x W x H) (mm) | 927 x 470 x 743 |
