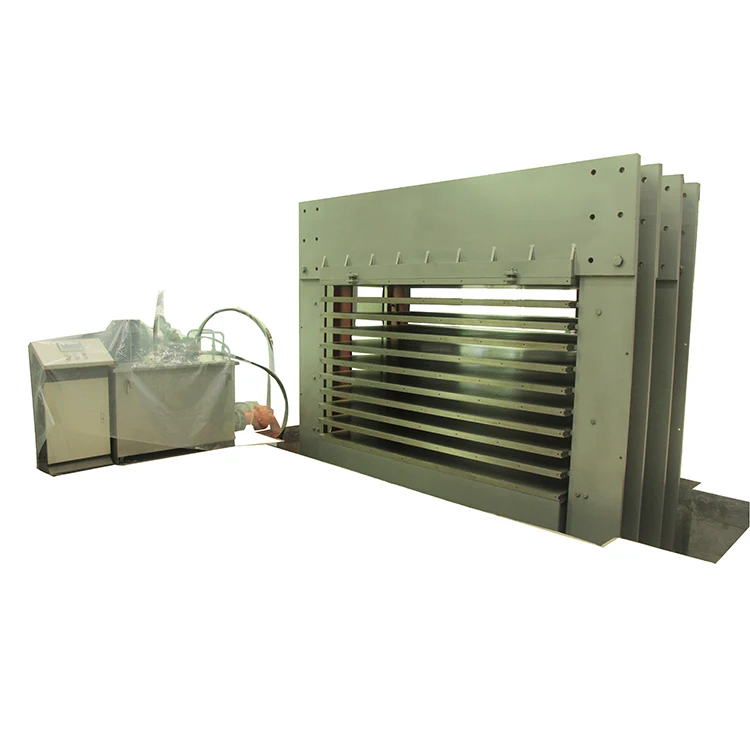

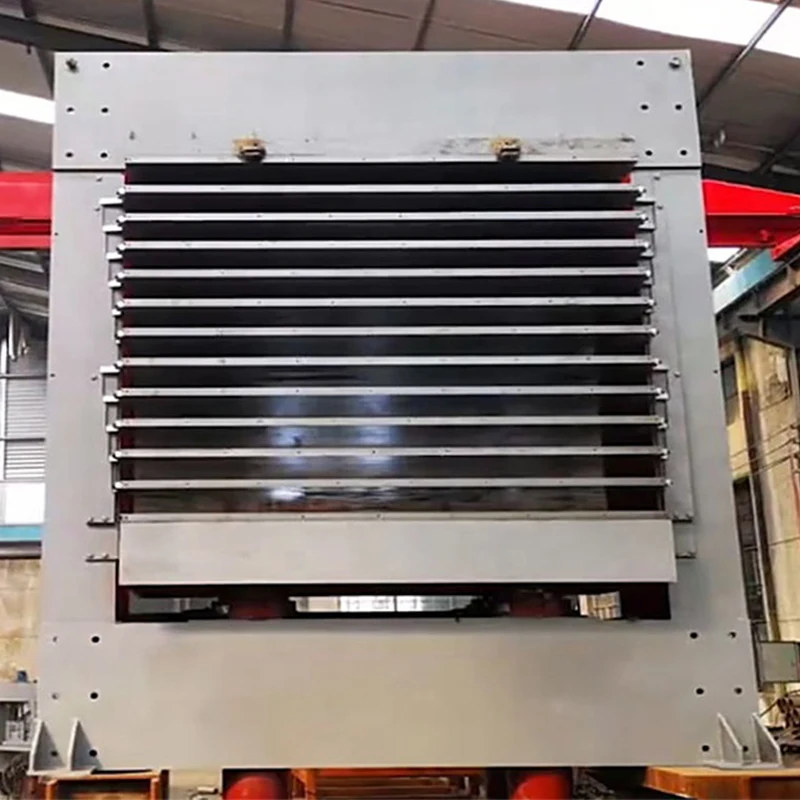

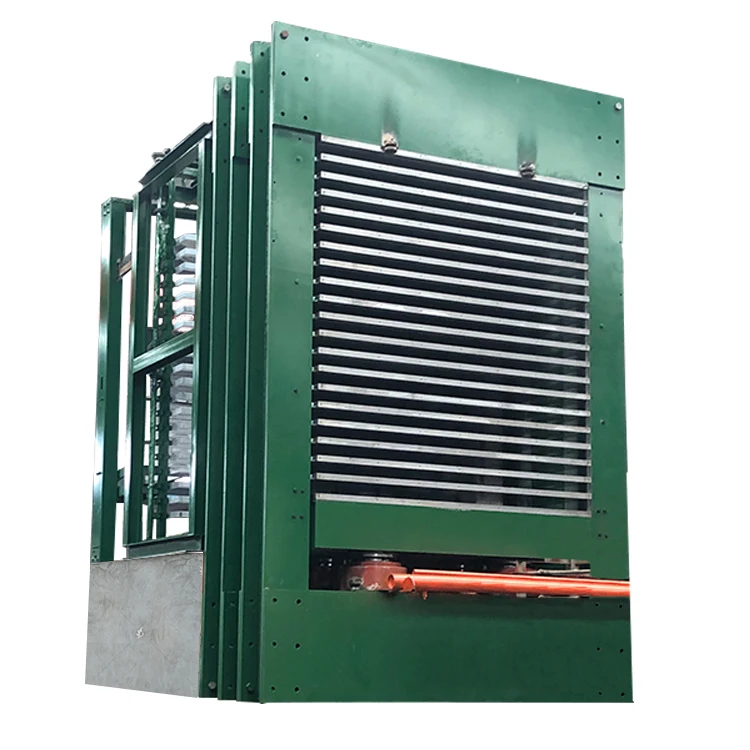

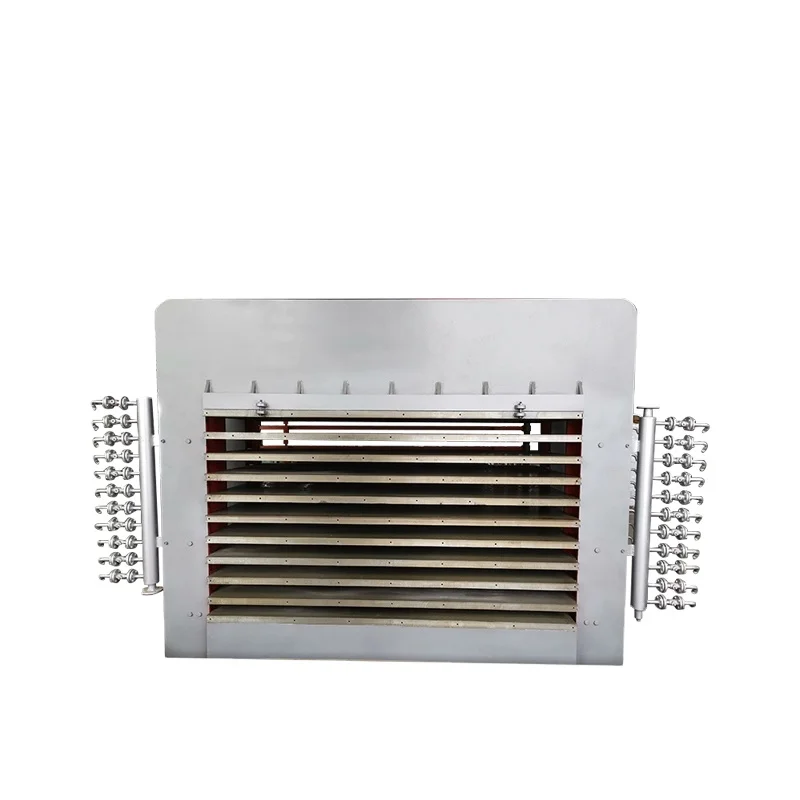

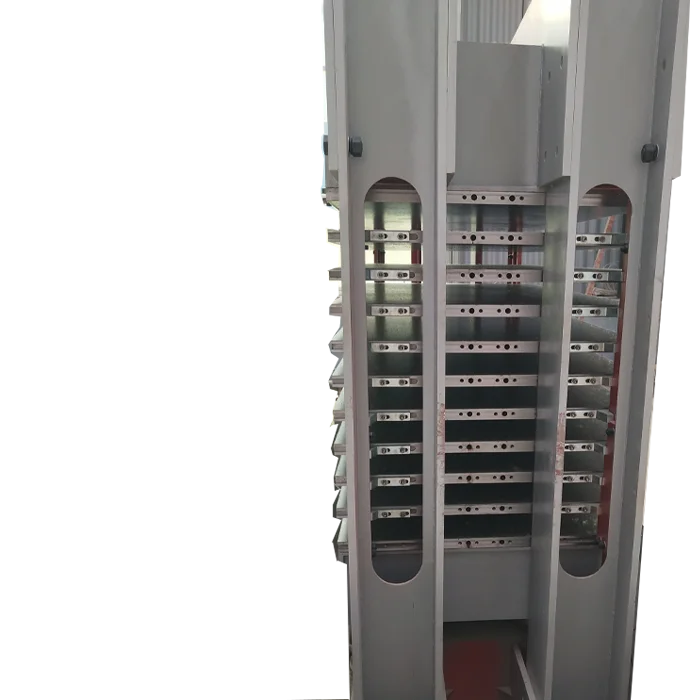

Plywood Hot Press Full Okume Okoume Plywood Oak Board Plywood Hot Press
- Category: >>>
- Supplier: Linyi Shining International Trading Co. Ltd.
Share on (10000008817586):
Product Overview
Description
Welcome to Linyi Shining Machinery, I hope you can pick the right product. If you have any questions, please feel free to contact us. We provide 24 hours online service. Then follow us to visit our product and company~
Specification
500Ton Hot Press Machine | ||
Pressure | 500 ton | |
Layers | 15Layers | |
Hot platen distance | 70mm | |
Hot plate qty | 16 pcs | |
Heating platen size | 2700*1370*42mm | |
Qty of Cylinder | 2 | |
Diameter of cylinder | 360mm | |
Stoke of cylinder | 1050mm | |
Upper ,bottom crossbeam | 900mm | |
Thickness of main frame steel | 35mm Q235 | |
Overall dimension | 3550*1370*4650mm | |
Weight | About 35Tons | |
600Ton Hot Press Machine | ||
Pressure | 600 ton | |
Layers | 10Layers | |
Hot platen distance | 100mm | |
Hot plate qty | 11 pcs | |
Heating platen size | 2700*1400*52mm(two inlet two outlet) | |
Diameter of cylinder | 6*ø220mm,2*ø120mm,(lifting cylinder),totoal 8cylinder,Wuxi cylinder | |
Stoke of cylinder | 1000mm | |
Upper ,bottom crossbeam | 900mm | |
Thickness of main frame steel | 30mm Q235 | |
Overall dimension | 3600mm*1370mm*4200mm | |
Weight | About 35Tons | |
800Ton Hot Press Machine | ||
Pressure | 800 ton | |
Layers | 25Layers | |
Hot platen distance | 80mm | |
Hot plate qty | 26 pcs | |
Heating platen size | 2700*1370*42mm | |
Qty of Cylinder | 4 | |
Diameter of cylinder | 320mm | |
Stoke of cylinder | 2000mm | |
Upper ,bottom crossbeam | 900mm | |
Thickness of main frame steel | 40mm Q235 | |
Overall dimension | 3600mm*1370mm*6720mm | |
Weight | About 86Tons | |
Product Description
Plywood hot press machine can be used for producing plywood, blockboard, wood veneer and melamine paper lamination on plywood, blockboard and film faced plywood. We have different tons, layers of hot press for you to choose, we provide you with customized services, to provide you with the most suitable products.
Advantages:
1.High quality and simple double frame structure.
2.High efficiency and easy to operate.
3.High production capacity.
4.Mitsubishi PLC control system, Siemens motor
5.Wuxi cylinder best cylinder.
6.Combined frame ,easy in installation and meditation
7.Taiwan hydraulic system lower power consumption less noisy.
8. Q235 steel plate, strong rigidity, and ensure high pressure.
2.High efficiency and easy to operate.
3.High production capacity.
4.Mitsubishi PLC control system, Siemens motor
5.Wuxi cylinder best cylinder.
6.Combined frame ,easy in installation and meditation
7.Taiwan hydraulic system lower power consumption less noisy.
8. Q235 steel plate, strong rigidity, and ensure high pressure.

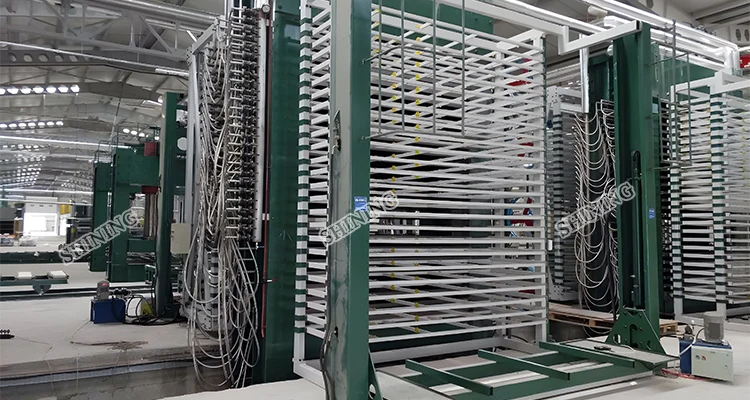

Details Images
Siemens motor, good quality pump, hydraulic valve. Quality assurance, use at ease.
Company Profile
Why Choose Us
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q: Can you accept OEM?
A: Yes, we can produce the machine according to customers' requirements.
2. Q: What about your products' quality?
A: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
3. Q:How about delivery?
A: When the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
4. Q: Why does the price often change?
A: The price depends on the latest prices of the raw materials.
5.Q: How about your the price often change?
A: We have 24 hours online service and also have professional staff to slove your doubts.
A: Yes, we can produce the machine according to customers' requirements.
2. Q: What about your products' quality?
A: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
3. Q:How about delivery?
A: When the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
4. Q: Why does the price often change?
A: The price depends on the latest prices of the raw materials.
5.Q: How about your the price often change?
A: We have 24 hours online service and also have professional staff to slove your doubts.
