Product Overview
Description
Product Description

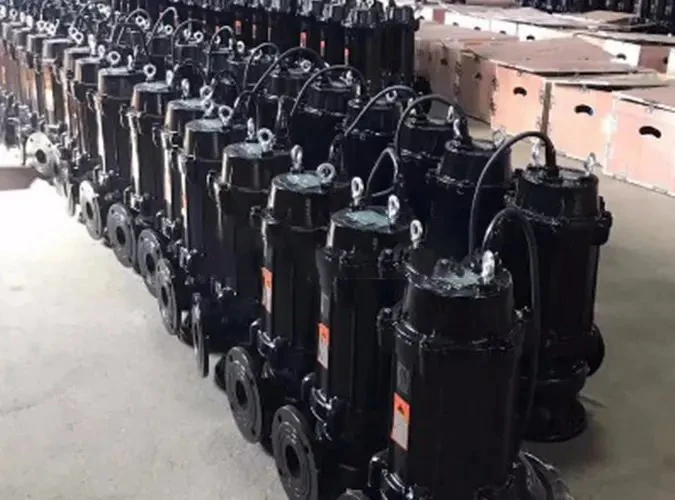

QSPW series submersible high-efficiency non-clogging sewage pump is a hydraulic machine in which the motor and the water pump are coaxially integrated into the medium. The product has advanced structure, wide flow passage and strong sewage discharge capacity. The temperature of the medium conveyed by this type of pump is not higher than 50°C, PH=4~10, the diameter of the solid particles passing through is 15-110mm, and the fiber length is 5 times the diameter of the inlet. It is widely used in municipal engineering construction projects, sewage discharge from factories and mines, and sewage discharge from hospitals, hotels and residential areas.
The pump adopts pump-electric integration, lower pump structure, large-channel impeller channel design; beautiful appearance, reasonable design, excellent performance, convenient use and maintenance, wide operating conditions, durability, safety and reliability. The external cooling water jacket is adopted, and the water pump is cooled by water, which can be dehydrated.
Application scope and conditions of use
Conditions of use:
1. The temperature of the medium does not exceed 50℃, the density is 1.0-1.3kg/m³, and the PH value is in the range of 5~9.
2. For pumps without an internal gravity circulating cooling system, the exposed liquid level of the motor part should not exceed 1/2.
3. Under normal circumstances, the pump must be used within the range of use head to ensure that the motor is not overloaded
4. The motor current must not exceed the rated current of the motor during operation.
1. The temperature of the medium does not exceed 50℃, the density is 1.0-1.3kg/m³, and the PH value is in the range of 5~9.
2. For pumps without an internal gravity circulating cooling system, the exposed liquid level of the motor part should not exceed 1/2.
3. Under normal circumstances, the pump must be used within the range of use head to ensure that the motor is not overloaded
4. The motor current must not exceed the rated current of the motor during operation.
Structural features
It is mainly composed of base, pump body, impeller and submersible motor; it adopts a unique large-channel impeller structure, which greatly improves the ability to pass through dirt; it adopts an internal artesian circulation system and uses medium to cool the motor part, which is safer and more reliable to use. Install stator winding temperature rise protection, bearing temperature rise protection, oil chamber water leakage protection, etc. according to user requirements to improve the safety of the electric pump; adopt a specially designed submersible motor with an insulation grade of F, which can work safely under harsh conditions ; Double-rail automatic coupling installation device can be used to make the installation and maintenance of the unit convenient and fast.
Specification
Flow (m³/h) | 8~10000 | Head (m) | 6~45 | |
Speed (r / min) | 740~2900 | With electric motor (kw) | 0.75~280 | |
Efficiency (%) | 38~84 | Outlet diameter (mm) | 25~700 | |
Pump weight (kg) | 42~3250 | |||
Company Profile
SINOOUTPUT GROUP LTD. Has six factories and six offices in China, Shanghai East Best Foreign, Changchun
Weicheng heavy parts, Sinotruk heavy duty engines, weifang power, Jiangsu Rongjin factory, Zhejiang Jiangnan
power.
Our main products are engines, generators and parts, export more than 50 countries all over the world.
Most equipment are imported from developed country, Germany, Japan etc.
We are one of the 2010 World Expo. Supporter of green power authorized by Shanghai government.
Our value message is: customers target is our target; customers concern is our concern; customers question is
our question.
Trust our products one time, trust your choice all the time!
Weicheng heavy parts, Sinotruk heavy duty engines, weifang power, Jiangsu Rongjin factory, Zhejiang Jiangnan
power.
Our main products are engines, generators and parts, export more than 50 countries all over the world.
Most equipment are imported from developed country, Germany, Japan etc.
We are one of the 2010 World Expo. Supporter of green power authorized by Shanghai government.
Our value message is: customers target is our target; customers concern is our concern; customers question is
our question.
Trust our products one time, trust your choice all the time!
Product application
FAQ
Q1：What is your supplying?
A1：Sinooutput Group mainly supply the marine engines, marine gearboxes, generators and marine stern shaft and propeller and parts etc. Regarding the marine engines with power 50-2000KW, they can used for marine propulsion engines and aux. Engines, we only do China top one brand and International brand such as Cummins marine engines and Deutz marine engines.
Q2： How does control products quality?
A2：Sinooutput company insists on pursuing better quality for several years in the marine field. From the material purchasing to products packing, we are trying the best. We use the best quality of materials, which are bought from official company. We have three the quality control departments to responsible for the parts, engine and gearboxes, and generators etc. They control nearly each parts before producing, assembling, packing and dispatching.
A1：Sinooutput Group mainly supply the marine engines, marine gearboxes, generators and marine stern shaft and propeller and parts etc. Regarding the marine engines with power 50-2000KW, they can used for marine propulsion engines and aux. Engines, we only do China top one brand and International brand such as Cummins marine engines and Deutz marine engines.
Q2： How does control products quality?
A2：Sinooutput company insists on pursuing better quality for several years in the marine field. From the material purchasing to products packing, we are trying the best. We use the best quality of materials, which are bought from official company. We have three the quality control departments to responsible for the parts, engine and gearboxes, and generators etc. They control nearly each parts before producing, assembling, packing and dispatching.
