Hot product premium quality OEM AWS E7016 welding electrodes welding rods with free sample available
- Category: >>>
- Supplier: KIM TIN INVESTMENT AND DEVELOPMENT CORPORATIONKIM CORPORATION
Share on (10000008830588):
Product Overview
Description
Product Description
Packing details | - 2.5mm: 2.5kg/box - 3.2mm/4.0mm: 5kg/box - 20kg/carton | ||||||
MOQ | 5kg | ||||||
Warranty | 3 years | ||||||
Payment | L/C, T/T | ||||||
Specification
Item | Value |
Warranty | 3 years |
Customized support | OEM, ODM, OBM |
Place of Origin | Vietnam |
Ho Chi Minh City | |
Brand Name | Kim Tin |
Model Number | AWS E 6013, E 6013, E7016 |
Material | Carbon steel |
Operating Current | -30℃-40℃ |
Welding Current | 50-240A |
Operating Temperature | Standard Temperature |
Application | Welding steel materials |
Product Name | Welding Rod |
Usages | Welding Tool |
Color | Grey |
Certification | ABS, CWB, TUV, DB, JIS, CE, ISO9001 |
Keyword | CARBON WELDING ELECTRODE AWS E6013 |
Advantage | Small Splash |
Type | Manufaturer |
Standard | AWS A.5.1 E6013 |
Packing | 20kg/carton |
Samples | Freely |
Product Paramenters
Features and application:
- The cover of KT-421 is made out of titanium to ensure a favorable welding process.
- KT-421 low carbon steel welding rod is suitable for welding Carbon steel and low alloy steel with medium load structure such as: industrial factory structure, machine details, railing, iron door,....
- The cover of KT-421 is made out of titanium to ensure a favorable welding process.
- KT-421 low carbon steel welding rod is suitable for welding Carbon steel and low alloy steel with medium load structure such as: industrial factory structure, machine details, railing, iron door,....
- Welds are bright, easy to remove slag, clean slag, light electricity, less smoke, less splashing.
- It can be welded in all different welding positions: flat welding, horizontal welding, bare welding, ...
- Good arc priming sensitivity: the maximum dwell time for re-priming is not less than 60 seconds.
Wire Chemical Composition (%) | C | Mn | Si | P | S |
0.10 max | 0.35~0.55 | 0.35 max | 0.030 max | 0.030 max |
Deposited Metal Mechanical Properties | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | AKV Impact Energy at 0ºC (J) |
430 min | 345 min | 24 min | 50 min |
Diameter (mm) | Ø 2.5 | Ø 3.2 | Ø 4.0 | Ø 5.0 | ||
Length (mm) | 300 | 350 | 400 | 400 | ||
Welding current (A) | Flat welding position | 50-90 | 90-140 | 140-190 | 180-240 | |
Overhead, vertical welding position | 50-90 | 90-140 | 140-190 | 180-240 | ||
Usage instruction:
- Fully prepare labor safety factors before welding. The welding power source should be stable.
- Fully prepare labor safety factors before welding. The welding power source should be stable.
- When the welding rod is wet, the solder is prone to smoke, splashing and instability. Therefore, the weld is pitted, it needs to be dried at 100ºC - 150ºC for 40-60 minutes before use.
- Removes oil and dirt from the surface of the solder.
- Ensure the weld gap, bevel the weld in accordance with the regulations to achieve a solid weld.
- Select the welding current according to the instructions to get a deep penetration weld, high workability.

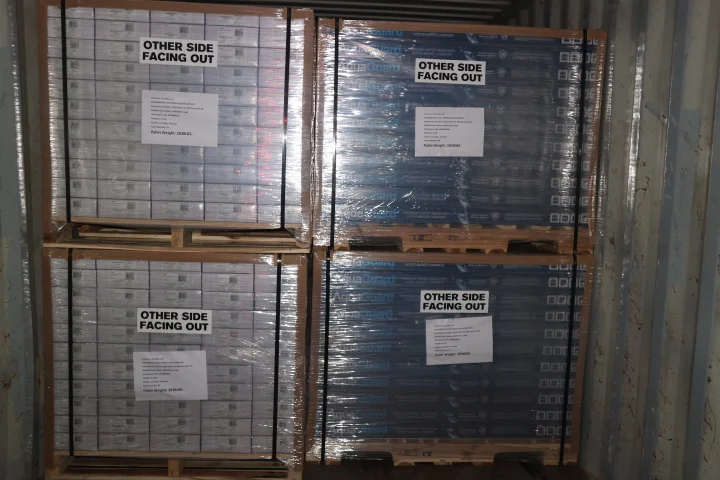

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

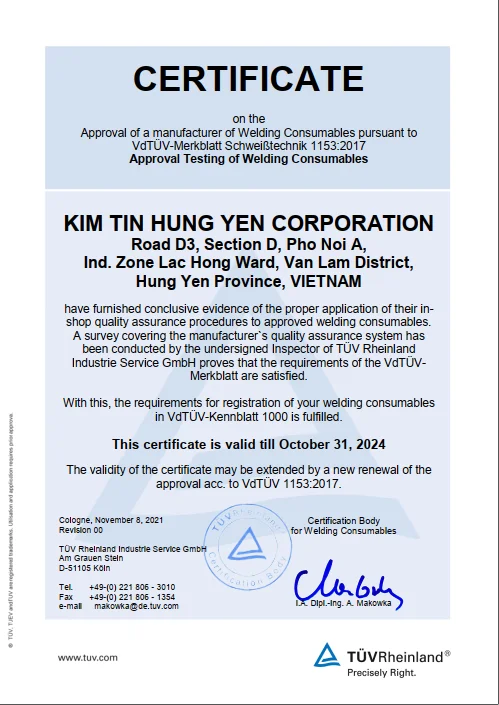

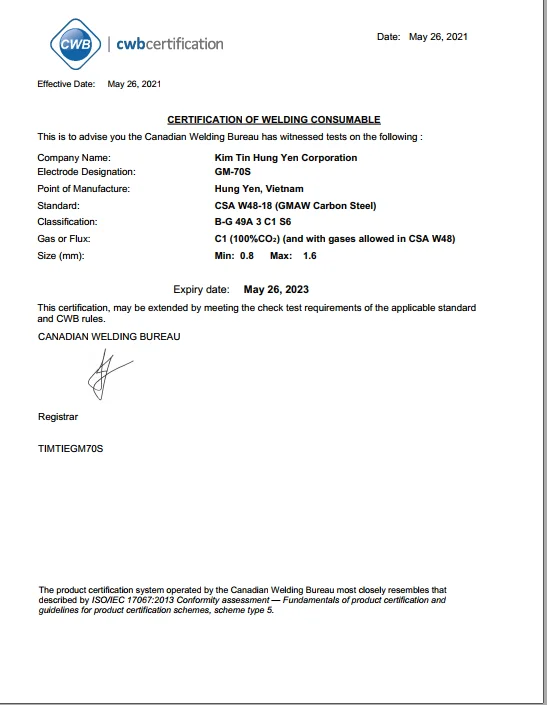

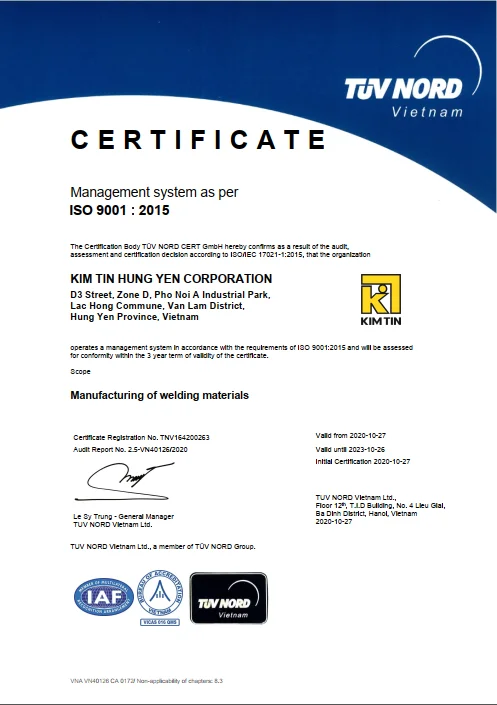

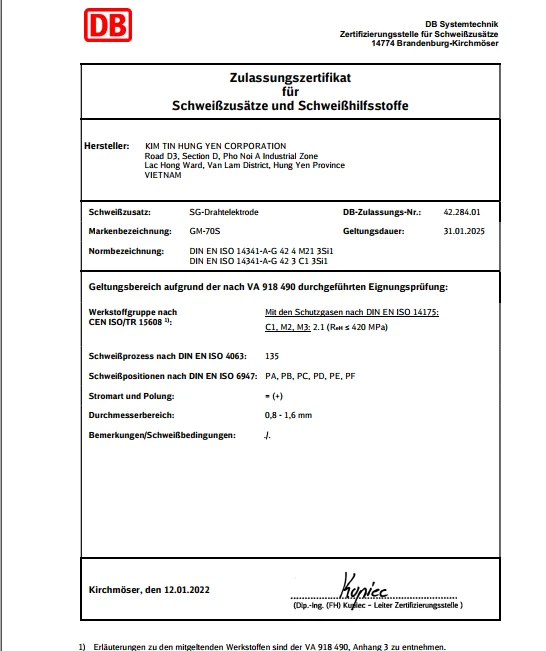

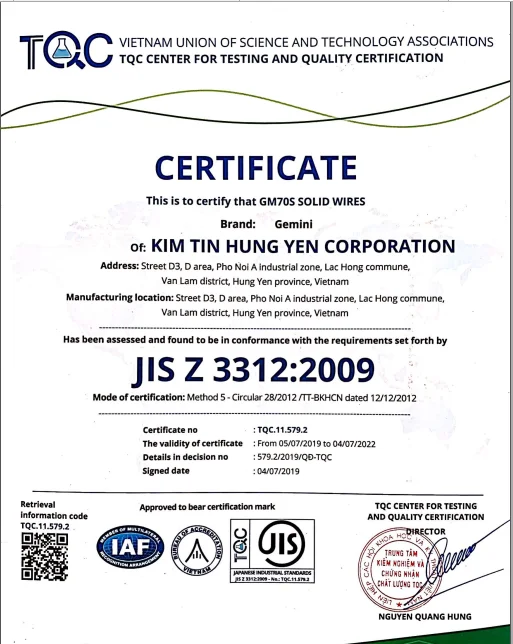

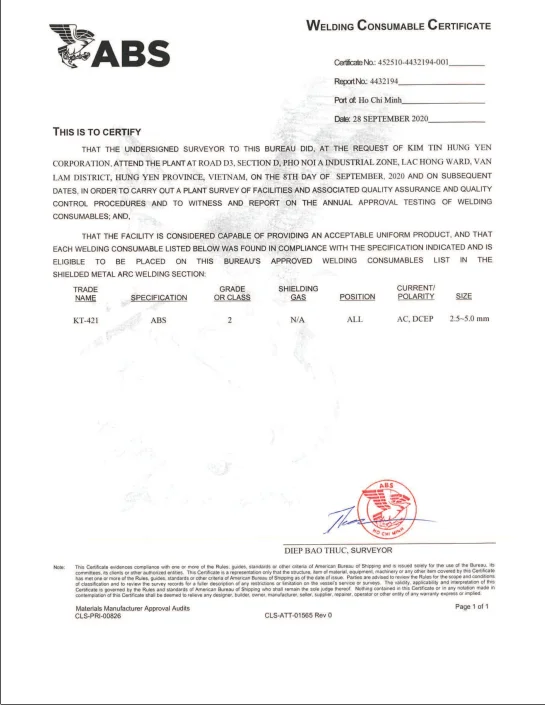

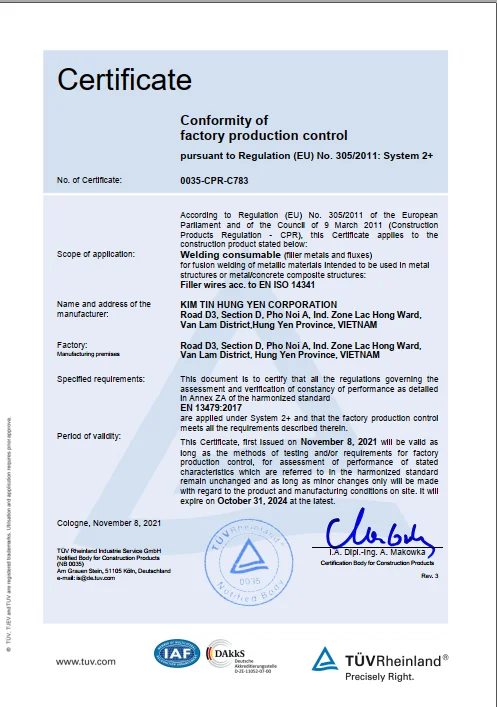

Certifications

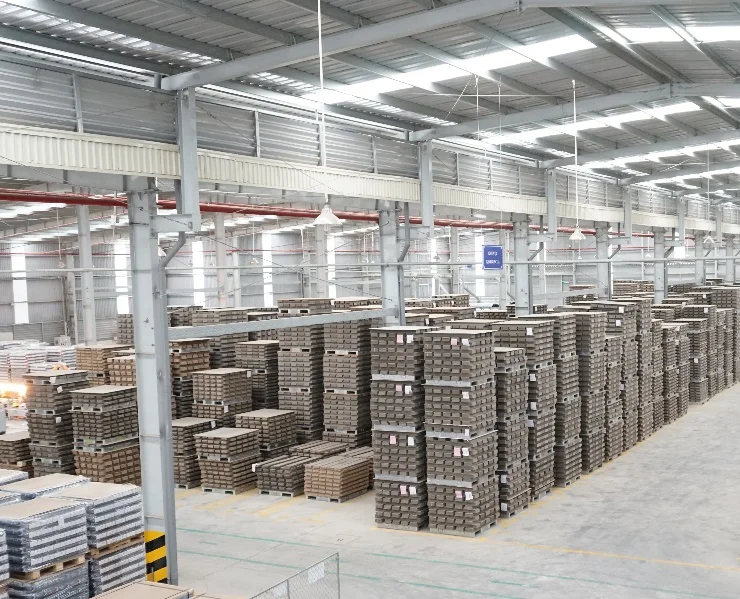

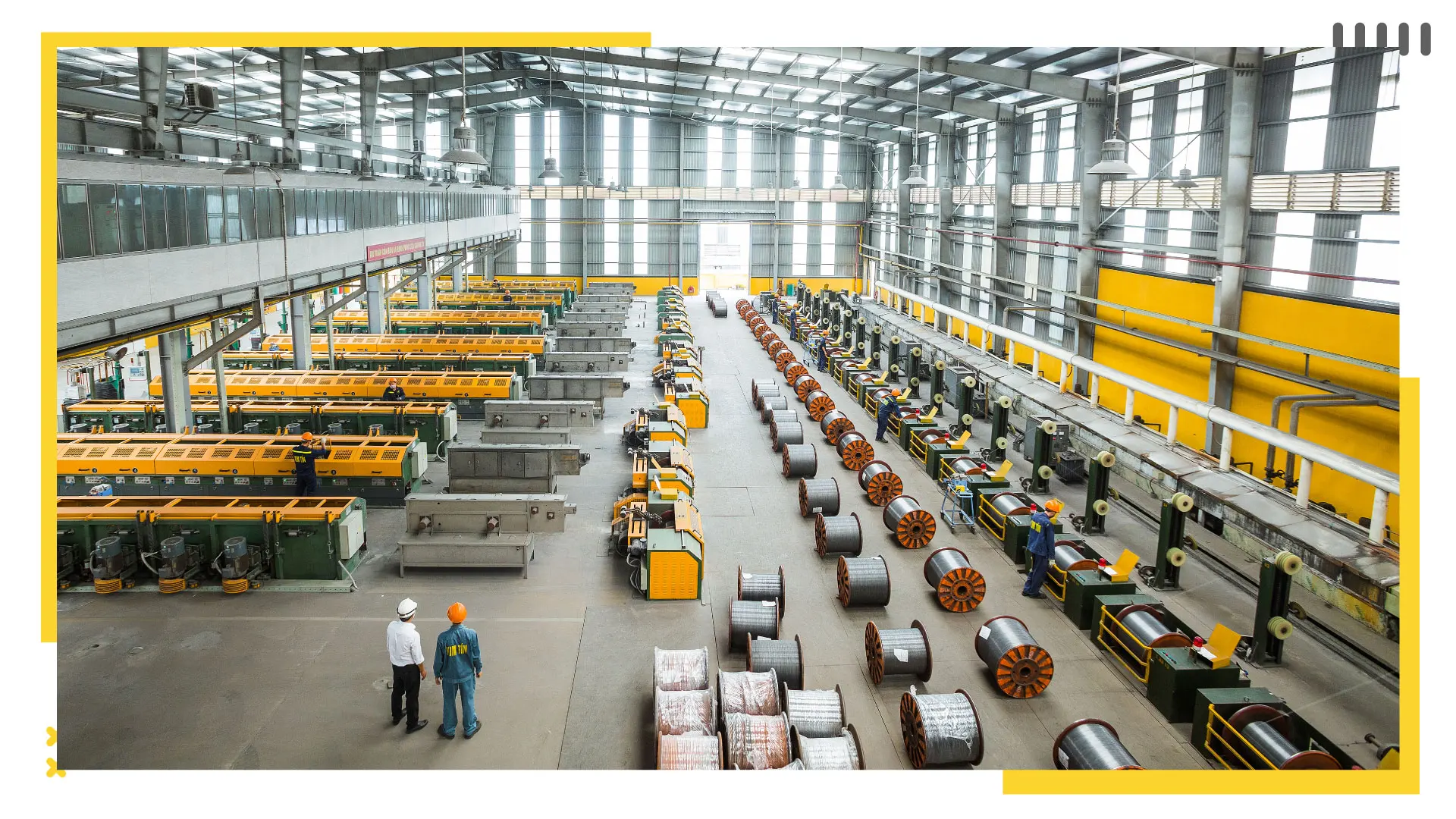

Company Profile
Who are we?
Over 22 years of establishment and development, Kim Tin has risen to become a leader in welding materials manufacturing and trading industry. Besides, Kim Tin has also expanded its scale, becoming a corporation dealing in multi-industry such as welding materials, non-ferrous metals, MDF boards, MDF products, mining, transportation...
Over 22 years of establishment and development, Kim Tin has risen to become a leader in welding materials manufacturing and trading industry. Besides, Kim Tin has also expanded its scale, becoming a corporation dealing in multi-industry such as welding materials, non-ferrous metals, MDF boards, MDF products, mining, transportation...
Kim Tin is constantly researching and producing the best products to serve not only domestic but also overseas customers. We take pride in the fact that Kim Tin welding products have been exported to all 5 continents and we are taking initiatives in building and maintaining strong business relationship with foreign partners.
Why should you choose us?
- Conforming to international quality
- Continuously applying state-of-the-art technology and upgrading factory facilities to meet diverse customer requirements
- Putting credibility first in all business activities
- Moving towards sustainable development, enhancing environmental protection and maintaining consumer health.
Why should you choose us?
- Conforming to international quality
- Continuously applying state-of-the-art technology and upgrading factory facilities to meet diverse customer requirements
- Putting credibility first in all business activities
- Moving towards sustainable development, enhancing environmental protection and maintaining consumer health.
FAQ
Q1: Can I have a sample for testing?
A: Yes, we can support free sample.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, OEM and ODM are available from us.
Q3: Do you have inspection procedures for products?
A: 100% self-inspection before packing. We provide Quality Certification for every order.
Q4: Can we mix items in one 20ft container?
A: Yes.
A: Yes, we can support free sample.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, OEM and ODM are available from us.
Q3: Do you have inspection procedures for products?
A: 100% self-inspection before packing. We provide Quality Certification for every order.
Q4: Can we mix items in one 20ft container?
A: Yes.
