Product Description
HOT Points
* Intelligent lighting to attract custmer attention

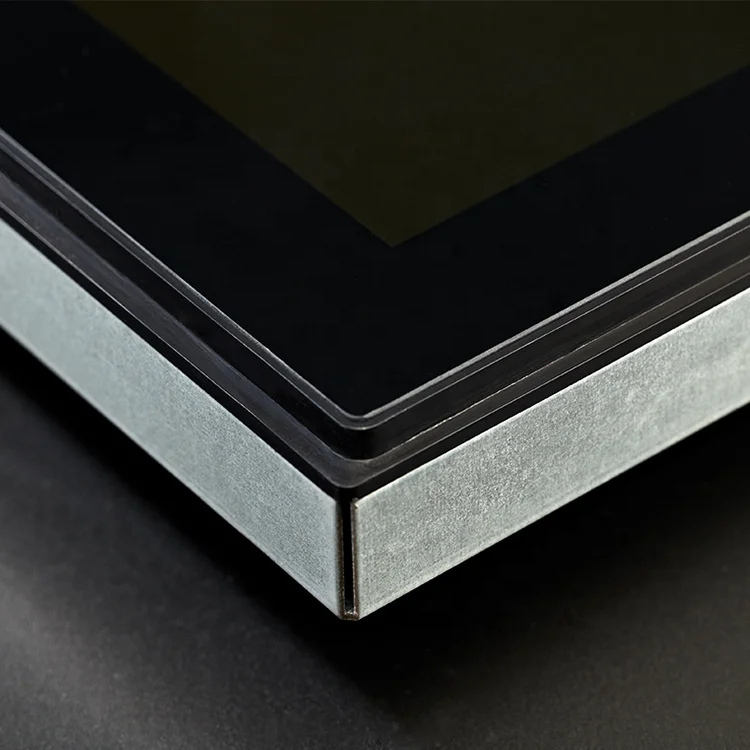

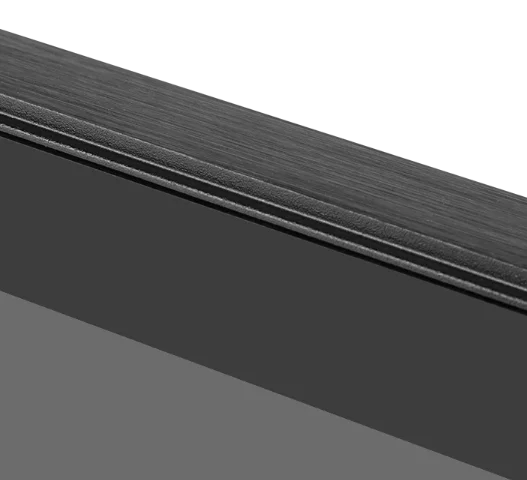

*Pure flat design with narrow edge
*Multiple mounting options including horizontal braket mount ,vertival bracket mount and VESA mount .
*Wth remote control
*high quality panel with high contrast ratio and broad viewing angle
*USB touch interface

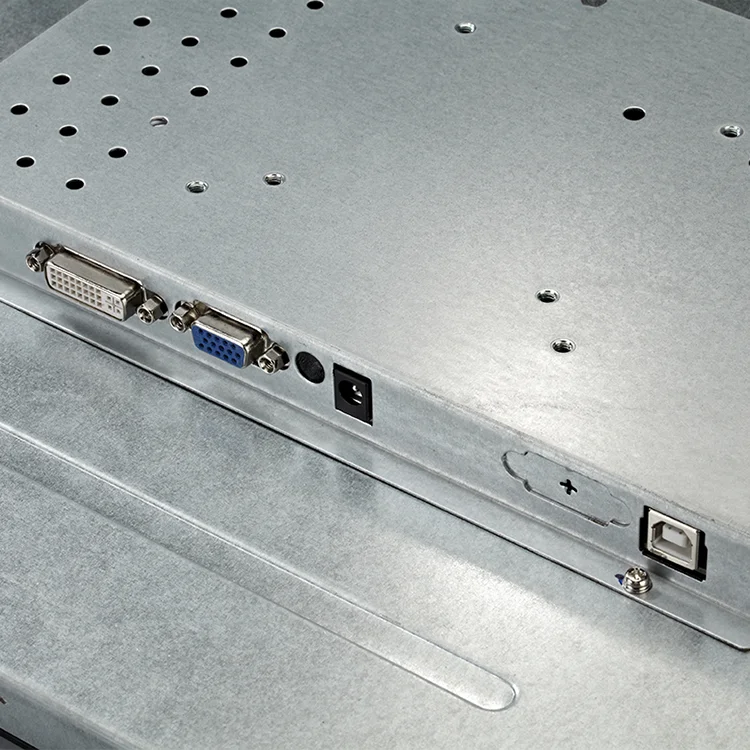

*VGA and DVI and HDMI input video format .
*CCC,ETL.FCC.CE,CB,RoSHS certificates.
*other sizes can be custmized.

item
|
(KOT-0104U-CA4P)
|

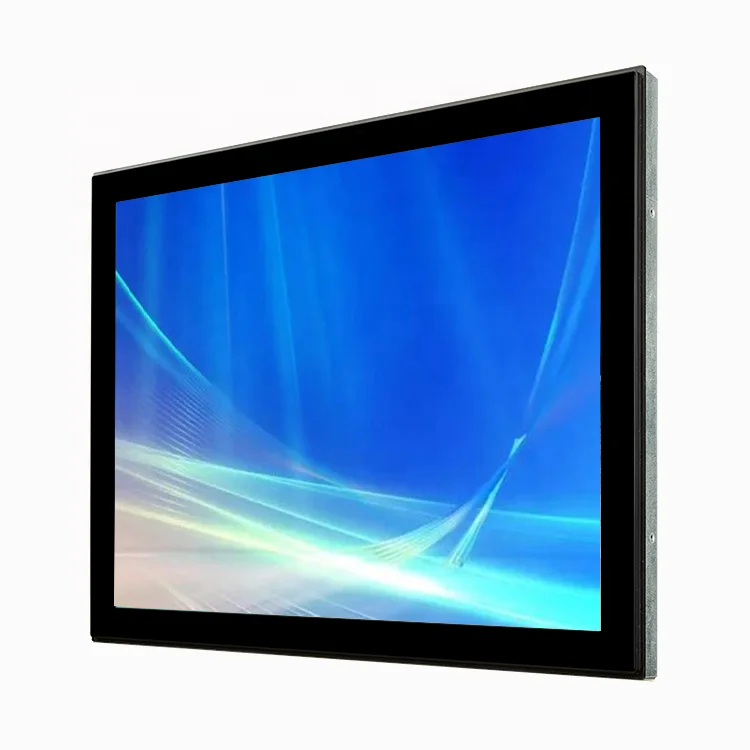

Display Type
|
4:3Ratio 10.1" TFT-LCD
|
Active Area
|
|
Monitor Dimensions (W*H*D)
|
|
Suggested Resolution
|
800*600 @ 60Hz
|
Support Colors
|
16.7M
|
Brightness (Type)
|
Pure LCD Panel: 300cd/m2; With Touch Monitor: 255cd/m2
|
Response Time (Type)
|
30ms
|
Viewing Angle(Type at CR>10)
|
Horizontal(left/right) 75°/75° ; Vertical(up/down) 50°/60°
|
Contrast Ratio (Type)
|
500:1
|

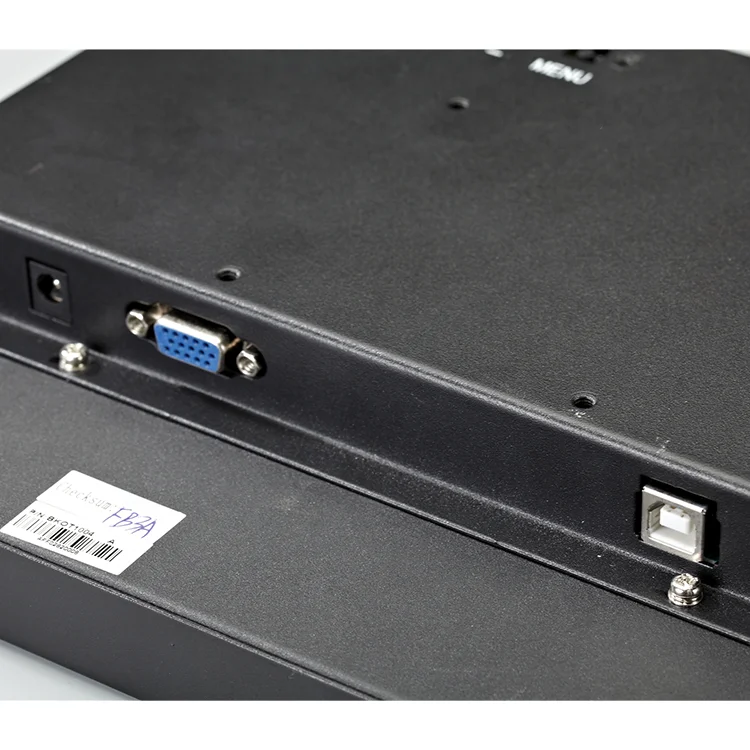

Video Input
|
VGA
|
Frequency (H/V)
|
30~80KHz / 60~75Hz
|
Power Supply
|
Type: External brick, Display voltage: DC 12V±5%
|
Environment
|
Operating Temp. 0~50°C ; Operating RH 20%~80%
|
Storage Temp.
|
-20~60°C
|
Storage RH
|
10%~90%
|
MTBF
|
≥30,000 Hours
|
LED Back Light Life (Typ.)
|
≥30,000 Hours
|
Weight(N.W/G.W)
|
1.9Kg(1pcs)/5.9Kg (2pc in one package)
|
Power Consumption
|
Standby Power: ≤2W / Operating Power: ≤45W
|
Mount Interface
|
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical
|
OSD Control
|

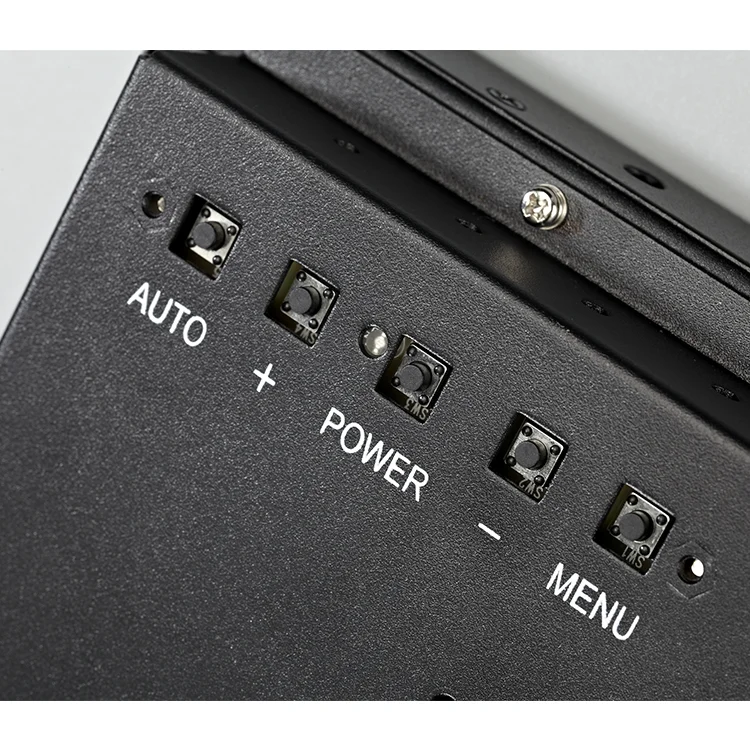

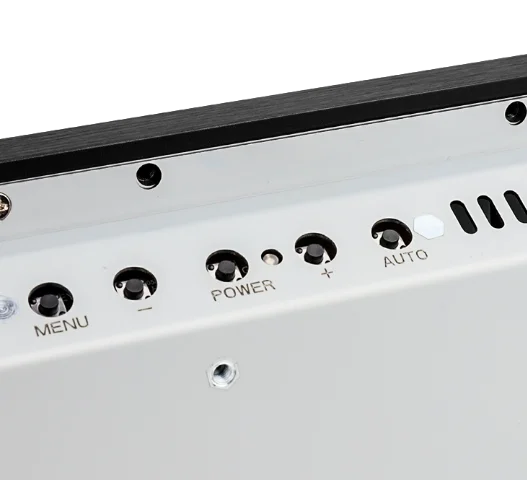

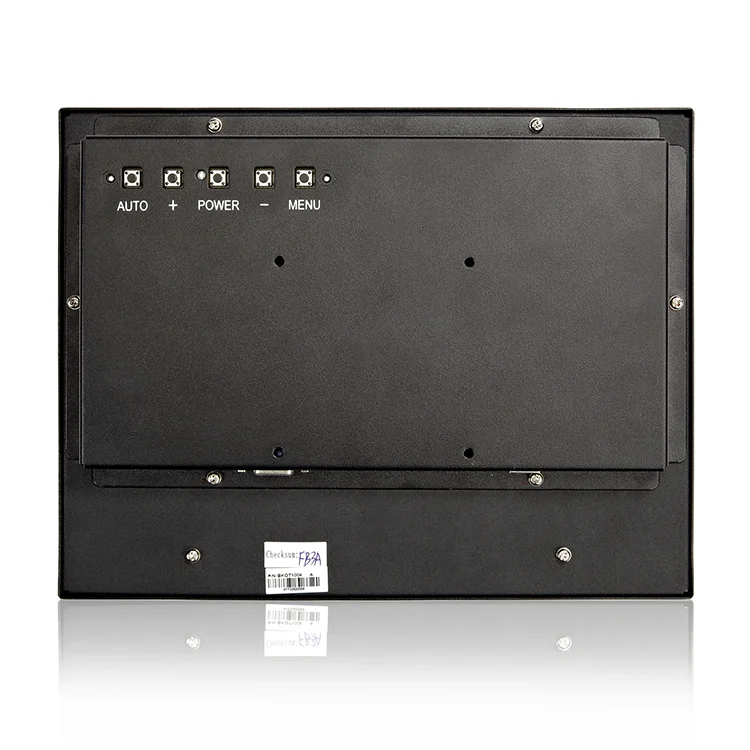

Buttons: AUTO,+,POWER,-,MENU Function: Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
|
Agency approvals
|
CCC, ETL, FCC, CE, CB, RoHS
|
Regular Warranty
|
1 year
|
Touch input
|
USB(or Serial port,one point), 10 points touch
|
Support System
|
XP,WIN7,WIN8,WIN10,Linux,Android
|
NOTE :
|
(1) The display SPEC. are adjusted according to the selected LCD screen and touch screen
|
(2) The support system is adjusted according the specific system and version.
|

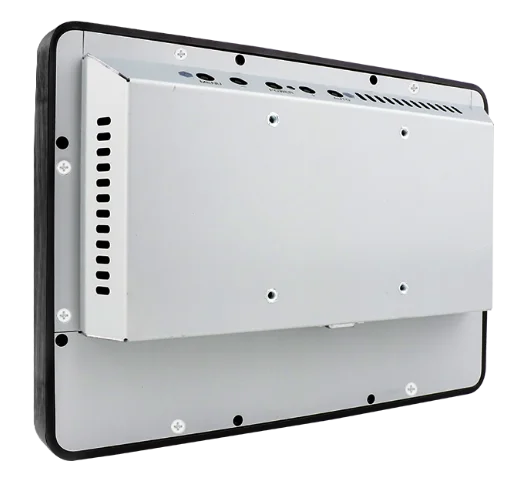

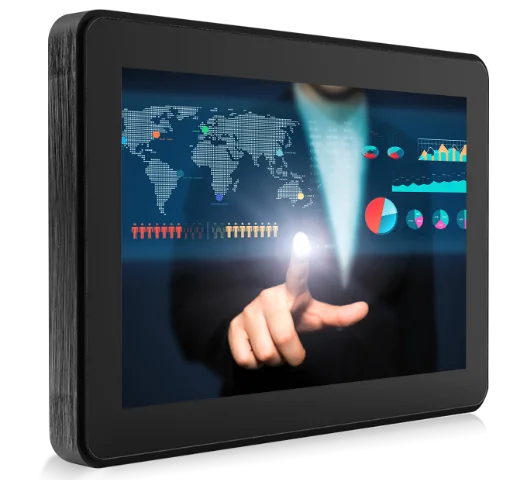

Detail Image







Company Information

KeeTouch Co. Ltd is a high-tech manufacturer, specialized in R&D, manufacture and sale of industrial Touch screen monitor.
All monitors are 100% brand new,all products will be strictly tested and check all package well before shipment .
When you order from us ,all touch lcd monitors with 12-month warranty.And we have responsible customer service team to provide helpful after-sale services.So you don't need to worry about it.
With the 14 years of professional R&D experience,we have obtain a good reputation from countries all over the world.Our branch offices has been widely spreaded in Russian, Brazil, Germany and India, with clients around the world.In the future, KeeTouch will strive ahead for the company vision 'touch facilitate the life.
,

Packaging & Shipping
For QTY less than 200pcs :
Fast delivery methods include UPS/DHL/FEDEX/TNT/UPS/EMS and so on (door to door service) and it takes 3-7 working days to reach your office.
For QTY more than 200pcs :
By Air Seais available.so please let us know your favorite shipping method,we are devoted to save more freight for you.
Why Choose KeeTouch ?
16 years experience
Founded in 2006 with an authorized capital of 14 million yuan (2.33 Million USD), keetouch is a professional touch screen,Touch monitor manufacturer for over 16 years mature factory experience.
Factory Quality you can trust
KeeTouch has passed the quality management standards ISO 9001 and environmental management ISO 14001. In 2012 KeeTouch was awarded the high and new technology enterprise of china and recognized by the chinese government. Products with FCC , ETL , UL , RosH , CE, CB , ISO9001 and ISO14001 Authorised .
Local support
We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick after sales service.
Strong and professinal R&D team
We have 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you .
Strict QC Before delivery
The shipment you receive is inspected by strict QC,Such as burn-in test, anti-vibration test and working temperature test to
ensure quality.
Payment methods
About Payment We accept T/T,LC,Western Union,Pay Later,Boleto, Credit card, paypal,Alipay and e-Checking etc.

1.What about the MOQ?
We don't have the limit for the MOQ. You can also take a sample for you check the quality first.
2. Q: How do you carry out your after-sales processing?
A: We can conduct video technical guidance or send free spare parts to repair in your local place.
3.Q: Delivery how many days can be arranged?
A: Depends on order quantity and our production schedule .
3-5 working days for sample order of standard model ;
7-15 working days for custom sample order & mass production after payment receipt.
4.Q: How much the tax if I buy the products?
A: Suggest you consult your local customs department , because the import tax you need to pay to your country .
5.Q: Can you put our brand ?
A: Yes, we support it. We can print your brand logo on the machine, or make the label sticker ,the colorful you can choose .
6. What is the warranty
12 months warranty us a standard for all our products .
