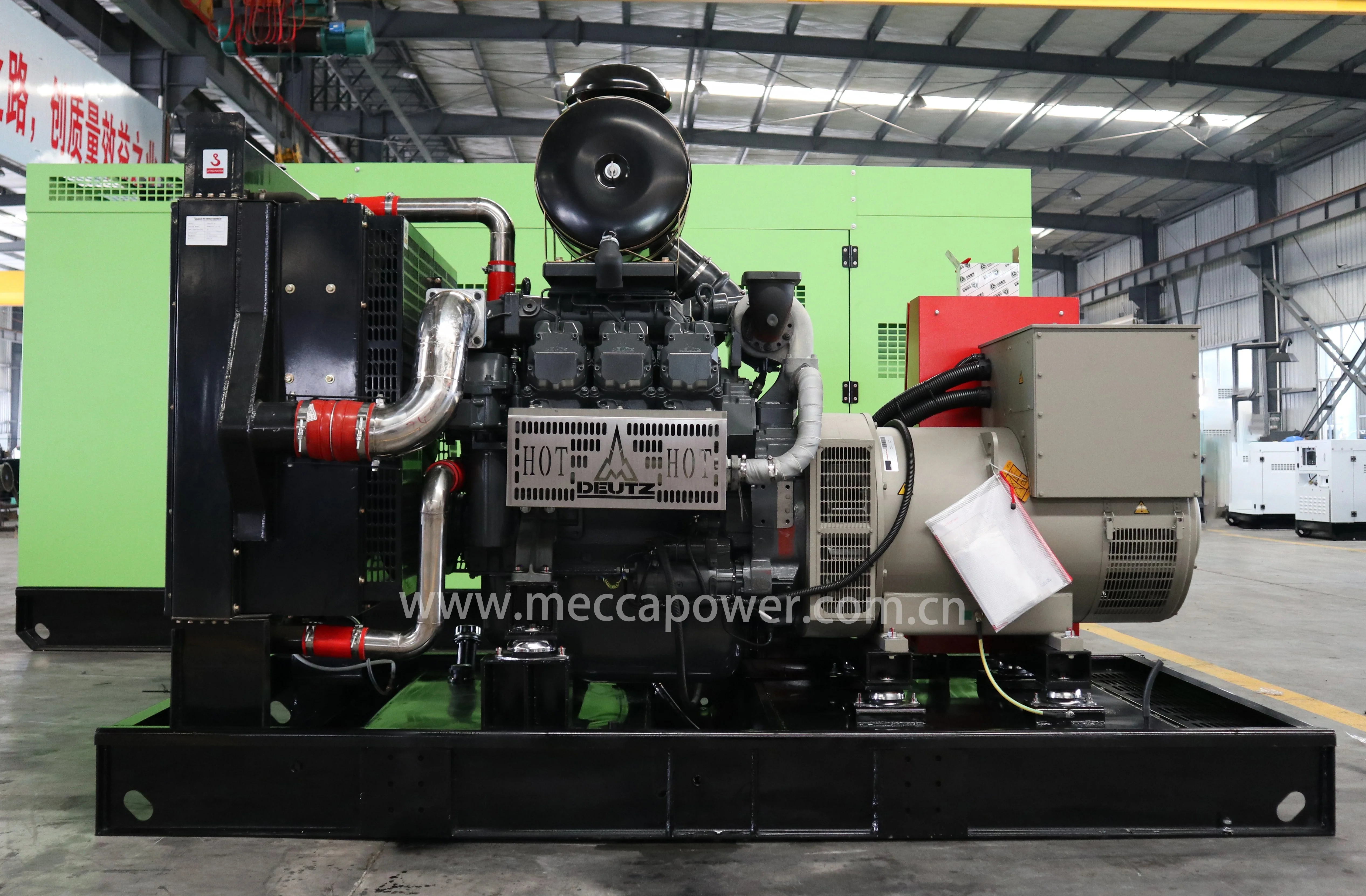

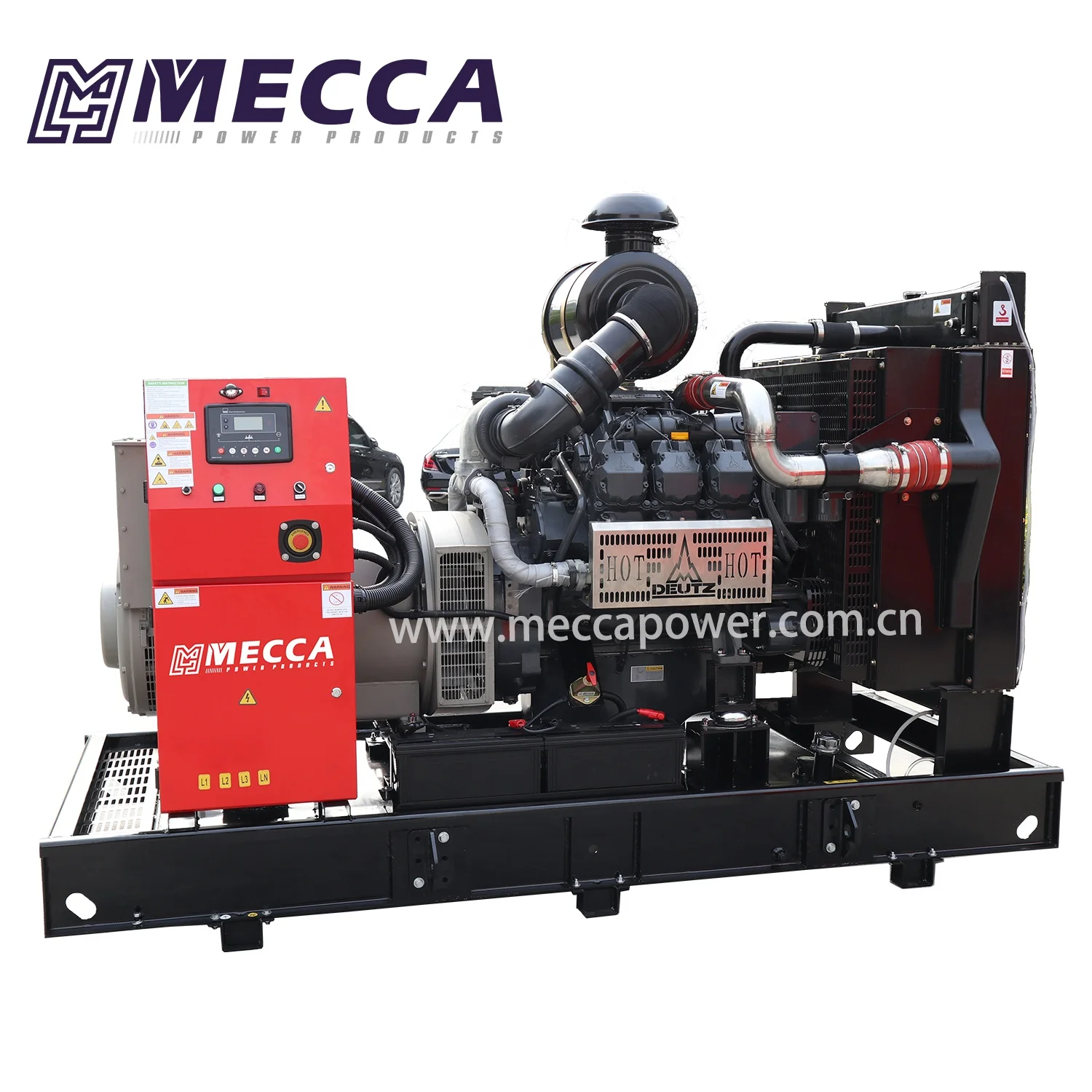

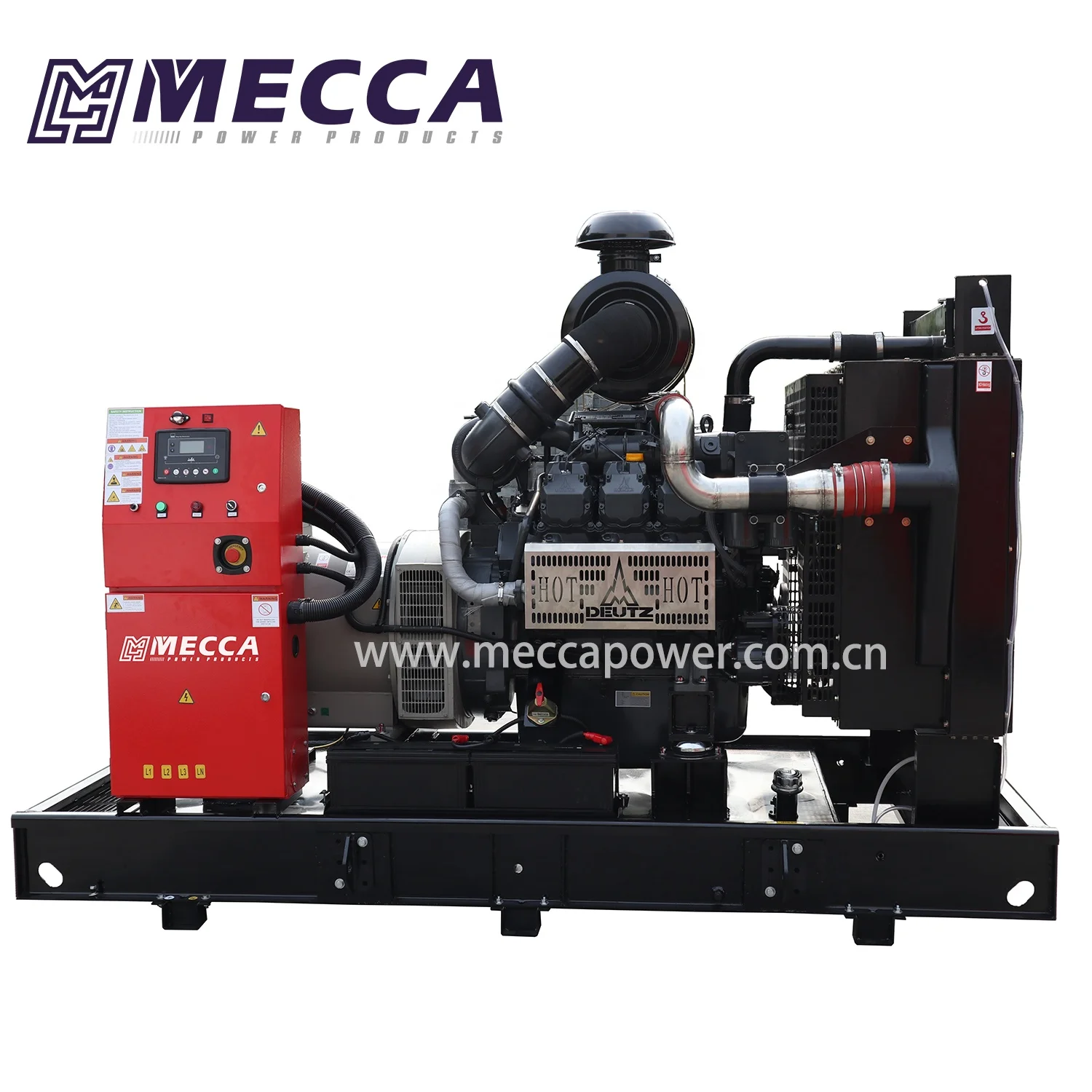

60kw 70kw 80kw 220V 380V 440V Open Type Water Cooled Diesel Generators With Deutz Engine
- Category: >>>
- Supplier: Fujian Mecca Imp. & Exp. Trading Co. Ltd.
Share on (10000008906288):
Product Overview
Description
Company Profile
Mecca Power, as part of a Global Power Supplier initiative, provides a professional solution for the design, application and after-sales support of generators. Strongly focused on innovation and the inherent flexibility of product design, Mecca Power has been successful in global markets with a broad and diverse range of genset power products that can operate autonomously or independently. parallel, on-site or remotely controlled.

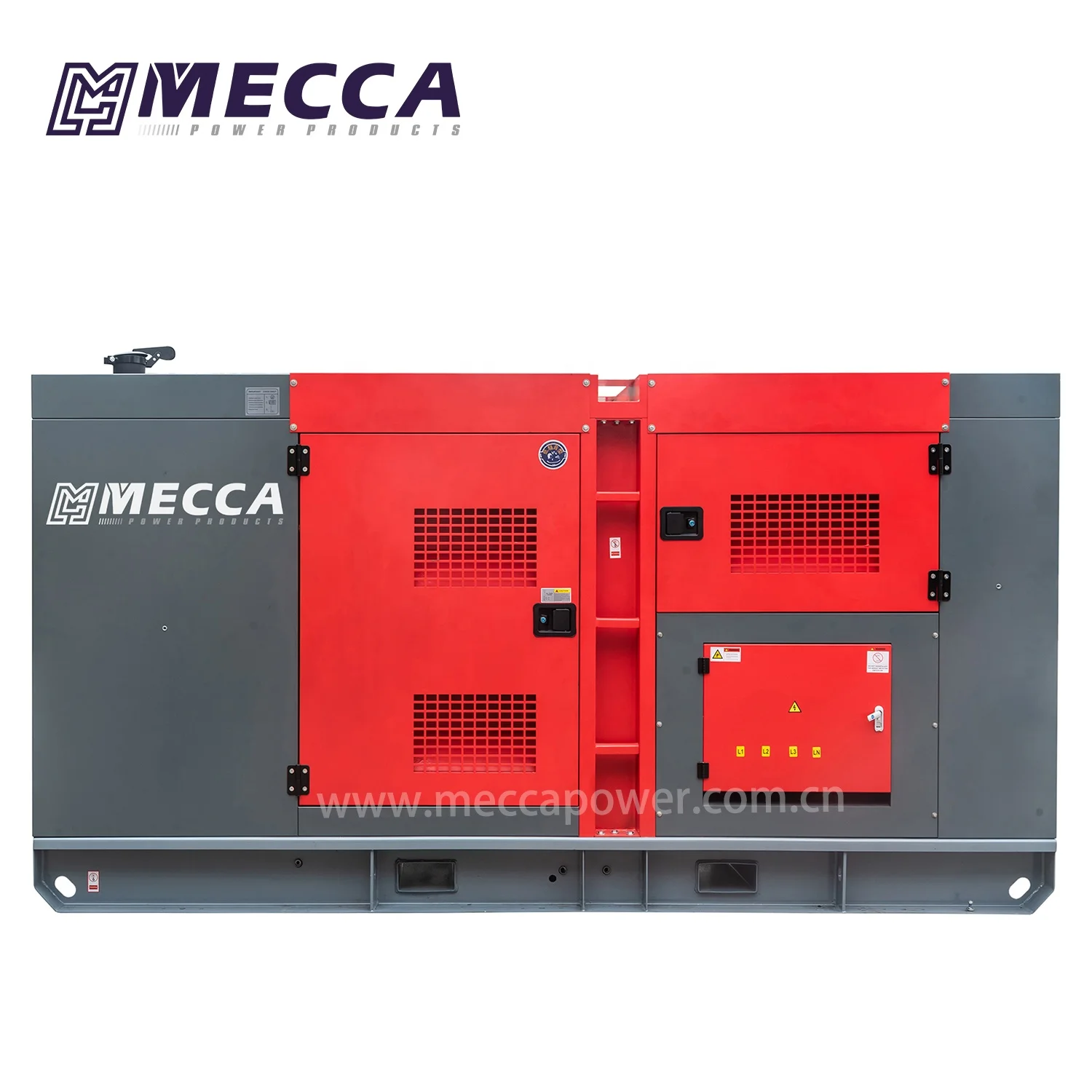

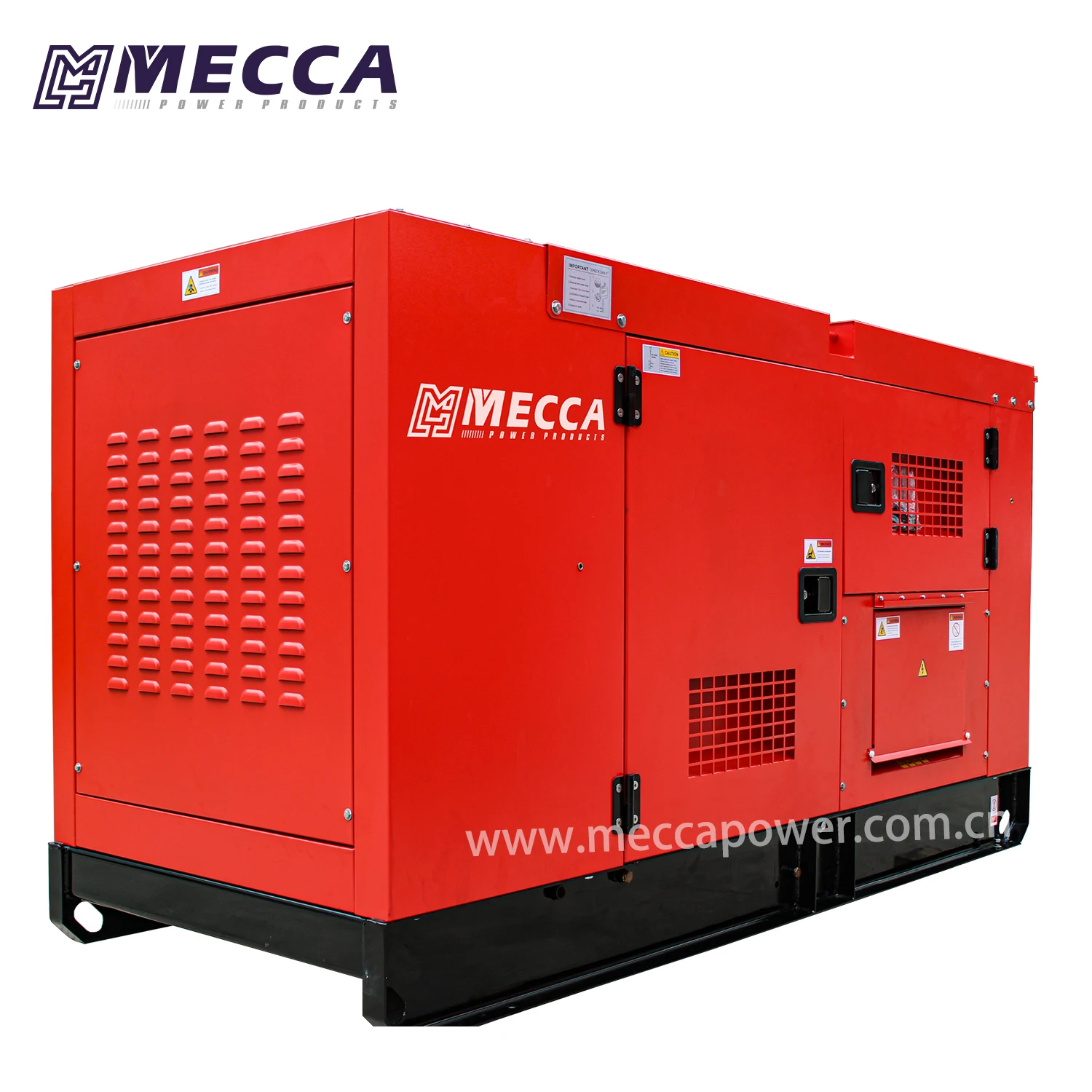

Silent Diesel Generator Set

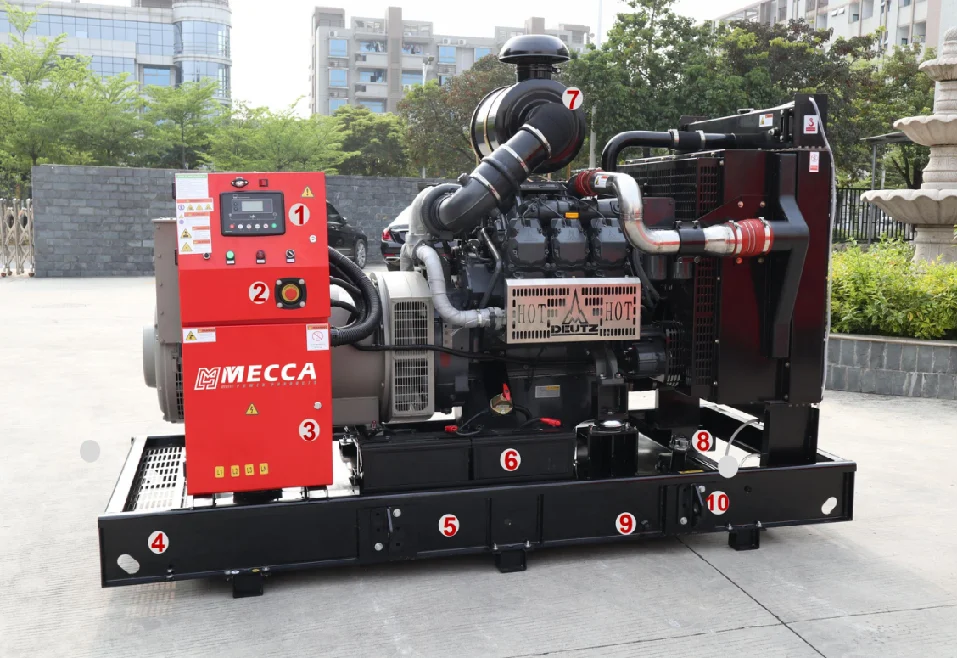

1.Control Cabinet 2.Emerency Stop Button 3.Outgoing Cabinet (breaker)
4.Hauling Point 5.Fuel Tank 6.Battery
7.Air Filter 8.Fuel Filler 9.Fuel Outlet
10.Lifting Eye

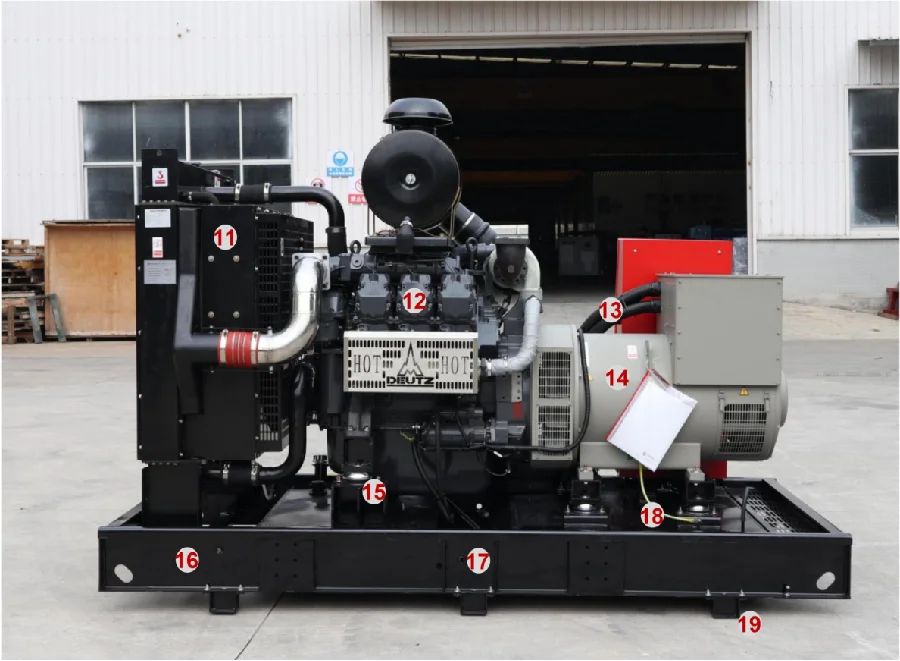

11.Radiator 12.Diesel Engine 13.Wiring
14.Alternator 15.Anti-vibration Mounting 16.Water Outlet
17.Oil Outlet 18.Earth Connection 19.Forklift foot

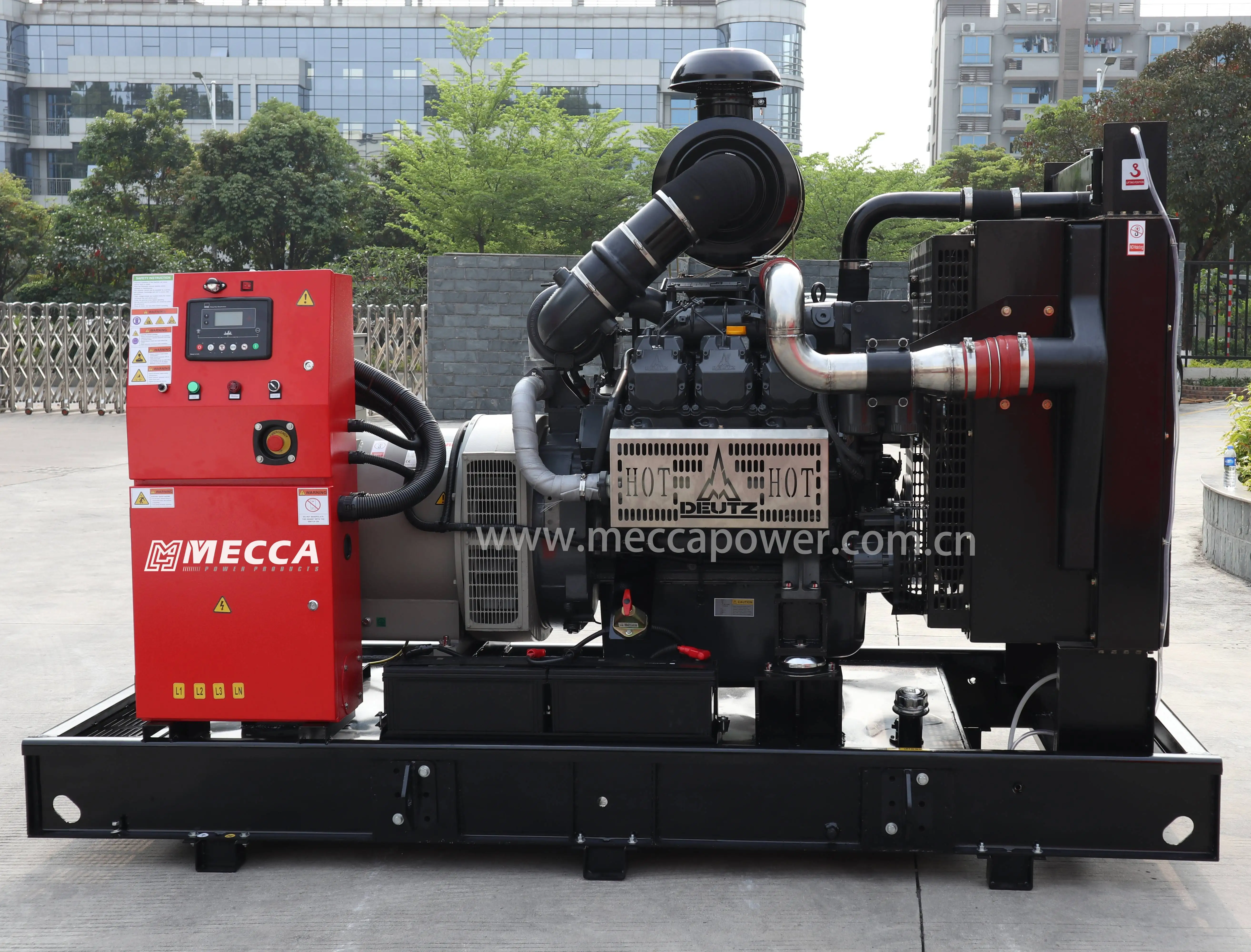

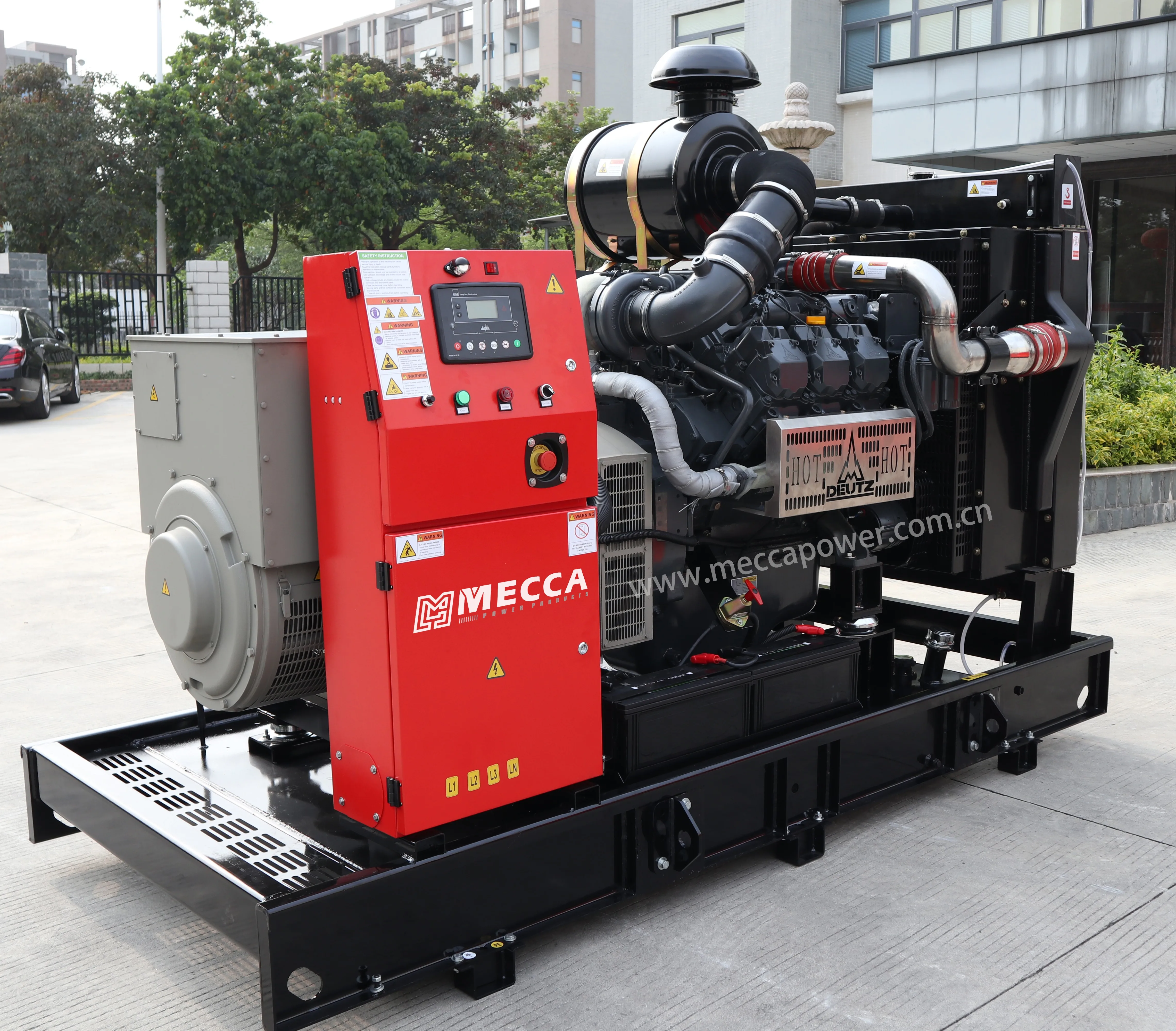

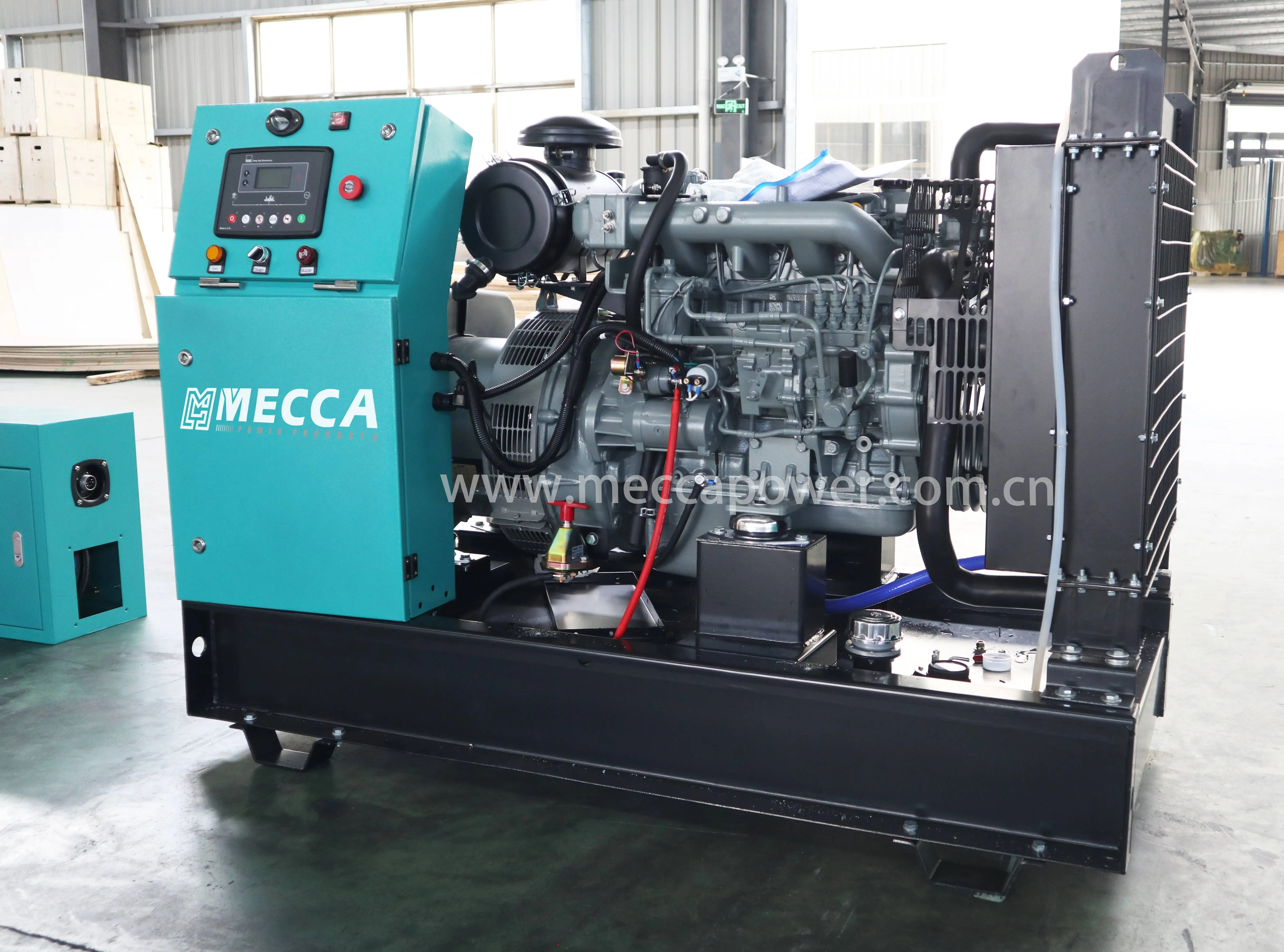

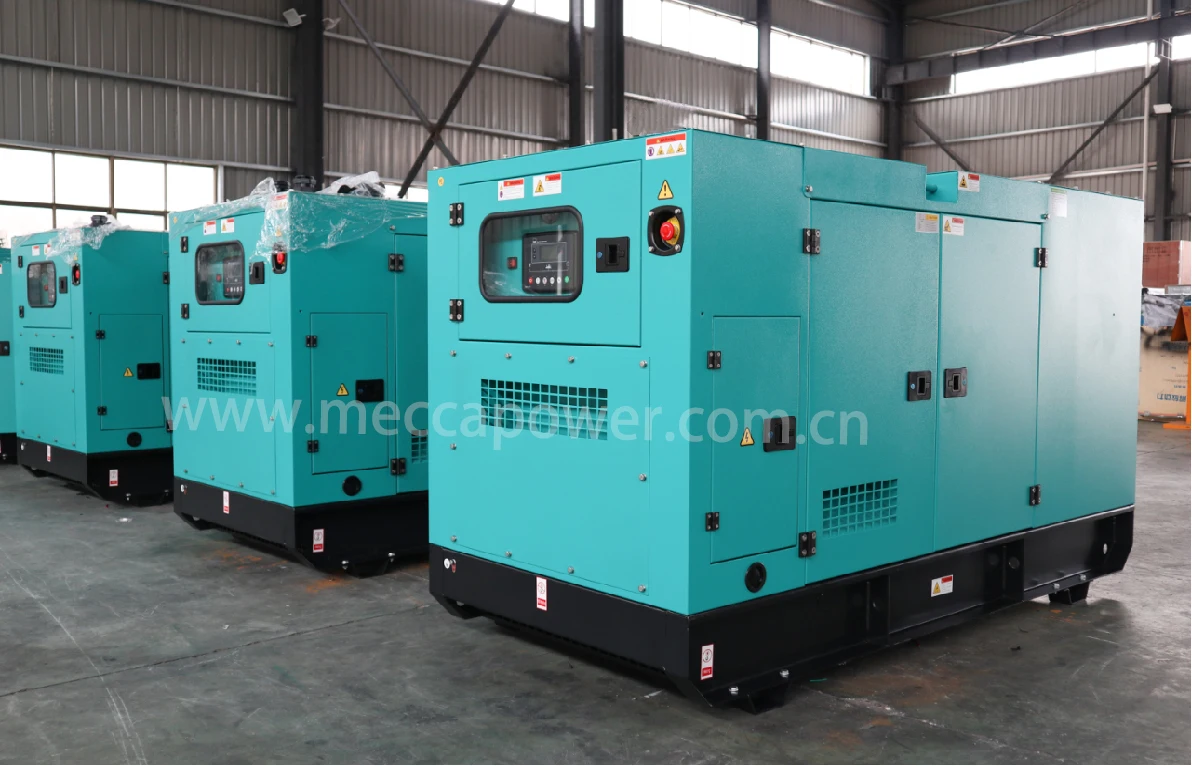

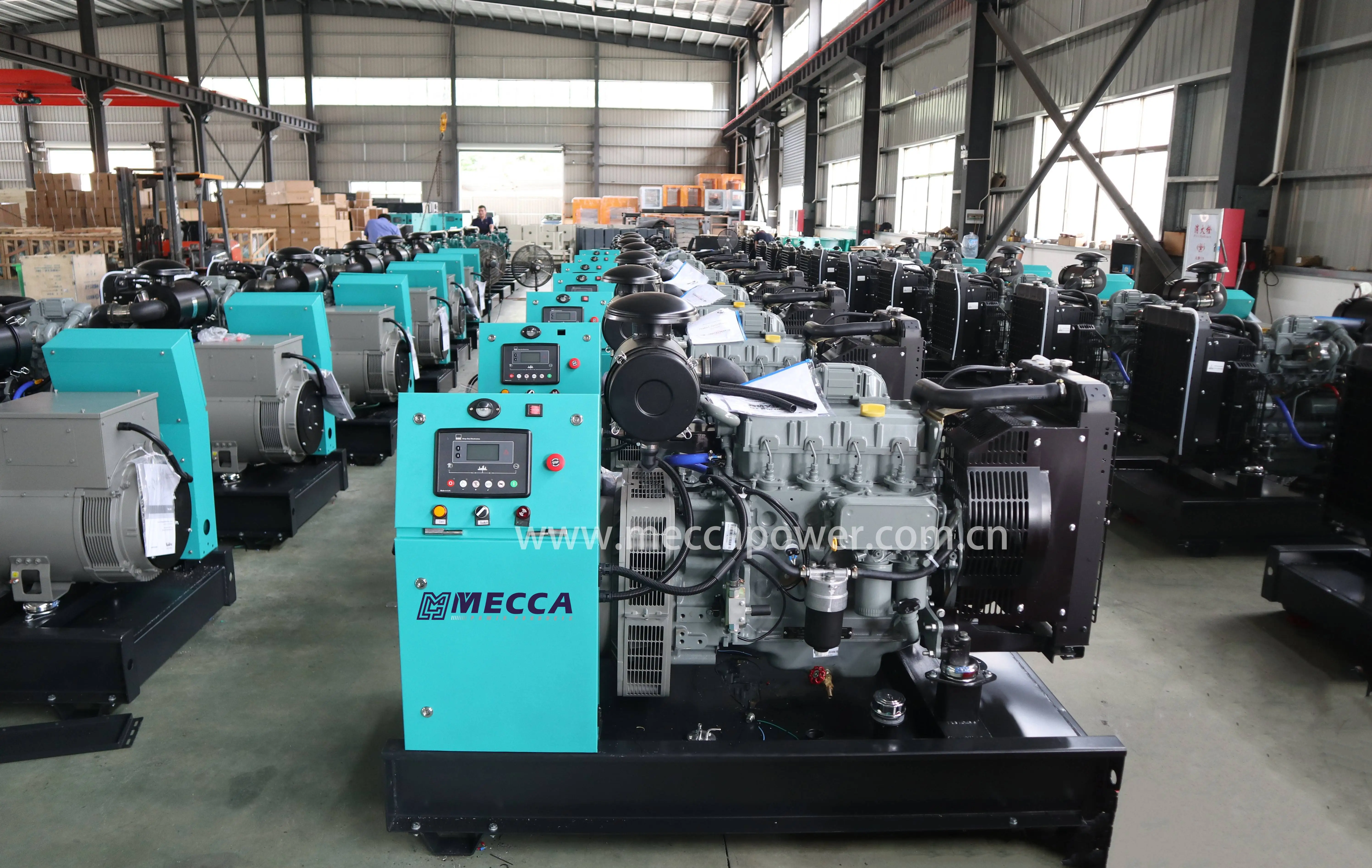

Live Photos
Diesel Gensets Details
Specification
General Feature | |||||||||||||||||||||||||||
♦ Assembled by diesel engine and Brushless alternator. | |||||||||||||||||||||||||||
♦Three filters as standard, fuel and water separator as optional. | |||||||||||||||||||||||||||
♦ Radiator and fan with safety guard. | |||||||||||||||||||||||||||
♦ Single bearing alternator IP 23, Insulation Class H. | |||||||||||||||||||||||||||
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank. | |||||||||||||||||||||||||||
♦ Automatic control panel and 3 poles circuit breaker, internal cable. | |||||||||||||||||||||||||||
♦ 12V or 24V battery, battery wires. | |||||||||||||||||||||||||||
♦ Battery and float battery charger as standard supply scope. | |||||||||||||||||||||||||||
♦ Fuel level indicator in meter and panel | |||||||||||||||||||||||||||
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers. | |||||||||||||||||||||||||||
Powered by DEUTZ Series 50HZ 400/230 V 22-825 KVA | ||||||||||||||||||
Model | LTP | PRP | Engine | Fuel Cons. | Cylinder | Displacement | ||||||||||||
KVA / KW | KVA/KW | Model | Origin | L/H(100%) | L | |||||||||||||
MC22D | 22 | 18 | 20 | 16 | BFM3 G1 | CN | 5.40 | 4L/NA | 3.168 | |||||||||
MC33D | 33 | 26 | 30 | 24 | BFM3 G2 | CN | 7.70 | 4L/NA | 3.168 | |||||||||
MC44D | 44 | 35 | 40 | 32 | BFM3T | CN | 10.30 | 4L/TC | 3.168 | |||||||||
MC55D | 55 | 44 | 50 | 40 | BFM3C | CN | 11.20 | 4L/TCA | 3.168 | |||||||||
MC66D | 66 | 53 | 60 | 48 | BF4M2012 | CN | 13.70 | 4L/TC | 4.040 | |||||||||
MC83D | 83 | 66 | 75 | 60 | BF4M2012C G1 | CN | 18.10 | 4L/TCA | 4.040 | |||||||||
MC99D | 99 | 79 | 90 | 72 | BF4M2012C G2 | CN | 21.30 | 4L/TCA | 4.040 | |||||||||
MC110D | 110 | 88 | 100 | 80 | BF4M1013EC G1 | CN | 24.20 | 4L/TCA | 4.764 | |||||||||
MC124D | 124 | 99 | 113 | 90 | BF4M1013EC G2 | CN | 26.10 | 4L/TCA | 4.764 | |||||||||
MC138D | 138 | 110 | 125 | 100 | BF4M1013FC | CN | 28.90 | 4L/TCA | 4.764 | |||||||||
MC176D | 176 | 141 | 160 | 128 | BF6M1013EC G1 | CN | 35.90 | 6L/TCA | 7.146 | |||||||||
MC198D | 198 | 158 | 180 | 144 | BF6M1013EC G2 | CN | 39.20 | 6L/TCA | 7.146 | |||||||||
MC206D | 206 | 165 | 188 | 150 | BF6M1013FC G2 | CN | 40.60 | 6L/TCA | 7.146 | |||||||||
MC220D | 220 | 176 | 200 | 160 | BF6M1013FC G3 | CN | 45.60 | 6L/TCA | 7.146 | |||||||||
Contact Us
FAQ
Payment Terms:
By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Delivery:
Approximately 2-4 weeks upon order confirmation.
Service Guarantee:
Before Service: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds
of information.
After Service:
By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Delivery:
Approximately 2-4 weeks upon order confirmation.
Service Guarantee:
Before Service: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds
of information.
After Service:
Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date.
During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or
raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After checking, our company provides cost spare-parts maintenance for gensets .
Beside genset one-stop purchasing service to world-wide customers,CKD and SKD packing service are also available according to
unique request.
CKD:Complete Knock Down Generator
Generator completely knocked down into parts without assembling.
All items from following are seperately packed without connection.
SKD:Semi Knock Down Generator
Partially assembled generator.
Part of the following items you choose will be assembled.
Advantage:
Prompt delivery
Reduced tax to win more competition
Lower transportation fees to save cost
Localized production to win more tenders.
Increased production to offer more job opportunity for the government
During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or
raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After checking, our company provides cost spare-parts maintenance for gensets .
Beside genset one-stop purchasing service to world-wide customers,CKD and SKD packing service are also available according to
unique request.
CKD:Complete Knock Down Generator
Generator completely knocked down into parts without assembling.
All items from following are seperately packed without connection.
SKD:Semi Knock Down Generator
Partially assembled generator.
Part of the following items you choose will be assembled.
Advantage:
Prompt delivery
Reduced tax to win more competition
Lower transportation fees to save cost
Localized production to win more tenders.
Increased production to offer more job opportunity for the government
