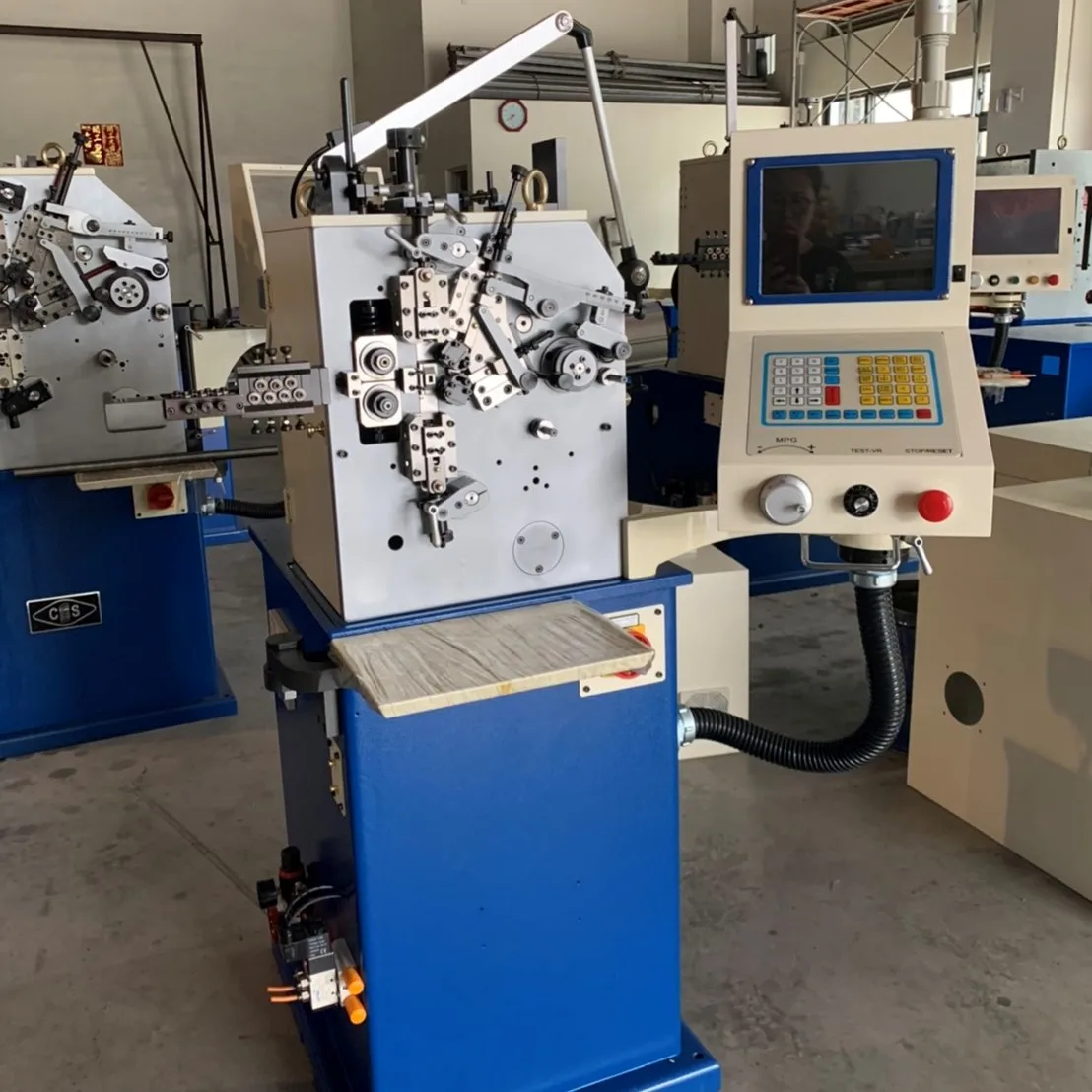

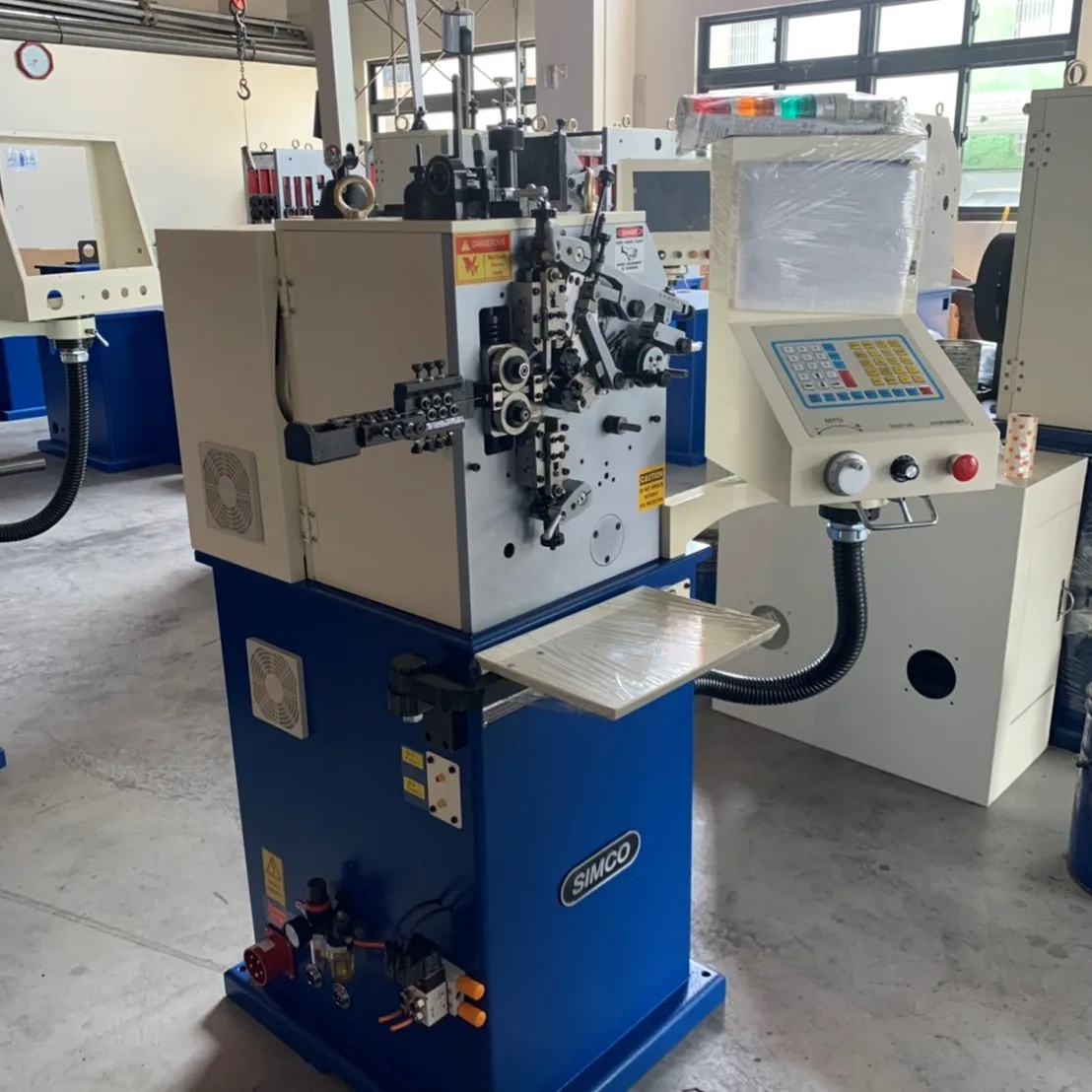

simco csc 208 CNC 2 axis high speed spring coiling machine compression torsion spring machine
- Category: >>>
- Supplier: TAIWAN SIMCO COMPANY
Share on (10000008915443):
Product Overview
Description
Product Information
2-axis Spring Coiler
(Feeding, Forming, Pitch, Wedge, Cutting)
Wire Diameter:0.13-0.8 mm
Max. Outer Diameter: 20 mm
Max. Feeding Length: Unlimited
Power: 220/380/400/415/440V 3-phrase

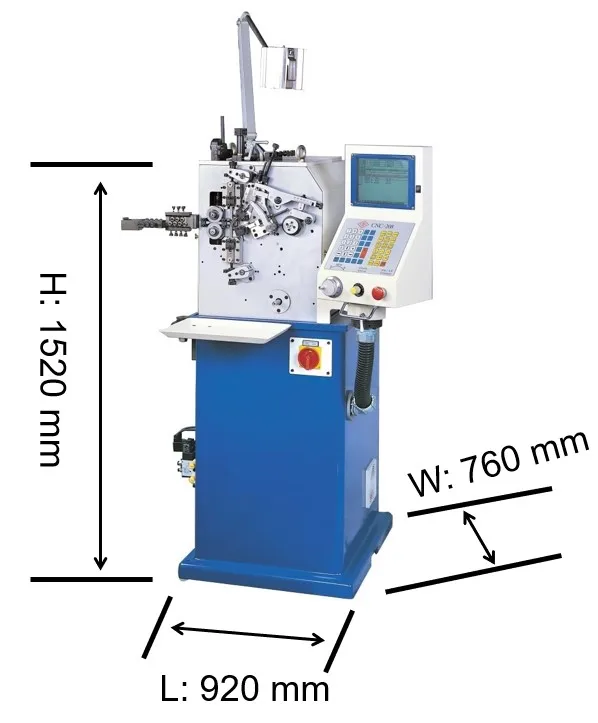

Dimension: 920L x 760W x 1520H
Color: Blue
---------------------------------------------
(Feeding, Forming, Pitch, Wedge, Cutting)
Wire Diameter:0.13-0.8 mm
Max. Outer Diameter: 20 mm
Max. Feeding Length: Unlimited
Power: 220/380/400/415/440V 3-phrase
Dimension: 920L x 760W x 1520H
Color: Blue
---------------------------------------------
Features:
1.High speed productoin by inner cam
2.Japanese servo drive and motor
3.Taiwanese controller system
4.Option for producing torsion springs
5.Option for camera/probe detector
1.High speed productoin by inner cam
2.Japanese servo drive and motor
3.Taiwanese controller system
4.Option for producing torsion springs
5.Option for camera/probe detector

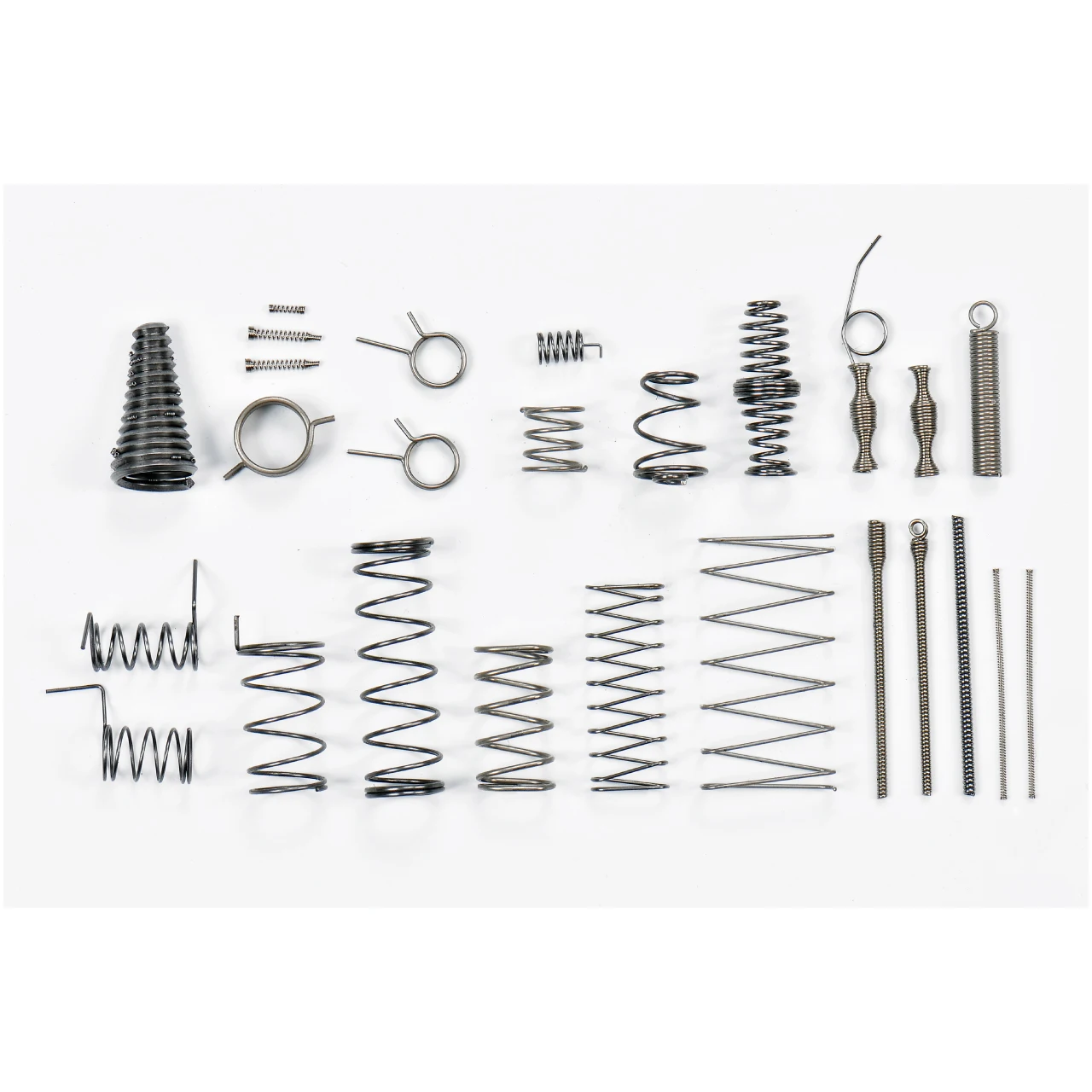

What the machine can produce
Reference for Other Models
CSC-208 | CSC-216 | CSC-226 | |||
Wire Diameter (mm) | 0.13-0.8 | 0.4-1.6 | 0.8-2.6 | ||
Max. Outer Diameter (mm) | 20 | 45 | 50 | ||
Feed Roller (pair) | 1 | 2 | 3 | ||
Max. Run Rate (pcs/min) | 550 | 350 | 300 | ||
Power Suppler | 220V, 3∅ (transformer 380/400/415/440V is available) | ||||
Machine Dimension (mm) | 920L x 760W x 1520H | 1380L x 980W x 1680H | 1000L x 1420W x 1730H | ||
Machine Weight (kg) | 385 | 850 | 970 | ||
Company Profile
Certificate
Feedback
FAQ
Q: Do you have a factory manufacturing machines ?
A: Yes, we have been associated with reliable partners to produce quality machines for decades.
Q: Can you make customized machines ?
A: Yes, we will evaluate your need and offer best options.
Q: What method are you using to guarantee quality?
A: We ensure the quality by SOP of multiple inspections.
Q: What is your after-sales services?
A: - One year warranty under normal circumstances and correct operation.
A: Yes, we have been associated with reliable partners to produce quality machines for decades.
Q: Can you make customized machines ?
A: Yes, we will evaluate your need and offer best options.
Q: What method are you using to guarantee quality?
A: We ensure the quality by SOP of multiple inspections.
Q: What is your after-sales services?
A: - One year warranty under normal circumstances and correct operation.
- English manual , operation training in Taiwan.
- Technical instruction, and online service support.
- Support on machine and software upgradation.
- Overseas technical support.(Chargeable)
Q: What is your delivery time?
A: It depends ! Regular standard machines can be delivered within 3-4 weeks.
Q: How do I install the machine when I receive it?
A: We will provide you with technical instruction such as machine manual, videos or on-line support.
Q: How can I choose machines that I need?
A: We recommend the best machines according to your product drawings, production capacity and budget.
- Technical instruction, and online service support.
- Support on machine and software upgradation.
- Overseas technical support.(Chargeable)
Q: What is your delivery time?
A: It depends ! Regular standard machines can be delivered within 3-4 weeks.
Q: How do I install the machine when I receive it?
A: We will provide you with technical instruction such as machine manual, videos or on-line support.
Q: How can I choose machines that I need?
A: We recommend the best machines according to your product drawings, production capacity and budget.
