Factory Direct Sale Premium Quality 4 Inch stainless Steel SS 304 Electrical Submersible Water Pump
- Category: >>>
- Supplier: C-WAY EXPORTS
Share on (10000008963023):
Product Overview
Description
Item | Value |
Warranty | 2 years |
Customized support | OEM |
Brand Name | C-WAY |
Model Number | N/A |
Place of Origin | India |
Telangana | |
Application | Commercial Buildings, Drinking water treatment, Family Homes, Industrial Utilities, Irrigation and Agriculture, Marine, Mining industry, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions |
Horsepower | 2 hp |
Power Source | Electric |
Pressure | High Pressure |
Structure | Single-stage Pump |
Outlet Size | 1.0 - 1.50 Inch |
Voltage | 220 V |
Power | 1.50 kw |
motor | Single Phase |
Product name | 2 HP Electrical Submersible Water Pump |
Size | 4 Inch |
Material | Stainless Steel |
Frequency | 50 Hz /60 Hz |
Flow rate | 110 LPM |
Motor power | 1.50 kw |
Pressure | 51 psi |
Speed | 2900 rpm |
Application | Water Treatment Solutions |
Function | High Effeciency |
ELECTRICAL SUBMERSIBLE WATER PUMP
* We are the largest exporter of electrical submersible water pump. We also provide good quality stainless steel electrical submersible pump for irrigation, household purposes ect..,
* A submersible pump pushes water to the surface by converting rotary energy into kinetic energy into pressure energy. This is done by the water being pulled into the pump: first in the intake, where the rotation of the impeller pushes the water through the diffuser.
* Electrical submersible pumps (ESPs), much like vertical turbine pumps in design, are typically used to pump liquid. Essentially, an electric motor drives the pump, and the fluid's kinetic energy is increased. This energy is then partly converted into pressure, which lifts the fluid through the pump.

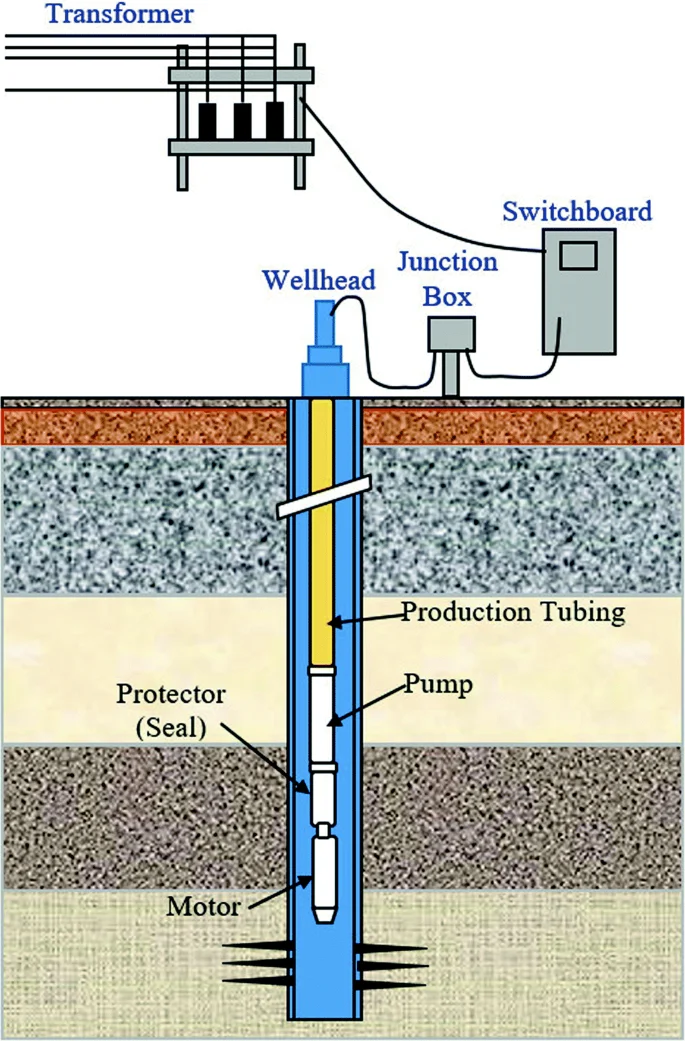

* In the oil and gas industry, electric submersible pump (ESP) systems are probably best known as an effective artificial lift method of pumping production fluids to the surface. ESPs are especially effective in wells with low bottom hole pressure, low gas/oil ratio, low bubble point, high water cut or low API gravity fluids.
* Submersible pumps are found in many applications. Single stage pumps are used for drainage, sewage pumping, general industrial pumping and slurry pumping. They are also popular with Pond filters. Multiple stage submersible pumps are typically lowered down a borehole, and most typically used for residential, commercial, municipal and industrial water extraction (abstraction), water wells and in oil wells.
FEATURE OF ELECTRICAL SUBMERSIBLE WATER PUMP
* Wider performance range.
* Heavy duty bearing enables 100000 hrs of running under normal conditions.
* Easy to dismantle, rewind and install.
* Customized energy efficient diffuser for better discharge.
* Wide operating voltage range
APPLICATIONS
TECHNICAL DATA
* Power range : 2 - 45 kW / 3 - 60 HP
* Flow rate : 49 m3/hr
* Head : 450 m Liquid
* Temperature : max. +50°C
* Operating Pressure : 54 bar
* Wider performance range.
* Heavy duty bearing enables 100000 hrs of running under normal conditions.
* Easy to dismantle, rewind and install.
* Customized energy efficient diffuser for better discharge.
* Wide operating voltage range
APPLICATIONS
* Agriculture
* Domestic Building Services
* Commercial Building Services
* Public Utilities
* Agriculture
* Building Services
* Public Utilities
* Industry
* Aquarium
* Domestic Building Services
* Commercial Building Services
* Public Utilities
* Agriculture
* Building Services
* Public Utilities
* Industry
* Aquarium
TECHNICAL DATA
* Power range : 2 - 45 kW / 3 - 60 HP
* Flow rate : 49 m3/hr
* Head : 450 m Liquid
* Temperature : max. +50°C
* Operating Pressure : 54 bar

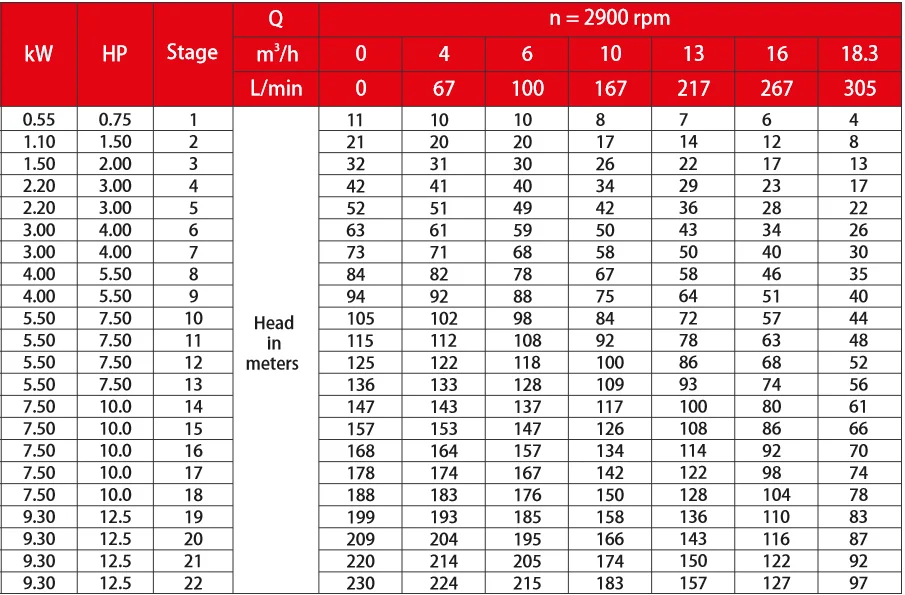

SPECIFICATION OF PUMPS
