GSM FCT Fixed Cellular Terminal support 1 SIM Card 2 SIMs

Product Overview

Description

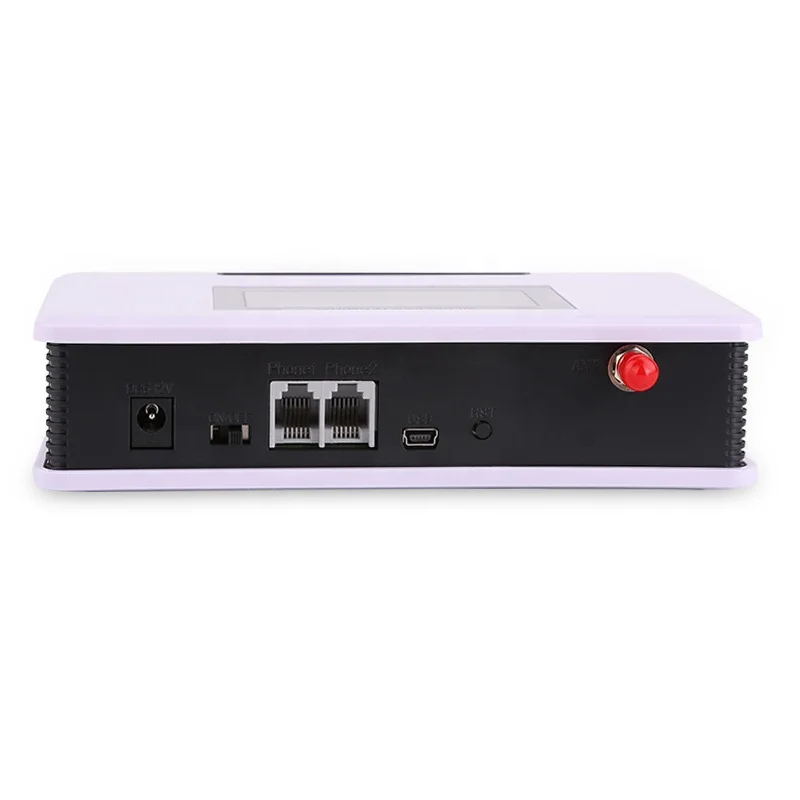

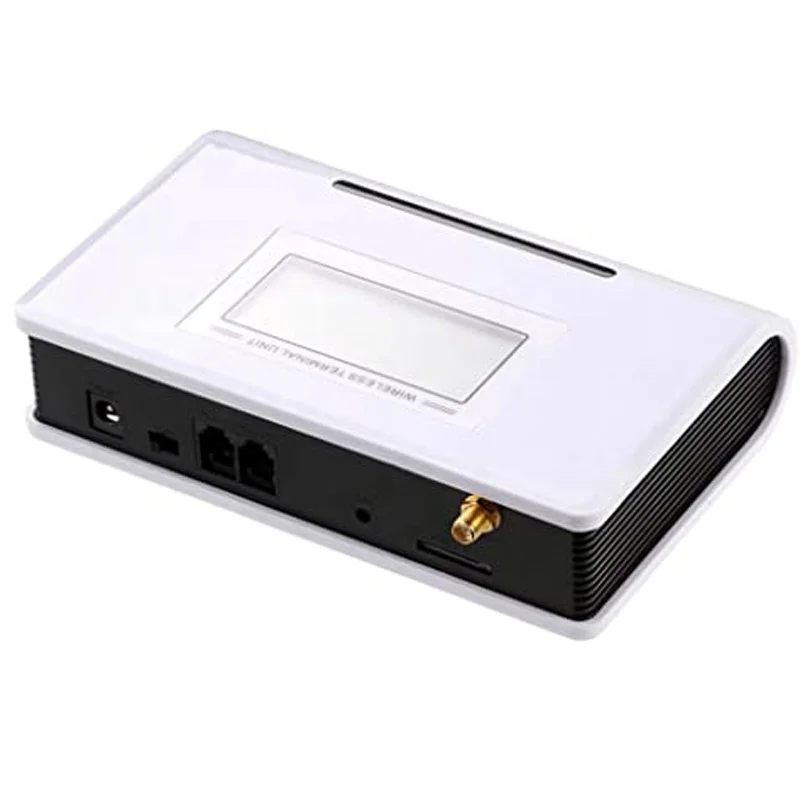

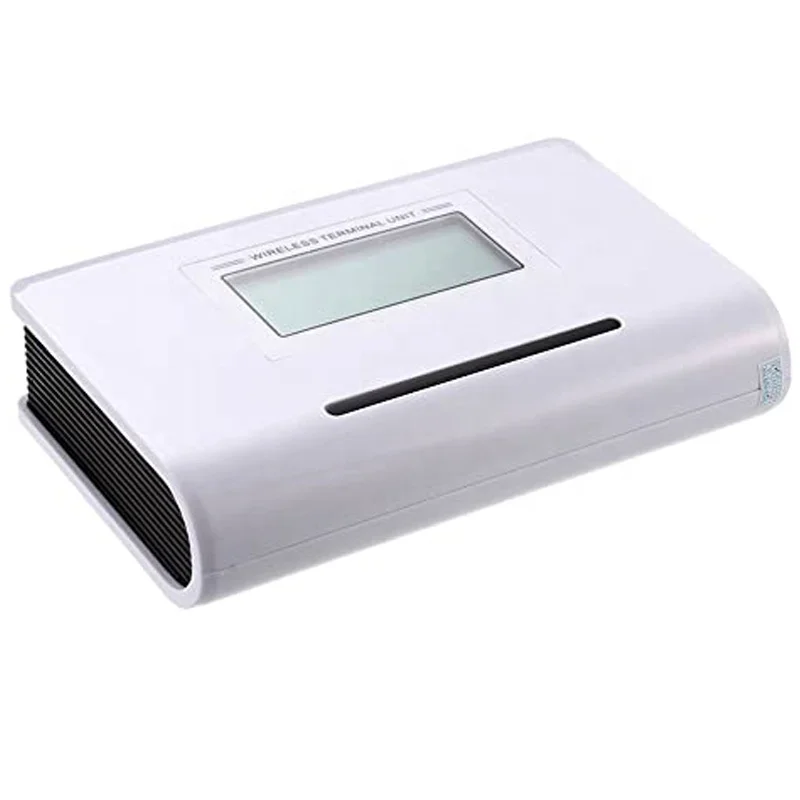

GSM FWT Fixed Wireless Terminal with outside detachable antenna and two RJ11 ports.

Model: FWT-950B

Features:
You can dial the local calls, domestic and international calls with this terminal,connecting with a common wired phone and a SIM card.
Dimensions: 159MM X 99MM X 38MM.
1. Support quad band frequency: GSM850/900/1800/1900MHz (Industrial Module item).
2. Power: DC 5V Voltage, 48 standby hours, 2 – 6 hours talk time,
consumption — Static≤25MA, emission≤500MA.Peak power consumption: 0.25W/0.5W
3. Receive sensitivity: -104db.
4. Antenna increment: all directions 5.0db, certain/selection: 12db.
5. Dial the local calls, mobile phone calls, international calls and special free calls.
8. Support modem mode and cost rate setting.
9. No need to dial area code when calling local numbers.
10. Automatically card-locking and net-locking enable.
11. Caller ID display, time and date display, power indicatory on LCD.

Description:

1. No need to invest in the ground cable line, using SIM mobile phone SIM card, easy to be installed.
2. Support international and domestic, local fixed / mobile voice service.
3. No need to change the original dialing way, and with the same operating way as ordinary telephones.
4. With reverse polarity signal, can be connected to the billing or use computer billing.
5. Built-in watchdog duty circuit, automatic detection equipment running state, automatically restart if any fault occures.
6. DTMF transmission model, support caller ID.
7. Standard communication voltage, can be connected with PABX.
8. Fully automatic IP function, and multiIP settings.
9. Fixed long-distance automatic insertion of calling IP prefix, such as 17951, 17911, 193 etc.
10. Permission settings of different calling, such as internal call, domestic call etc.
11. Preset of local area code, forbidden number and number section.
12. Encryption settings, such as PIN code, PUK code encryption card lock function.
13. LED lamp indication light, standby status, working status etc.
14. Support power off working (need to add built-in battery).

Description	Polarity reverse gsm 850/900/1800/1900MHz fixed wireless terminals
Item no.	FWT-950
Module	Quectel M26
Working frequency	GSM 850 receiving: 869-894MHz   transmitting: 824-849MHz
	EGSM900 receiving: 925-960MHz   transmitting: 880-915MHz
	DCS1800 receiving: 1805-1880 MHz   transmitting: 1710-1785 MHz
	PCS1900 receiving: 1930-1990MHz   transmitting:1850-1910MHz
Power supply	3.3-4.6v
Polarity reverse	support
Echo Arithmetic	Echo Cancellation/Noise Suppression
Adapter	EU, UK, USA, AU adapter etc. optional
SIM connection	1.8V or 3V
Power Supply	Input 100-220V
	Output 5V 1A or 12V 1A
Battery	500mAh to 1000mAh
RJ11 port	2
SIM card	2FF; Single sim card
Color	Black or white or OEM
LCD Size:	67*30mm

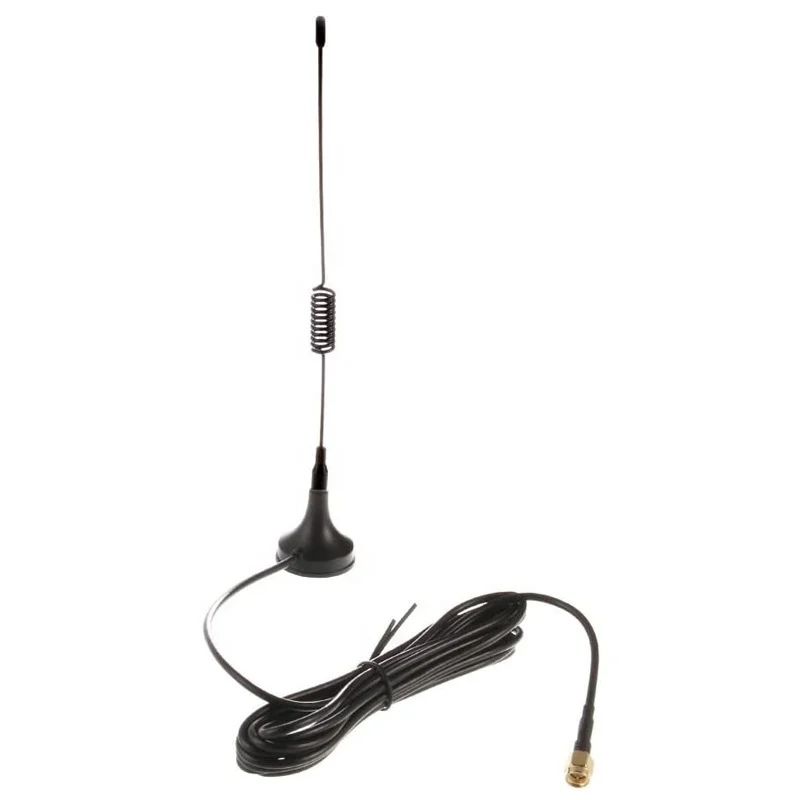

Antenna	3m antenna or small rubber antenna
Caller ID	DTMF or FSK or both
Dimension	Device: 160*100*38mm
	Pack Box: 181*123*81mm

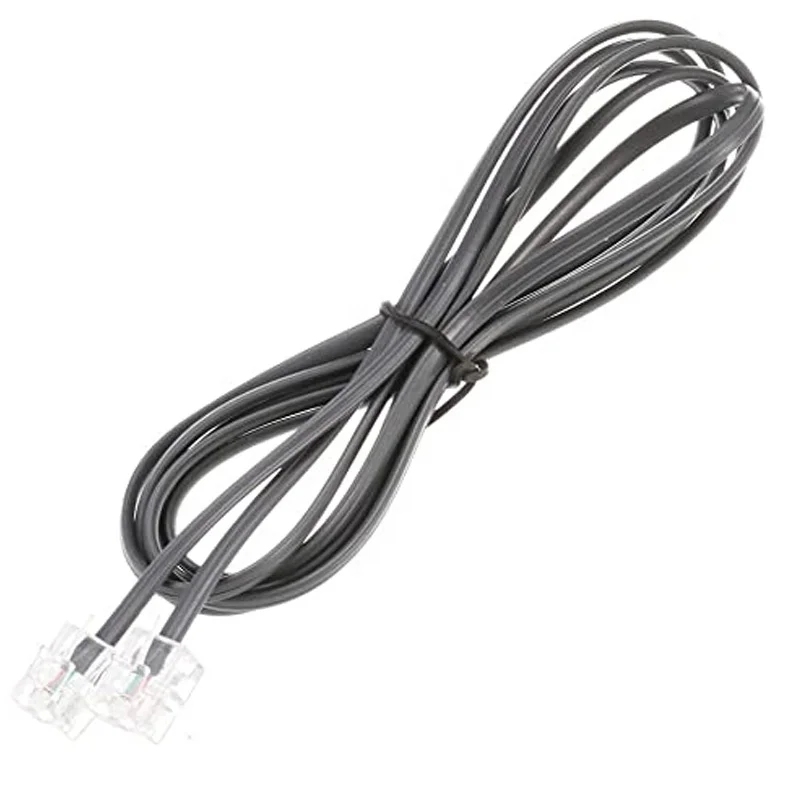

Package	Device*1;   Adapter*1; Battery (built in)*1; Telephone Line*1; User manual*1; SMA Antenna*1pc;
Weight	0.60Kg
