Trimos HC5 CH Horizontal Measuring Instrument
- Category: >>>
- Supplier: Trimos S.A.
Share on (10000008993831):
Product Overview
Description
The Horizon Calibration HC5 instrument fulfill today’s requirements of high accuracy quality control equipment in production areas and takes into consideration EN ISO 9000 standards.

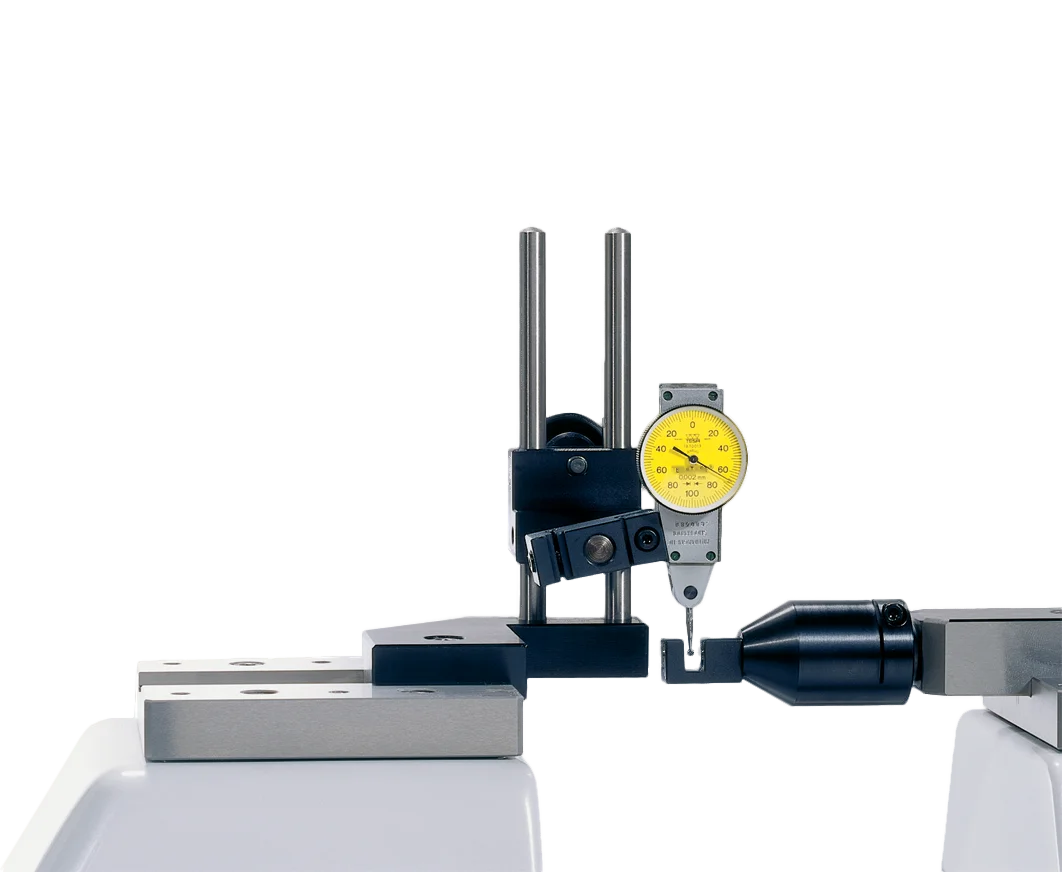

The instrument may be used in a workshop area or installed in a quality control room for checking of measuring gauges and setting of all types of comparative measuring equipment. The well-designed, reliable new concept, obtained by superior engineering, ensures high precision and optimum results by easy manipulation as well as a valuable level of productivity.
The instrument is equipped with computer, TFT screen and Trimos-WinDHI software.
Instruments with a measuring range from 500 to 3000 mm are available, all of them built in one single piece. All measuring ranges being direct, it means that the whole measuring range is available without adjustment or intermediate re-calibration.
- Ideal for use in laboratory and workshop
- New ergonomic concept

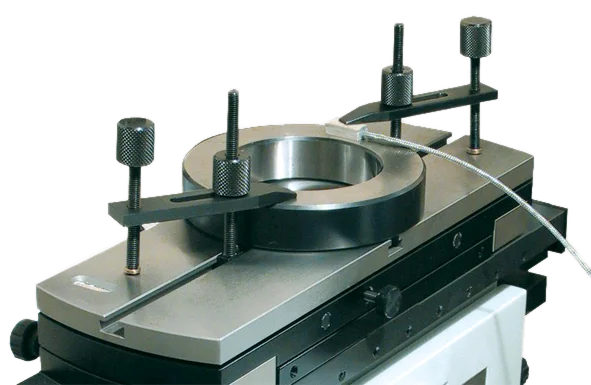

- Measuring carriage with fine adjustment

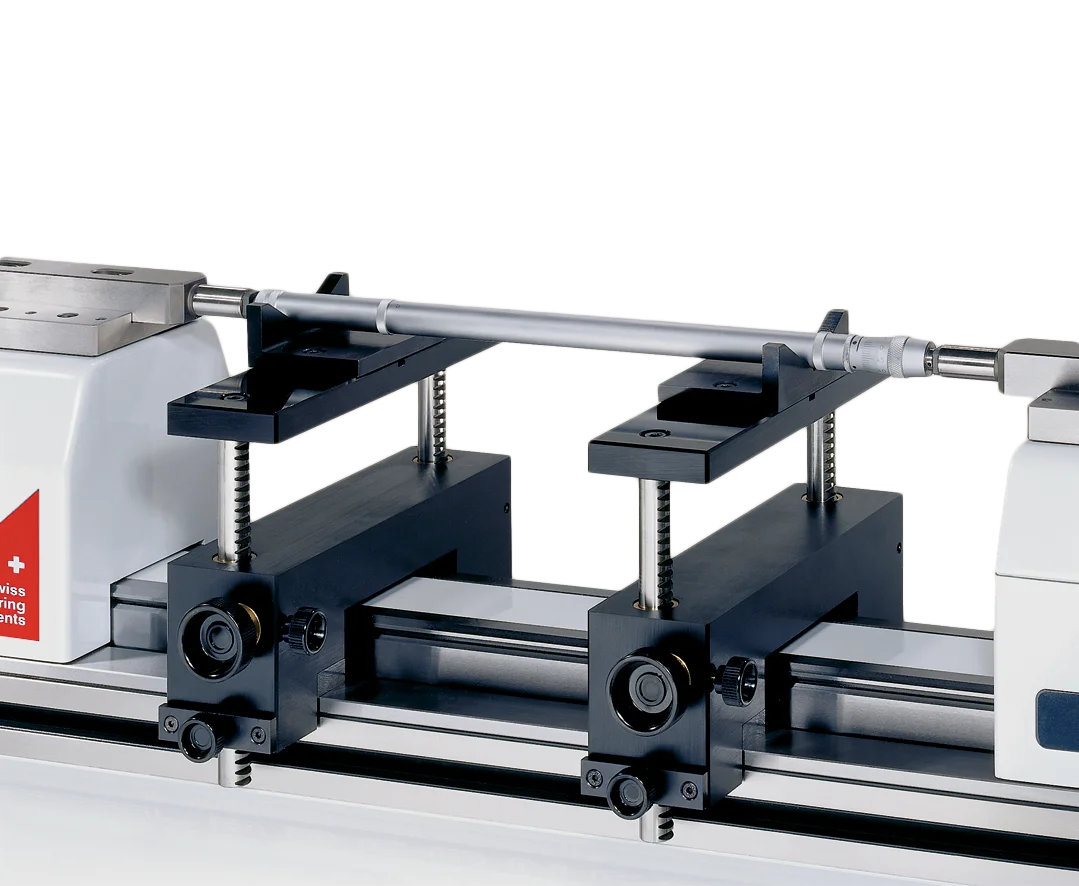

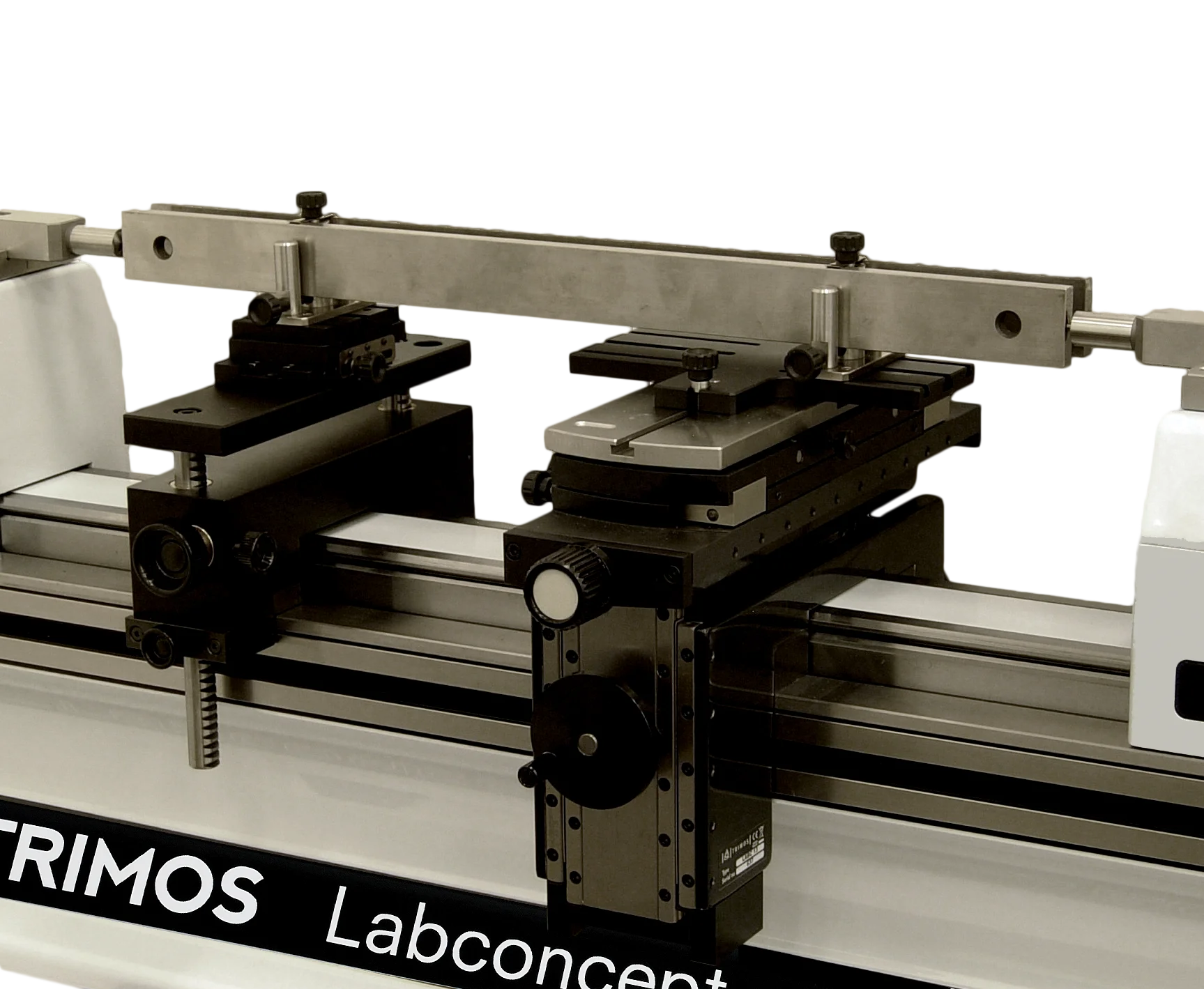

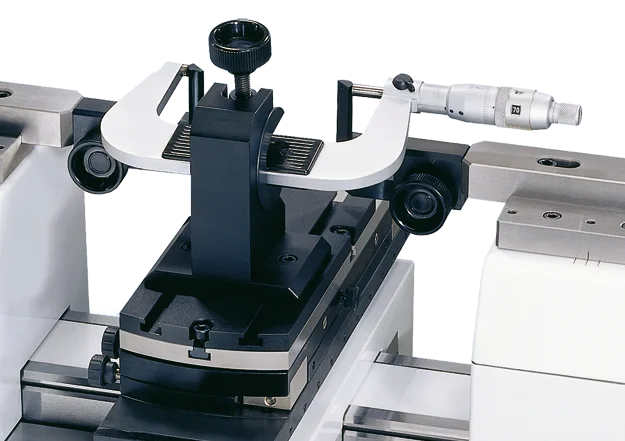

- Large range of accessories
- Adjustable measuring force
- Modular design
- Direct measurement over the whole range
TECHNICAL SPECIFICATIONS

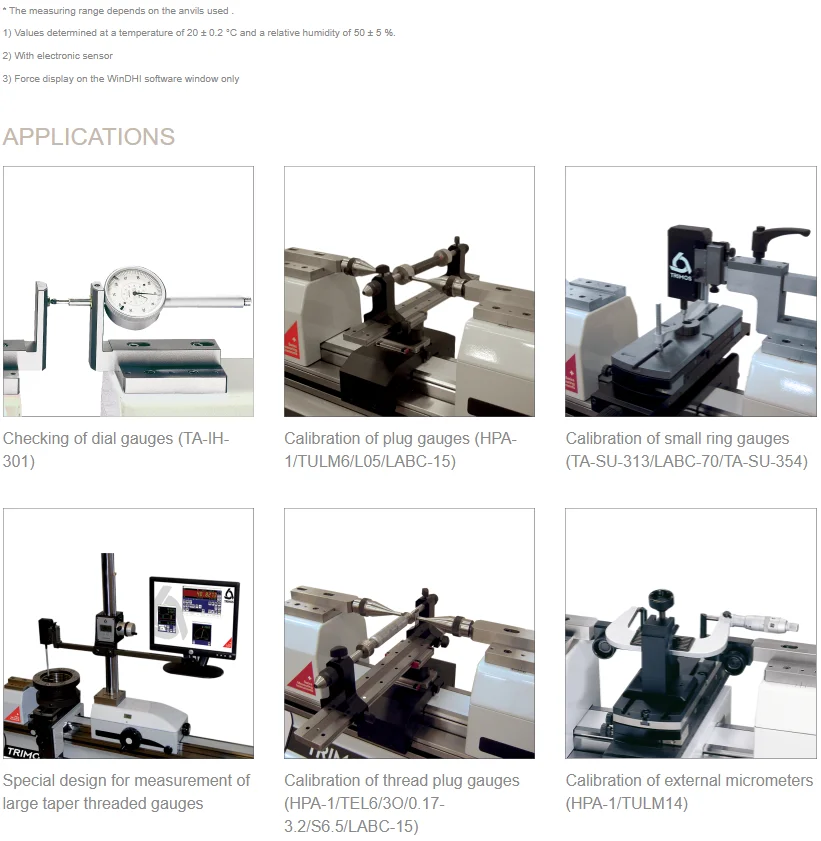

| HC3 | 500 | 1000 | 1500 | 2000 | 3000 | |
| Measuring range * | mm | 550 | 1050 | 1550 | 2050 | 3050 |
| Max. permissible errors, BMPE 1) | µm | 0.6+L(mm)/1200 | ||||
| Repeatability, RMPE (2s) | µm | 0.1 | ||||
| Maximum resolution | mm | 0.00001 | ||||
| Fixed measuring force | N | 0.3 2,3) / 0.5 2,3) / 3 | ||||
| Max. displacement speed | mm/s | 1500 | ||||
| Operating temperature | °C | +10 ÷ +40 | ||||
| Relative humidity | % | 20 ÷ 80 | ||||
| Weight | kg | 94 | 123 | 152 | 181 | 239 |
| HC4 | 500 | 1000 | |
| Measuring range * | mm | 550 | 1050 |
| Max. permissible errors, BMPE 1) | µm | 0.3+L(mm)/1200 | |
| Repeatability, RMPE (2s) | µm | 0.1 | |
| Maximum resolution | mm | 0.00001 | |
| Fixed measuring force | N | 0.3 2,3) / 0.5 2,3) / 1 ÷ 12 3) | |
| Max. displacement speed | mm/s | 1500 | |
| Operating temperature | °C | +10 ÷ +40 | |
| Relative humidity | % | 20 ÷ 80 | |
| Weight | kg | 94 | 123 |
| HC5 | 300 | 500 | 1050 | |
| Measuring range * | mm | 350 | 550 | 1050 |
| Max. permissible errors, BMPE 1) | µm | 0.1+L/2000 | 0.15+L/2000 | |
| Repeatability, RMPE (2s) | µm | 0.05 | ||
| Maximum resolution | mm | 0.00001 | ||
| Fixed measuring force | N | 0.3 2,3) / 0.5 2,3) / 1 ÷ 12 3) | ||
| Max. displacement speed | mm/s | 1000 | ||
| Operating temperature | °C | +10 ÷ +40 | ||
| Relative humidity | % | 20 ÷ 80 | ||
| Weight | kg | 78 | 94 | 123 |
