Product Overview
Description
Product Description

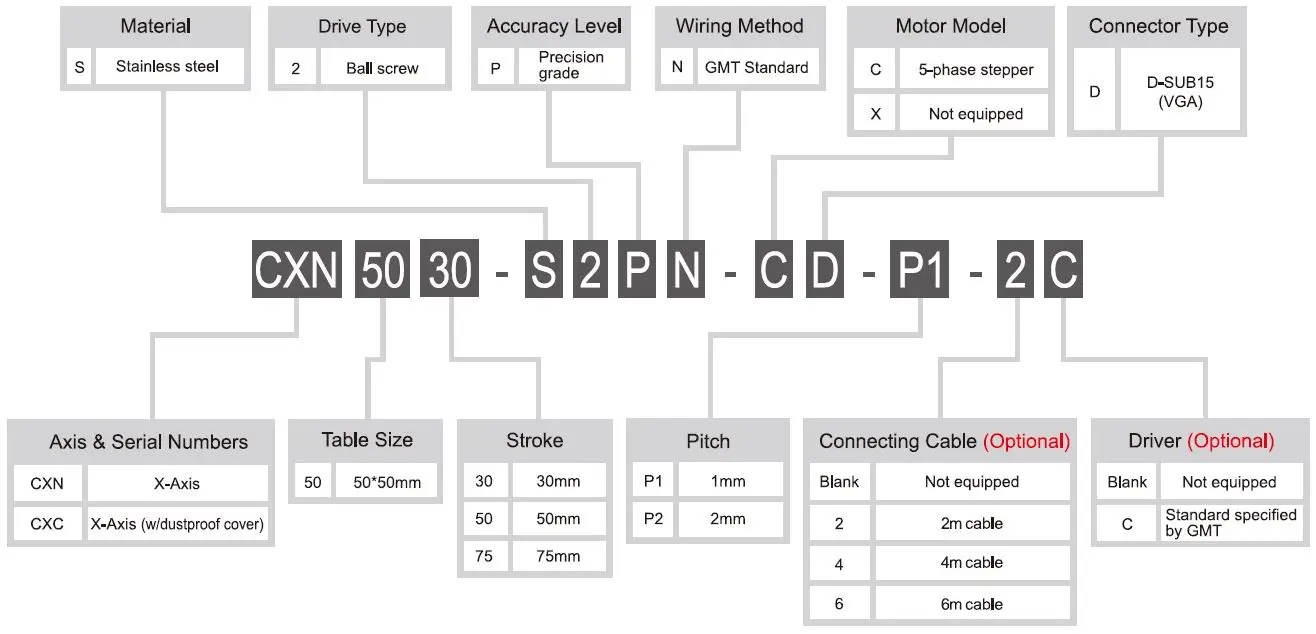

Model No. | CXC5030-S2PN-CD-P1 | CXC5050-S2PN-CD-P1 | CXC5075-S2PN-CD-P1 | ||
CXC5030-S2PN-CD-P2 | CXC5050-S2PN-CD-P2 | CXC5075-S2PN-CD-P2 | |||
Table Size (mm) | 50 X 50 | ||||
Travel Stroke (mm) | 30 | 50 | 75 | ||
Drive Type | P1：Ball screw Ø8, lead 1mm P2：Ball screw Ø8, lead 2mm | ||||
Rail | Circular Linear Ball Guiding | ||||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||||
Main Unit Weight (Kg) | 1.06 | 1.17 | 1.29 | ||
Coupling | FAMCS11.6-5*5 | ||||
Accuracy Level | P：Precision grade | ||||
Wiring Method | N：GMT Standard | ||||
Resolution (Pulse) (µm) | P1：2 (Full) / 1 (Half) P2：4 (Full) / 2 (Half) | ||||
Max. Speed (Full Step) (mm / sec) | P1：20 P2：40 | ||||
Positioning Presion (µm) | 5 | 7 | |||
Repeatability Precision (µm) | ± 0.5 | ||||
Load Capacity (Kgf) | 10 | ||||
Missed Step (µm) | 1 | ||||
Parallelism (µm) | 15 | ||||
Dynamic Straightness (µm) | 2 | ||||
Dynamic Parallelism (µm) | 10 | ||||
Motor Type Shaft Numbers | 5-phase stepper ☐ 28 double shafts | ||||
Motor Brand Model | SANYO SH5281-7211 | ||||
Driver Brand / Model | Please refer to reference table | ||||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||||
Origin Sensor | Photoelectric sensor GMT-sensor | ||||
Limit Sensor | |||||
Origin Approximation Sensor | N / A | ||||
Power Voltage | 24V ± 10% | ||||
Control Output | NPN open collector output under 24V 8mA | ||||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||||
Model No. | CXC50100-S2PN-CD-P1 | CXC50150-S2PN-CD-P2 | CXC50200-S2PN-CD-P2 | ||
CXC50100-S2PN-CD-P2 | CXC50150-S2PN-CD-P4 | CXC50200-S2PN-CD-P4 | |||
Table Size (mm) | 50 X 50 | ||||
Travel Stroke (mm) | 100 | 150 | 200 | ||
Drive Type | P1：Ball screw Ø8, lead 1mm P2：Ball screw Ø8, lead 2mm P4：Ball screw Ø8, lead 4mm | ||||
Rail | Circular Linear Ball Guiding | ||||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||||
Main Unit Weight (Kg) | 1.39 | 1.82 | 2.02 | ||
Coupling | FAMCS11.6-5*5 | ||||
Accuracy Level | P：Precision grade | ||||
Wiring Method | N：GMT Standard | ||||
Resolution (Pulse) (µm) | P1：2 (Full) / 1 (Half) P2：4 (Full) / 2 (Half) P2：8 (Full) / 4 (Half) | ||||
Max. Speed (Full Step) (mm / sec) | P1：20 P2：40 P4：80 | ||||
Positioning Presion (µm) | 10 | 15 | |||
Repeatability Precision (µm) | ± 0.5 | ||||
Load Capacity (Kgf) | 10 | ||||
Missed Step (µm) | 1 | ||||
Parallelism (µm) | 15 | ||||
Dynamic Straightness (µm) | 4 | 6 | |||
Dynamic Parallelism (µm) | 10 | 15 | |||
Motor Type Shaft Numbers | 5-phase stepper ☐ 28 double shafts | ||||
Motor Brand Model | SANYO SH5285-7211 | ||||
Driver Brand / Model | Please refer to reference table | ||||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||||
Origin Sensor | Photoelectric sensor GMT-sensor | ||||
Limit Sensor | |||||
Origin Approximation Sensor | N / A | ||||
Power Voltage | 24V ± 10% | ||||
Control Output | NPN open collector output under 24V 8mA | ||||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||||

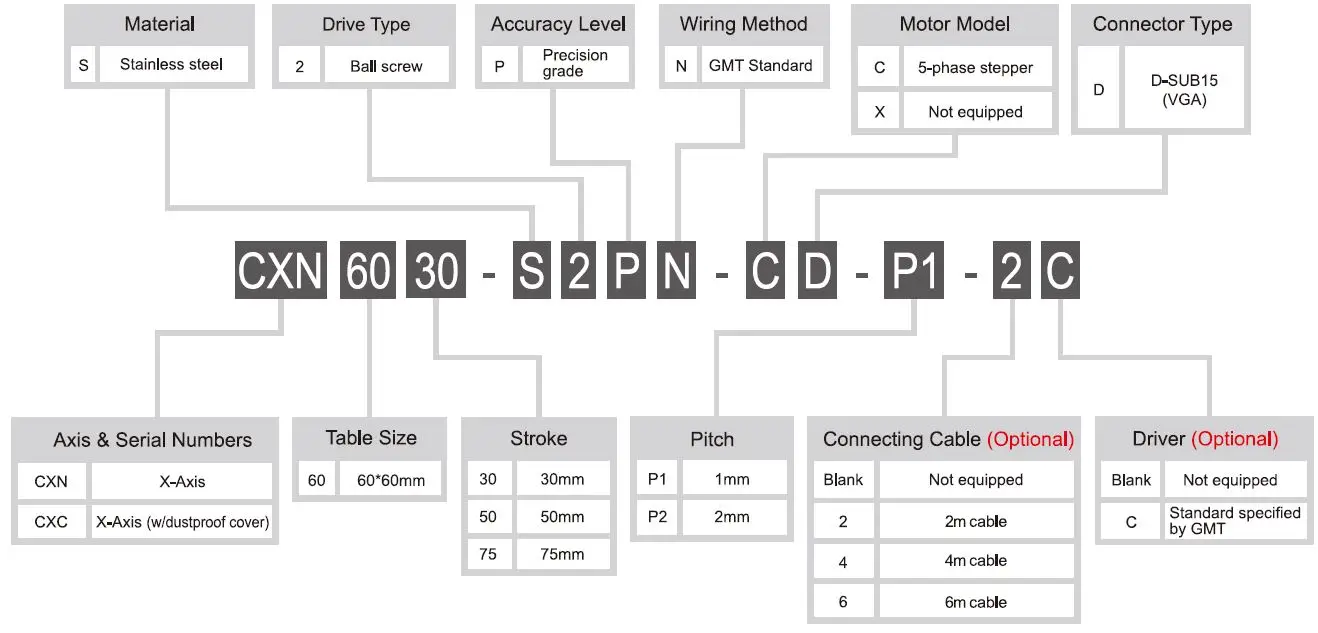

Model No. | CXC6030-S2PN-CD-P1 | CXC6050-S2PN-CD-P1 | CXC6075-S2PN-CD-P1 | ||
CXC6030-S2PN-CD-P2 | CXC6050-S2PN-CD-P2 | CXC6075-S2PN-CD-P2 | |||
Table Size (mm) | 60 X 60 | ||||
Travel Stroke (mm) | 30 | 50 | 75 | ||
Drive Type | P1：Ball screw Ø8, lead 1mm P2：Ball screw Ø8, lead 2mm | ||||
Rail | Circular Linear Ball Guiding | ||||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||||
Main Unit Weight (Kg) | 1.29 | 1.33 | 1.44 | ||
Coupling | FAMCS11.6-5*5 | ||||
Accuracy Level | P：Precision grade | ||||
Wiring Method | N：GMT Standard | ||||
Resolution (Pulse) (µm) | P1：2 (Full) / 1 (Half) P2：4 (Full) / 2 (Half) | ||||
Max. Speed (Full Step) (mm / sec) | P1：20 P2：40 | ||||
Positioning Presion (µm) | 5 | 7 | |||
Repeatability Precision (µm) | ± 0.5 | ||||
Load Capacity (Kgf) | 14 | ||||
Missed Step (µm) | 1 | ||||
Parallelism (µm) | 20 | ||||
Dynamic Straightness (µm) | 2 | ||||
Dynamic Parallelism (µm) | 10 | ||||
Motor Type Shaft Numbers | 5-phase stepper ☐ 28 double shafts | ||||
Motor Brand Model | SANYO SH5281-7211 | ||||
Driver Brand / Model | Please refer to reference table | ||||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||||
Origin Sensor | Photoelectric sensor GMT-sensor | ||||
Limit Sensor | |||||
Origin Approximation Sensor | N / A | ||||
Power Voltage | 24V ± 10% | ||||
Control Output | NPN open collector output under 24V 8mA | ||||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||||

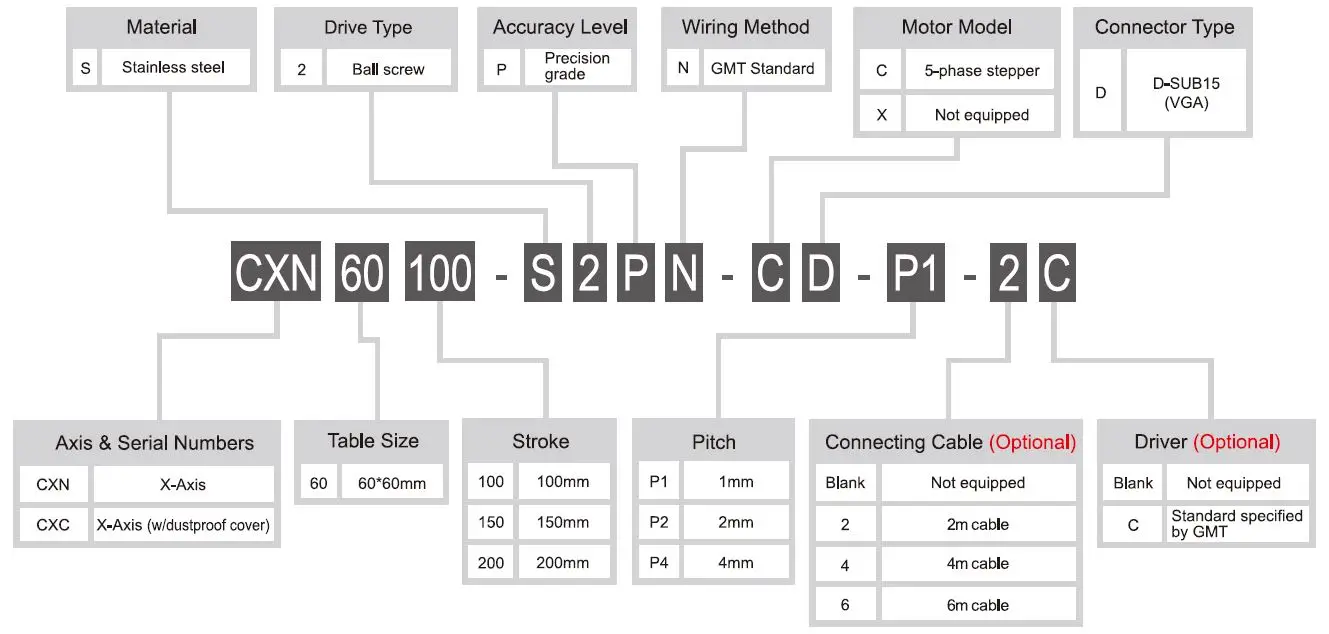

Model No. | CXC60100-S2PN-CD-P1 | CXC60150-S2PN-CD-P2 | CXC60200-S2PN-CD-P2 | ||
CXC60100-S2PN-CD-P2 | CXC60150-S2PN-CD-P4 | CXC60200-S2PN-CD-P4 | |||
Table Size (mm) | 60 X 60 | ||||
Travel Stroke (mm) | 100 | 150 | 200 | ||
Drive Type | P1：Ball screw Ø8, lead 1mm P2：Ball screw Ø8, lead 2mm P4：Ball screw Ø8, lead 4mm | ||||
Rail | Circular Linear Ball Guiding | ||||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||||
Main Unit Weight (Kg) | 1.61 | 1.94 | 2.14 | ||
Coupling | FAMCS11.6-5*5 | ||||
Accuracy Level | P：Precision grade | ||||
Wiring Method | N：GMT Standard | ||||
Resolution (Pulse) (µm) | P1：2 (Full) / 1 (Half) P2：4 (Full) / 2 (Half) P2：8 (Full) / 4 (Half) | ||||
Max. Speed (Full Step) (mm / sec) | P1：20 P2：40 P4：80 | ||||
Positioning Presion (µm) | 10 | 15 | |||
Repeatability Precision (µm) | ± 0.5 | ||||
Load Capacity (Kgf) | 14 | ||||
Missed Step (µm) | 1 | ||||
Parallelism (µm) | 20 | ||||
Dynamic Straightness (µm) | 4 | 6 | |||
Dynamic Parallelism (µm) | 10 | 15 | |||
Motor Type Shaft Numbers | 5-phase stepper ☐ 28 double shafts | ||||
Motor Brand Model | SANYO SH5285-7211 | ||||
Driver Brand / Model | Please refer to reference table | ||||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||||
Origin Sensor | Photoelectric sensor GMT-sensor | ||||
Limit Sensor | |||||
Origin Approximation Sensor | N / A | ||||
Power Voltage | 24V ± 10% | ||||
Control Output | NPN open collector output under 24V 8mA | ||||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||||

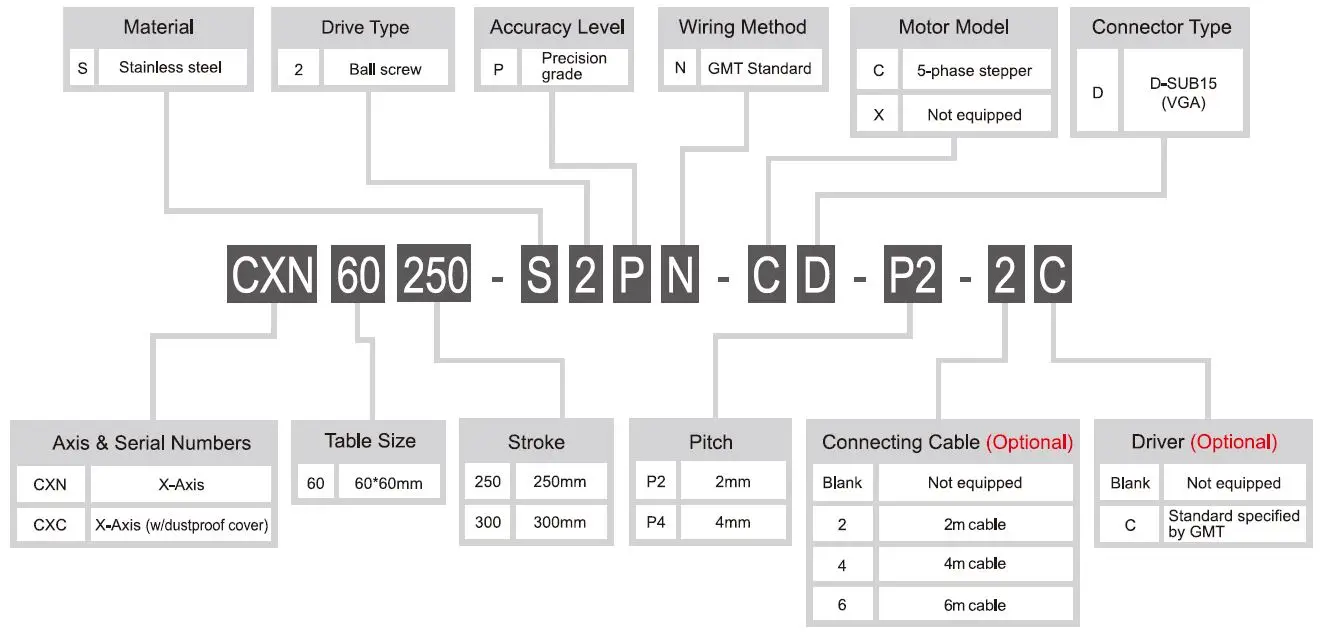

Model No. | CXC60250-S2PN-CD-P2 | CXC60300-S2PN-CD-P2 | |
CXC60250-S2PN-CD-P4 | CXC60300-S2PN-CD-P4 | ||
Table Size (mm) | 60 X 60 | ||
Travel Stroke (mm) | 250 | 300 | |
Drive Type | P2：Ball screw Ø8, lead 2mm P4：Ball screw Ø8, lead 4mm | ||
Rail | Circular Linear Ball Guiding | ||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||
Main Unit Weight (Kg) | 2.44 | 2.74 | |
Coupling | FAMCS11.6-5*5 | ||
Accuracy Level | P：Precision grade | ||
Wiring Method | N：GMT Standard | ||
Resolution (Pulse) (µm) | P2：4 (Full) / 2 (Half) P4：8 (Full) / 4 (Half) | ||
Max. Speed (Full Step) (mm / sec) | P2：40 P4：80 | ||
Positioning Presion (µm) | 25 | ||
Repeatability Precision (µm) | ± 0.5 | ||
Load Capacity (Kgf) | 14 | ||
Missed Step (µm) | 1 | ||
Parallelism (µm) | 20 | ||
Dynamic Straightness (µm) | 6 | ||
Dynamic Parallelism (µm) | 25 | ||
Motor Type Shaft Numbers | 5-phase stepper ☐ 28 double shafts | ||
Motor Brand Model | SANYO SH5285-7211 | ||
Driver Brand / Model | Please refer to reference table | ||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||
Origin Sensor | Photoelectric sensor GMT-sensor | ||
Limit Sensor | |||
Origin Approximation Sensor | N / A | ||
Power Voltage | 24V ± 10% | ||
Control Output | NPN open collector output under 24V 8mA | ||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||

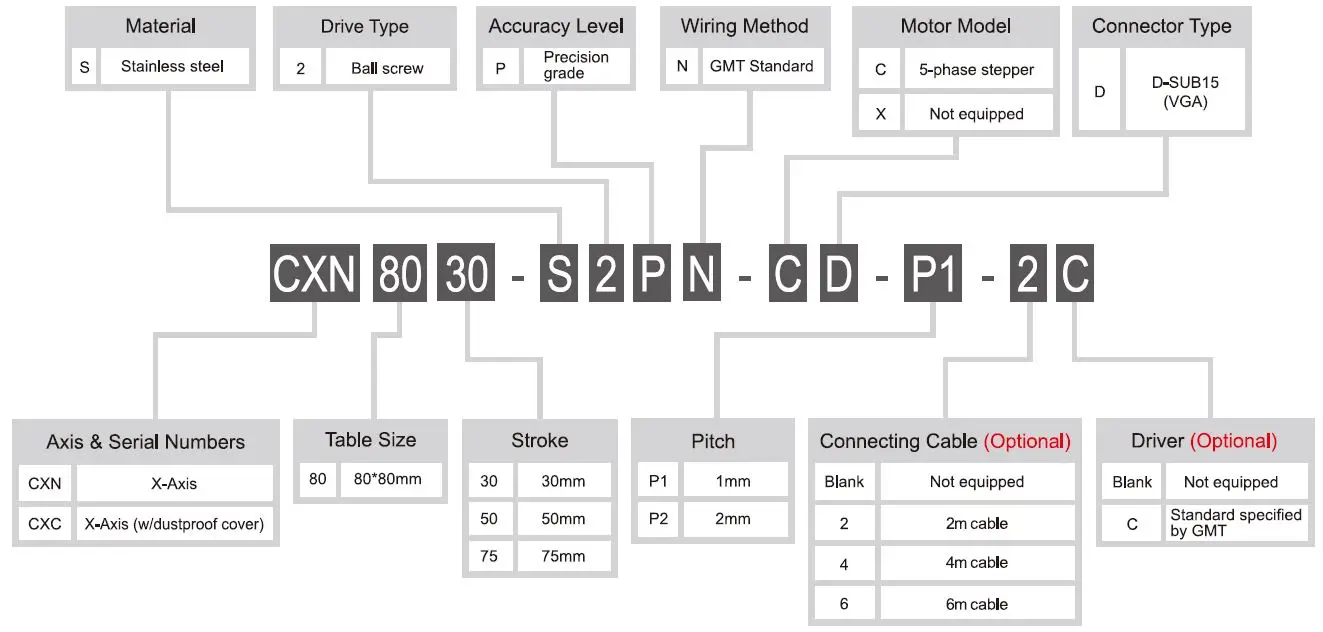

Model No. | CXC8030-S2PN-CD-P1 | CXC8050-S2PN-CD-P1 | CXC8075-S2PN-CD-P1 | ||
CXC8030-S2PN-CD-P2 | CXC8050-S2PN-CD-P2 | CXC8075-S2PN-CD-P2 | |||
Table Size (mm) | 80 X 80 | ||||
Travel Stroke (mm) | 30 | 50 | 75 | ||
Drive Type | P1：Ball screw Ø8, lead 1mm P2：Ball screw Ø8, lead 2mm | ||||
Rail | Circular Linear Ball Guiding | ||||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||||
Main Unit Weight (Kg) | 1.79 | 1.86 | 2.03 | ||
Coupling | FAMCS11.6-5*5 | ||||
Accuracy Level | P：Precision grade | ||||
Wiring Method | N：GMT Standard | ||||
Resolution (Pulse) (µm) | P1：2 (Full) / 1 (Half) P2：4 (Full) / 2 (Half) | ||||
Max. Speed (Full Step) (mm / sec) | P1：20 P2：40 | ||||
Positioning Presion (µm) | 5 | 7 | |||
Repeatability Precision (µm) | ± 0.5 | ||||
Load Capacity (Kgf) | 18 | ||||
Missed Step (µm) | 1 | ||||
Parallelism (µm) | 20 | ||||
Dynamic Straightness (µm) | 2 | ||||
Dynamic Parallelism (µm) | 10 | ||||
Motor Type Shaft Numbers | 5-phase stepper ☐ 28 double shafts | ||||
Motor Brand Model | SANYO SH5281-7211 | ||||
Driver Brand / Model | Please refer to reference table | ||||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||||
Origin Sensor | Photoelectric sensor GMT-sensor | ||||
Limit Sensor | |||||
Origin Approximation Sensor | N / A | ||||
Power Voltage | 24V ± 10% | ||||
Control Output | NPN open collector output under 24V 8mA | ||||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||||

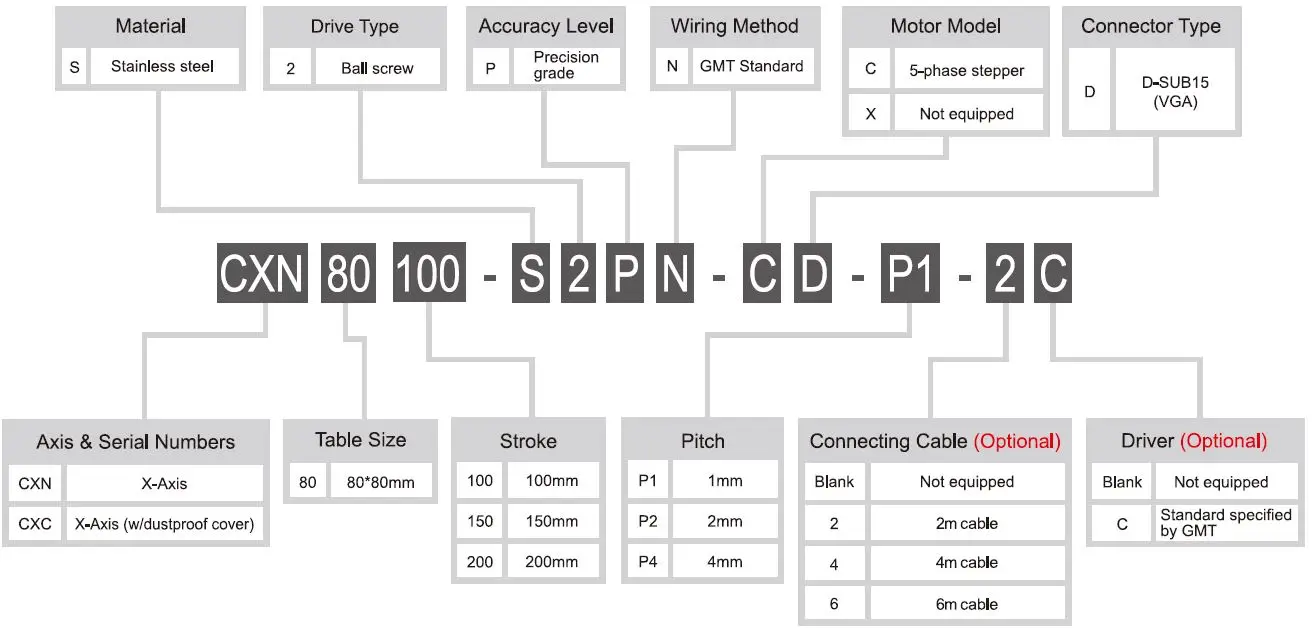

Model No. | CXC80100-S2PN-CD-P1 | CXC80150-S2PN-CD-P2 | CXC80200-S2PN-CD-P2 | ||
CXC80100-S2PN-CD-P2 | CXC80150-S2PN-CD-P4 | CXC80200-S2PN-CD-P4 | |||
Table Size (mm) | 80 X 80 | ||||
Travel Stroke (mm) | 100 | 150 | 200 | ||
Drive Type | P1：Ball screw Ø8, lead 1mm P2：Ball screw Ø8, lead 2mm P4：Ball screw Ø8, lead 4mm | ||||
Rail | Circular Linear Ball Guiding | ||||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||||
Main Unit Weight (Kg) | 2.2 | 2.5 | 2.78 | ||
Coupling | FAMCS11.6-5*5 | ||||
Accuracy Level | P：Precision grade | ||||
Wiring Method | N：GMT Standard | ||||
Resolution (Pulse) (µm) | P1：2 (Full) / 1 (Half) P2：4 (Full) / 2 (Half) P2：8 (Full) / 4 (Half) | ||||
Max. Speed (Full Step) (mm / sec) | P1：20 P2：40 P4：80 | ||||
Positioning Presion (µm) | 10 | 15 | |||
Repeatability Precision (µm) | ± 0.5 | ||||
Load Capacity (Kgf) | 18 | ||||
Missed Step (µm) | 1 | ||||
Parallelism (µm) | 20 | ||||
Dynamic Straightness (µm) | 4 | 6 | |||
Dynamic Parallelism (µm) | 10 | 15 | |||
Motor Type Shaft Numbers | 5-phase stepper ☐ 28 double shafts | ||||
Motor Brand Model | SANYO SH5285-7211 | ||||
Driver Brand / Model | Please refer to reference table | ||||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||||
Origin Sensor | Photoelectric sensor GMT-sensor | ||||
Limit Sensor | |||||
Origin Approximation Sensor | N / A | ||||
Power Voltage | 24V ± 10% | ||||
Control Output | NPN open collector output under 24V 8mA | ||||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||||
Model No. | CXC80250-S2PN-CD-P2 | CXC80300-S2PN-CD-P2 | |
CXC80250-S2PN-CD-P4 | CXC80300-S2PN-CD-P4 | ||
Table Size (mm) | 80 X 80 | ||
Travel Stroke (mm) | 250 | 300 | |
Drive Type | P2：Ball screw Ø8, lead 2mm P4：Ball screw Ø8, lead 4mm | ||
Rail | Circular Linear Ball Guiding | ||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||
Main Unit Weight (Kg) | 3.08 | 3.38 | |
Coupling | FAMCS11.6-5*5 | ||
Accuracy Level | P：Precision grade | ||
Wiring Method | N：GMT Standard | ||
Resolution (Pulse) (µm) | P2：4 (Full) / 2 (Half) P4：8 (Full) / 4 (Half) | ||
Max. Speed (Full Step) (mm / sec) | P2：40 P4：80 | ||
Positioning Presion (µm) | 25 | ||
Repeatability Precision (µm) | ± 0.5 | ||
Load Capacity (Kgf) | 18 | ||
Missed Step (µm) | 1 | ||
Parallelism (µm) | 20 | ||
Dynamic Straightness (µm) | 6 | ||
Dynamic Parallelism (µm) | 25 | ||
Motor Type Shaft Numbers | 5-phase stepper ☐ 28 double shafts | ||
Motor Brand Model | SANYO SH5285-7211 | ||
Driver Brand / Model | Please refer to reference table | ||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||
Origin Sensor | Photoelectric sensor GMT-sensor | ||
Limit Sensor | |||
Origin Approximation Sensor | N / A | ||
Power Voltage | 24V ± 10% | ||
Control Output | NPN open collector output under 24V 8mA | ||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||
System Configuration Diagram
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers
according to real functional needs.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers
according to real functional needs.
Axis Definition
GMT has defined different axis as the following figuration according to the movement direction:
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.
Company Profile
Established in 1994, GMT Global Inc started business in precision mold components manufacturing and selling in the early days to fix painful points for customers based on initial believe persistently. Prior to a decade further, the managing director, Mr. Tony Chen, realized needs of mold market got weak while massive mold builders moved out of Taiwan, the timing to make change. Thus, the company began to develop automation use components, as well as supplied good profit OEM parts for semi-conductor facilities. However, in consideration for company’s growth in the future, Tony decided to create the brand GMT, to sell own designed and produced products, urged the company move on a completely new road,in 2006, when GMT brand name was born.
From then on, GMT dedicated itself to develop innovated products, optimize manufacture procedure and improve machining technologies; those were implemented to management of offering technical profession to serve customers.
Capabilities of development and innovation accumulated in decades, the company engaged to high precision application of automatic inspection in smart phone industry in 2015. The case example after the company’s change performed itself in automation industries with the preparation of technical abilities and capability for Industrial 4.0. First consolidating capacity for parts and components, then, upgrading to modularization and systematic integration, thereby maintaining its place as the most competitive firm on the market.
Recent virus impacts on management of enterprises. GMT stay tune of the company goal, and take place of training to employees for knowledge improvement, and development constantly by implement of Lean Manufacturing, SPC (Statistic Process Control), OKR (Object Key Result) those management tools for stepping forward to future.
Capabilities of development and innovation accumulated in decades, the company engaged to high precision application of automatic inspection in smart phone industry in 2015. The case example after the company’s change performed itself in automation industries with the preparation of technical abilities and capability for Industrial 4.0. First consolidating capacity for parts and components, then, upgrading to modularization and systematic integration, thereby maintaining its place as the most competitive firm on the market.
Recent virus impacts on management of enterprises. GMT stay tune of the company goal, and take place of training to employees for knowledge improvement, and development constantly by implement of Lean Manufacturing, SPC (Statistic Process Control), OKR (Object Key Result) those management tools for stepping forward to future.
ISO 9001-2015
CE Verification of Certificate
Model Name: AX, CX, GK series
CE Verification of Certificate
Model Name: AR series
2015 Taiwan SMEs Innovation Award
Taiwan Excellence Award 2022
Model: Linear Stepper Stage GSMX60/GSMX80/GSMX120
Taiwan Excellence Award 2022
Model: Rotary Swing Module GBR-S1/GBR-S2
Taiwan Excellence Award 2022
Model: Rotary Gripper Module GEAR-P2
Taiwan Excellence Award 2022
Model: Miniature Ultra-Rigid Alignment Stage
GAS00-160VC1
Taiwan Excellence Award 2020
Model: Precision Electric Cylinder GECB/GECC
Taiwan Excellence Award 2020
Model: Motorized Goniometer Stage GECB/GECC
Taiwan Excellence Award 2019
Model: Six-axis Optical Fiber Alignment Stage Module
GECB/GECC
Taiwan Excellence Award 2019
Model: Miniature Actuator GIR
Taiwan Excellence Award 2015
Model: Precision XXY Positioning Stage – Ultra-rigid Type –Electric-magnetic Type GAS00-350SC
Taiwan Excellence Award 2015
Model: Precision XXY Positioning Stage –Ultra-Rigidity – Pneumatic Type GAS00-350AC
Taiwan Excellence Award 2015
Model: Motorized X Axis Lightweight Long-path (Direct-drive Stage) CXV60
Taiwan Excellence Award 2015
Model: XY-axis Equidirectional Operation MYCP-A
Taiwan Excellence Award 2015
Model: Manual X-axis Ultra-high-resolution-Precision Direct-drive Stage MX764-AC-SHR
Taiwan Excellence Award 2015
Model: Anti-creep Slide Rail GRVG / GRVGS
FAQ
1. Are you the manufacture or distributor?
GMT is the manufacture located in Taiwan. We have subsidiaries in China, Germany, and our own distribution channels able to offer rapid technical support.
2. What kind of certificate have your company been approved?
GMT has been ISO 9001 certified since decades and got approval of constant survey according updated criteria officially.
3. Can you provide your certifications?
Yes, please leave your requirements, our specialist will get back to you as soon as possible.
4. Do you offer after-sales service?
Yes, we will have specialist to help you to resolve your questions. Any questions, please leave your message, our specialist will get back to you as soon as possible.
5. Can I customize products?
Yes, please leave your specific requirements, our specialist will get back to you as soon as possible.
7. May I have a copy of your catalog?
Yes, please have more information through our official website: https://www.gmt.tw/, and kindly have QR code for our official website for your reference as below.
8. How long will it take to ship to my country?
It based on your location, if you have more questions, please leave your message, our specialist will get back to you as soon as possible.
GMT is the manufacture located in Taiwan. We have subsidiaries in China, Germany, and our own distribution channels able to offer rapid technical support.
2. What kind of certificate have your company been approved?
GMT has been ISO 9001 certified since decades and got approval of constant survey according updated criteria officially.
3. Can you provide your certifications?
Yes, please leave your requirements, our specialist will get back to you as soon as possible.
4. Do you offer after-sales service?
Yes, we will have specialist to help you to resolve your questions. Any questions, please leave your message, our specialist will get back to you as soon as possible.
5. Can I customize products?
Yes, please leave your specific requirements, our specialist will get back to you as soon as possible.
6. What is your Minimum Order Quantity and pricing?
The MOQ for each product is different, if you need further information, please leave your message, our specialist will get back to you as soon as possible.
The MOQ for each product is different, if you need further information, please leave your message, our specialist will get back to you as soon as possible.
7. May I have a copy of your catalog?
Yes, please have more information through our official website: https://www.gmt.tw/, and kindly have QR code for our official website for your reference as below.
8. How long will it take to ship to my country?
It based on your location, if you have more questions, please leave your message, our specialist will get back to you as soon as possible.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
