Stainless steel linear ball guiding high precision motorized xyz linear motion stage
- Category: Other Optics Instruments >>>
- Supplier: GMT GLOBAL INC.
Share on (10000009031933):
Product Overview
Description
Product Description
Model No. | CXYZS5020-S2PN-CD | CXYZS5030-S2PN-CD | |
Table Size (mm) | 50 X 50 | ||
Travel Stroke (mm) | 20 | 30 | |
Drive Type | Ball screw Ø8, lead 1mm | ||
Rail | Linear Ball Guiding | ||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||
Main Unit Weight (Kg) | 1.78 | 2.23 | |
Coupling | FAMCS11.6-5*5 | ||
Accuracy Level | P：Precision grade | ||
Wiring Method | N：GMT Standard | ||
Resolution (Pulse) (µm) | 2 (Full) 1 (Half) | ||
Max. Speed (Full Step) (mm / sec) | 20 | ||
Positioning Presion (µm) | 5 | ||
Repeatability Precision (µm) | ± 0.5 | ||
Load Capacity (Kgf) | 4 | ||
Missed Step (µm) | 1 | ||
Parallelism (µm) | 15 | ||
Dynamic Straightness (µm) | 2 | ||
Dynamic Parallelism (µm) | 10 | ||
Motor Type Shaft Numbers | 5-phase stepper XY：☐ 28 double shafts Z：☐ 42 double shafts | ||
Motor Brand Model | SANYO XY：SH5281-7211 Z：103F5510-8211 | ||
Driver Brand / Model | Please refer to reference table | ||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||
Origin Sensor | Photoelectric sensor GMT-sensor | ||
Limit Sensor | |||
Origin Approximation Sensor | N / A | ||
Power Voltage | 24V ± 10% | ||
Control Output | NPN open collector output under 24V 8mA | ||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||
Model No. | CXYZS6020-S2PN-CD | CXYZS6030-S2PN-CD | CXYZS6050-S2PN-CD | ||
Table Size (mm) | 60 X 60 | 60 X 80 | |||
Travel Stroke (mm) | 20 | 30 | 50 | ||
Drive Type | Ball screw Ø8, lead 1mm | ||||
Rail | Linear Ball Guiding | ||||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||||
Main Unit Weight (Kg) | 2.63 | 2.98 | 3.72 | ||
Coupling | FAMCS11.6-5*5 | ||||
Accuracy Level | P：Precision grade | ||||
Wiring Method | N：GMT Standard | ||||
Resolution (Pulse) (µm) | 2 (Full) 1 (Half) | ||||
Max. Speed (Full Step) (mm / sec) | 20 | ||||
Positioning Presion (µm) | 5 | ||||
Repeatability Precision (µm) | ± 0.5 | ||||
Load Capacity (Kgf) | 5 | ||||
Missed Step (µm) | 1 | ||||
Parallelism (µm) | 20 | ||||
Dynamic Straightness (µm) | 2 | ||||
Dynamic Parallelism (µm) | 10 | ||||
Motor Type Shaft Numbers | 5-phase stepper XY Axis：☐ 28 double shafts Z Axis：☐ 42 double shafts | ||||
Motor Brand Model | SANYO XY Axis：SH5281-7211 Z Axis：103F5510-8211 | ||||
Driver Brand / Model | Please refer to reference table | ||||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||||
Origin Sensor | Photoelectric sensor GMT-sensor | ||||
Limit Sensor | |||||
Origin Approximation Sensor | N / A | ||||
Power Voltage | 24V ± 10% | ||||
Control Output | NPN open collector output under 24V 8mA | ||||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||||
Model No. | CXS8020-S2PN-CD | CXS8030-S2PN-CD | CXS8050-S2PN-CD | ||
Table Size (mm) | 80 X 80 | ||||
Travel Stroke (mm) | 20 | 30 | 50 | ||
Drive Type | Ball screw Ø8, lead 1mm | ||||
Rail | Linear Ball Guiding | ||||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||||
Main Unit Weight (Kg) | 4.05 | 4.2 | 4.65 | ||
Coupling | FAMCS11.6-5*5 | ||||
Accuracy Level | P：Precision grade | ||||
Wiring Method | N：GMT Standard | ||||
Resolution (Pulse) (µm) | 2 (Full) 1 (Half) | ||||
Max. Speed (Full Step) (mm / sec) | 20 | ||||
Positioning Presion (µm) | 5 | ||||
Repeatability Precision (µm) | ± 0.5 | ||||
Load Capacity (Kgf) | 6 | ||||
Missed Step (µm) | 1 | ||||
Parallelism (µm) | 20 | ||||
Dynamic Straightness (µm) | 2 | ||||
Dynamic Parallelism (µm) | 10 | ||||
Motor Type Shaft Numbers | 5-phase stepper XY Axis：☐ 28 double shafts Z Axis：☐ 42 double shafts | ||||
Motor Brand Model | SANYO XY Axis：SH5281-7211 Z Axis：103F5510-8211 | ||||
Driver Brand / Model | Please refer to reference table | ||||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||||
Origin Sensor | Photoelectric sensor GMT-sensor | ||||
Limit Sensor | |||||
Origin Approximation Sensor | N / A | ||||
Power Voltage | 24V ± 10% | ||||
Control Output | NPN open collector output under 24V 8mA | ||||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||||

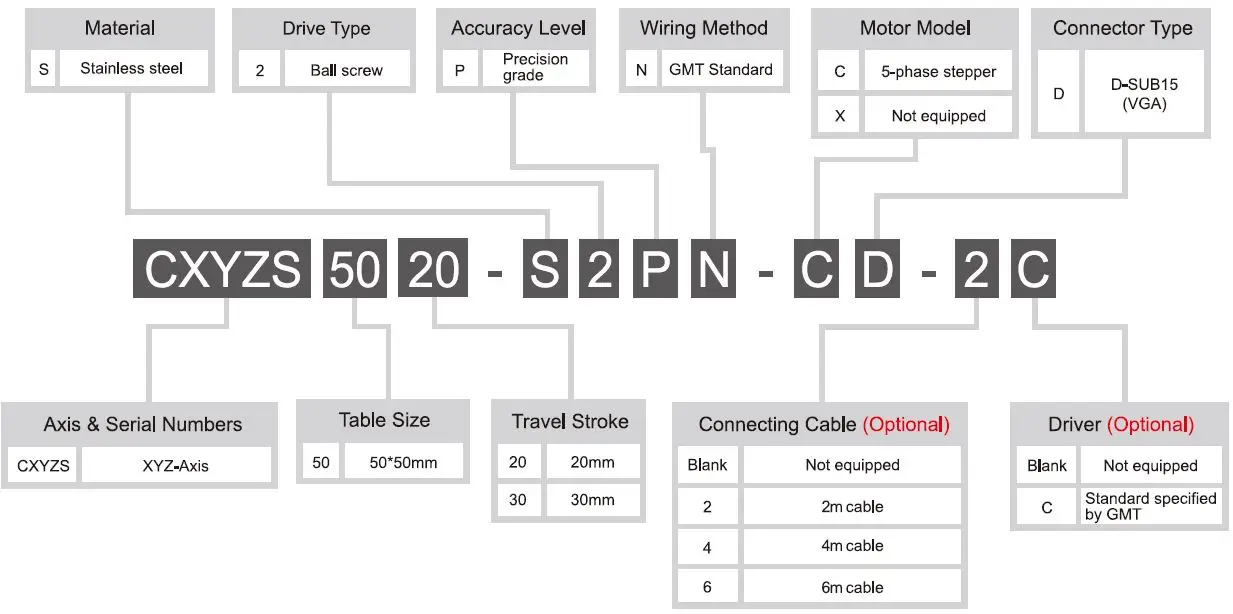

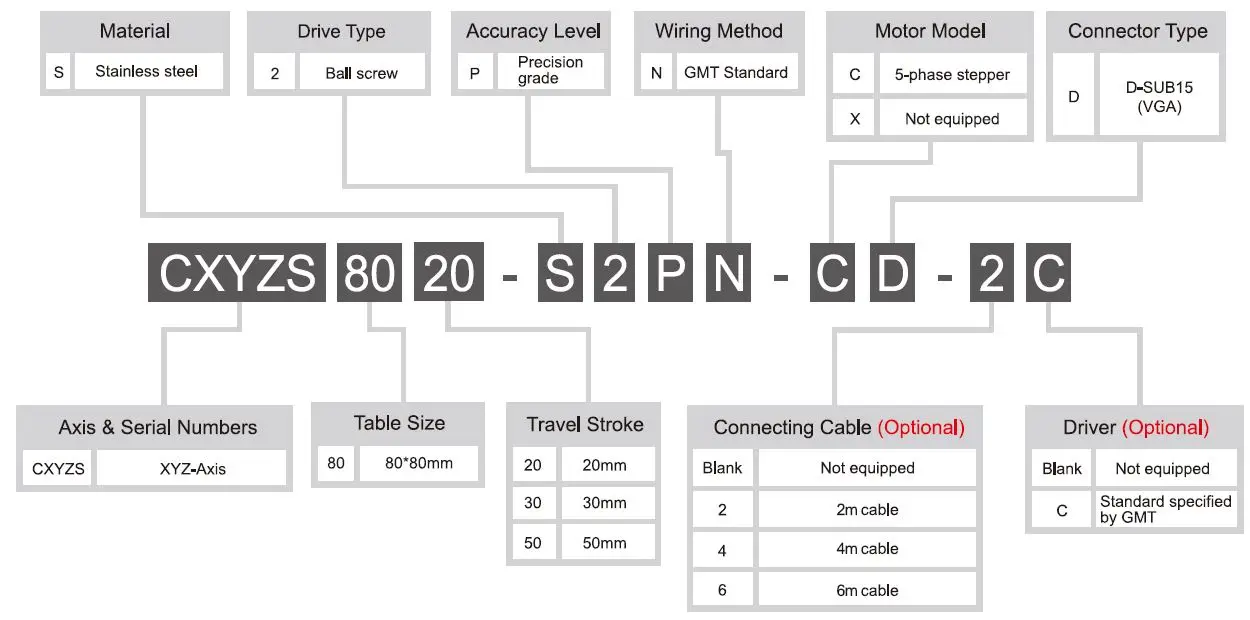

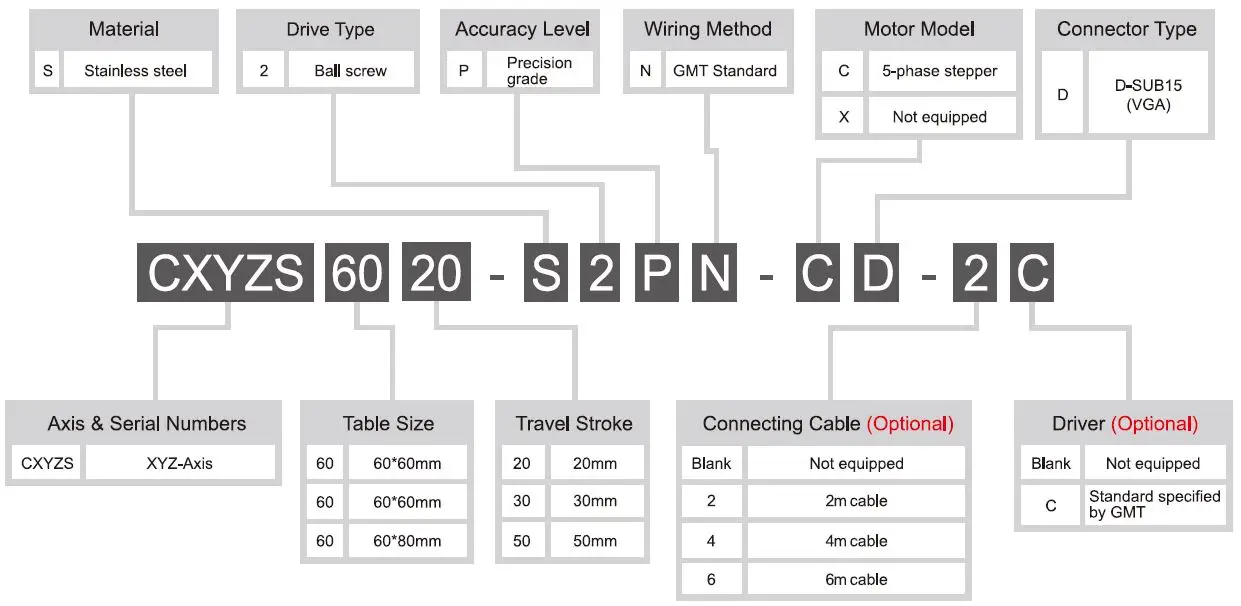

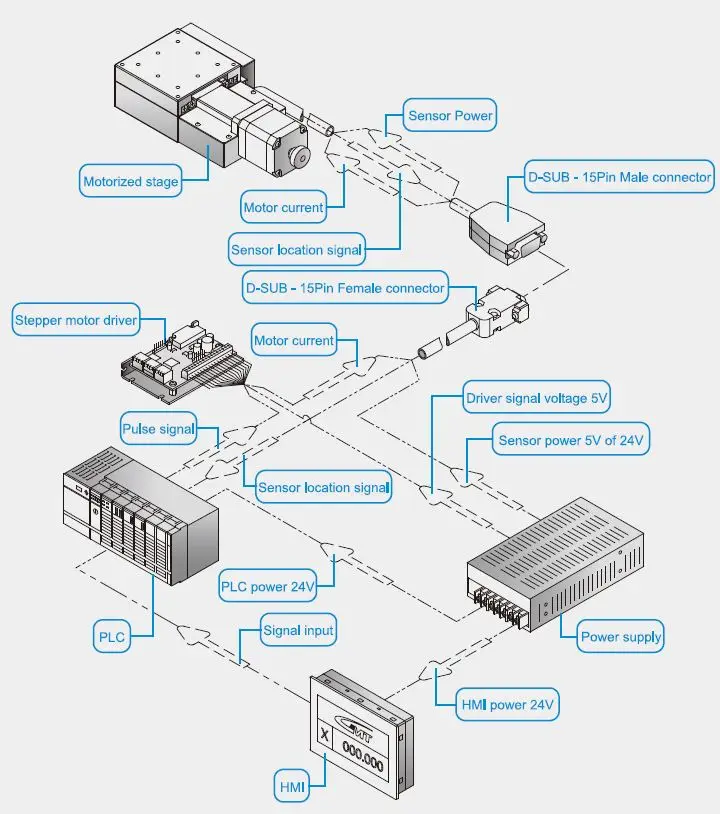

System Configuration Diagram

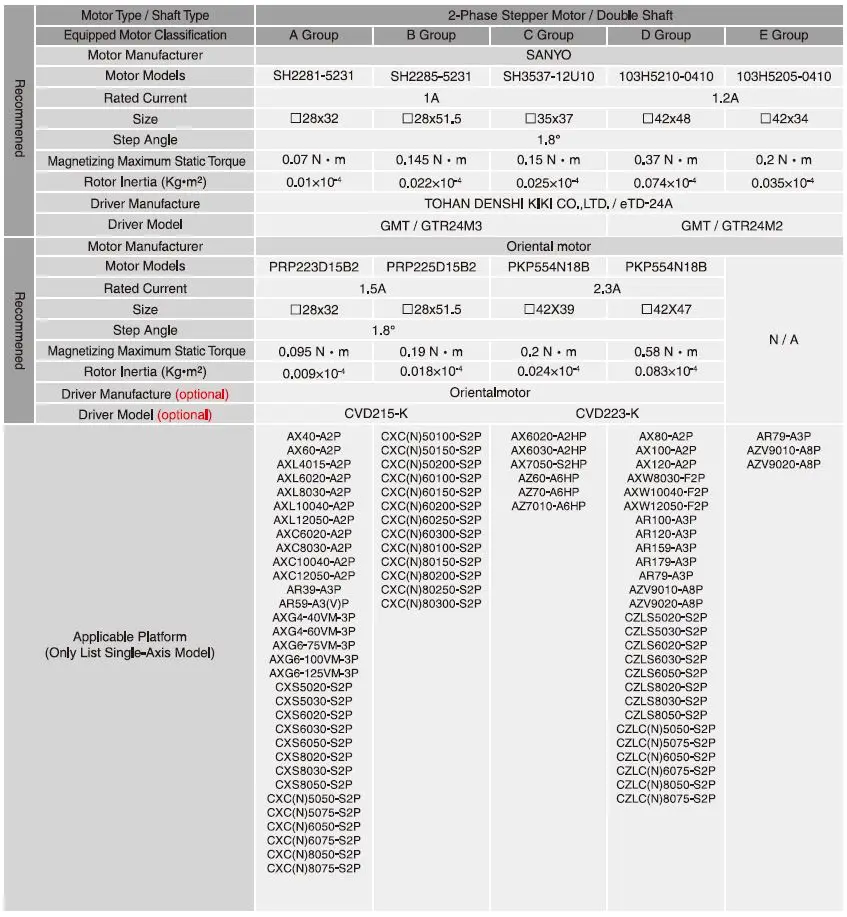

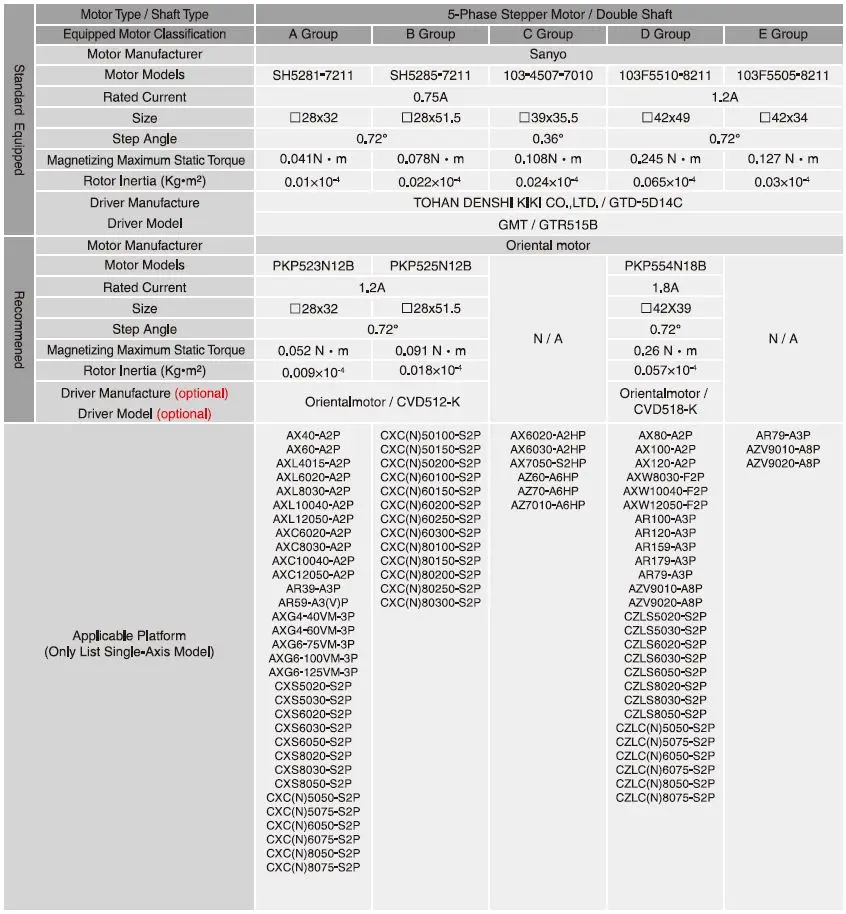

♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers
according to real functional needs.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers
according to real functional needs.

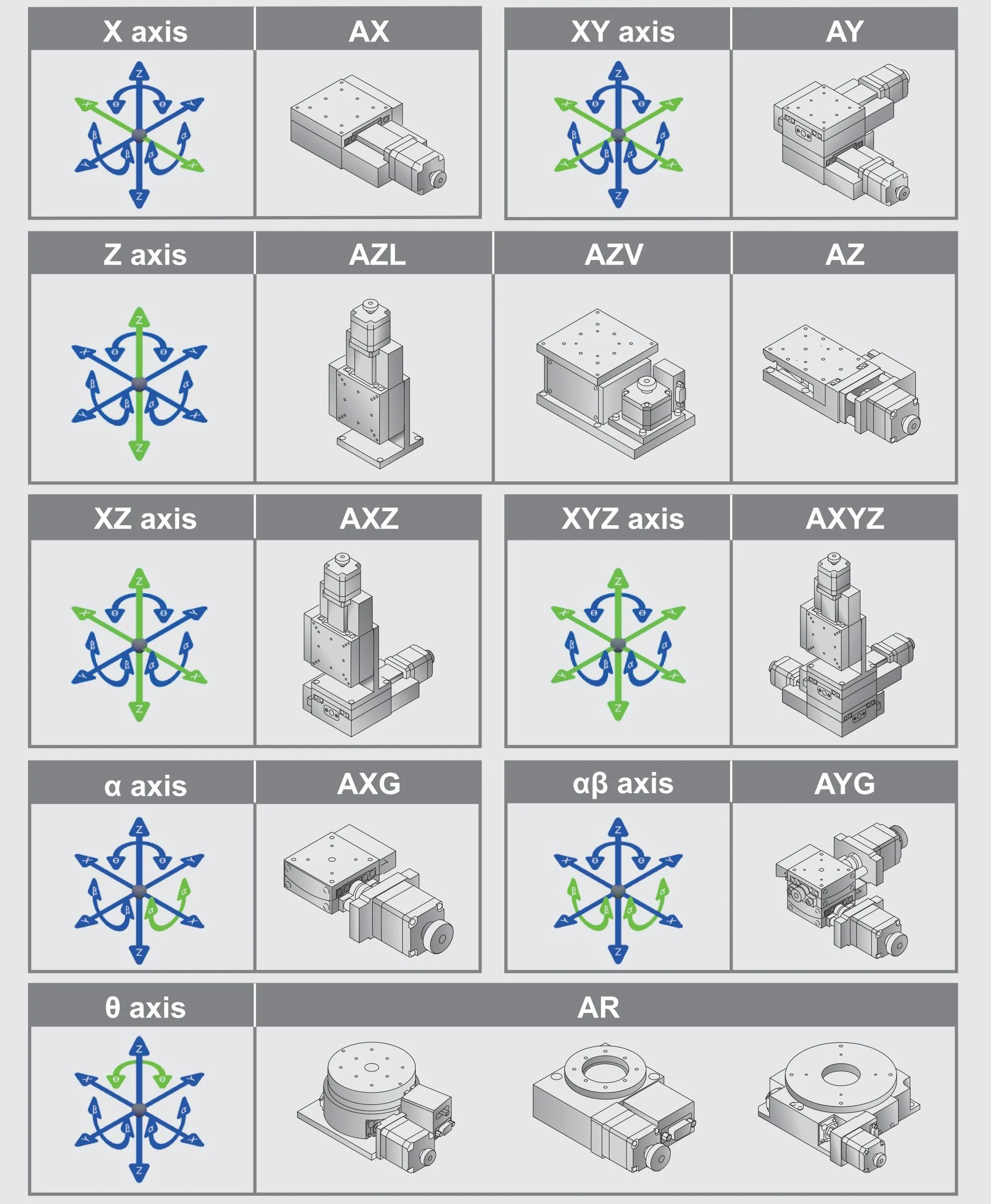

Axis Definition
