Product Overview
Description
Know about Pan Tilt Pipe Inspection camera system
Pipe Cameras are used in a lot of different fields and are specifically designed to make it easier for plumbers, contractors,
inspectors, engineers, municipal workers and other professionals to inspect the areas that are normally hard to reach. These inspection devices can reach and explore difficult spots in waste water systems, storm water systems, pipelines of different kind, drains, ducts and other hard-to-see areas.
Our PT camera with Pan 180 degree rotation and Tilt 360 degree rotation, can check any corner of applications. The camera waterproof features is up to 10bars(underwater 100m). 60m to 150m fibergalss cable reel with different diameter
opion(Dia.7mm/9mm/11mm). 10inch IPS LCD screen with 1280*720 resolution. Wireless keyboard and big capacity Li-ion battery.
inspectors, engineers, municipal workers and other professionals to inspect the areas that are normally hard to reach. These inspection devices can reach and explore difficult spots in waste water systems, storm water systems, pipelines of different kind, drains, ducts and other hard-to-see areas.
Our PT camera with Pan 180 degree rotation and Tilt 360 degree rotation, can check any corner of applications. The camera waterproof features is up to 10bars(underwater 100m). 60m to 150m fibergalss cable reel with different diameter
opion(Dia.7mm/9mm/11mm). 10inch IPS LCD screen with 1280*720 resolution. Wireless keyboard and big capacity Li-ion battery.
1. 360 degree rotation camera head, Pan 360°,Tilt 180° |
2. 1/3 CMOS,1.3MP pixel AHD camera head, waterproof up to 10 bars |
3. 10 inch IPS lcd screen, 1280*720 resolution |
4. DVR control box with audio ,video recording and photography function |
5. 60m Dia.7mm fiberglass copper axis cable , it can make good camera image for long cable |
6. USB wireless keyboard to typewrite the words |
7. Camera video resolution is 720P,AVI format |
8. Built in 8800mA li-ion battery inside ,support uint working more than 6 hours |
9. Digital meter counter function, error is less than 1% |

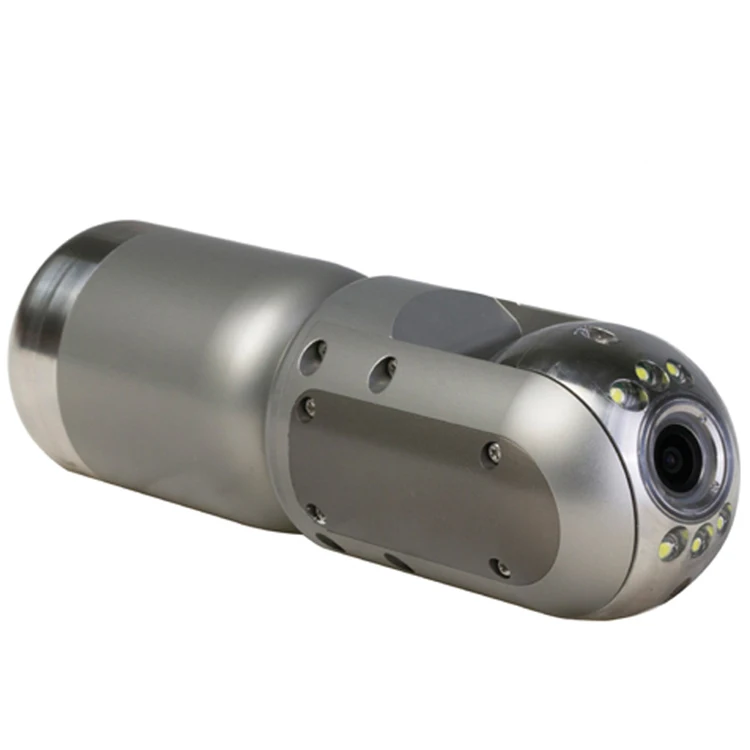

Camera Head
*Camera size Ø50mm x 154mm, sensor 1/3" CMOS ,1.3MP pixel
*Waterproof IP68 up to 10 bar
*View range 120°
*Rotation: Pan 360°, Tilt 180°
*lens position automatic reset
*Built-in 512Hz transmitter optional
*6pcs high light LED lighting adjustable
*Detachable with pins type connection to Cable Reel
*stainless steel LED cover, anti-scratch
*Lens window sapphire glass
*Waterproof IP68 up to 10 bar
*View range 120°
*Rotation: Pan 360°, Tilt 180°
*lens position automatic reset
*Built-in 512Hz transmitter optional
*6pcs high light LED lighting adjustable
*Detachable with pins type connection to Cable Reel
*stainless steel LED cover, anti-scratch
*Lens window sapphire glass

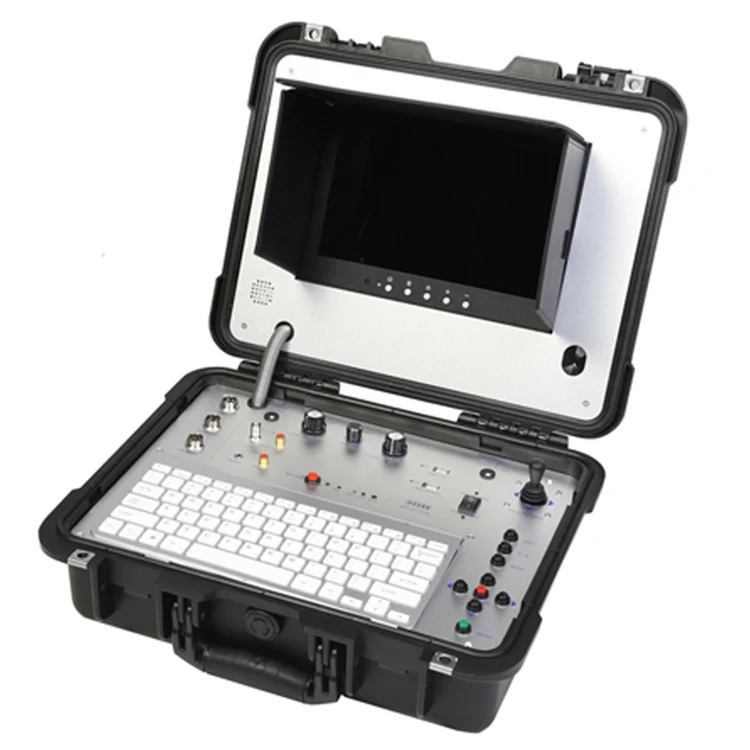

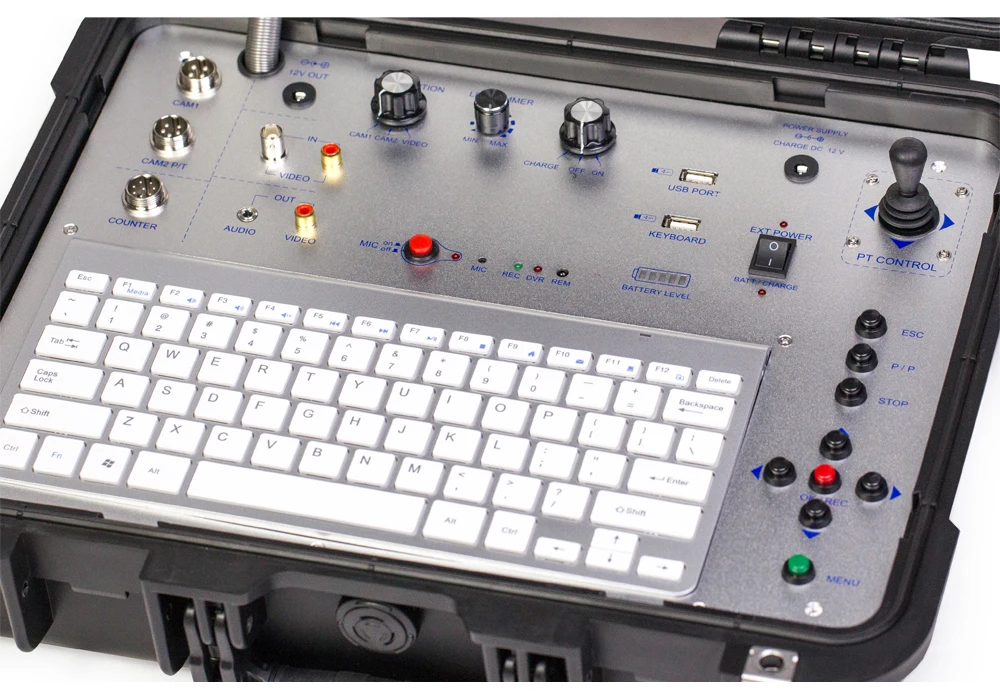

AHD DVR control unit
*10"HD IPS LCD Screen, 1280X720 resolution, 16:9 display model
*PT camera Joystick
*HD DVR SYSTEM with recording 720P video
*DVR recording system with AVI video format
*USB bluetooth Keyboard real time typewriting
*USB port to connect storage device ( 16G USB flash disk)
*Built-in 8800mA rechargeable Li-ion Battery Pack
*Battery level indicator
*Sunshade is included
*Box size 42x33x15cm
*AC 110V-240V 1.5A power charger
*Charging time 8 hours,working time about 5 hours
*PT camera Joystick
*HD DVR SYSTEM with recording 720P video
*DVR recording system with AVI video format
*USB bluetooth Keyboard real time typewriting
*USB port to connect storage device ( 16G USB flash disk)
*Built-in 8800mA rechargeable Li-ion Battery Pack
*Battery level indicator
*Sunshade is included
*Box size 42x33x15cm
*AC 110V-240V 1.5A power charger
*Charging time 8 hours,working time about 5 hours

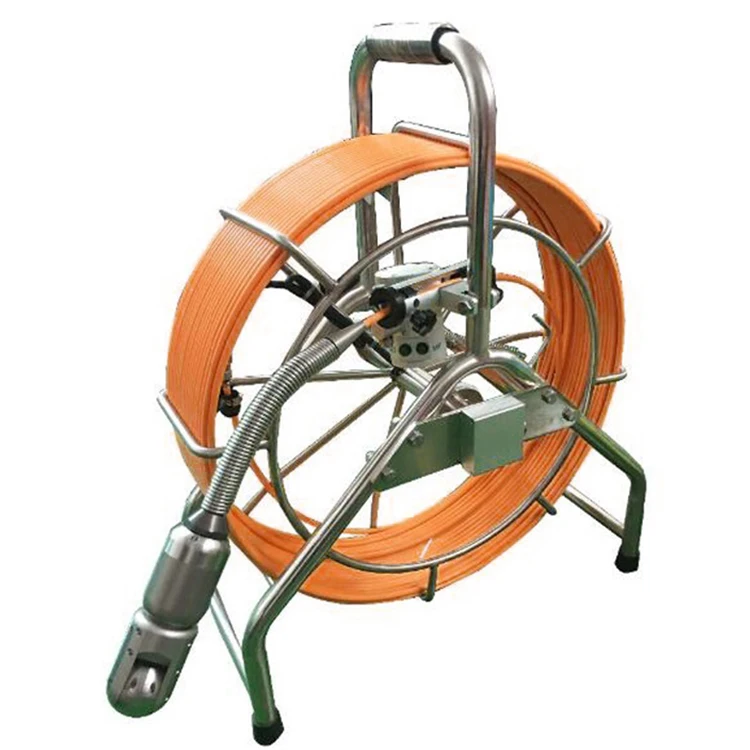

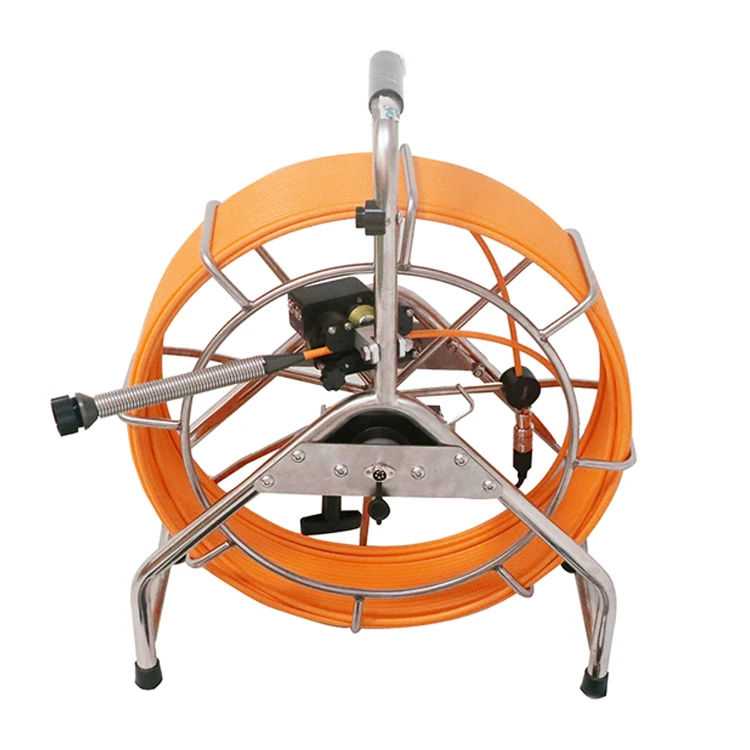

Cable Reel
*Fiberglass push rod cable
*Cable diameter 7mm
*Cable length 60m
*Reel brake available
*Reel size L510*W250*H640mm
*Updated digital meter counter, error rate less than 1%
*Cable diameter 7mm
*Cable length 60m
*Reel brake available
*Reel size L510*W250*H640mm
*Updated digital meter counter, error rate less than 1%
Standard skid
*Plastic & nylon
*Dia. 85mm
*Dia.220mm
*Dia. 85mm
*Dia.220mm
Shaanxi Granfoo Intelligent Technology Co., Ltd. is a High-tech intelligent enterprise. Specialized in designing, R&D,manufacturing and exporting : pipe inspection cameras, underwater cameras,water well inspection cameras,underwater connectors,and water quality monitor muti-parameter sensor, etc.
Our company established in 2009 ,with 12 years exporting experiences. we have obtained CE, ISO ,TUV & Patent Certificate,etc.
Ourproducts are mainly exported to Europe, North America, South America, Japan, Korea, Australia, etc.

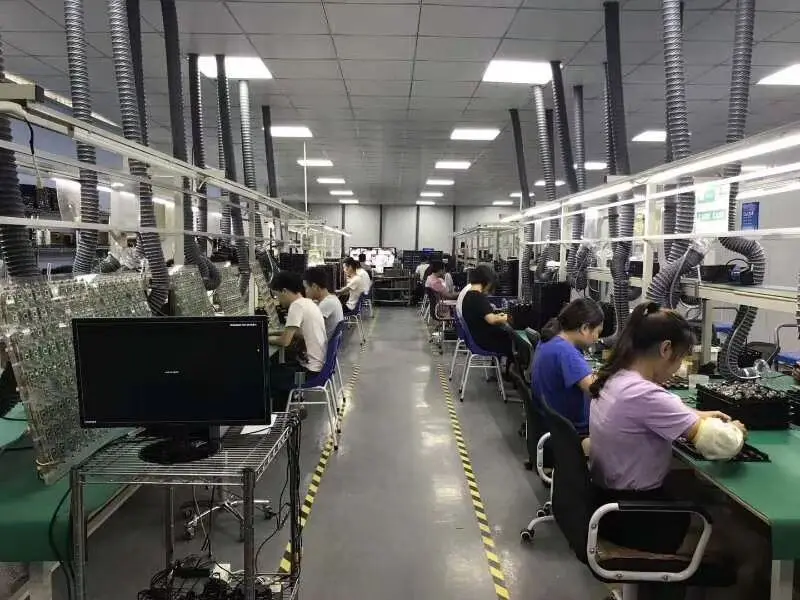

We have an independent factories, professional engineers, excellent sales staff , 24- hour after-service. Customer satisfaction is our aim.
Ourproducts are mainly exported to Europe, North America, South America, Japan, Korea, Australia, etc.
We have an independent factories, professional engineers, excellent sales staff , 24- hour after-service. Customer satisfaction is our aim.
