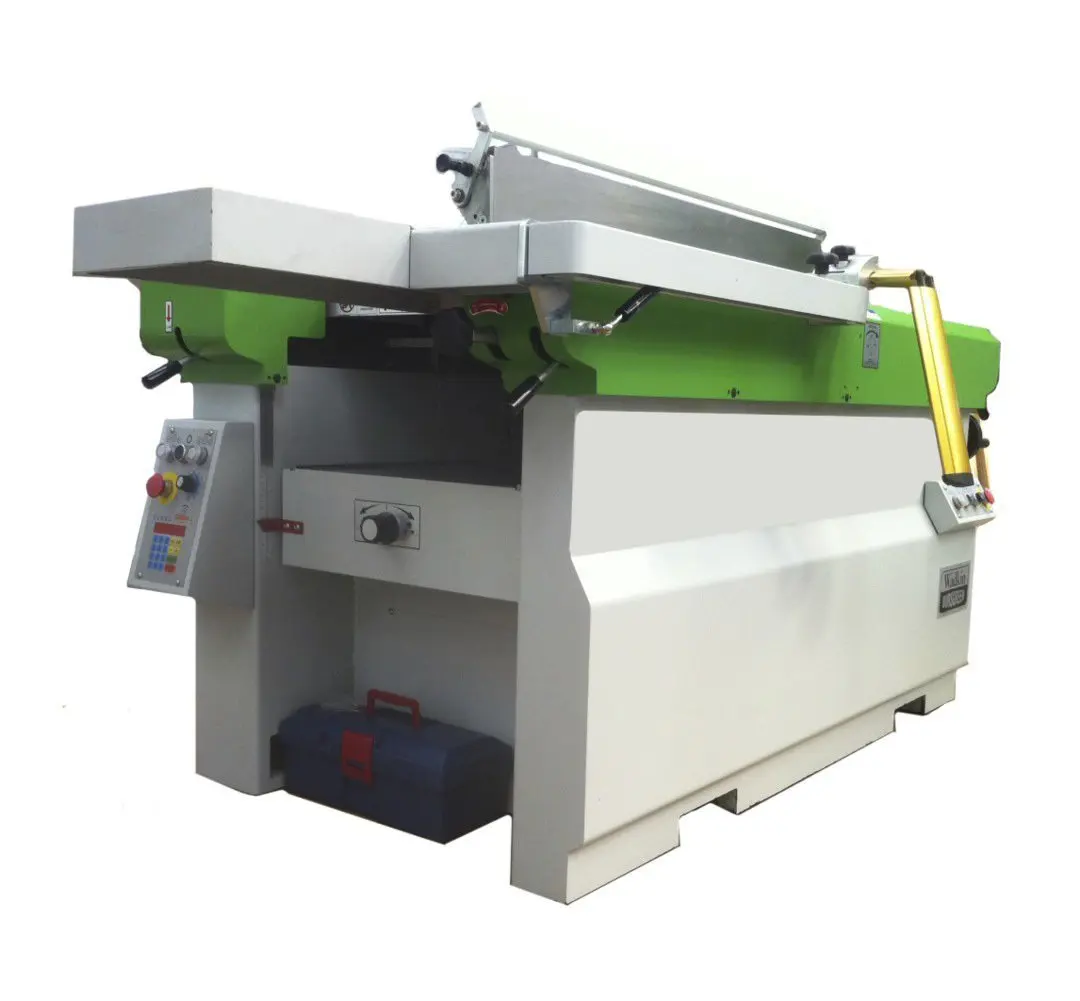

Heavy Duty Planer and Sanding Machine Wood Woodworking Machinery Planning Sanding Machine Planing Wood Surface Smooth
- Category: >>>
- Supplier: Isselhof GmbH
Share on (10000009063853):
Product Overview
Description
Processing capacity | |
Model NO. | M616HS |
Working width | 25-160mm |
Working thickness | 8-120mm |
Length of working table | 1500mm |
Feeding speed | 6-36m/min |
Spindle diameter | 40mm |
Spindle speed | 6500r/min |
Air pressure | 0.6MPa |
Motor Power | |
The 1st lower | 4.0kW |
| The right vertical shaft | 5.5kW |
| The left vertical shaft | 5.5kW |
| The 1st upper shaft | 5.5kW |
| Left saw shaft | 15kW |
| Right saw shaft shaft | 15kW |
| Lifting beams | 0.55 kW |
| Left outfeeding motor power | 0.75kw |
| Right outfeeding motor power | 0.75kw |
| The total power | 56.55kW |
| Tool diameter | |
| The 1st lower shaft | 125mm |
| The right vertical shaft | 125-160mm |
| The left vertical shaft | 125-160mm |
The 1st upper shaft | 125-160mm |
Right saw shaft | 180-250mm |
Left saw shaft | 180-250mm |
Saw shaft speed | 4500r/min |
Saw shaft diameter | 50mm |
| Feeding roller diamter | 140mm |
Vacuum tube diameter | 140mm |
Outside dimension L*W*H | 4450*1800*1720mm |
| IMAGE DETAILS |
