Product Overview
Description
TiMOTION’s TL13K series is a high-value lifting column specifically designed for ergonomic desks, work tables, and other height-adjustable systems. Work surfaces adapt quietly and smoothly with synchronous movement. The TL13K is compatible with TC series Control Boxes and TH/TDH series controls, and it can be controlled quietly and smoothly with synchronous movement. All Ergo Motion TC series control boxes have a less than 0.1W standby power option that reduces power consumption. Our wide range of columns offers solutions to satisfy customers’ working environment project requirements. The TL13K has a two-stage telescopic profile designed for a narrow-top, wide-bottom square appearance.
General Features
Max. load: 600N (push)
Max. speed at max. load: 31mm/s
Max. speed at no load: 38mm/s
Retracted length: Standard: 645mm; for shoes: 665mm
Dimension of outer tube: 70*70mm square
Stages: 2-stage
Stroke: 500mm
Output signals: Hall sensors
Voltage: 24V DC
Color: Black, white, grey, or special grey
Operational temperature range: +5°C~+45°C
With motor house

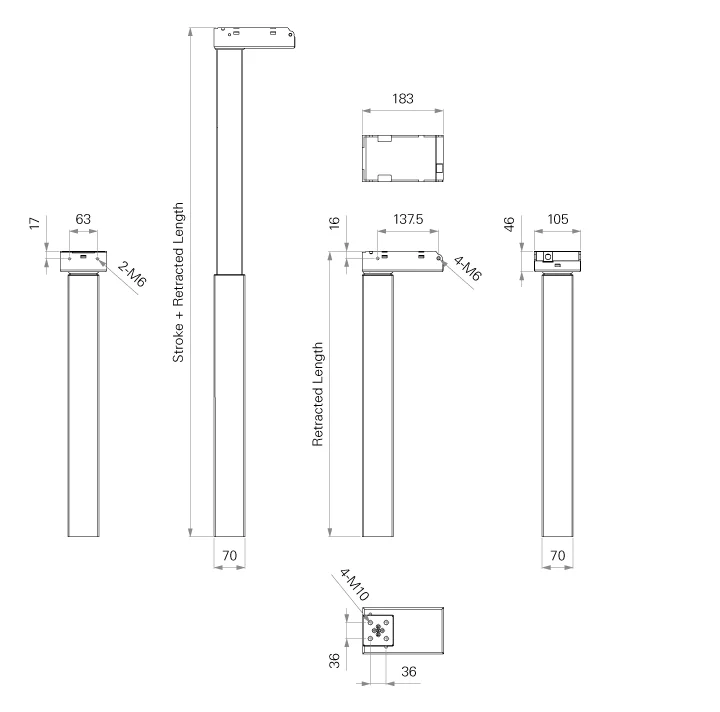

Standard Dimension (mm)
