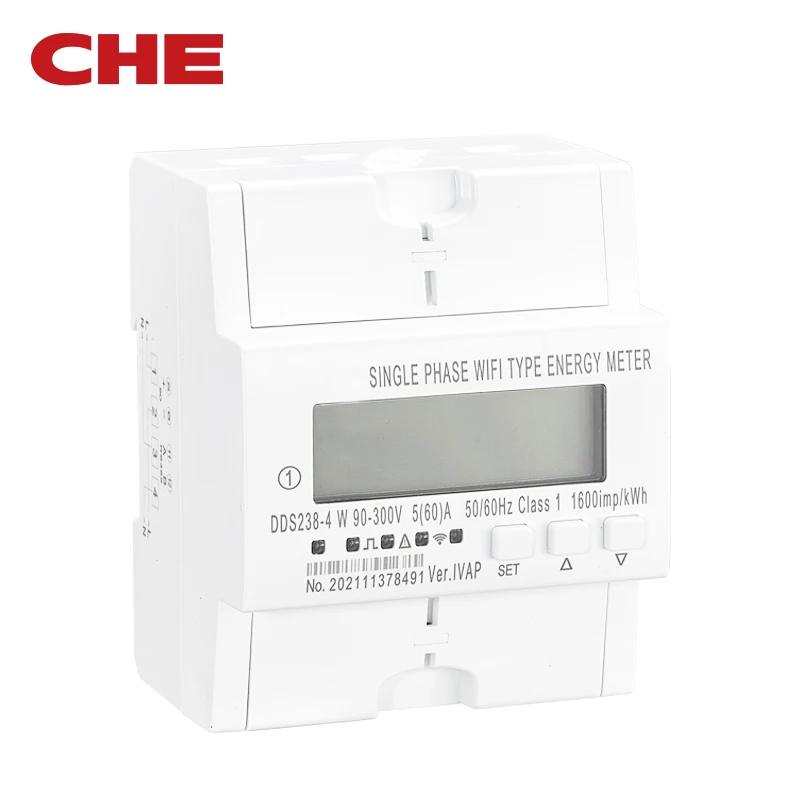

CHEN DDS238-2 ZN/S 10-100A 50HZ 60HZ Voltage Current Single Phase Din Rail Digital Electric Energy KWH Meter LCD
Product Description

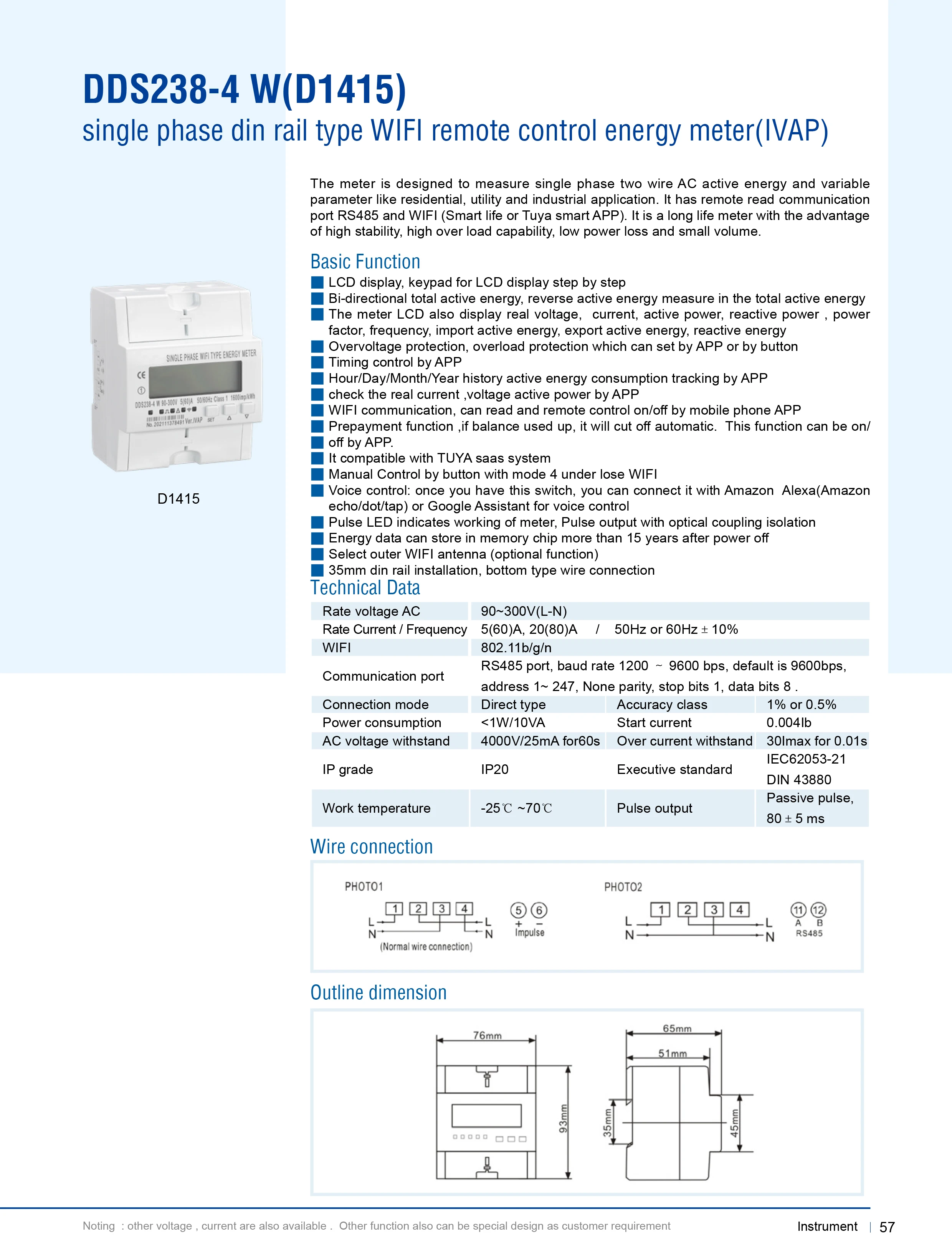

The meter is designed to measure single phase two wire AC active energy and variable parameter like residentialutility and industrial application.It has remote read communication port RS485 and WIFI(Smart life or Tuya smartAPP).It is a long life meter with the advantage of high stability. high over load capability low power loss and smallyolume.
Basic Function
LCD display. keypad for LCD display step bystep
Bi-directional total active energyreverse active energy measure in the total active energy The meter LCD also display real voltage,currentactive powerreactive powerpower factor,frequency,import activeenergyexport activeenergyreactive energy Overvoltage protectionoverload protection which can set by APP or by button Timing control byAPP.
Hour/Day/Month/Year history active energyconsumption tracking byAPP check the real currentvoltage active power byAPP
WIFl communication. can read and remote controlon/off by mobile hone APP.
Prepayment function,if balance used up. it will cut off automatic.This function can be on/ off by APP.
It compatible with TUYA saassvstem
Manual Control by button with mode 4under lose WIFI
Voice control: once you have this switch, you can connect it with Amazon Alexa(Amazon echo/dot/tap)or Google Assistant for voice control.
Pulse LED indicates working of meter,Pulse output withoptical coupling isolation Energy data can store in memory chip more than 15 years after power off Select outer WIFI antenna(optional function)

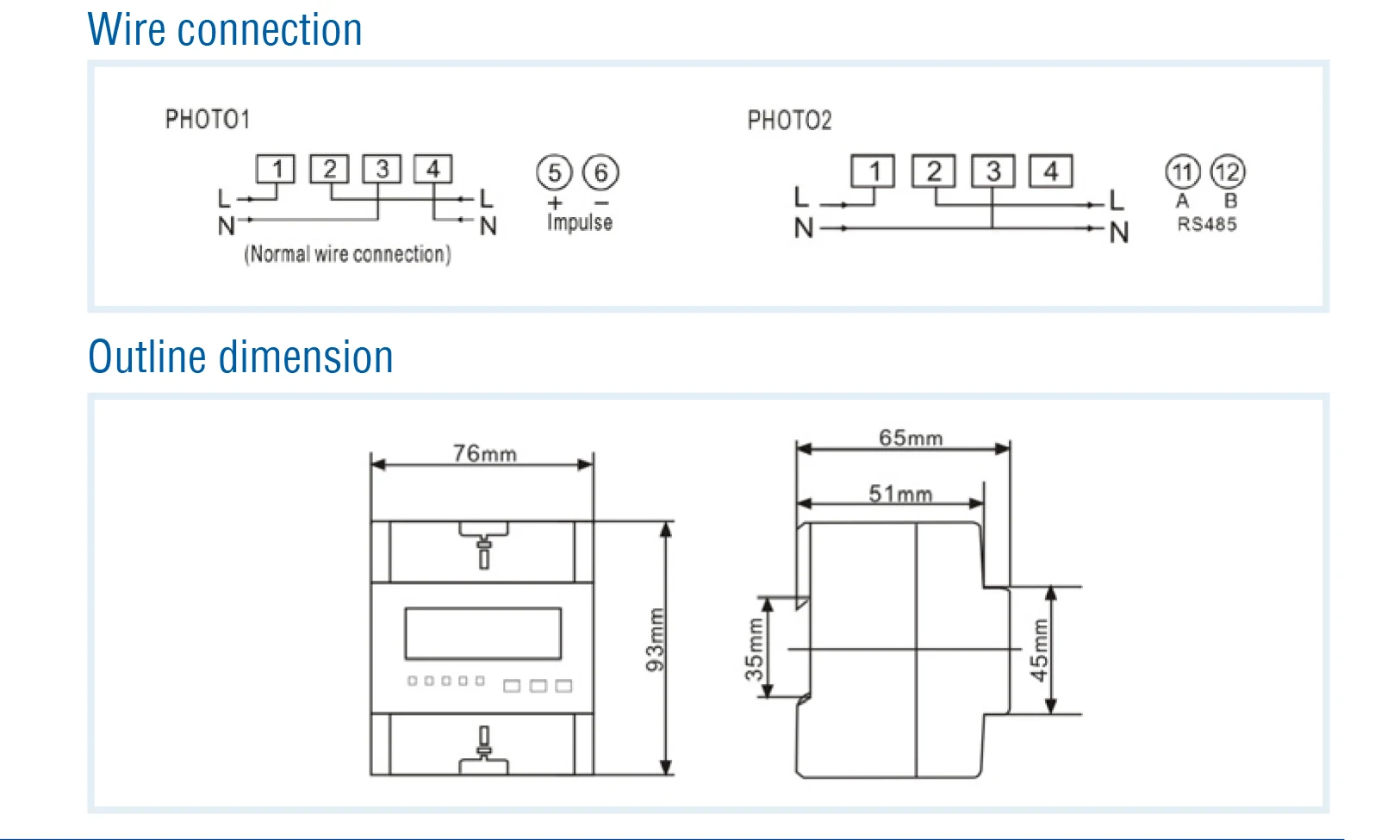

35mm din rail installation.bottom tpewireconnection.
Technical Data
Rate voltage | AC 90~300V(L-N) | ||
Rate Current/Frequency | 5(60)A,20(80)A / 50Hz or 60Hz± 10% | ||
WIFI | 802.11b/g/n | ||
Communication port | RS485 port,baud rate 1200-9600 bps,default is 9600bps, address 1~247, None parity. stop bits 1. data bits 8. | ||
Connection mode | Direct type | Accuracy class | 1% or 0.5% |
Power consumption | <1W/10VA | Start current | 0.004lb |
AC voltage withstand | 4000V/25mA for 60s | Over current withstand | 30lmaxfor 0.01s |
IP grade | IP20 | Executive standard | IEC62053-21 DIN 43880 |
Work temperature | -25℃~70℃ | Pulse output | Passive pulse, 80±5ms |
