Stainless Steel Water Flat Fan Spray Nozzle For Wet Processing

Share on (10000009071186):


Price:

Quantity:


Product Overview

Description

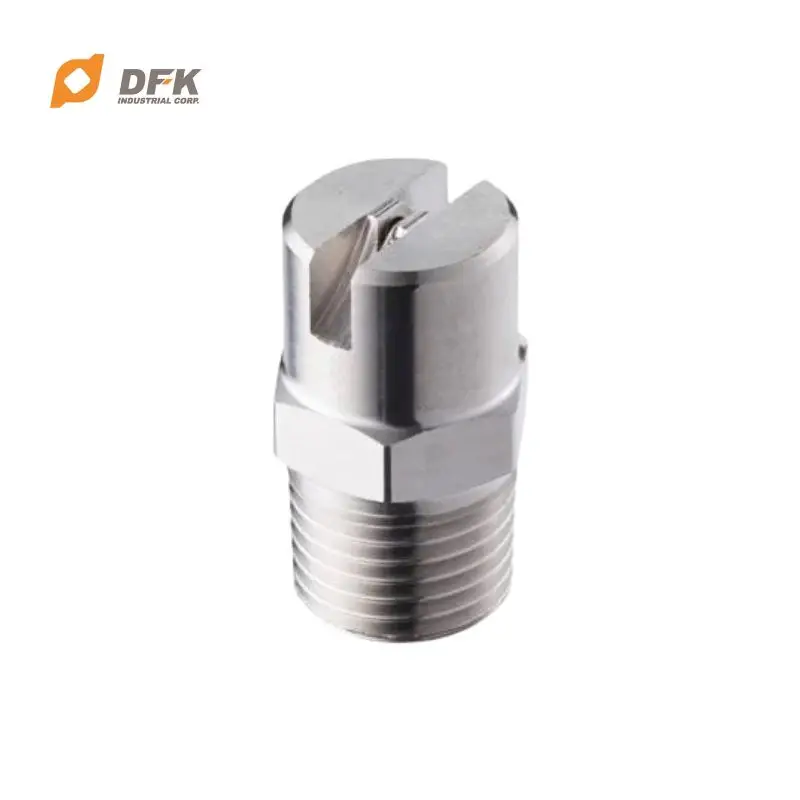

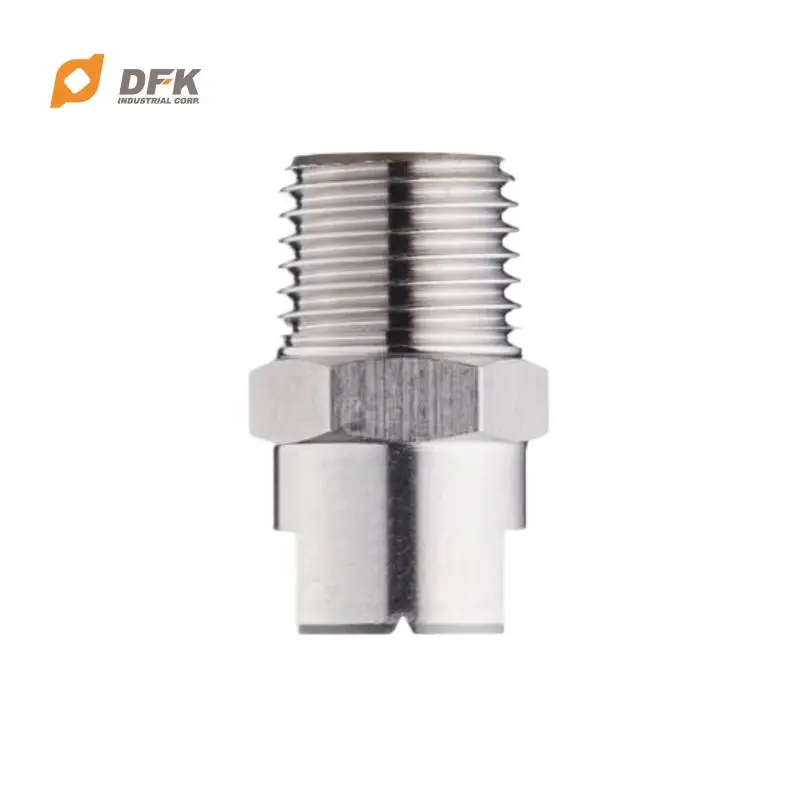

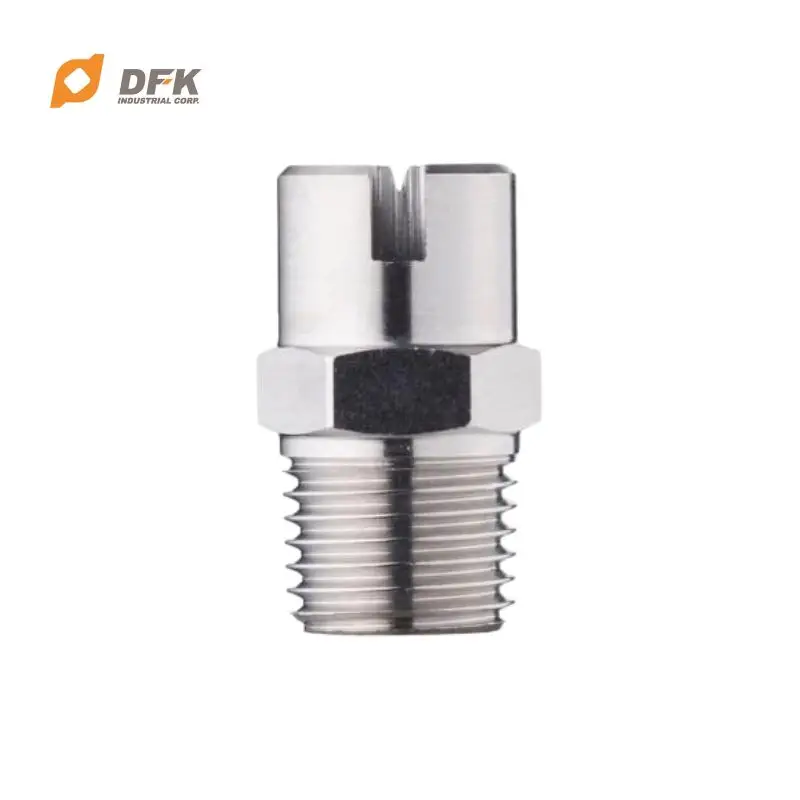

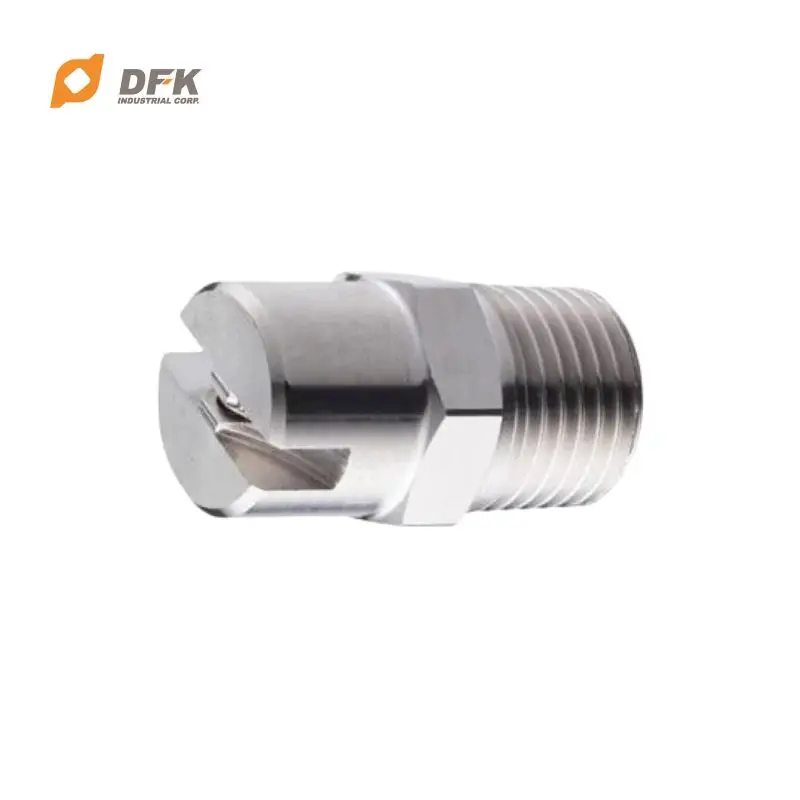

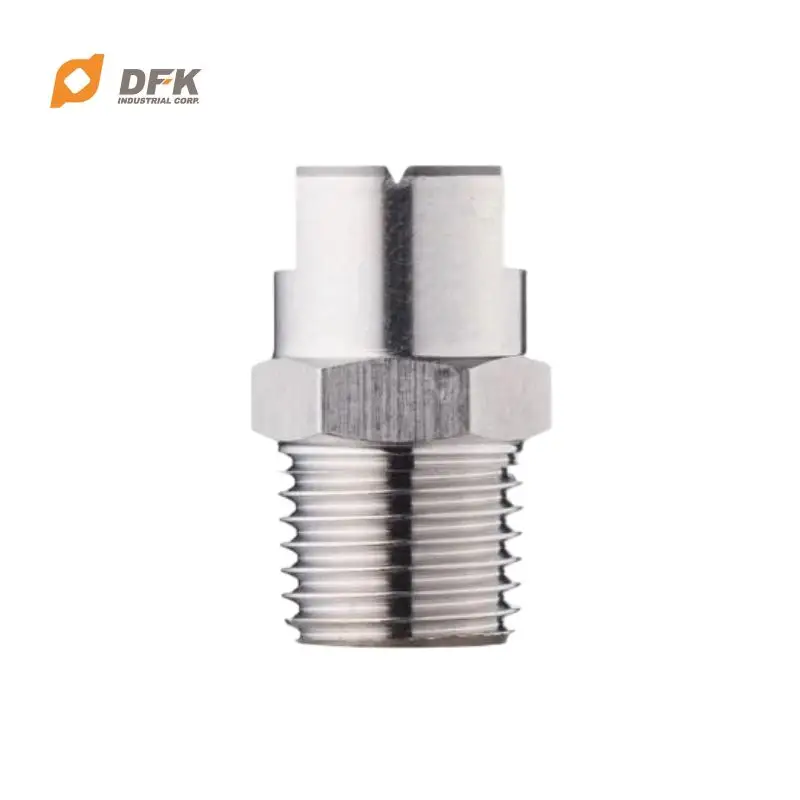

Stainless Steel Water Flat Fan Spray Nozzle For Wet Processing




PRODUCT DESCRIPTION




FEATURES


-A.K.A Single-fluid nozzle. The spraying type is fan type, and the spray shape is single line and two sides are tapered (tapered edge), which presents a bell curve shape flow field distribution with weaker ends compared to the middle.
-Single-piece design, if there is frequent maintenance or replacement requirements, it is recommended to use quick install with multiple pieces nozzles.
-For wide angle spray.
-Recommended working pressure: 3.0 kgf/cm²
-Jet angle tolerance: 3°
-Flowrate tolerance:
● PP Material: ± 10% @ 3.0 ± 0.1 kgf/cm²
● Other Material: ± 5% @ 3.0 ± 0.1 kgf/cm²
-Angle tolerance:
● PP Material: ± 10° @ 3.0 ± 0.1 kgf/cm²
● Other Material: ± 5° @ 3.0 ± 0.1 kgf/cm²
-Fan nozzle angle can be 0°~110°, 0° spray angle spray type is straight column, spray Fog shape is a single point, providing the best impact in all nozzle types.
-When the fan nozzle is used in high pressure environment, choose HSS material (hardened stainless steel Steel), can operate under 200Kg/cm² pressure.

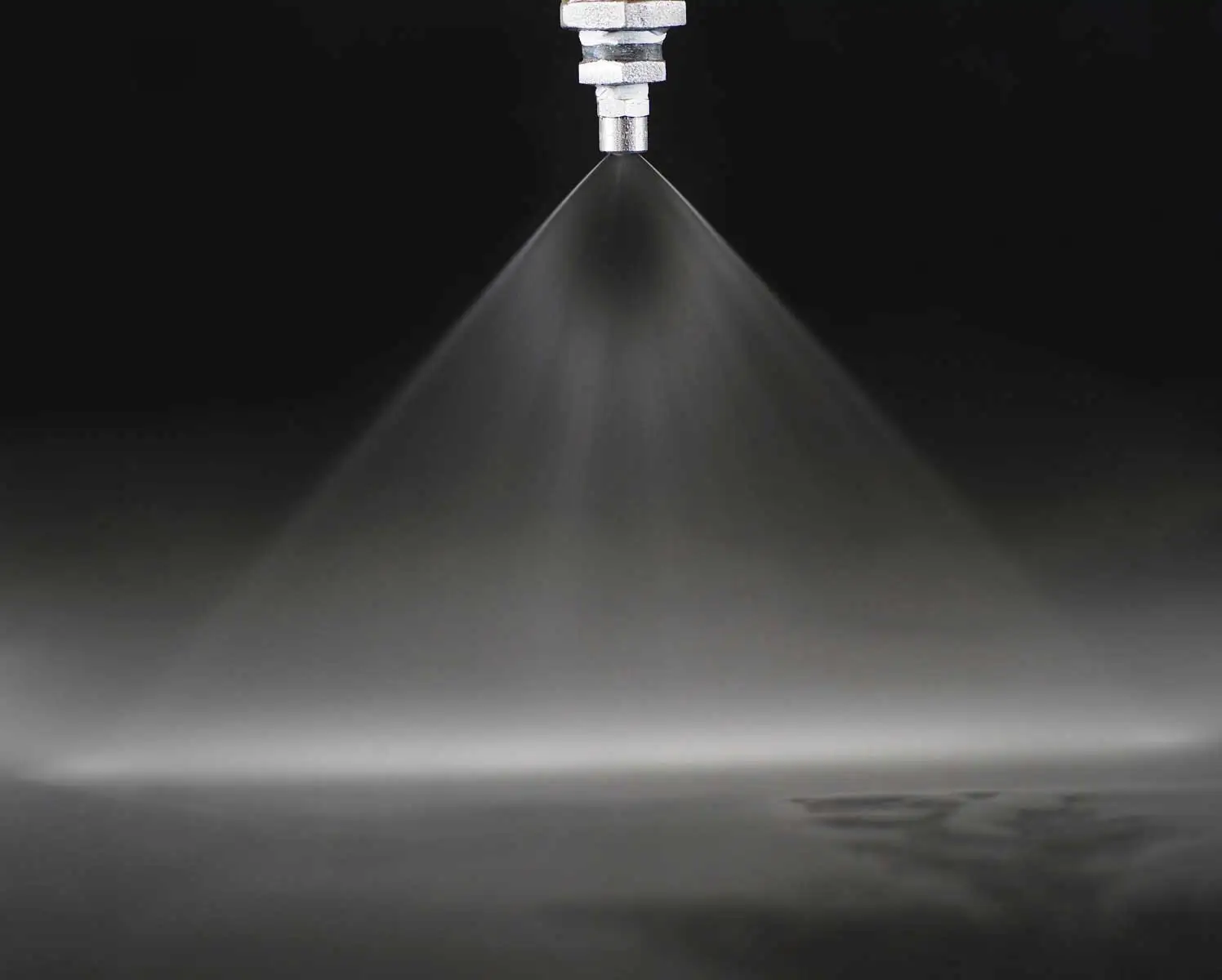

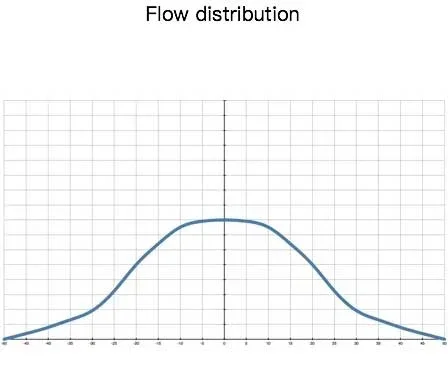

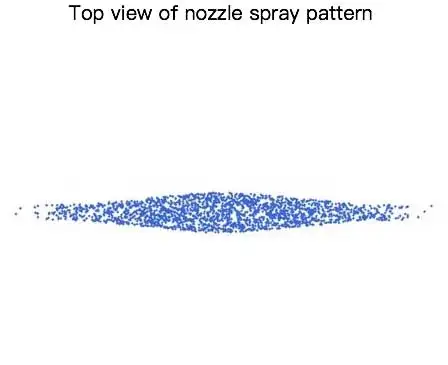

SPRAY PATTERN & FLOW DISTRIBUTION

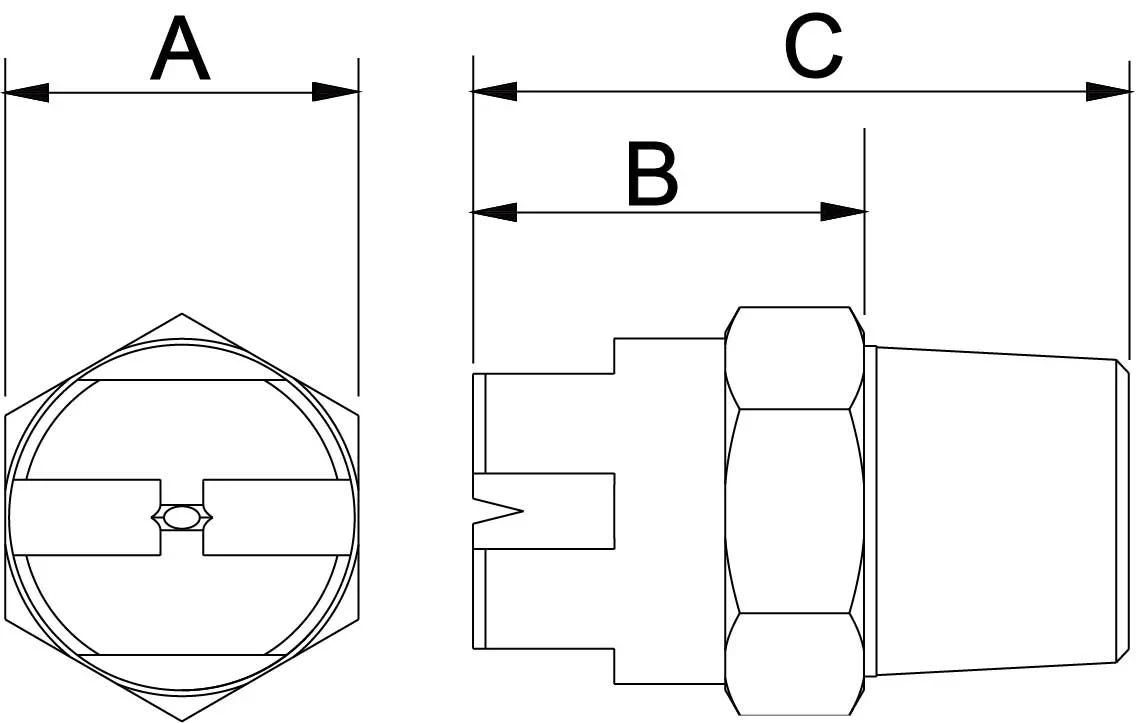

TECHNICAL DATA




Thread
(BSPT)
Size (mm)
Weight (g)
A
B
C
S303
S316
BRASS
HSS
PP
1/8"Male (Metal)
12
12
19
10.2
-
-
-
-
1/4"Male (Metal)
14
15
26
20
21
5.4
5.4
-
3/8"Male (Metal)
18
15
30
-
-
-
-
-
1/8"Male (PP)
11.8
10.3
19
-
-
-
-
-
1/4"Male (PP)
13.7
13.7
25
-
-
-
-
-


APPLICATION


● Cleaning: Vehicles, Containers, Filters, Dust, Gravel, Metals, Metal Parts, Machinery, Steel Plates, Various Containers, High Pressure Cleaning, Wet Processing Display Pane, machine tool cleaning, etc.
● Cooling: gas, tank, machinery, metal, roof etc.
● Dispersion: Humidifying, Chemicals (etching solution, lubricants, insect repellent, etc.), water screens (fire, dust, deodorization etc.).


DFK INDUSTRIAL CORPORATION


DFK Industrial Corp. was founded in 2011, an OEM/ODM CNC machining precision turning parts manufacturer who provides parts,assembly and integrated solution for our customers.

We have two factories: one is in Taipei, and the other is in Chang Hua(Central of Taiwan). Both factories produce precisely machined parts with efficient Japanese CNC machines such as Star, Citizen,Takamaz and Tsugami.DFK has built a reputation in supplying precision machined components both economically and efficiently.

With our in-houseCitizen/Star/Takamaz technology, we are able to offer Prototype, small batch work for approval prior to mass production. We alsoaccept contracts in small quantity from case to case.












Our high standard quality system allows us to control and maintain strict quality requirements for all customers, especially
tofulfill the commitments required by ISO 9001.

Our quality system brings confidence to our customers. We document every quality inspection record for our internal evaluation and for traceability.

We have an in-house inspection line including precision hand inspection tools, gauges, micrometers, roughness tester,
heightgauges, pin gauges and more.

DFK is dedicated to achieving customer's most satisfaction.ISO standards make a positive difference to all of us, it's not only aquality standard for the operation, it also gives positive influences on our daily lives, and then extending to our society.

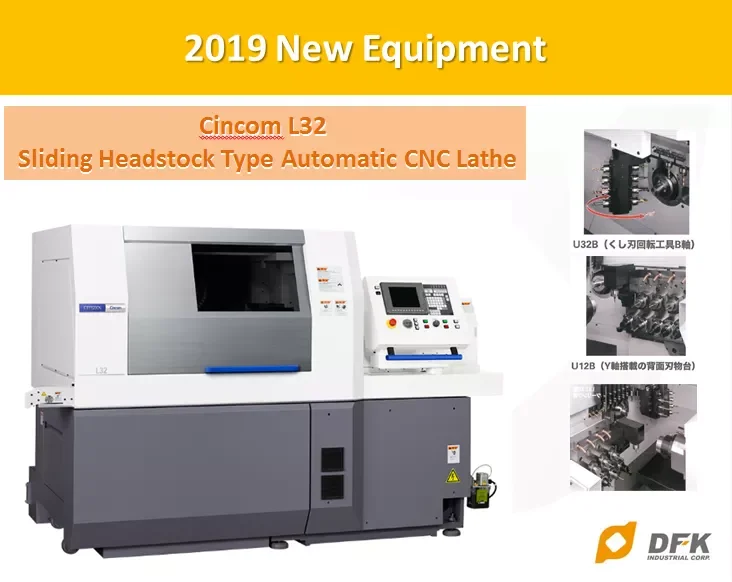

TESTING EQUIPMENTS
