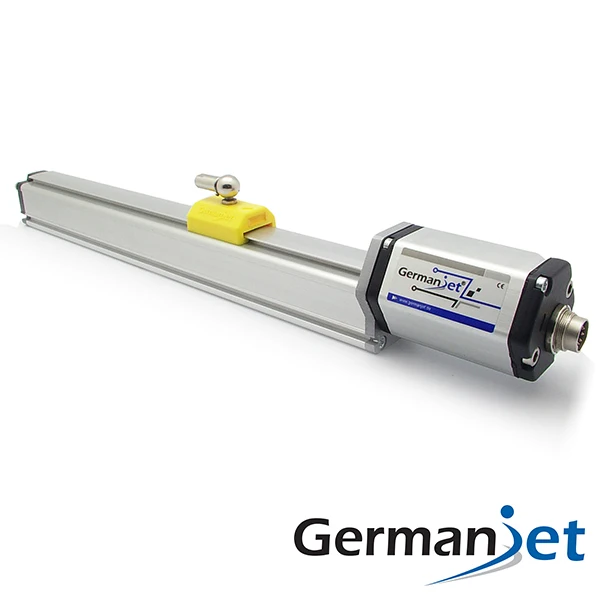

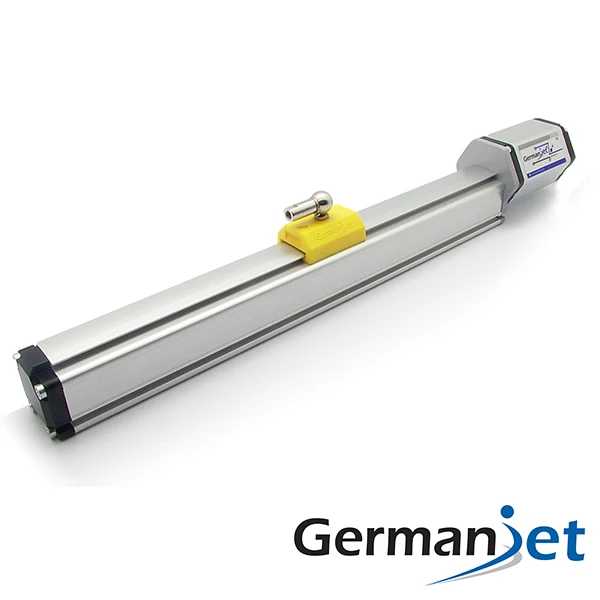

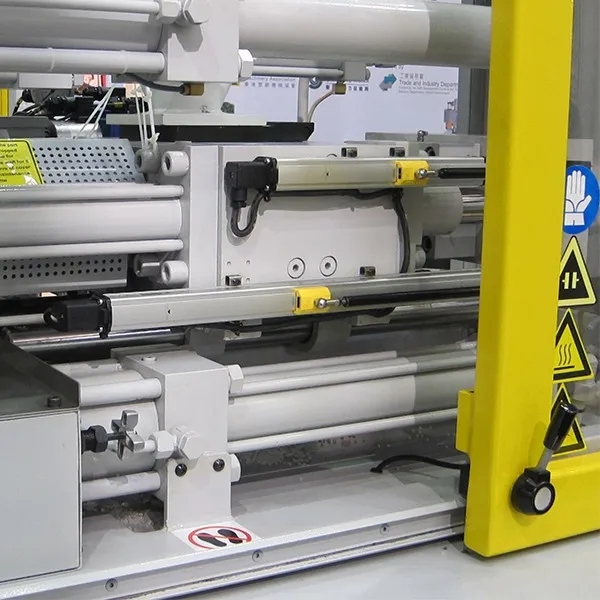

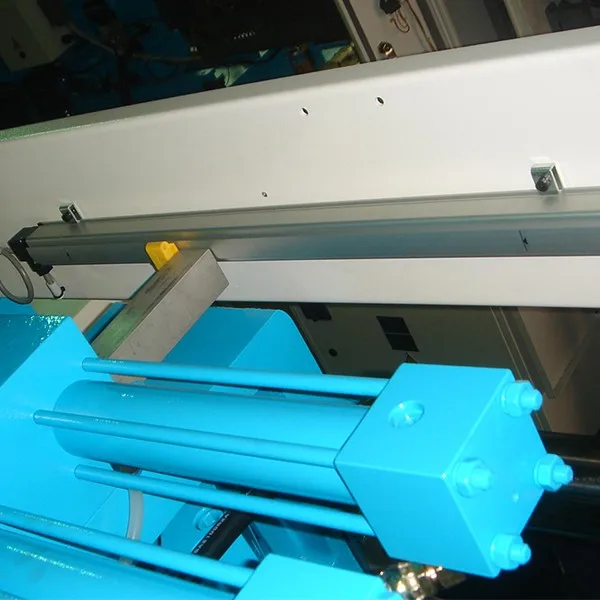

RP Temposonics Replacement Linear Position Sensor

Product Overview

Description

Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor

D model - Sensing Rod Detached

D model is design for hydraulic cylinder with limited head space or clevis rod ends hydraulic cylinder. Sensing rod is made by stainless steel which installed inside the hydraulic cylinder. It is connected to the electronic module installed at the outside of the cylinder by a robust cable.



Order Code	192
Output	SSI
Measurement Type	Linear displacement
Data Format	Binary or Grey
Data Length	8 - 32 bits
Data Speed	Cable Length :  <3      <50     <100   <200   <400     m
	Baud rate      :  1000  <400   <300   <200   <100     kBd
Update Time	Measuring Length : 300     750     1000    2000    5000  mm
	Measurement/sec :  3.7     3.0       2.3      1.2       0.5     kHz
Resolution	Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm
Repeatability	< +/-0.001% of full scale (minimum +/-2.5μm)
Non-Linearity	< +/-0.01% of full scale (minimum +/-40μm)
Update Time	0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm
	2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm
Input Voltage	+24Vdc (20.4 - 28.8Vdc)
Input Protection	Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc
Power Consumption	100mA (stroke range dependent)
Dielectric Strength	500Vdc (DC ground to machine ground)
Connector Type	D60 Male
Operation Temp.	-40 to 75 °C, Humility 90% non-condensing
Sealing	IP67 (with connector)
Shock Rating	100g single hit per IEC standard 68-2-27
EMC	Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6
