GSM Gate Opener, RTU 5024 Access Controller, Remote On/Off Switch Free Call SMS Command Support 850/900/1800/1900MHz
- Category: >>>
- Supplier: Guangzhou Colorlink Electronic Co. Ltd.
Share on (10000009078813):
Product Overview
Description
Description:

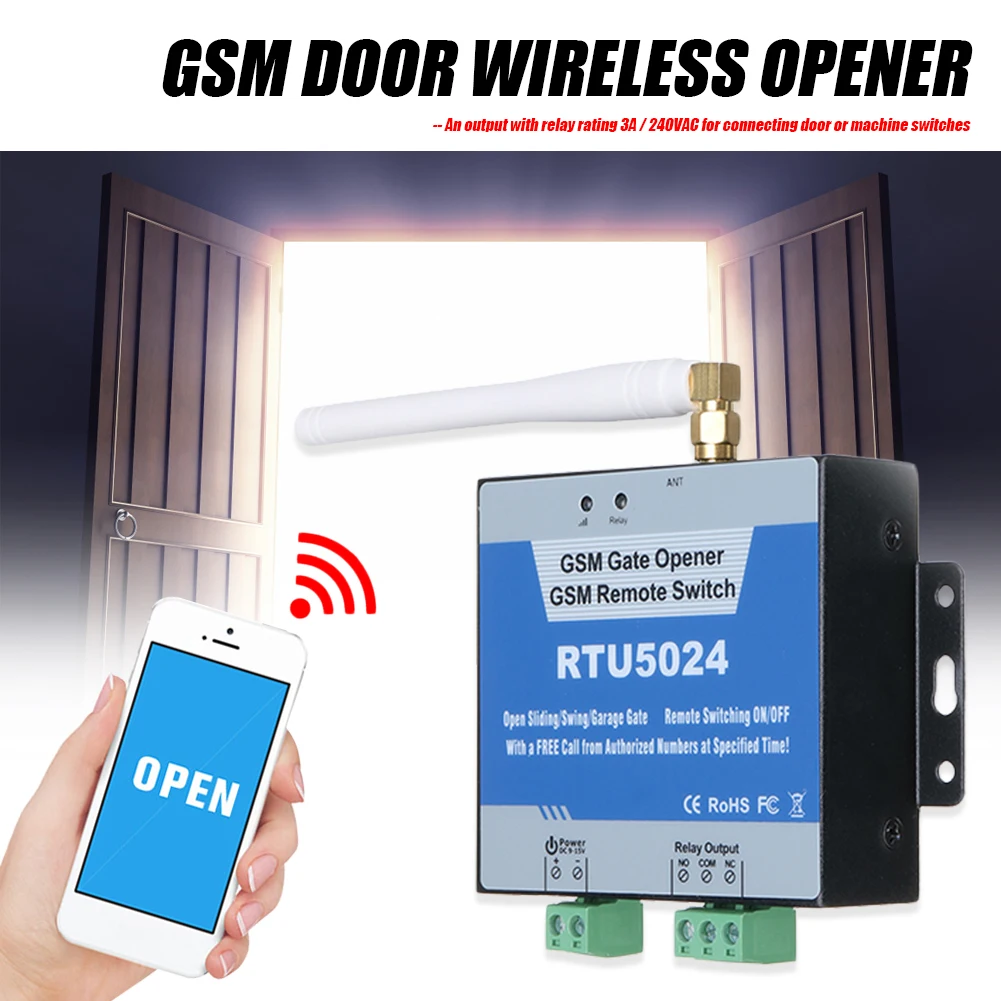

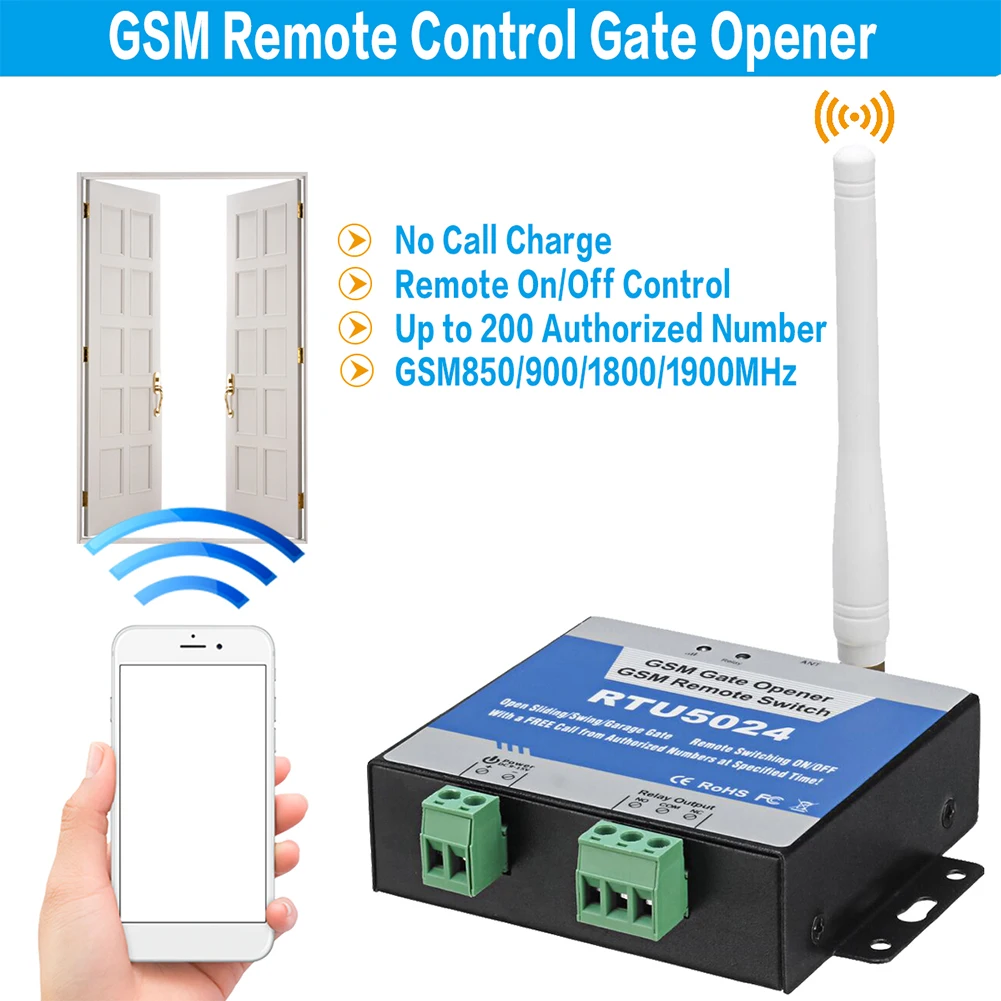

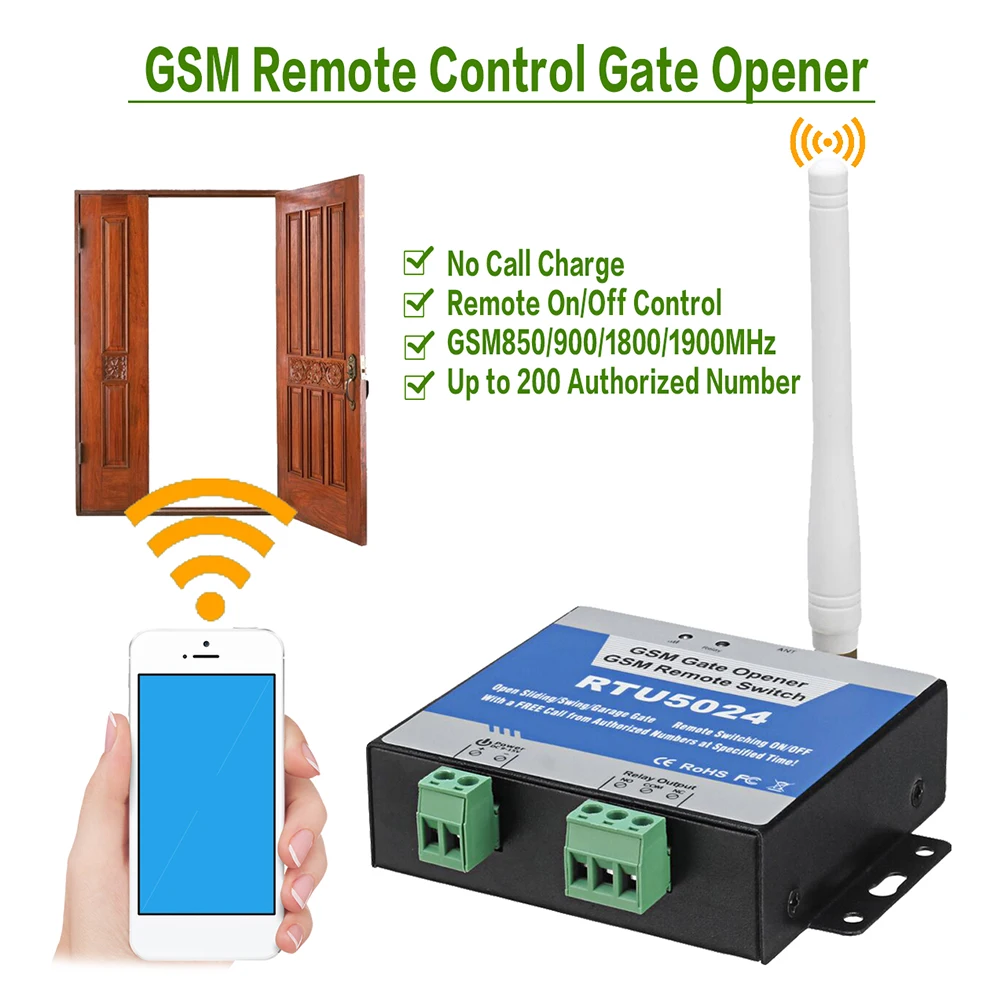

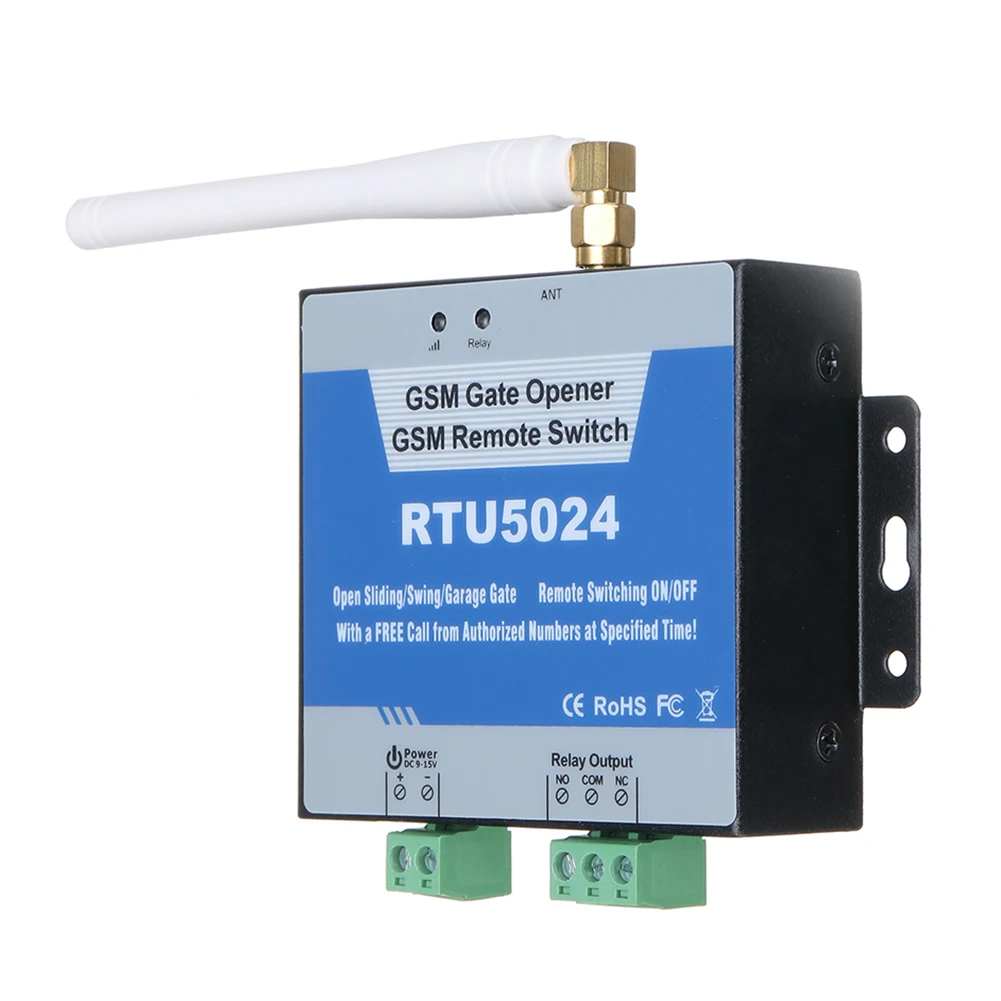

-GSM door opener RTU5024 is a powerful GSM relay that can be used to authorize door access, control doors, remote device switching and parking systems.
-Add or delete users via SMS commands.
-The relay close or open time is programmable.
-Quad-band, can work in the global GSM network.
-No need to provide remote control or buttons for different users.
-Up to 200 authorized phone numbers can be configured at the specified time.
-An output and relay rated 3A/240VAC are used to connect the switch of the door or machine.
-Multiple applications.(Gates, bollards, barriers, garage doors, shutters and access doors).
-Relay action will return a short message confirmation to the owner or authorized phone number, this function is edited by the user.
-There is no phone charge.The GSM GPRS trunk switch rejects the call from the authorized number, and then performs the opening/closing operation on the first "ringing".
Specification:
-GSM frequency: Quad-band 850/900/1800/1900MHz -Digital

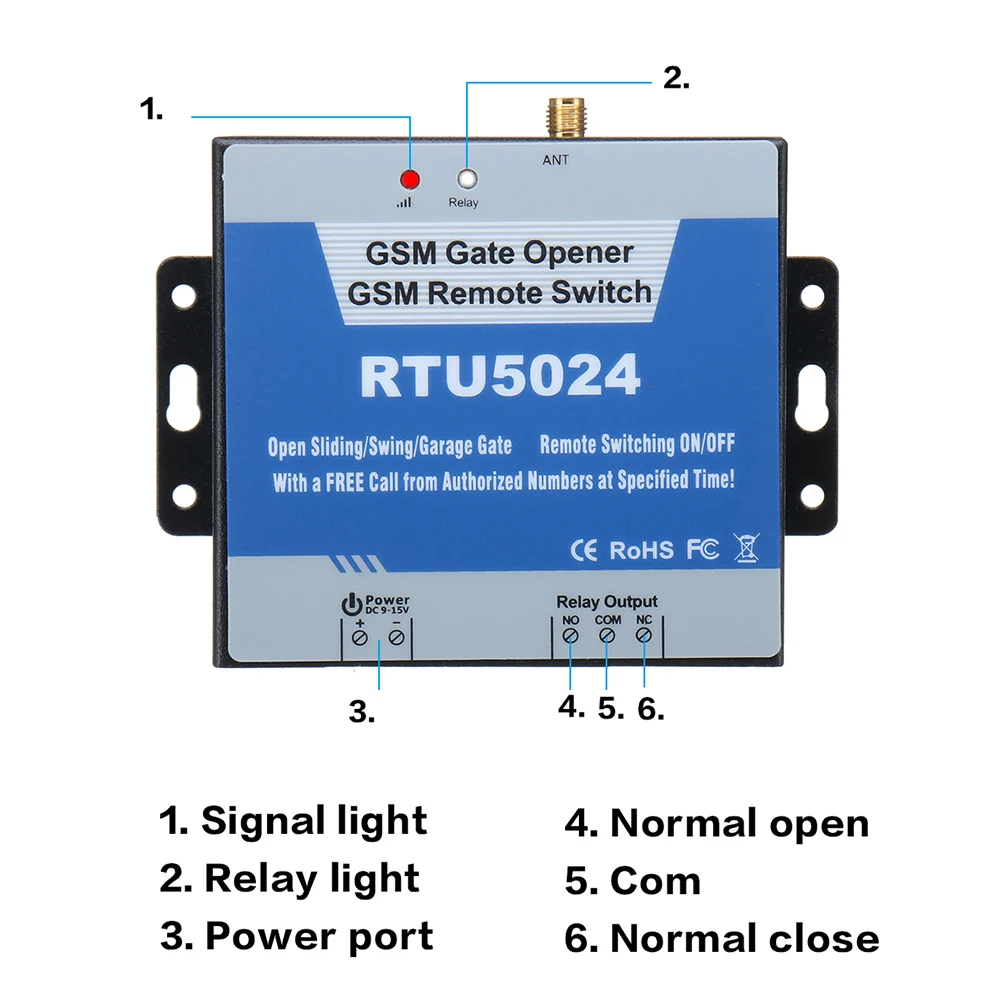

output: NC/NO dry contact, 3A/240VAC -DC
power supply: 9-24VDC/2A
-Power consumption: 12V input maximum.50mA/average 25mA
-SIM card: Support 3V SIM card
-Antenna: 50Ω SMA antenna interface
-Temperature range: -20～60℃-Humidity
range: relative humidity 90%
-Appearance size: 82x76x27mm/3.23x2.99x1.06 inches
-GSM door opener RTU5024 is a powerful GSM relay that can be used to authorize door access, control doors, remote device switching and parking systems.
-Add or delete users via SMS commands.
-The relay close or open time is programmable.
-Quad-band, can work in the global GSM network.
-No need to provide remote control or buttons for different users.
-Up to 200 authorized phone numbers can be configured at the specified time.
-An output and relay rated 3A/240VAC are used to connect the switch of the door or machine.
-Multiple applications.(Gates, bollards, barriers, garage doors, shutters and access doors).
-Relay action will return a short message confirmation to the owner or authorized phone number, this function is edited by the user.
-There is no phone charge.The GSM GPRS trunk switch rejects the call from the authorized number, and then performs the opening/closing operation on the first "ringing".
Specification:
-GSM frequency: Quad-band 850/900/1800/1900MHz -Digital
output: NC/NO dry contact, 3A/240VAC -DC
power supply: 9-24VDC/2A
-Power consumption: 12V input maximum.50mA/average 25mA
-SIM card: Support 3V SIM card
-Antenna: 50Ω SMA antenna interface
-Temperature range: -20～60℃-Humidity
range: relative humidity 90%
-Appearance size: 82x76x27mm/3.23x2.99x1.06 inches
Specification
item | value |
Place of Origin | China |
Brand Name | GSM |
Model Number | RTU5024 |
Size | Miniature |
