Tianli 530/7DD Differential Pressure Switches 530/7DD Explosionproof Differential Pressure Switches for gas and fluid
- Category: >>>
- Supplier: Changzhou Tianli Intelligent Control Co. Ltd.
Share on (10000009082244):
Product Overview
Description
Product Description

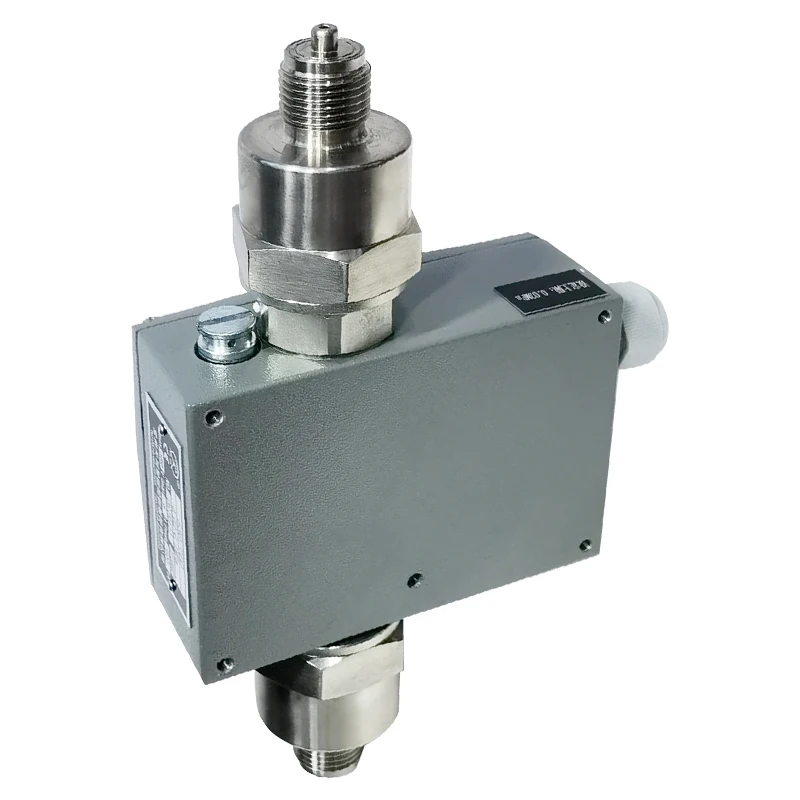

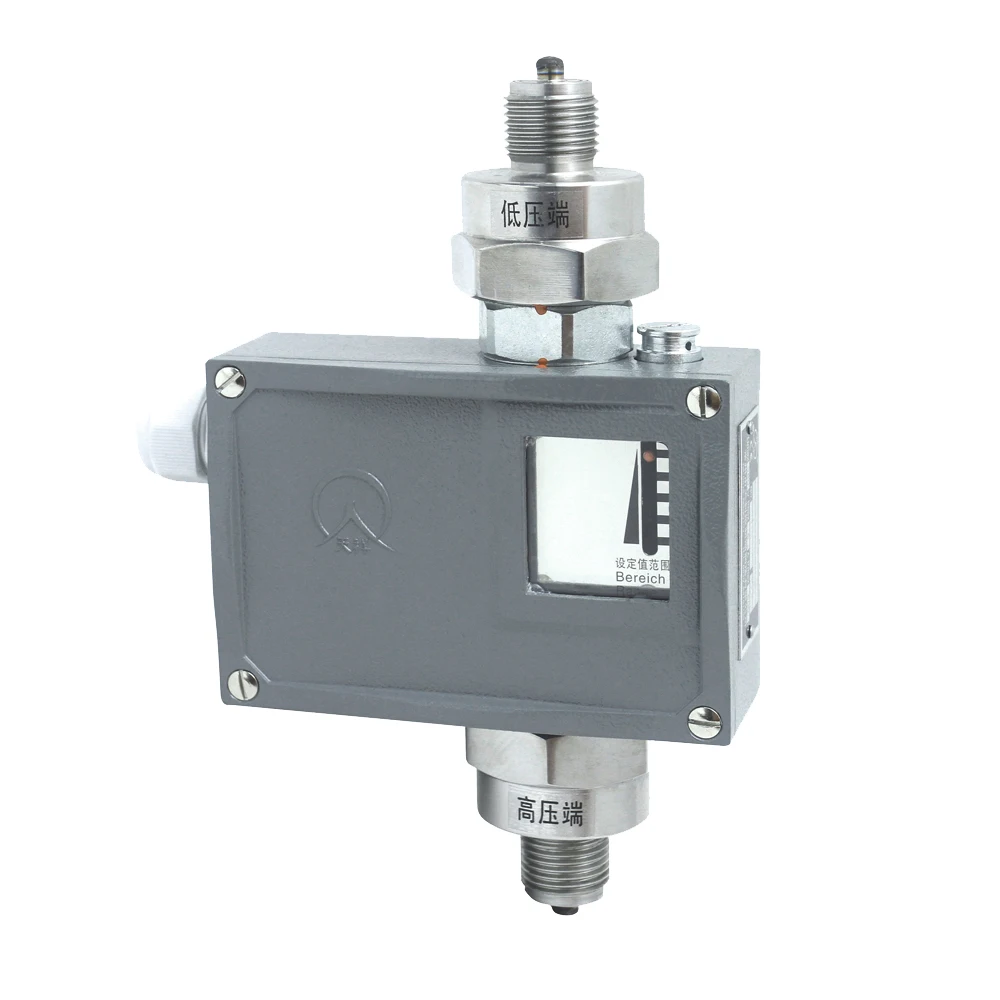

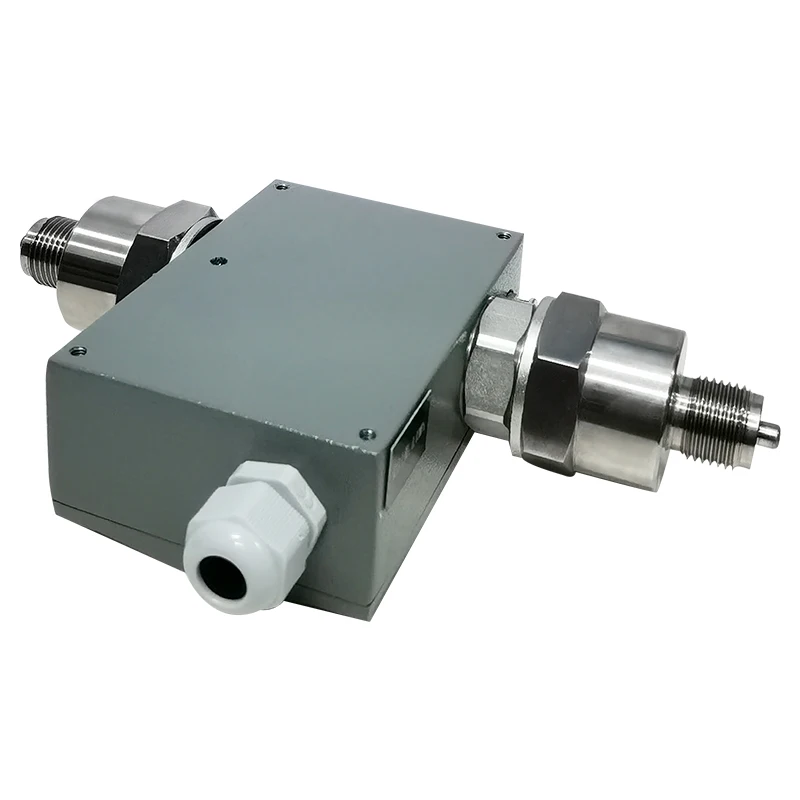

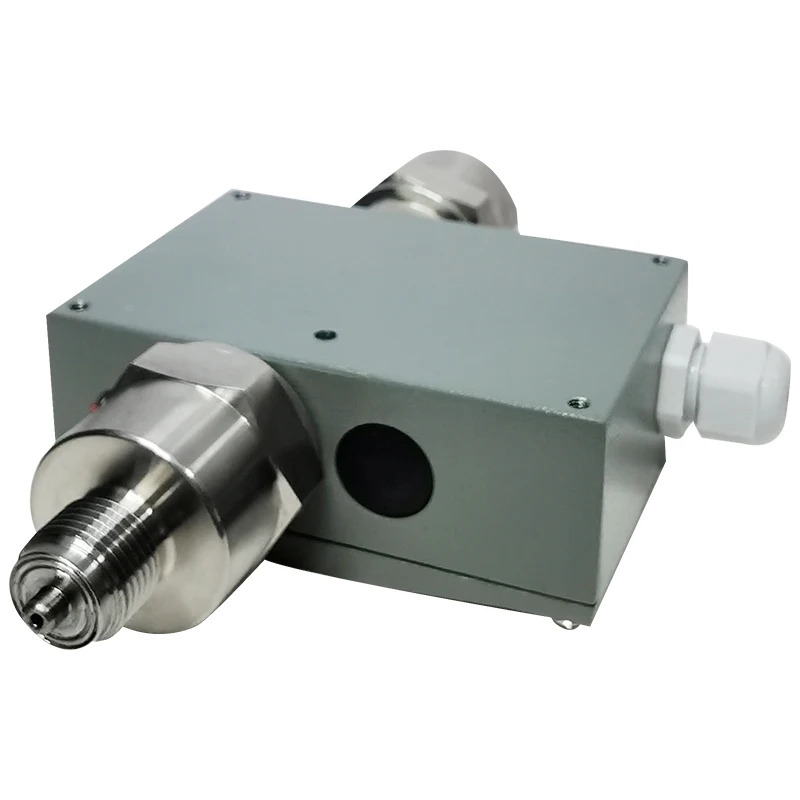

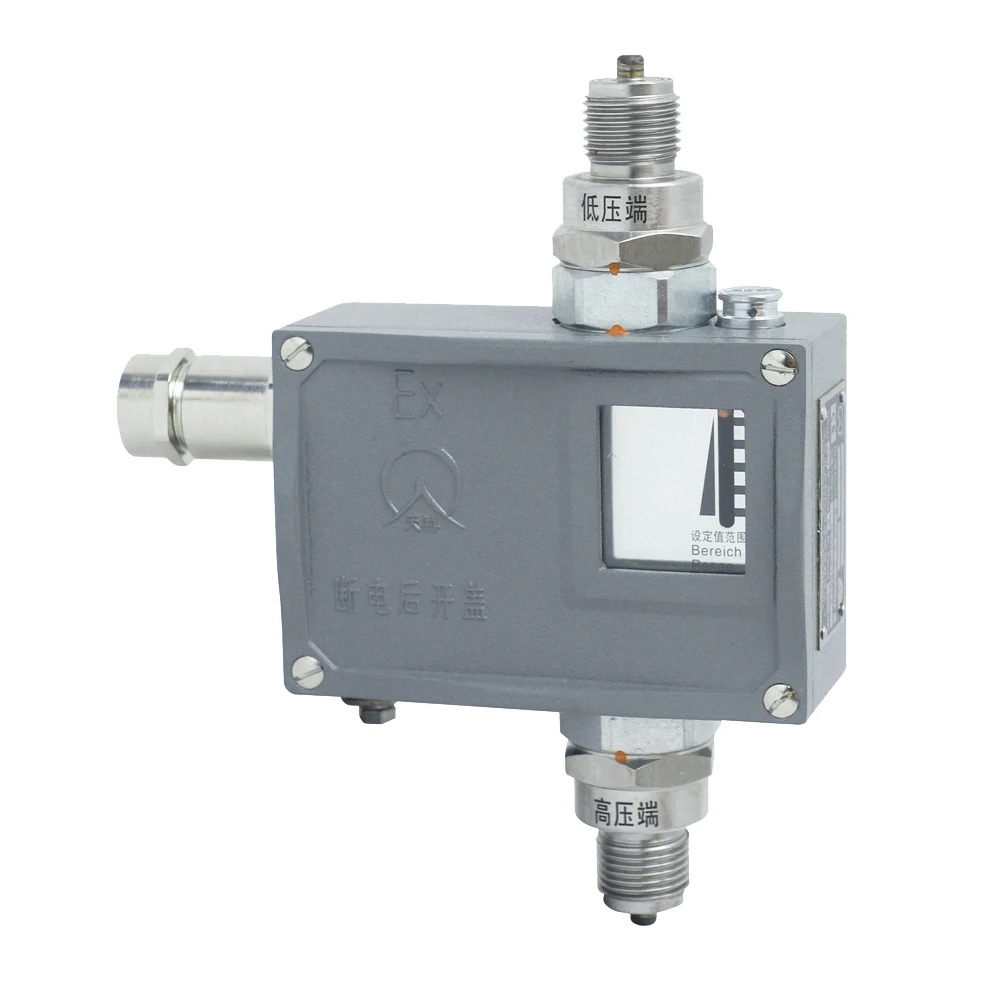

530/7DD Differential Pressure Switches 530/7DD Explosionproof Differential Pressure Switches
The sensor of this switch is Bellows. Switch is suitable for corrosive gaseous and fluids medium. Dead Band is Non-adjustable, the Adjusting Range is from 0.02 to 3Mpa, Working Pressure range is from 0.05 to 6.3Mpa
Specification
Technical Performance: | |||||
General Type | Explosionproof Type | ||||
Working Viscosity | ＜1x10-3m2/s | ＜1x10-3m2/s | |||
Switching Elements: | Microswitches | Sealed Switches | |||
Explosionproof Class | Exed II CT4~T6 Certificate No. GYB04396X | ||||
Protection Class of Enclosure: | IP65 (accord with DIN40050) | IP54 (accord with DIN40050) | |||
Ambient temperature:： | -5℃~40℃ | -5℃~50℃ | |||
Medium Temperature: | 0~120℃ | 0~95℃ | |||
Mounting Position | Pressure connection vertically downward | ||||
Anti-Vibration: | 5307D:40m/s2 | Max. 20m/s2 | |||
530/7DDK:20m/s2 | |||||
Repeatablity Error: | ≤1% | ≤1% | |||
Electrical rating : | AC 220V ,6A(Resistance) | DC 250V ,0.25A(Resistance), 60W max. | |||
AC 250V ,5A(Resistance),1250VA max. | |||||
