fan water spray,nozzle sprayer v nozzle 11005
US $1.40-$1.54
PEEK UPVC Clog resistant Large Spray Angle Spiral Nozzle
- Category: >>>
- Supplier: DFK INDUSTRIAL CORP.DFK CORP.
Share on (10000009100746):
Product Overview
Description

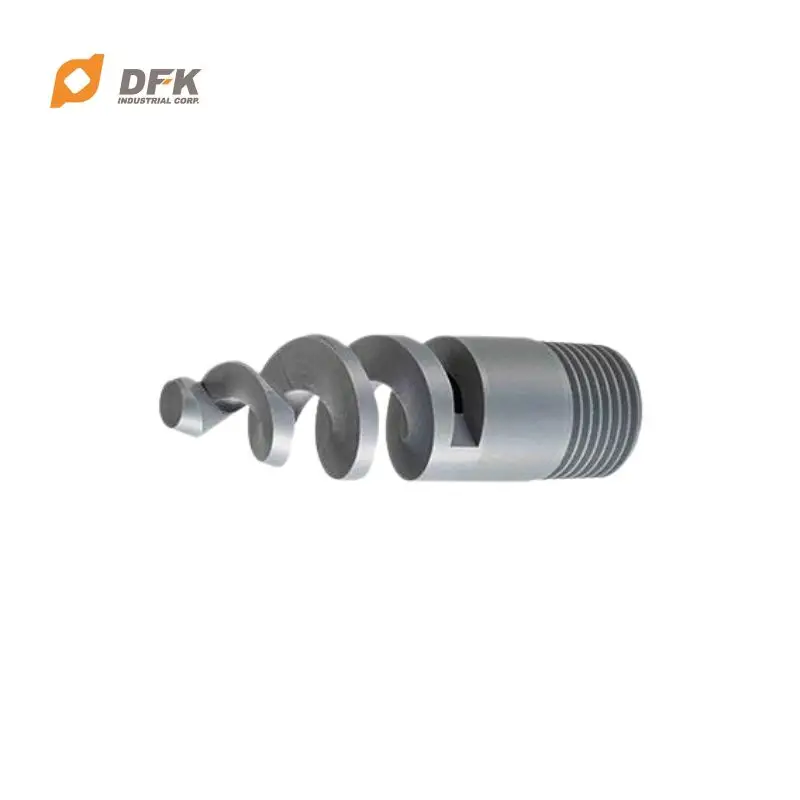

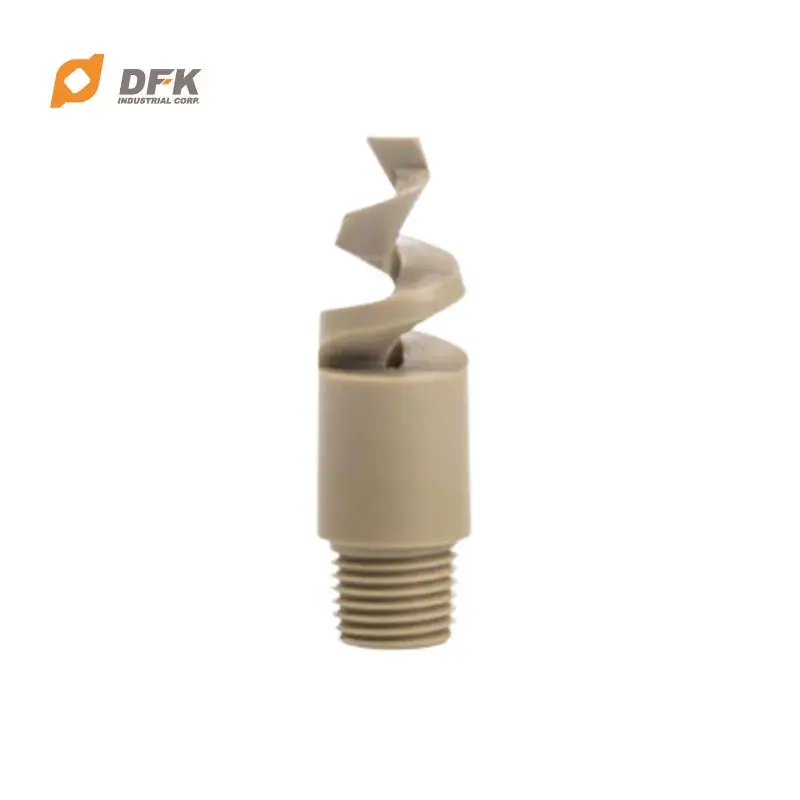

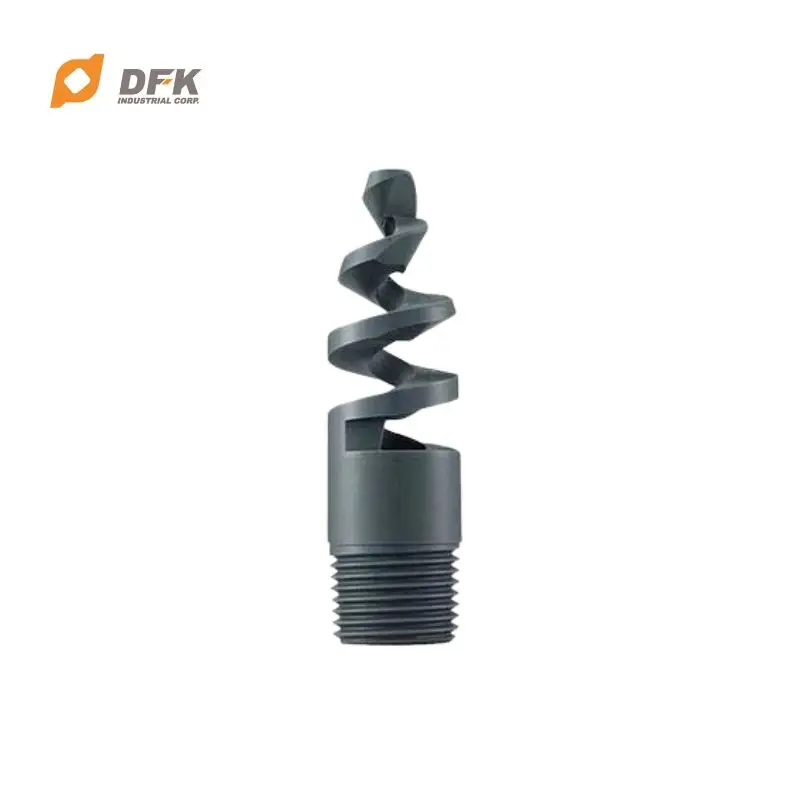

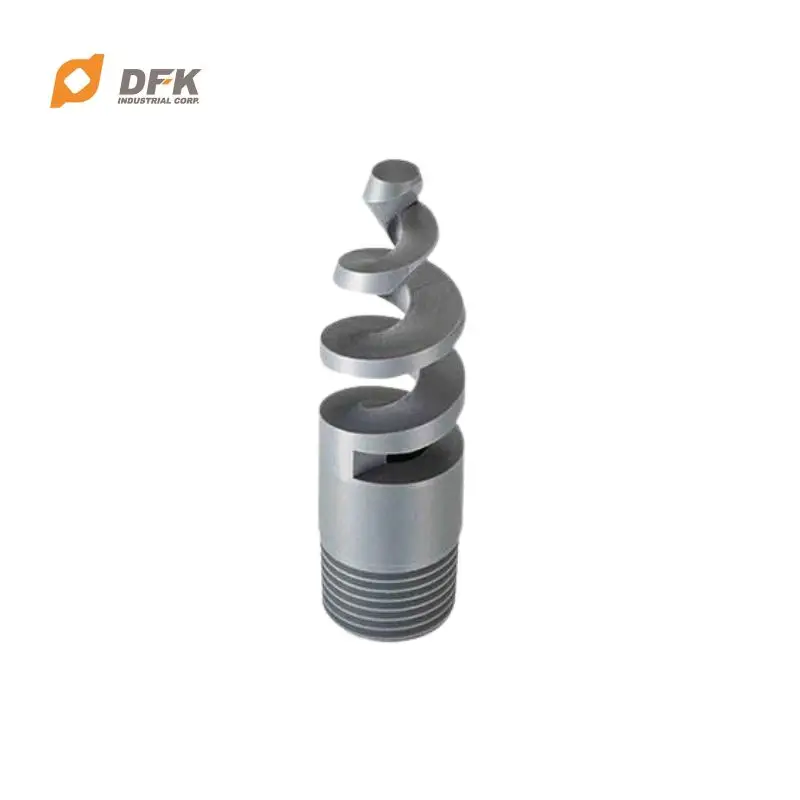

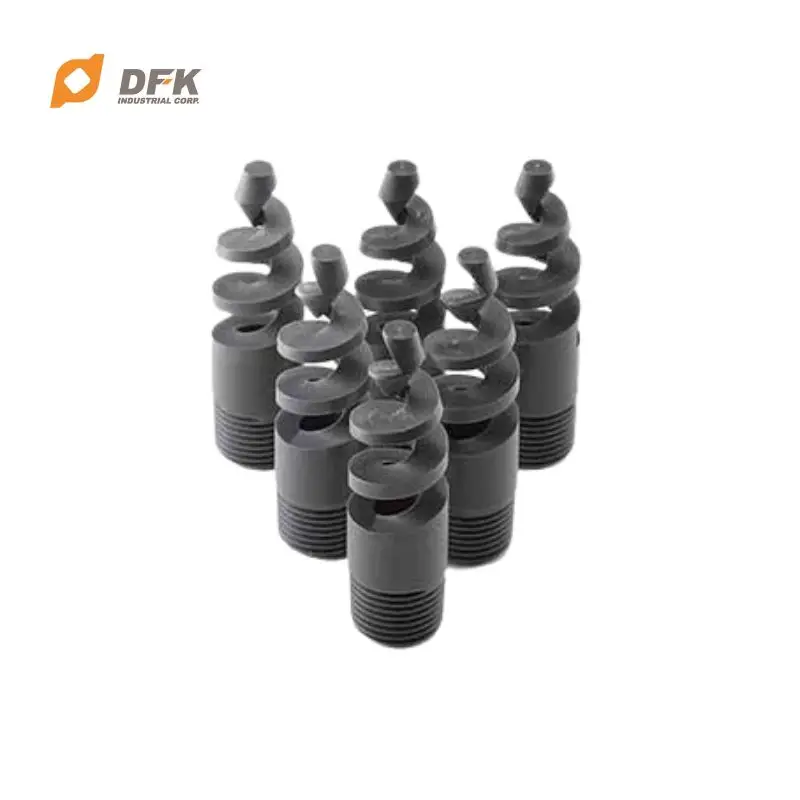

PEEK UPVC Clog-resistant Large Spray Angle Spiral Nozzle
PRODUCT DESCRIPTION
FEATURES
-Spray patterns: Full Cone. Spray shape is multi-layered concentric circles.
-Unibody design with no internal parts. To compare with general full cone nozzles, It has a larger minimum free passage for effectively avoiding clogging.
-The spray angle is from 120° to 170°. This large spray angle design provides larger coverage than general fan and full cone nozzles.
-It is possible to work when over 0.5kgf/cm²
-Recommended working pressure: 2.0 kgf/cm²
-Flowrate tolerance: ± 5% @ 2.0 ± 0.1 kgf/cm²
-Angle tolerance: ± 5° @ 2.0 ± 0.1 kgf/cm²
-Unibody design with no internal parts. To compare with general full cone nozzles, It has a larger minimum free passage for effectively avoiding clogging.
-The spray angle is from 120° to 170°. This large spray angle design provides larger coverage than general fan and full cone nozzles.
-It is possible to work when over 0.5kgf/cm²
-Recommended working pressure: 2.0 kgf/cm²
-Flowrate tolerance: ± 5% @ 2.0 ± 0.1 kgf/cm²
-Angle tolerance: ± 5° @ 2.0 ± 0.1 kgf/cm²

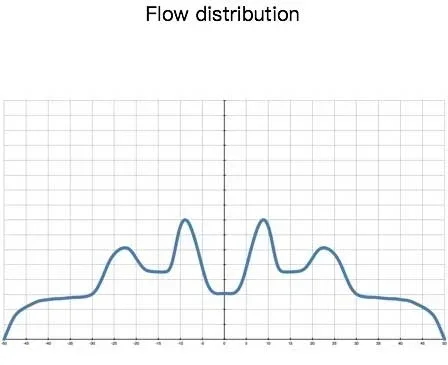

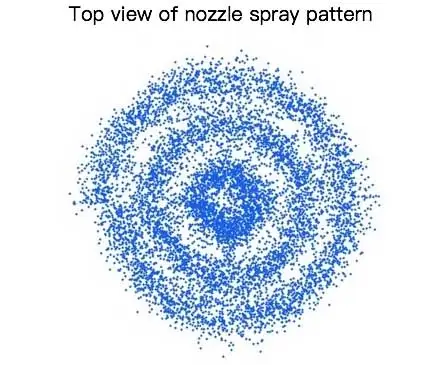

SPRAY PATTERN & FLOW DISTRIBUTION

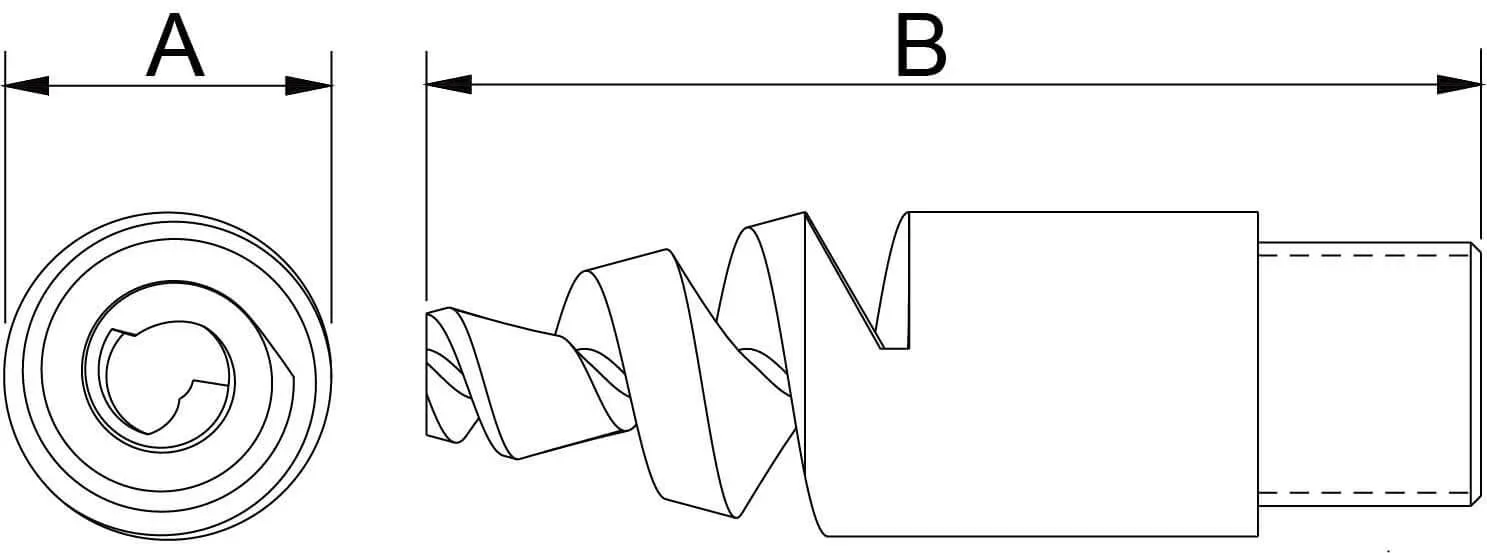

TECHNICAL DATA
Thread (BSPT) | Size (mm) | Weight (g) | ||||
A | B | UPVC | PEEK | |||
1/4"Male | 16 | 52 | 6.5 | 6.5 | ||
3/8"Male | 20 | 61 | 16 | 16 | ||
1/2"Male | 22 | 77 | 13 | 13 | ||
3/4"Male | 28 | 90 | 30 | 30 | ||
APPLICATION
● Cleaning: scrubber, off-gas treatment, etc.
● Cooling: cooling tower, etc.
● Dispersion: firefighting.
● Cooling: cooling tower, etc.
● Dispersion: firefighting.
