XZ axis high precision high quality circular linear ball guiding stainless steel motorized stage
- Category: Other Optics Instruments >>>
- Supplier: GMT GLOBAL INC.
Share on (10000009127816):
Product Overview
Description
Product Description

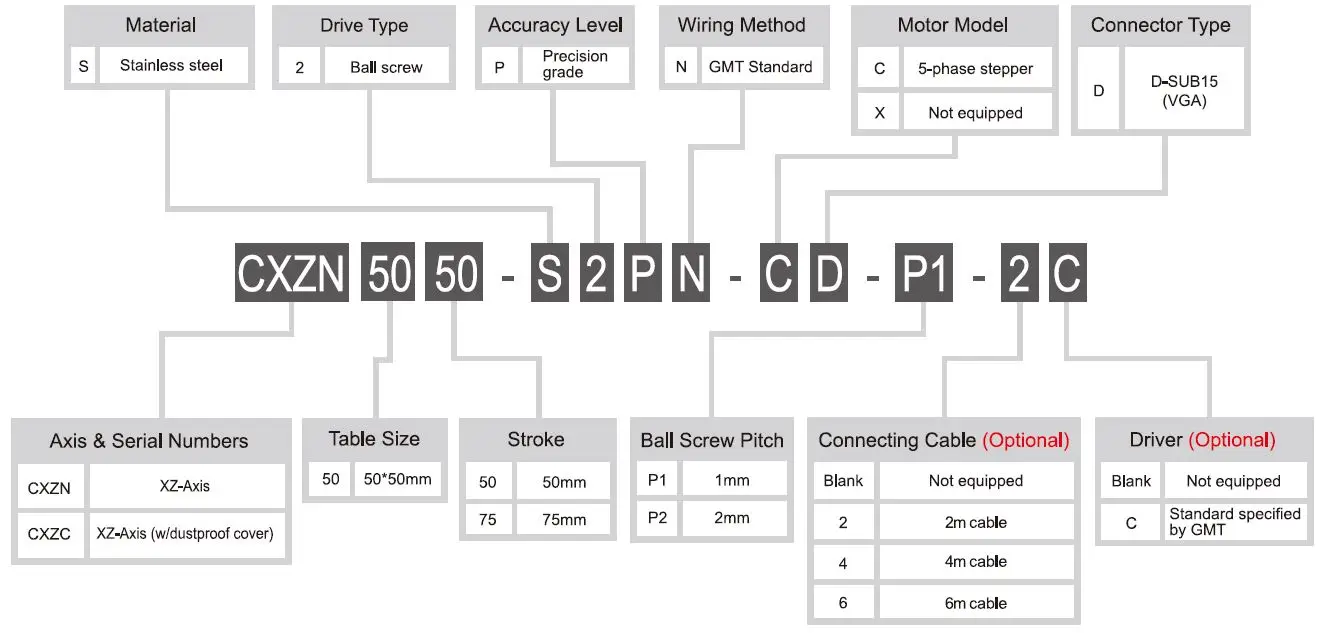

Model No. | CXZN5050-S2PN-CD-P1 | CXZN5075-S2PN-CD-P1 | |
CXZN5050-S2PN-CD-P2 | CXZN5075-S2PN-CD-P2 | ||
Table Size (mm) | 50 X 50 | ||
Travel Stroke (mm) | 50 | 75 | |
Drive Type | P1：Ball screw Ø8, lead 1mm P2：Ball screw Ø8, lead 2mm | ||
Rail | Circular Linear Ball Guiding | ||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||
Main Unit Weight (Kg) | 2.45 | 2.73 | |
Coupling | FAMCS11.6-5*5 | ||
Accuracy Level | P：Precision grade | ||
Wiring Method | N：GMT Standard | ||
Resolution (Pulse) (µm) | P1：2 (Full) / 1 (Half) P2：4 (Full) / 2 (Half) | ||
Max. Speed (Full Step) (mm / sec) | P1：20 P2：40 | ||
Positioning Presion (µm) | 5 | 7 | |
Repeatability Precision (µm) | ± 0.5 | ||
Load Capacity (Kgf) | 7 | ||
Missed Step (µm) | 1 | ||
Parallelism (µm) | 15 | ||
Dynamic Straightness (µm) | 2 | ||
Dynamic Parallelism (µm) | 10 | ||
Motor Type Shaft Numbers | 5-phase stepper X：☐ 28 double shafts Z：☐ 42 double shafts | ||
Motor Brand Model | SANYO X：SH5281-7211 Z：103F5510-8211 | ||
Driver Brand / Model | Please refer to reference table | ||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||
Origin Sensor | Photoelectric sensor GMT-sensor | ||
Limit Sensor | |||
Origin Approximation Sensor | N / A | ||
Power Voltage | 24V ± 10% | ||
Control Output | NPN open collector output under 24V 8mA | ||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||

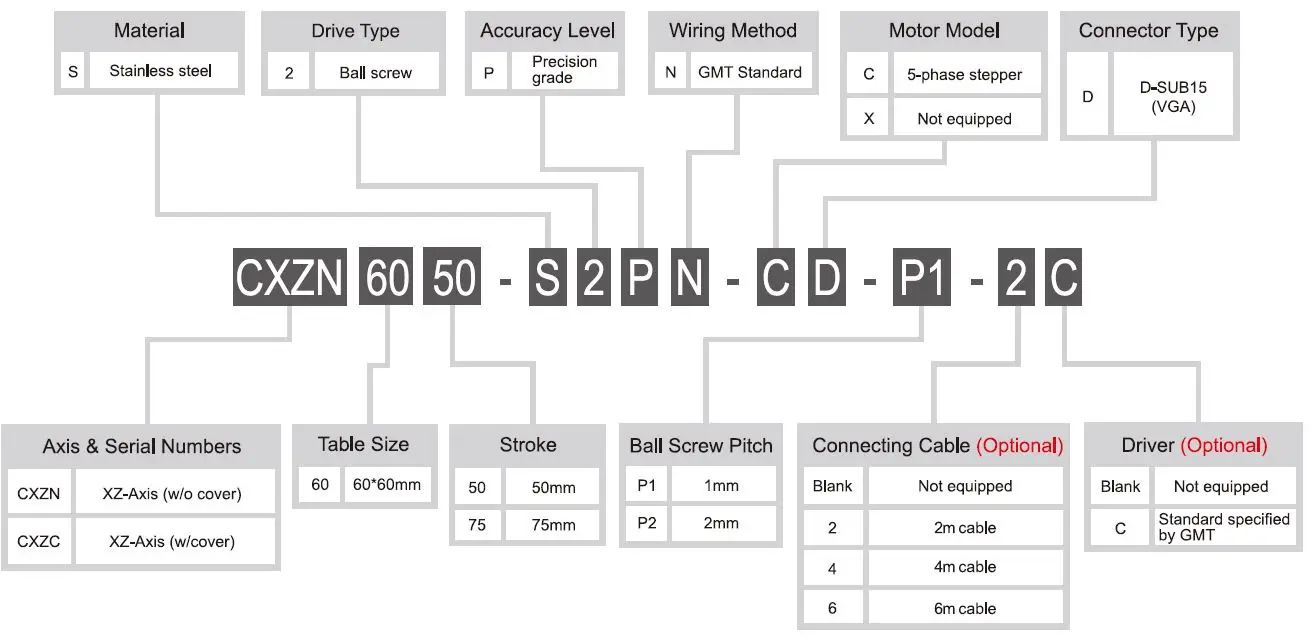

Model No. | CXZN6050-S2PN-CD-P1 | CXZN6075-S2PN-CD-P1 | |
CXZN6050-S2PN-CD-P2 | CXZN6075-S2PN-CD-P2 | ||
Table Size (mm) | 60 X 60 | ||
Travel Stroke (mm) | 50 | 75 | |
Drive Type | P1：Ball screw Ø8, lead 1mm P2：Ball screw Ø8, lead 2mm | ||
Rail | Circular Linear Ball Guiding | ||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||
Main Unit Weight (Kg) | 3.1 | 3.38 | |
Coupling | FAMCS11.6-5*5 | ||
Accuracy Level | P：Precision grade | ||
Wiring Method | N：GMT Standard | ||
Resolution (Pulse) (µm) | P1：2 (Full) / 1 (Half) P2：4 (Full) / 2 (Half) | ||
Max. Speed (Full Step) (mm / sec) | P1：20 P2：40 | ||
Positioning Presion (µm) | 5 | 7 | |
Repeatability Precision (µm) | ± 0.5 | ||
Load Capacity (Kgf) | 9 | ||
Missed Step (µm) | 1 | ||
Parallelism (µm) | 20 | ||
Dynamic Straightness (µm) | 2 | ||
Dynamic Parallelism (µm) | 10 | ||
Motor Type Shaft Numbers | 5-phase stepper X：☐ 28 double shafts Z：☐ 42 double shafts | ||
Motor Brand Model | SANYO X：SH5281-7211 Z：103F5510-8211 | ||
Driver Brand / Model | Please refer to reference table | ||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||
Origin Sensor | Photoelectric sensor GMT-sensor | ||
Limit Sensor | |||
Origin Approximation Sensor | N / A | ||
Power Voltage | 24V ± 10% | ||
Control Output | NPN open collector output under 24V 8mA | ||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||

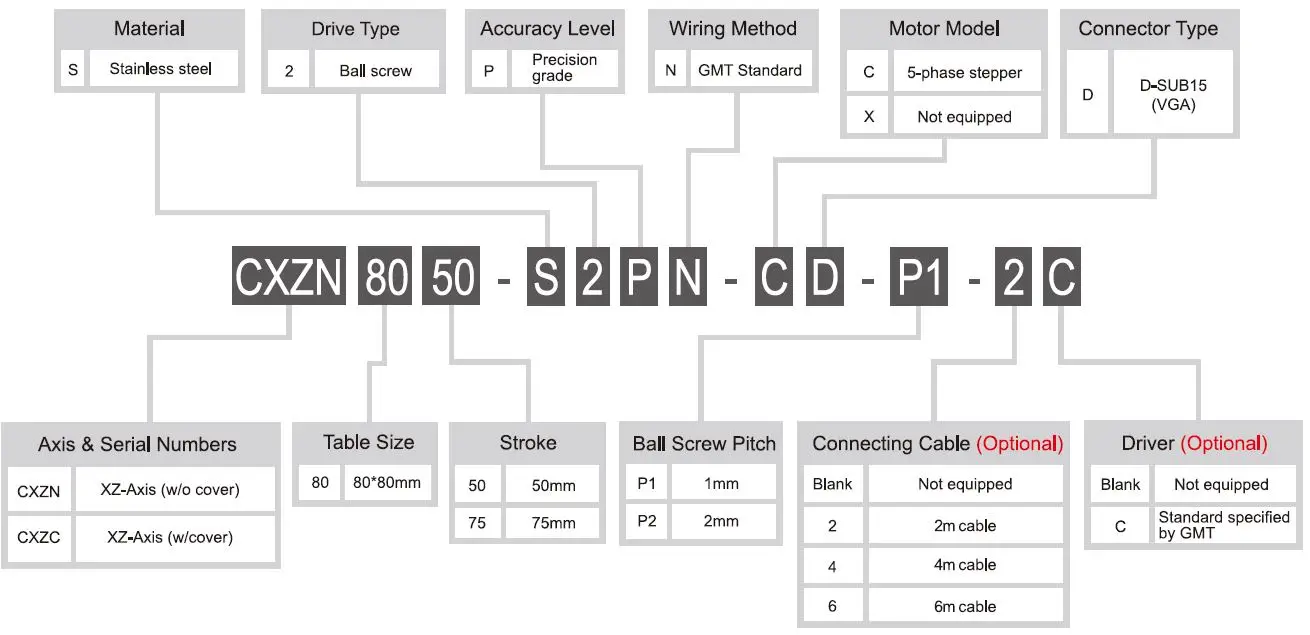

Model No. | CXZN8050-S2PN-CD-P1 | CXZN8075-S2PN-CD-P1 | |
CXZN8050-S2PN-CD-P2 | CXZN8075-S2PN-CD-P2 | ||
Table Size (mm) | 80 X 80 | ||
Travel Stroke (mm) | 50 | 75 | |
Drive Type | P1：Ball screw Ø8, lead 1mm P2：Ball screw Ø8, lead 2mm | ||
Rail | Circular Linear Ball Guiding | ||
Stage Material Surface Treatment | Stainless Steel Electroless Nickel Plating | ||
Main Unit Weight (Kg) | 4.27 | 4.58 | |
Coupling | FAMCS11.6-5*5 | ||
Accuracy Level | P：Precision grade | ||
Wiring Method | N：GMT Standard | ||
Resolution (Pulse) (µm) | P1：2 (Full) / 1 (Half) P2：4 (Full) / 2 (Half) | ||
Max. Speed (Full Step) (mm / sec) | P1：20 P2：40 | ||
Positioning Presion (µm) | 5 | 7 | |
Repeatability Precision (µm) | ± 0.5 | ||
Load Capacity (Kgf) | 11 | ||
Missed Step (µm) | 1 | ||
Parallelism (µm) | 20 | ||
Dynamic Straightness (µm) | 2 | ||
Dynamic Parallelism (µm) | 10 | ||
Motor Type Shaft Numbers | 5-phase stepper X：☐ 28 double shafts Z：☐ 42 double shafts | ||
Motor Brand Model | SANYO X：SH5281-7211 Z：103F5510-8211 | ||
Driver Brand / Model | Please refer to reference table | ||
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | ||
Origin Sensor | Photoelectric sensor GMT-sensor | ||
Limit Sensor | |||
Origin Approximation Sensor | N / A | ||
Power Voltage | 24V ± 10% | ||
Control Output | NPN open collector output under 24V 8mA | ||
Output Control | Testing (sensing)：output transistor OFF (closed) | ||
System Configuration Diagram
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers
according to real functional needs.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers
according to real functional needs.
Axis Definition
GMT has defined different axis as the following figuration according to the movement direction:
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.
