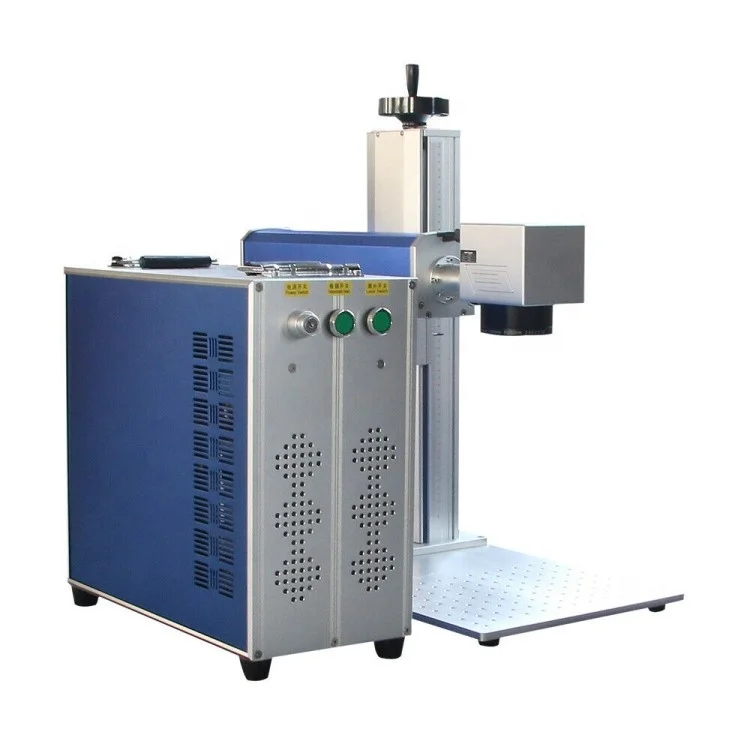

Sunlite Deep engraving with rotary Max Raycus JPT 20watt 30w 50w fiber laser marking machine
- Category: >>>
- Supplier: Jilin Sunlite Laser Technology Co. Ltd.
Share on (10000009207217):
Product Overview
Description
Sunlite laser marker for metal Max Raycus JPT Deep engraving 20w 30w 50w fiber laser marking machine
Products Description
How to choose a fiber laser marking machine?
Sunlite Fiber laser deep engraving marking machine is a type of laser engraving machine which adopts a fiber laser source for metal deep marking or engraving. YONGLI fiber laser engraver is the best way to engrave metals without tools. Fiber laser deep engraving machine is also known as laser metal engraving machine, metal laser engraving machine, laser etching machine for metal, laser deep engraving machine, deep laser etching machine, laser metal deep etching machine, metal laser deep engraving machine, metal laser
engraver, laser metal engraver, laser etcher for metal.Laser Marking Machine allows us to permanently mark a surface with incredible speed. We can work with all kinds of materials with
sharp marks. Through “laser marking” we achieve different finishes in the materials depending on the procedure and the
configuration we carry out. Laser marking enables fast, high-quality finishes with complex details. Laser marking equipment is
designed for laser marking and engraving, but depending on the material and thickness they can even CUT.
engraver, laser metal engraver, laser etcher for metal.Laser Marking Machine allows us to permanently mark a surface with incredible speed. We can work with all kinds of materials with
sharp marks. Through “laser marking” we achieve different finishes in the materials depending on the procedure and the
configuration we carry out. Laser marking enables fast, high-quality finishes with complex details. Laser marking equipment is
designed for laser marking and engraving, but depending on the material and thickness they can even CUT.
Technical Parameters
MODEL | FLM-R20/30/50/70/100-FT |
POWER | 20w 30w 50w 70w 100w |
FIBER LASER SOURCE | RAYCUS/MAX/JPT(optional) |
BEAM QUALITY | M2<1.2 |
OUTPUT POWER | 10% - 100% |
(continuously to be adjusted) | |
OUTPUT FREQUENCY | 20KHz-100KHz |
(continuously to be adjusted) | |
POWER STABILITY (8h) | <± 1%rms |
FOCUS SPOT DIAMETER | <0.01mm |
MARKING AREA | ≤400*400mm (customized) |
ENGRAVING DEPTH | 1.2mm |
DEPTHENGRAVING SPEED | 800 standart characters / second |
MINIMUM LINE WIDTH | 0.012mm |
MINIMUM CHARACTER | 0.1mm |
REPEATED ACCURACY | ±0.003mm |
SUPPORT SOFTWARE | Coreldraw, AutoCAD, Photoshop |
SYSTEM OPERATION | windows7, windows8, windows10 |
COOLING MODE | Air Cooling |
ENVIRONMENT TEMPERATURE | 10℃~35℃ |
ENVIRONMENT HUMIDITY | 20%-80% |
POWER REQUIREMENT | 220V/ Singlephase/ 50Hz/ <400w span=""> |
LIFE OF LASER MODULE | 100,000Hrs |
WARRANTY | 2 Years |
PACKING SIZE | 760*510*680mm(30*20*27in) |
NET WEIGHT | 50KG(110 lb) |

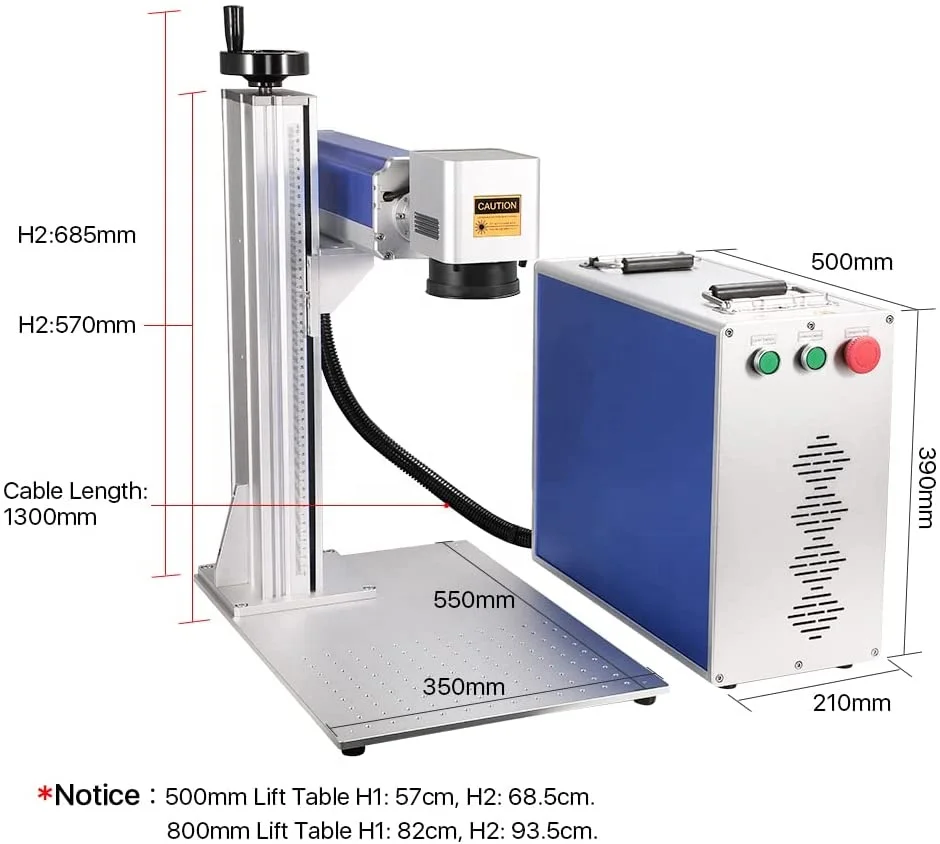

Product Details

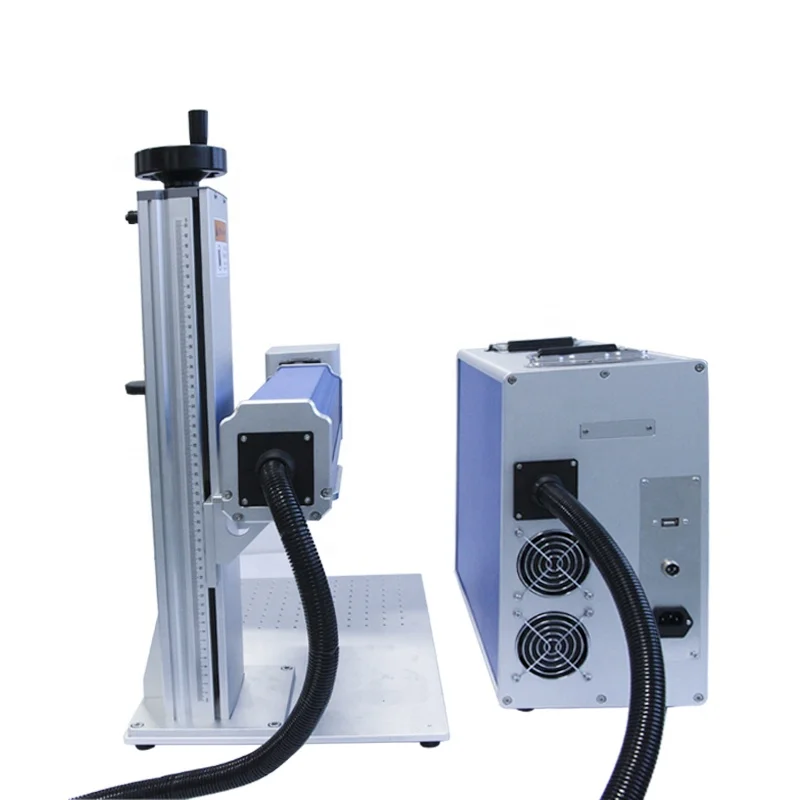

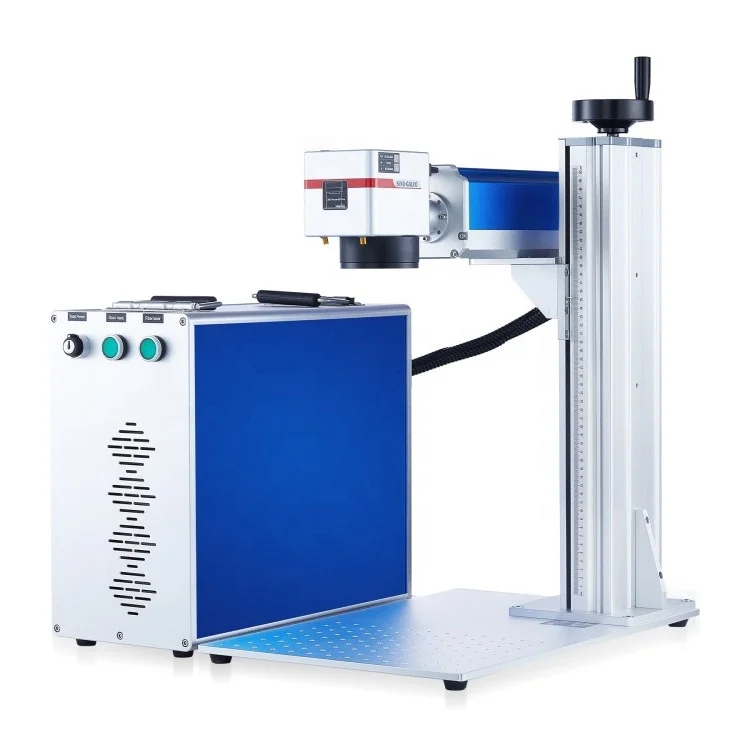

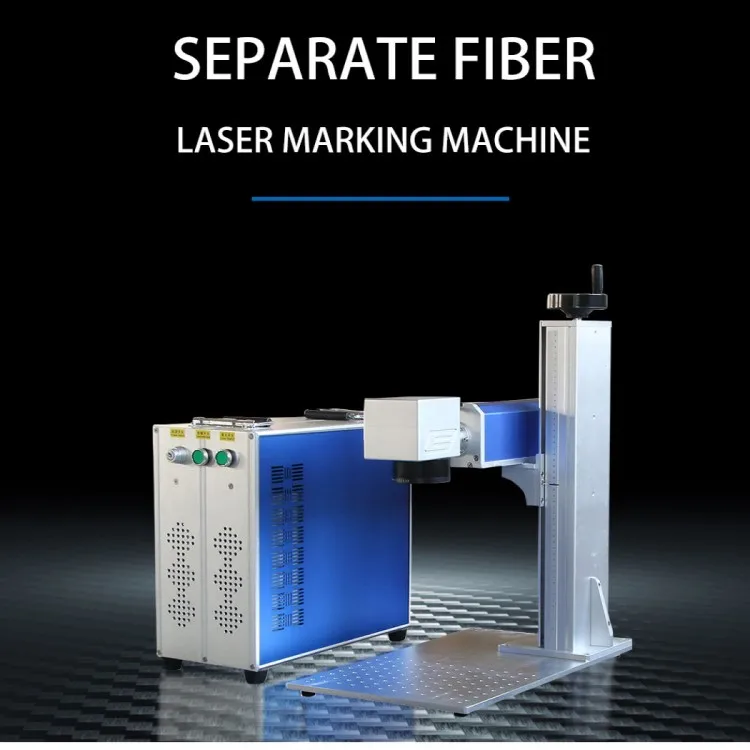

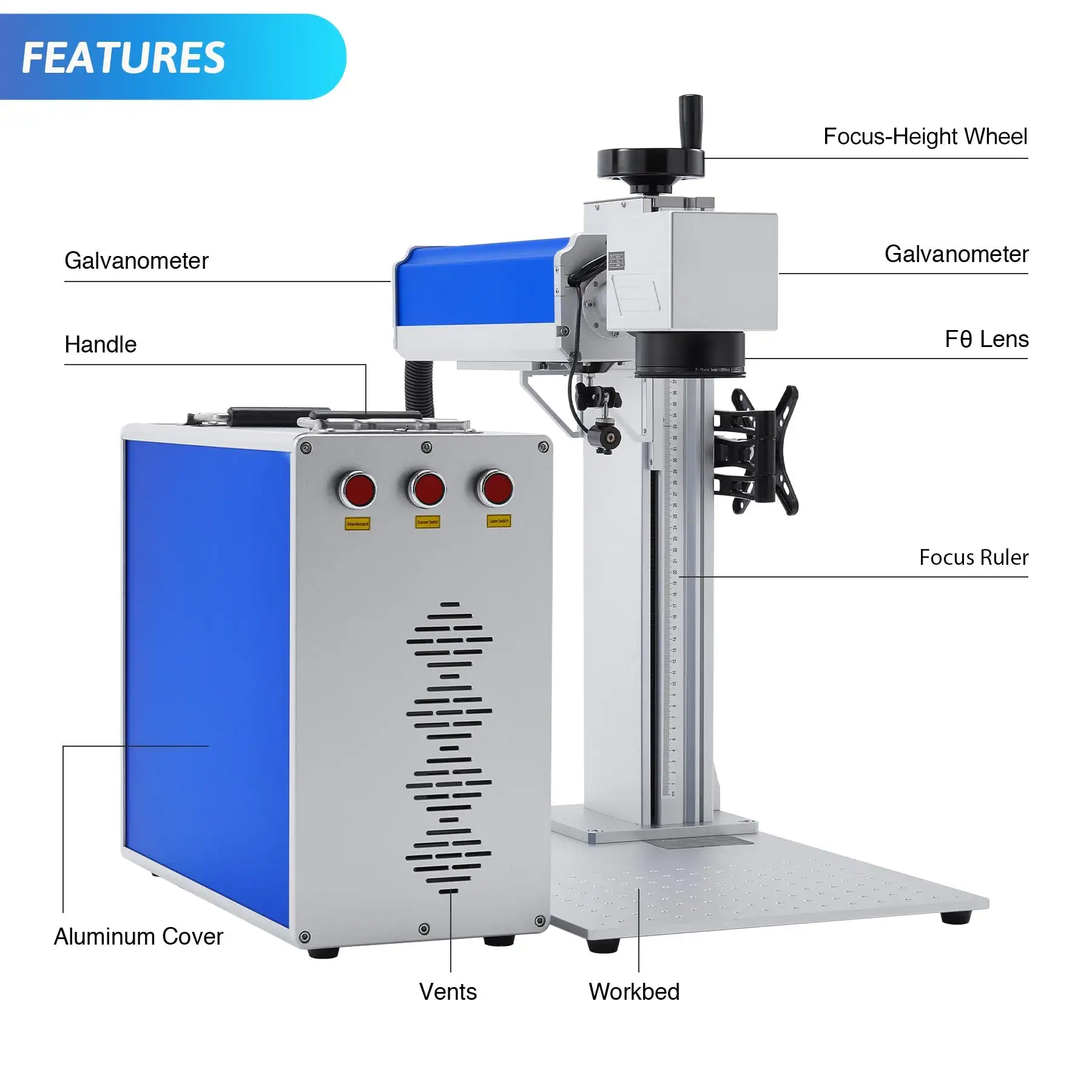

RAYCUS MAX JPT FIBER LASER METAL ENGRAVER
Sunlite FLM-R20/30/ 50-FT Fiber laser marking machine adopts Chinese most advanced fiber laser source and high-quality SINO-GALVO scanning system. It can provide stable power output, perfect optical mode, good beam quality and high-speed marking, so users can get a perfect effect and high efficiency, which can fulfill massive production. The advantages of this machine is as following: good looking, easy operation, no need material, no need maintenance, no faulty in long time working. So, it can meet the demand of industrial continuous work.
Easy calibration of the machine
The Fiber laser marking machine has different red pointers that allow the part to be positioned at the ideal focal distance
quickly
Quick preview
Our team allows you to preview the elements before being marked. We can see where we are going to carry out the work and thus
position the part correctly.
The Fiber laser marking machine has different red pointers that allow the part to be positioned at the ideal focal distance
quickly
Quick preview
Our team allows you to preview the elements before being marked. We can see where we are going to carry out the work and thus
position the part correctly.
Slotted work table
The system has a slotted table to position the part in the same place and thus increase productivity
High engraving speed
Motorized mirror system that allows marking up to 7000 mm / s.
High frequency range
Our lasers are of high quality and have a wide frequency range for more types of results and qualities.
Useful life up to 100,000 hours
All fiber lasers have a useful life of up to 100,000 hours which allows a much lower payback than other types of lasers.
Easy and quick installation
USB connected with computer easily.
Low Cost
high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.
The system has a slotted table to position the part in the same place and thus increase productivity
High engraving speed
Motorized mirror system that allows marking up to 7000 mm / s.
High frequency range
Our lasers are of high quality and have a wide frequency range for more types of results and qualities.
Useful life up to 100,000 hours
All fiber lasers have a useful life of up to 100,000 hours which allows a much lower payback than other types of lasers.
Easy and quick installation
USB connected with computer easily.
Low Cost
high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.

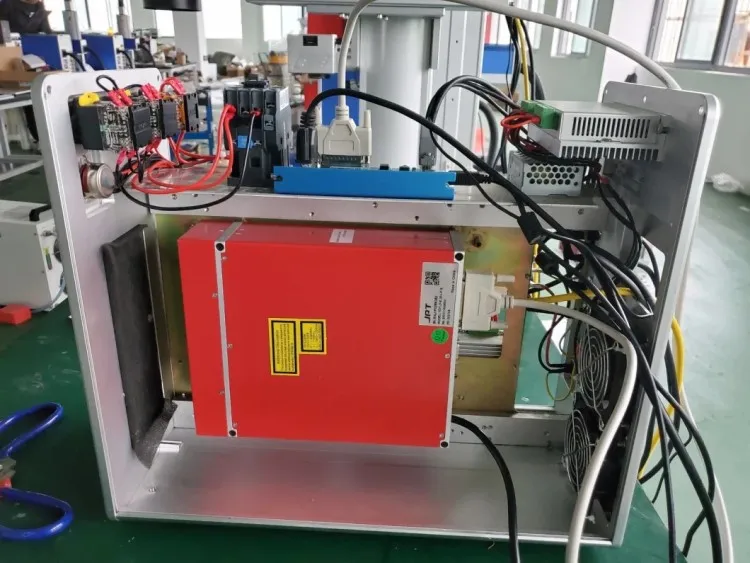

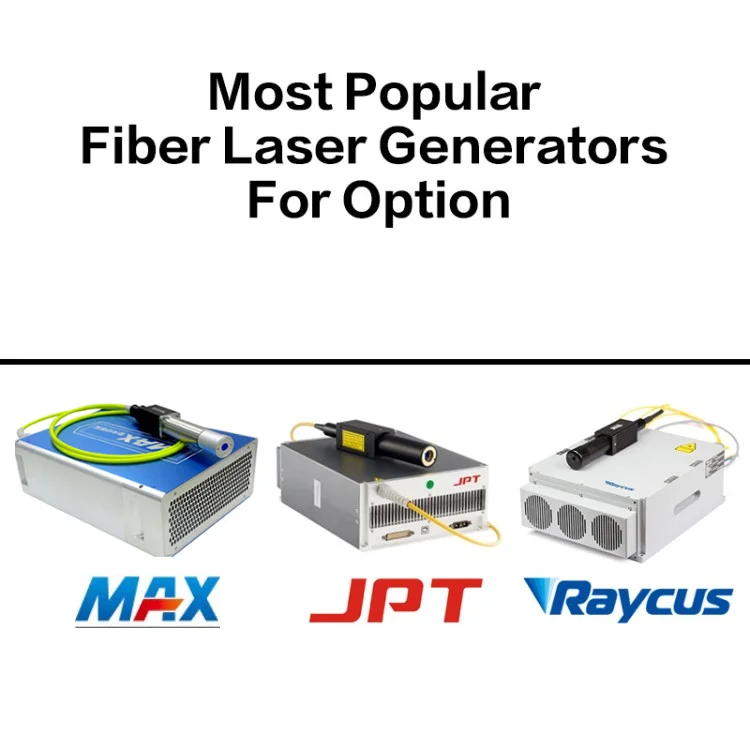

Raycus is a affordable and stable brand laser manufacturer from China,Raycus fiber laser has the advantages of high reliability
laser output,high pulse energy and high efficiency,lifespan up to 100,000 hours
JPT laser is focused on MOPA laser source in the early days,with the development of technology,then gradually also develops Q
switched laser.In general,JPT laser has more advantages than Raycus in MOPA fiber laser.
Max laser is another affordable laser source manufacturer from China with great productivity
laser output,high pulse energy and high efficiency,lifespan up to 100,000 hours
JPT laser is focused on MOPA laser source in the early days,with the development of technology,then gradually also develops Q
switched laser.In general,JPT laser has more advantages than Raycus in MOPA fiber laser.
Max laser is another affordable laser source manufacturer from China with great productivity
Laser Type | Raycus | Max | JPT |
Price | Low | Low | Medium |
Beam quality | Good | Good | Good |
Stability | Good | Good | Good |
Frequency Range | Good | Good | Large |
Engraving Result | Good | Good | Good |
Metal Material | Good | Good | Good |
Plastic | Low | Low | Good |
MOPA laser | Medium | Medium | Good |
Warranty | 2 years | 2 years | 2 years |
SINO-GALVO GALVANOMETER SCANNER
High quality laser scanning System makes the marking speed up to 8000mm/s. Red light focus function. The SINO galvo scanner has
the good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, the overall
performance has reached the international leading level in this field.
the good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, the overall
performance has reached the international leading level in this field.
1064nm F-theta Scan Lens WAVELENGTH®
Wavelength® 1064nm Fiber Focus Lens F-theta *Scan Field: 100X100 150X150 175X175 200X200 250X250 300X300 Field Lens For Laser
Marking Machine
* High light transmittance,
high output laser energy
* High-quality coating, good protection
* Not easy to damage. Long lasting operation
Marking Machine
* High light transmittance,
high output laser energy
* High-quality coating, good protection
* Not easy to damage. Long lasting operation

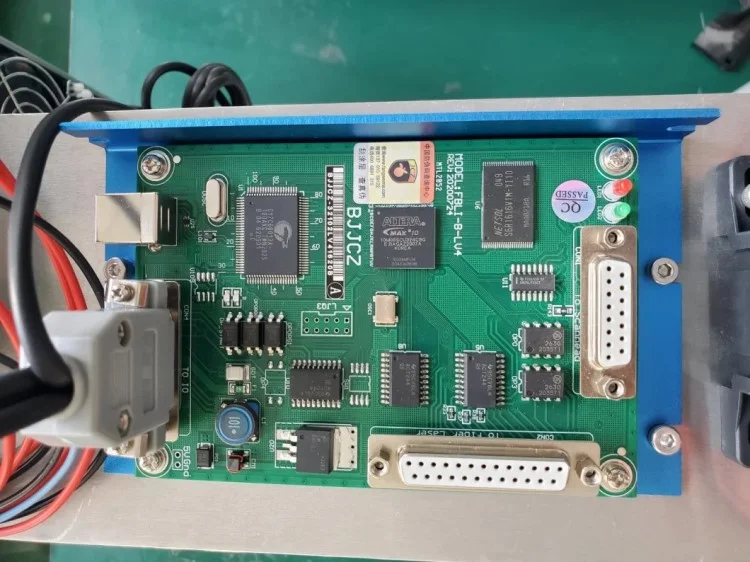

ORIGINAL JCZ CONTROL BOARD
JCZ laser controller works with EZCAD2 software via USB2.0. It is one of the most popular lasers and galvo controllers in the
market, with competitive price and high stability. It is compatible with most industrial laser sources like fiber, UV, CO2, and
MOPA. It is widely adopted by global laser system integrators for their laser marking engraving machine
market, with competitive price and high stability. It is compatible with most industrial laser sources like fiber, UV, CO2, and
MOPA. It is widely adopted by global laser system integrators for their laser marking engraving machine

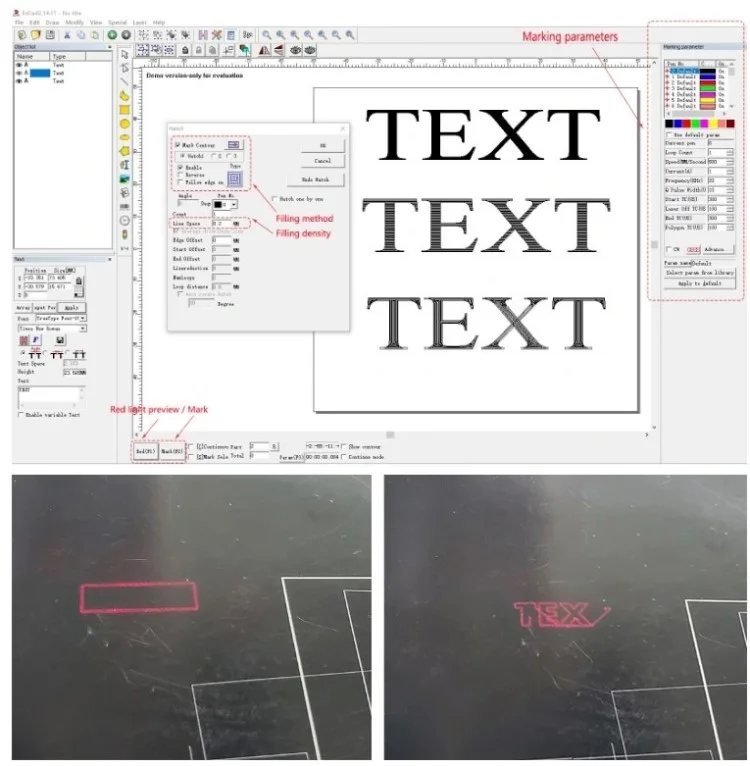

EZCAD2 SUPER-EASY OPERATION SYSTEM
EZCAD2 software works with the JCZ controller: LMCV4 (USB2.0 Interface) or LMCPCIE ( PCI-E Interface). it is the most popular
lasers and galvo control software, especially in the laser marking industry.
*Control marking parameters, such as laser power, laser speed, pulse width, engraving times, etc.
*Vector and bitmaps can be imported.
*Red light preview or frame preview before engraving.
*Multiple engraving filling density and filling methods.
*Support Windows XP/7/10/11 (32 and 64 bits)
*Easy to use
lasers and galvo control software, especially in the laser marking industry.
*Control marking parameters, such as laser power, laser speed, pulse width, engraving times, etc.
*Vector and bitmaps can be imported.
*Red light preview or frame preview before engraving.
*Multiple engraving filling density and filling methods.
*Support Windows XP/7/10/11 (32 and 64 bits)
*Easy to use
Marking Content | ||||||
1D Barcode | Code11, Code 39, EAN, UPC, PDF417... | |||||
New types of 1D Barcode can be added. | ||||||
2D Barcode | Datamatix, QR Code, Micro QR Code, AZTEC CODE, GM CODE... | |||||
New types of 2D Barcode can be added. | ||||||
Vector File | PLT,DXF,AI,DST,SVG,GBR,NC,DST,JPC,BOT... | |||||
Bitmap File | BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF... | |||||

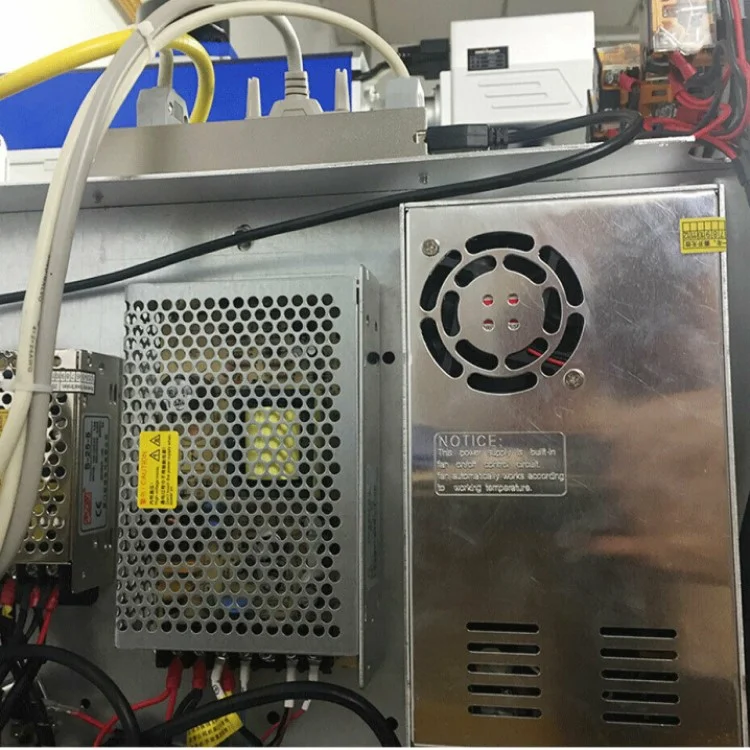

High Quality Taiwan MeanWell power supply
Famous Taiwan “Meanwell” power supply adopted with most stable continues power supply energy with longest lifespan use.

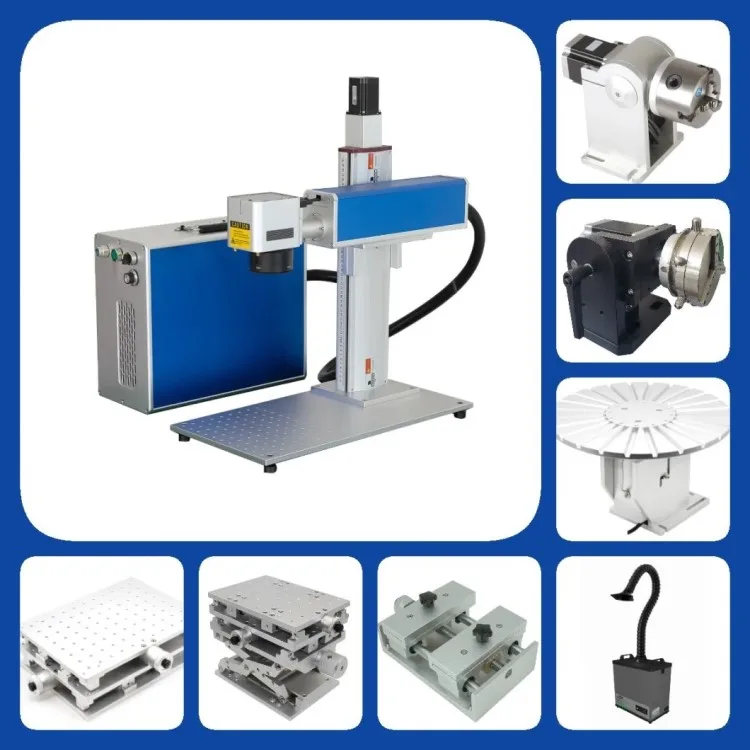

Optional Parts & Accessories

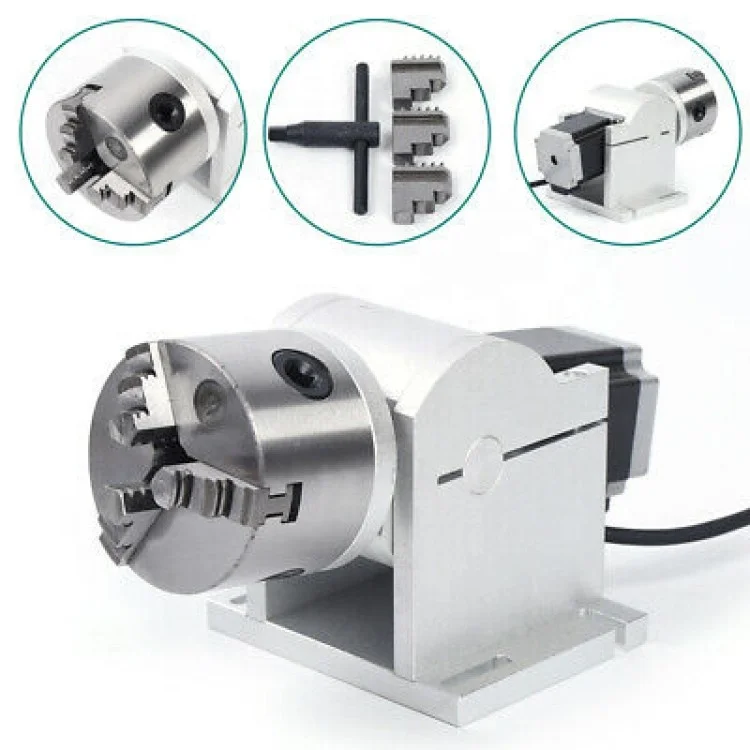

1. 80 rotary: it is used to mark curved surfaces, such as pipes, pens, cylinders, ring objects
2. jewelry ring rotary: It is mainly used for jewelry rings and jewelry bracelets
3. XY table / XYZ table: You can manually move in the XY direction without moving the workpiece
4. Pen rotary table: It is mainly used to engrave multiple parts, such as pens
5. Smoke purifier
6. Metal holder: when cutting the metal sheet to fix the metal sheet7.Lenovo Laptop
2. jewelry ring rotary: It is mainly used for jewelry rings and jewelry bracelets
3. XY table / XYZ table: You can manually move in the XY direction without moving the workpiece
4. Pen rotary table: It is mainly used to engrave multiple parts, such as pens
5. Smoke purifier
6. Metal holder: when cutting the metal sheet to fix the metal sheet7.Lenovo Laptop

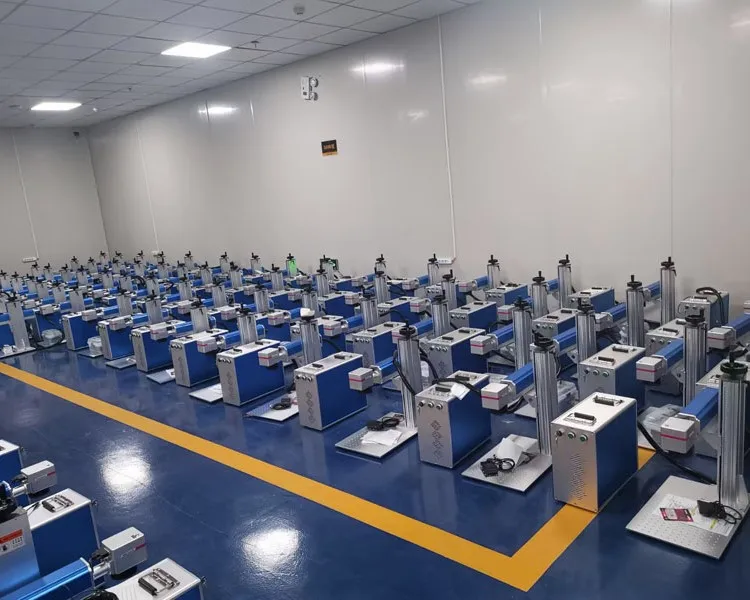

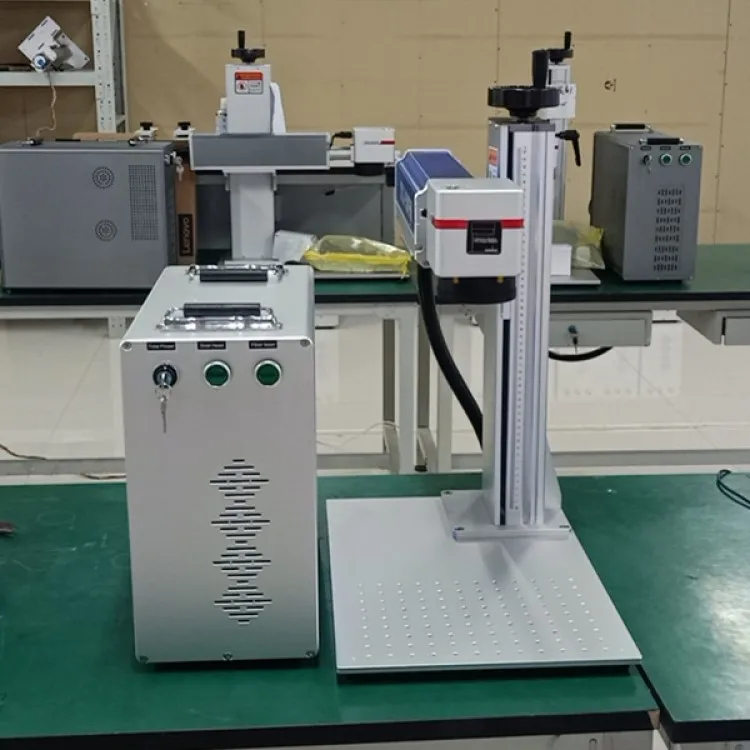

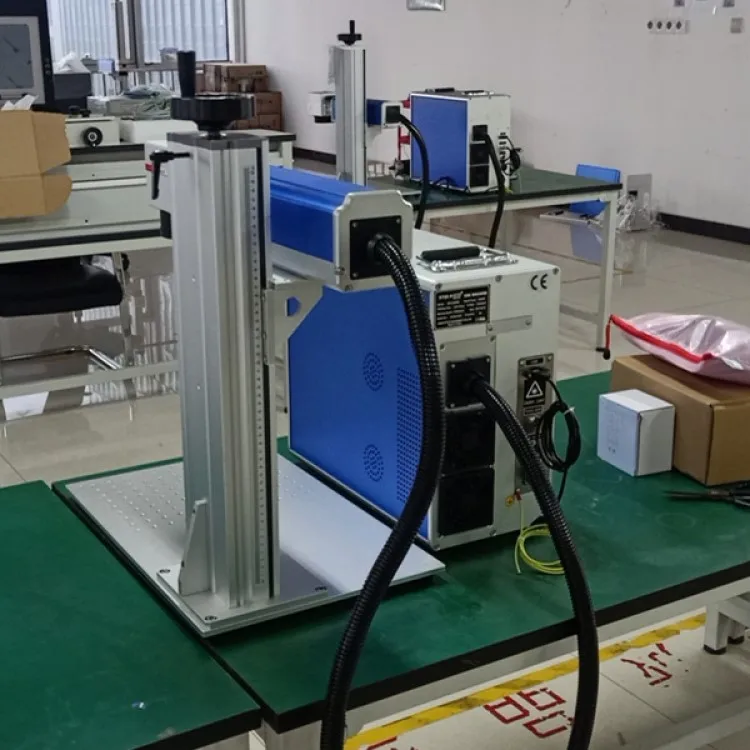

Product Display

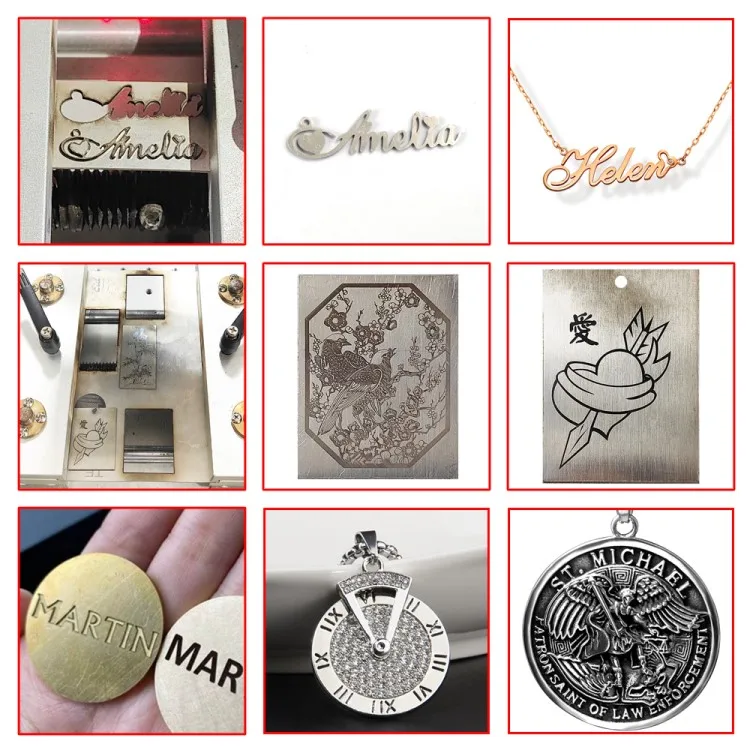

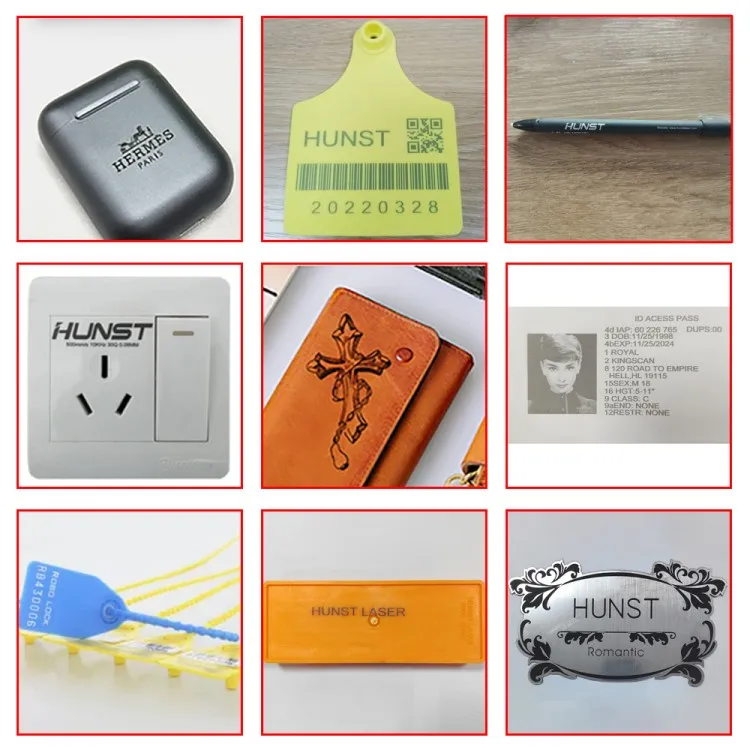

Application
Metal cutting and deep engraving:
SUNLITE Raycus Max JPT 20w 30w 50w fiber laser marking machine can cut gold, silver and other metal material, it can deep engraving
on metal material too, thickness and deep can up to 2mm, it is very good for jewelry shop to make art items.
on metal material too, thickness and deep can up to 2mm, it is very good for jewelry shop to make art items.
Engraving on plastic
Raycus Max Jpt 20w/30w/50w Fiber laser marking machine can engrave on many non-metal material, like ear tag, plastic, pvc, pc card, leather, etc.
Application industry:
Jewelry, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment's, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

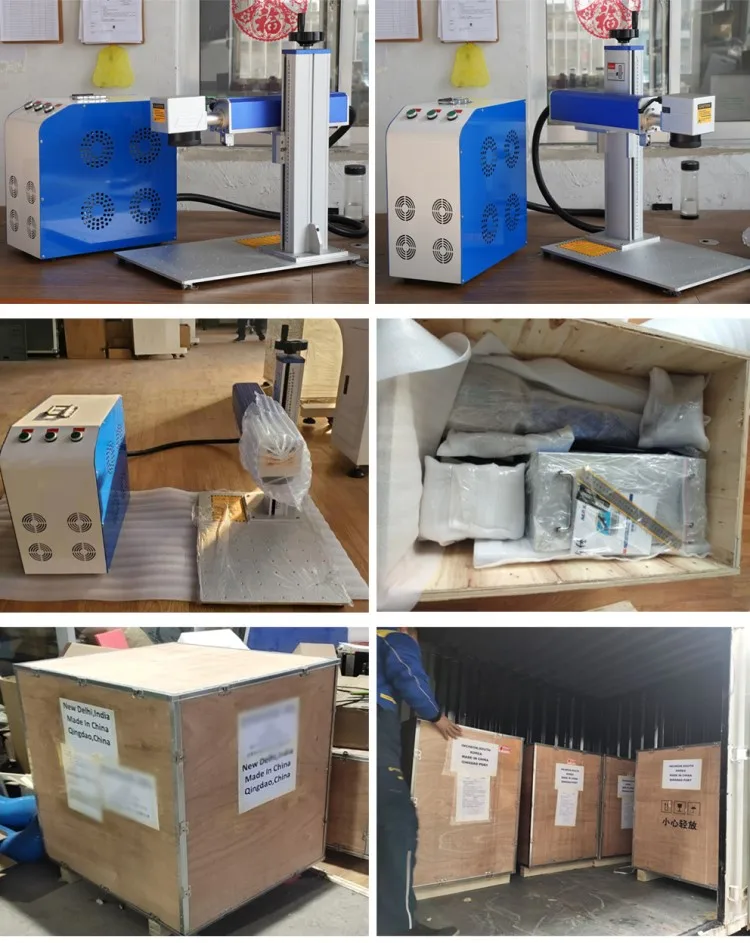

Packaging & Shipping
Fiber Laser Marking Machine Packaging & Shipping

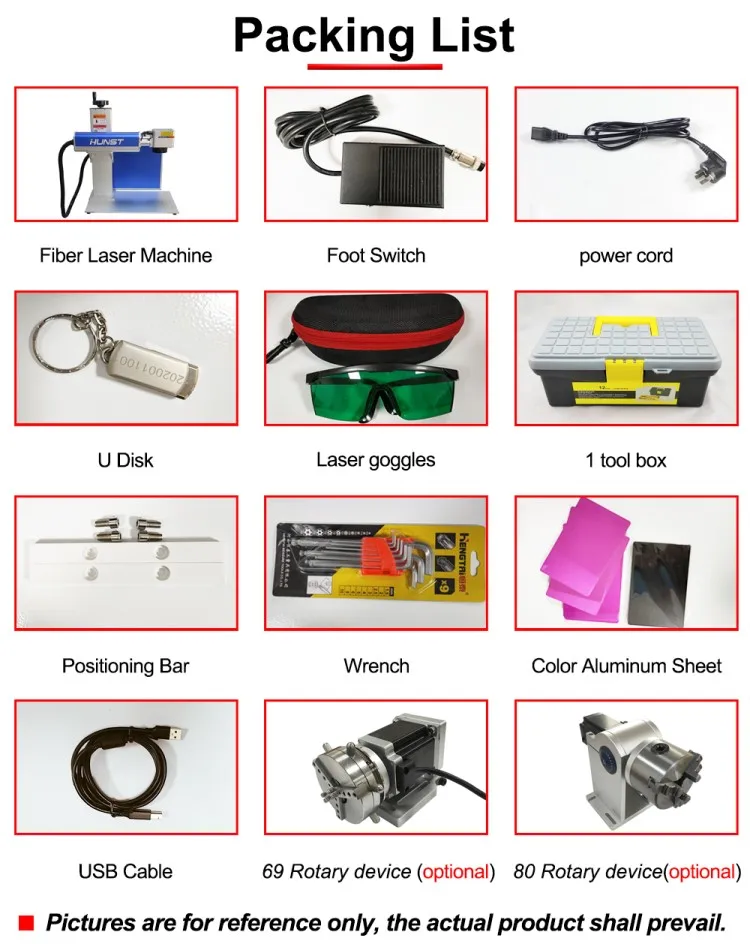

Free parts inside the package: inner hexagon, foot switch, power cord, USB driver, goggles, 60 cm ruler, laser report
Packing wooden box : 760*510*680 mm
Gross weight: 50KG
Standard export packing customized packing as your request We use hard boxes, your cargo will not be affected in any way
*Cleaning the laser marking machine
*Winding waterproof membrane to the laser marking machine
*Filled with pearl cotton
*Finally use the fixing strap to reinforce the wooden box
Shipping Method:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train. We can transport machine by sea/air freight or express by DHL EMS UPS etc. According to your requirement.
Packing wooden box : 760*510*680 mm
Gross weight: 50KG
Standard export packing customized packing as your request We use hard boxes, your cargo will not be affected in any way
*Cleaning the laser marking machine
*Winding waterproof membrane to the laser marking machine
*Filled with pearl cotton
*Finally use the fixing strap to reinforce the wooden box
Shipping Method:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train. We can transport machine by sea/air freight or express by DHL EMS UPS etc. According to your requirement.
Important Note:
The Shipping fee shown on the product detail page is just a rough count by the system, The Shipping Fee can be very different depends on the shipping method and the location. It does not represent the Precise Shipping Cost. Please contact us to get the accurate shipping fee for this product
The Shipping fee shown on the product detail page is just a rough count by the system, The Shipping Fee can be very different depends on the shipping method and the location. It does not represent the Precise Shipping Cost. Please contact us to get the accurate shipping fee for this product
FAQ
What’s the package of the fiber laser engraving machine for metal?
We have 3 layers package: for the outside, we adopt wood craftcase; in the middle, the machine is covered by foam, to protect the machine from shaking; for the inside layer, the machine iscovered by thickening plastic bag for waterproof.
Will the package be damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to over 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
How to install and run the fiber laser engraving machine for metal?
Our technician have installed the machine before shipping, for some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
What should I do if the fiber laser engraving machine goes wrong?
If confronted with such problems, please contact us ASAP and do not try to fix the fiber laser engraving machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
How can I get the most suitable machine for me?
You can tell us your work materials and detailed work through pictures or videos so that we can judge whether our machines can meet your needs. Then, we can provide you with the best model based on your experience.
This is the first time I have used this kind of machine. Is it easy to operate?
We will send you manuals and guide videos in English, which can teach you how to operate the machine. If you still can't learn how to use it, we can help you through the remote online control software. Or, we can talk by phone, email or other contact methods.
Is the machine operating safely?
Yes, the laser operation is completely safe. YONGLI laser machine provides many safety systems, such as leak proof socket, emergency stop button, water alarm, red dot focus.
This model is not suitable for me. Do you have more models available?
Yes, we can provide many models. (100 * 100mm, 150 * 150mm, 200*200mm, 300 * 300mm, etc) and laser power (range from 20 watts to 100 watts) for your application or receive price information.
What guarantee is there if the machine fails?
The machine has a one-year warranty. If it fails, usually, based on customer feedback, our technicians will find out where the problem is. If the problem is caused by a quality failure, other parts except the wearing parts will be replaced free of charge. Raycus / MAX / JPT laser source 2 year warranty.
How about the documents after delivery?
After shipment, we will send all original documents to you by email or DHL, including packing list, commercial invoice, bill of lading and other certificates required by customers.
How long is the delivery time?
For standard machines, it will be 5-10 days; for non-standard machines and machines customized according to customer specific requirements, it will be 15 to 30 days.
What is the payment method?
Wire transfer to our company's official bank account or through Alibaba trade assurance.
Do you arrange the shipment of the machine?
Yes, for the EXW price, it is very expensive to extract the machine from our factory, and we can ship the machine to any China seaport warehouse by adding some domestic transportation fees. For FOB or CIF, we will arrange shipment for you.
We have 3 layers package: for the outside, we adopt wood craftcase; in the middle, the machine is covered by foam, to protect the machine from shaking; for the inside layer, the machine iscovered by thickening plastic bag for waterproof.
Will the package be damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to over 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
How to install and run the fiber laser engraving machine for metal?
Our technician have installed the machine before shipping, for some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
What should I do if the fiber laser engraving machine goes wrong?
If confronted with such problems, please contact us ASAP and do not try to fix the fiber laser engraving machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
How can I get the most suitable machine for me?
You can tell us your work materials and detailed work through pictures or videos so that we can judge whether our machines can meet your needs. Then, we can provide you with the best model based on your experience.
This is the first time I have used this kind of machine. Is it easy to operate?
We will send you manuals and guide videos in English, which can teach you how to operate the machine. If you still can't learn how to use it, we can help you through the remote online control software. Or, we can talk by phone, email or other contact methods.
Is the machine operating safely?
Yes, the laser operation is completely safe. YONGLI laser machine provides many safety systems, such as leak proof socket, emergency stop button, water alarm, red dot focus.
This model is not suitable for me. Do you have more models available?
Yes, we can provide many models. (100 * 100mm, 150 * 150mm, 200*200mm, 300 * 300mm, etc) and laser power (range from 20 watts to 100 watts) for your application or receive price information.
What guarantee is there if the machine fails?
The machine has a one-year warranty. If it fails, usually, based on customer feedback, our technicians will find out where the problem is. If the problem is caused by a quality failure, other parts except the wearing parts will be replaced free of charge. Raycus / MAX / JPT laser source 2 year warranty.
How about the documents after delivery?
After shipment, we will send all original documents to you by email or DHL, including packing list, commercial invoice, bill of lading and other certificates required by customers.
How long is the delivery time?
For standard machines, it will be 5-10 days; for non-standard machines and machines customized according to customer specific requirements, it will be 15 to 30 days.
What is the payment method?
Wire transfer to our company's official bank account or through Alibaba trade assurance.
Do you arrange the shipment of the machine?
Yes, for the EXW price, it is very expensive to extract the machine from our factory, and we can ship the machine to any China seaport warehouse by adding some domestic transportation fees. For FOB or CIF, we will arrange shipment for you.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
