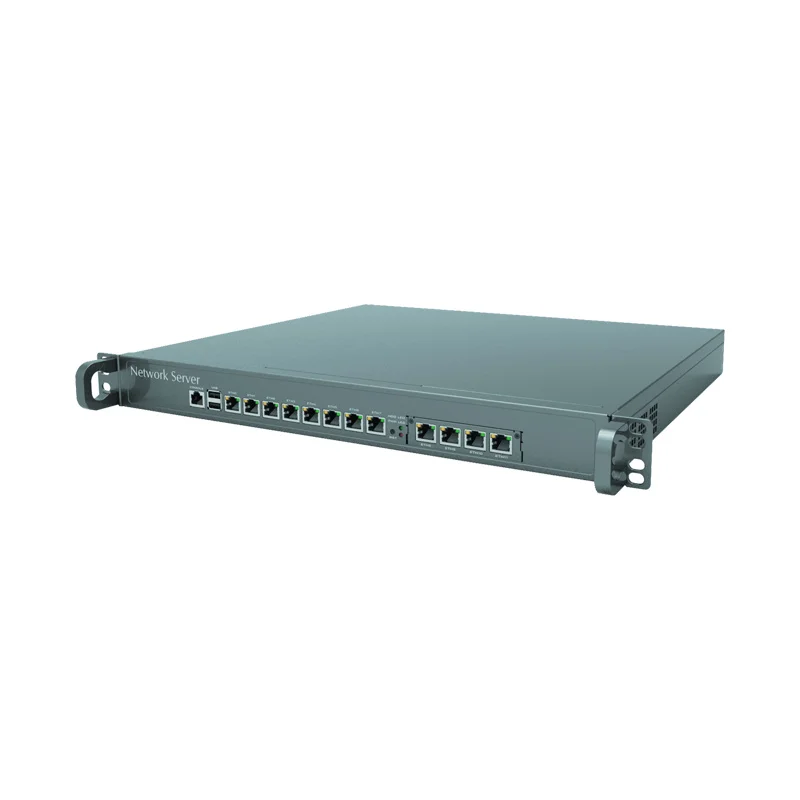

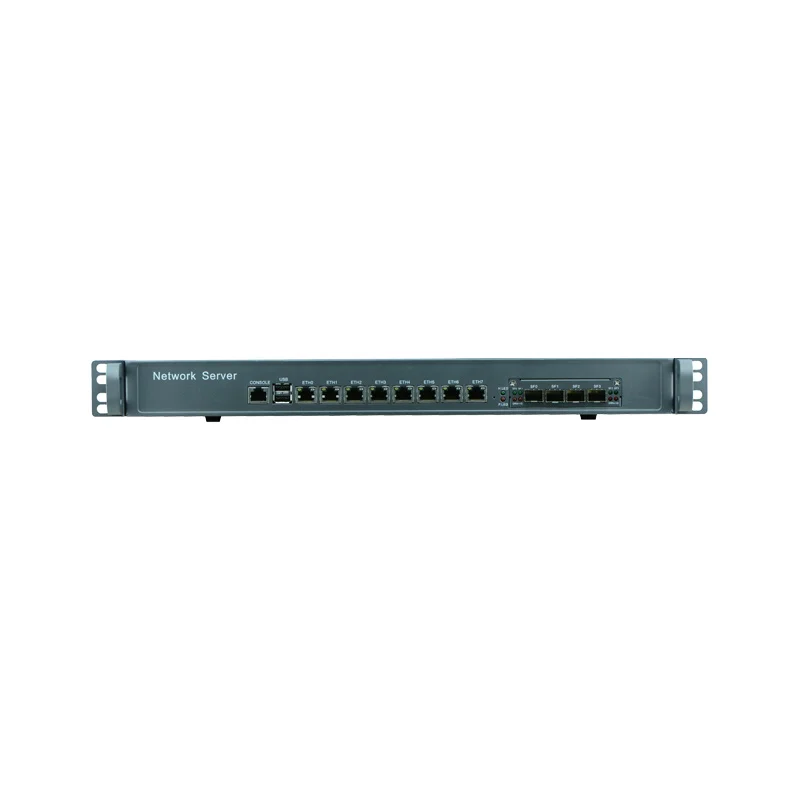

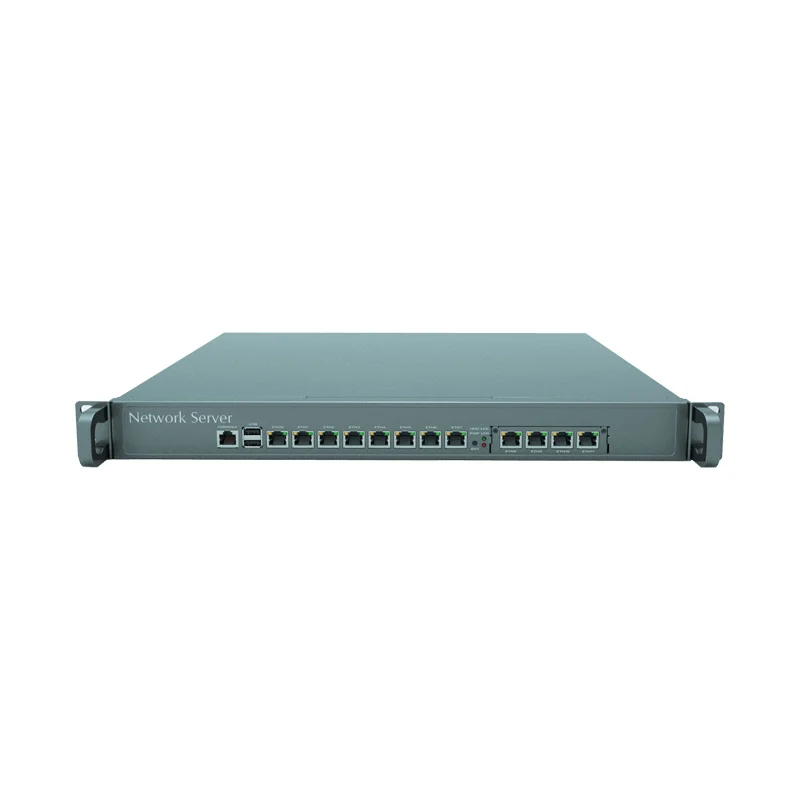

4X10G SFP 8 ethernet network appliance core I5 I7 6th,7th Firewall Server 8 lans pfsense firewall router / network Server

General

CPU

Support  Intel®LGA1151  6/7/8/9Gen Corei3/i5/i7/Pentium/ Celeoron Series processor

Chipset

Intel® H170  high speed chipset

Memory

2*SO DDR4 memory slot with 2133MHz memory, up to 32GB

Storage

3*SATA 3.0

1*MSATA 3.0

Expansion Interface

1*MINIPCIE(Wifi+BT,3G/4G)

BIOS

AMI UEFI BIOS

OS

Windows 7/8/10, Linux

I/O Interface

Ethernet

8*Intel 211AT  1Gbps PCIe Ethernet Controller, RJ45

Optical fiber

Optional 4*1Gbe SFP Or  4*10Gbe SFP Or 4*1Gbe LAN

Serial

1*RS232 CISCOS,1*RS232(2*5pin 2.54mm)

USB

2*USB 2.0

GPIO

8*Programmable GPIO

Display

Display Interface

1*VGA: Up to 1920*1080@60Hz

Mechanical & Environment

Function

Power on operation,Network wake up,PXE,Watchdog

Dimension

430mm*380mm*45mm(L*W*H)

Package size(1PCS)

540*500*145mm

Package size(5PCS)

Gross weight(1PCS)

7kg

Gross weight(5PCS)

Colour

Black/Grey

Power Input

ATX PSU

Temperature

Operation: -10℃~60℃, Storage: -20℃~70℃

Relative Humidity

Operation: 10%~90%, Storage: 5%~95%, non-condensing
