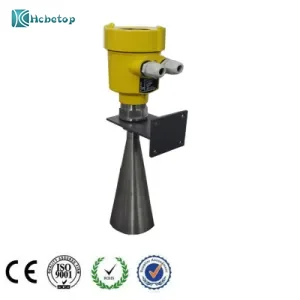

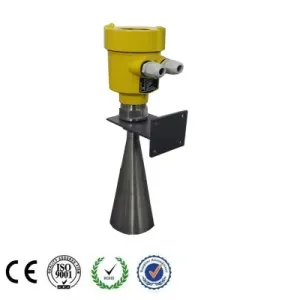

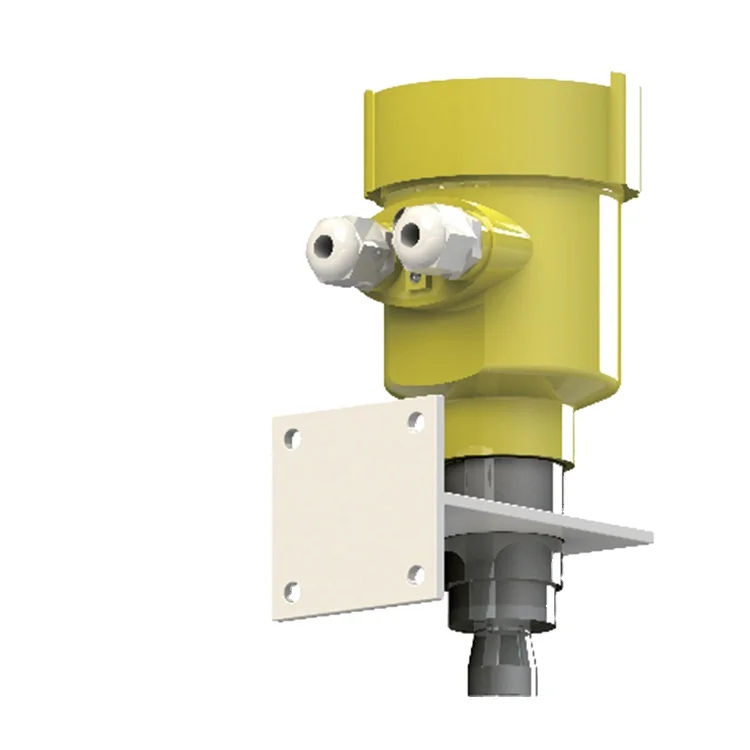

RS485 Guided Wave Radar Liquid Level Sensor / Water Level Transmitter
- Category: >>>
- Supplier: Dongguan Hcbetop Technology Co. Ltd.
Share on (10000009259004):
Product Overview
Description
Radar water level indicator
(High-frequency pulse radar 26G)
Model: HC.WLX-1(R)
HC.WLX-1(R) is level detection instrument adopting microwave technology, which is mainly used for the water level detection of natural sources water such as river and lake, also can be used for the open channel like large reservoir, cistern and foul sewer.
26Ghz series radar material level indicator adopts a special related solution technology,which can recognize the time span of emission and receiving pulse microwave accurately,thus the result of the distance from the antenna to the surface of detected medium is calculated out accordingly.
Feature:
1. High-frequency emission up to 26GHZ adopted.
3. Low system power consumption.
4. Short measuring cycle.
5. Pulse antenna design to avoid the influence of insect nesting and netting on the radar signals.
6. Bling angle is small.
7. Easy install and free maintenance.
2. Non-contact measurement，no need stop water; not affected by temperature, humidity, water vapor, pollutants and sediments in the water.
3. Low system power consumption.
4. Short measuring cycle.
5. Pulse antenna design to avoid the influence of insect nesting and netting on the radar signals.
6. Bling angle is small.
7. Easy install and free maintenance.
Application range
♦ Water level monitoring for natural source water,like river,lake,tidal,reservoir and underground water etc
♦ Water level monitoring for city flood and water logging in flood season,like lowland and waterspout.
♦ Auxiliary water treatment working,like urban water supply and drainage monitoring.
♦ Water level monitoring for city flood and water logging in flood season,like lowland and waterspout.
♦ Auxiliary water treatment working,like urban water supply and drainage monitoring.
Specification
Item | Description | |||||
Measuring range | 0~10m;0~20m;0~30m;0~40m;0~50m;0~70m | |||||
Accuracy tolerance | 3mm | |||||
Resolution | 1mm | |||||
Measuring temp. | .- 40 degree to 100 degree | |||||
Emission frequency | 26GHz | |||||
Emission power input (EIRP) | 20dBm | |||||
Signal interface | RS-485 (Modbus protocol,SDI12 is optional,and compatiable all kinds of RTU) | |||||
Data format | 9600 (default),8,n,1; (baud rate can be adjusted) | |||||
Working voltage | 6 ~ 24V DC | |||||
Working currency | 10mA | |||||
Antenna | 316 Stainless steel | |||||
Protection grade | IP67 | |||||
Pressure | Max.4MPa | |||||
Shockproof | 10m/s2 (10~150)Hz | |||||
1:Are you factory or only company?
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
