New Monocrystalline Silicon Solar Panel 430 W 450 W 550 W Photovoltaic Panel Power Generation System For Enterprise Electricity
- Category: >>>
- Supplier: Zhongwang (liaoyang) Imp. & Exp. Co. Ltd.
Share on (10000009282682):
Product Overview
Description

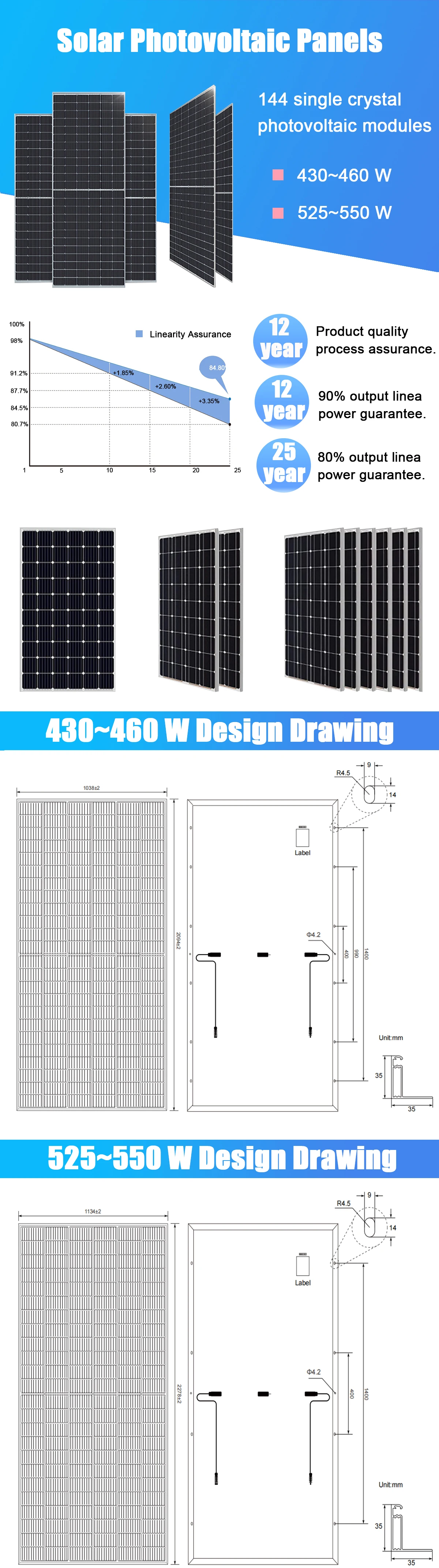

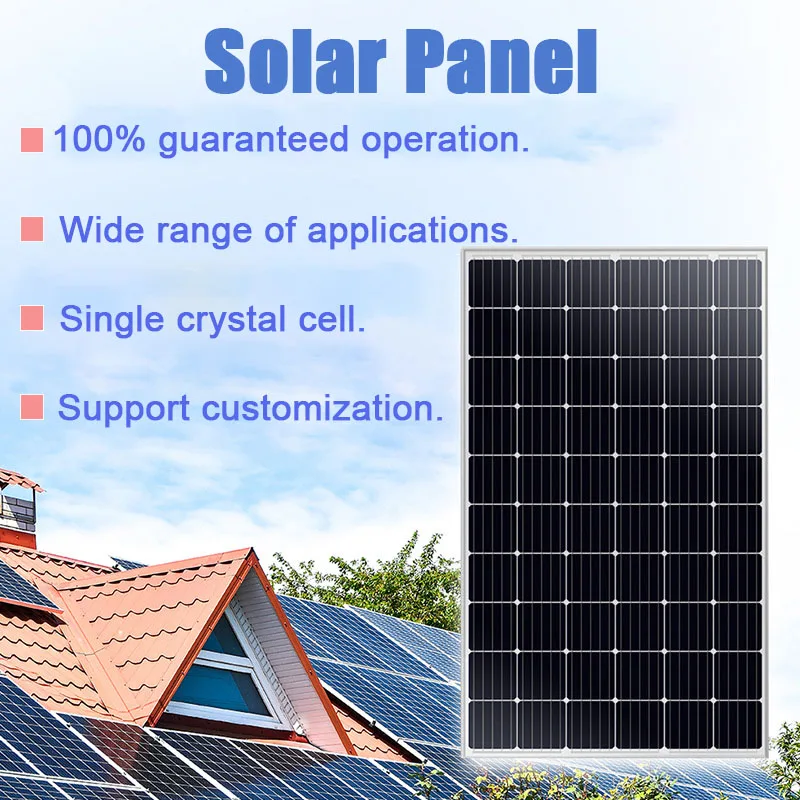

Product Display
Product Parameters

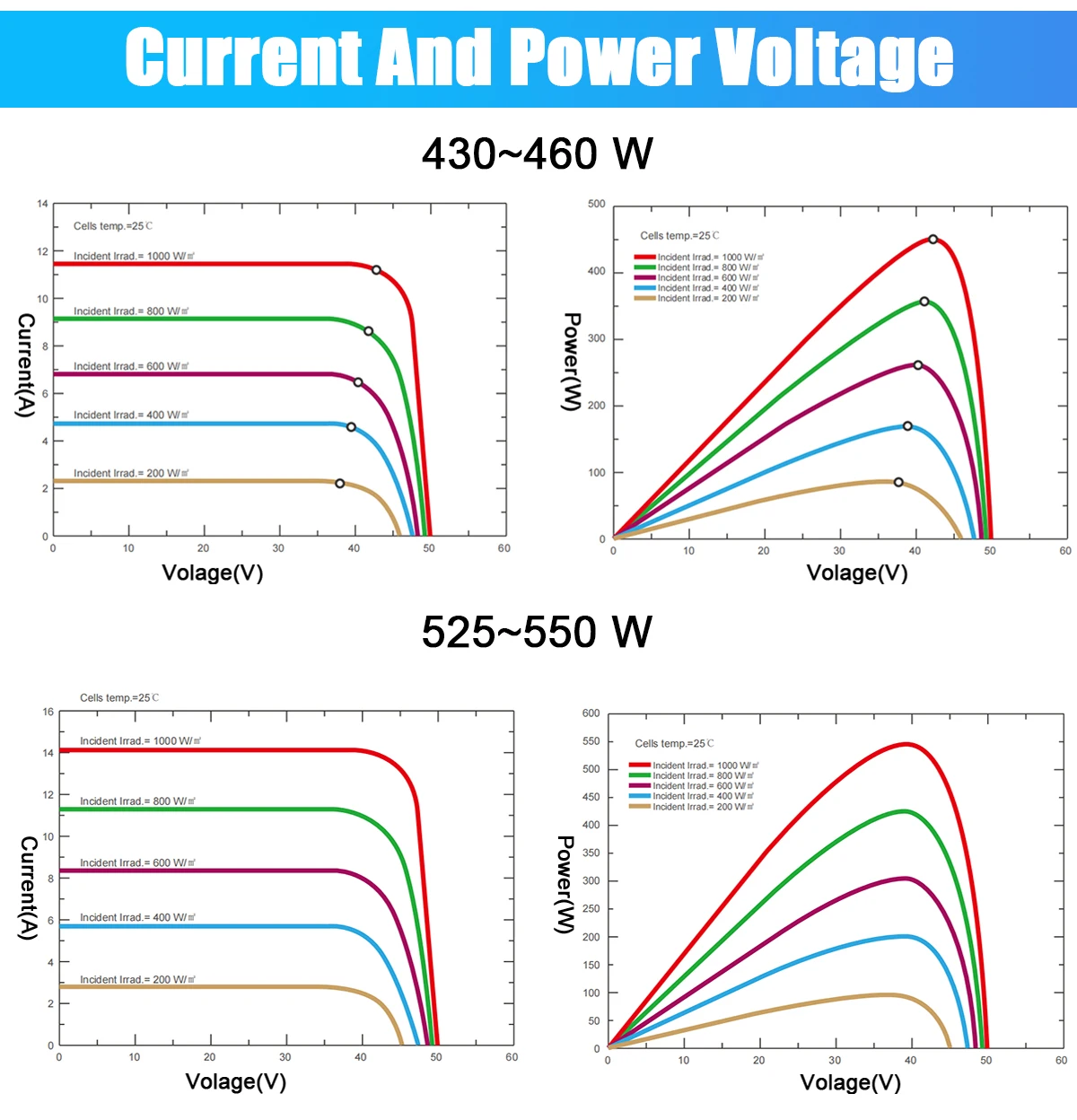

Electrical Parameters 430~460 W | ||||||||||||||||
Model | Pmax(W) | Voc(V) | Isc(A) | Vmp(V) | Imp(A) | ηm(%) | ||||||||||
LY430M6 | STC | 430 | 48.5 | 11.31 | 40.7 | 10.57 | 19.8 | Maximum system voltage (V):1500Vdc (IEC / UL) Maximum rated fusing current (A):25A | ||||||||
NOCT | 317.4 | 45.3 | 9.08 | 37.7 | 8.42 | / | ||||||||||
LY435M6 | STC | 435 | 48.7 | 11.39 | 40.9 | 10.64 | 20.0 | |||||||||
NOCT | 321.1 | 45.5 | 9.15 | 37.9 | 8.47 | / | ||||||||||
LY440M6 | STC | 440 | 48.9 | 11.46 | 41.1 | 10.71 | 20.2 | |||||||||
NOCT | 324.9 | 45.7 | 9.21 | 38.1 | 8.53 | / | ||||||||||
LY445M6 | STC | 445 | 49.1 | 11.53 | 41.3 | 10.78 | 20.5 | |||||||||
NOCT | 328.6 | 45.8 | 9.27 | 38.3 | 8.59 | / | ||||||||||
LY450M6 | STC | 450 | 49.3 | 11.60 | 41.5 | 10.85 | 20.7 | |||||||||
NOCT | 332.3 | 46.0 | 9.33 | 38.5 | 8.64 | / | ||||||||||
LY455M6 | STC | 455 | 49.5 | 11.66 | 41.7 | 10.92 | 20.9 | |||||||||
NOCT | 336.1 | 46.2 | 9.38 | 38.6 | 8.70 | / | ||||||||||
LY460M6 | STC | 460 | 49.7 | 11.73 | 41.9 | 10.98 | 21.2 | |||||||||
NOCT | 339.8 | 46.4 | 9.43 | 38.8 | 8.75 | / | ||||||||||
Electrical Parameters 525~550 W | ||||||||||||||||
Model | Pmax(W) | Voc(V) | Isc(A) | Vmp(V) | Imp(A) | ηm(%) | ||||||||||
LY525M10 | STC | 525 | 49.15 | 13.65 | 41.15 | 12.76 | 20.3 | Power tolerance (W):（0，+4.99W） Maximum system voltage (V):1500Vdc (IEC / UL) Maximum rated fusing current (A):25A | ||||||||
NOCT | 397 | 46.05 | 10.97 | 38.36 | 10.35 | / | ||||||||||
LY530M10 | STC | 530 | 49.30 | 13.72 | 41.31 | 12.83 | 20.5 | |||||||||
NOCT | 401 | 46.18 | 11.01 | 38.57 | 10.39 | / | ||||||||||
LY535M10 | STC | 535 | 49.45 | 13.79 | 41.47 | 12.90 | 20.7 | |||||||||
NOCT | 405 | 46.31 | 11.05 | 38.78 | 10.43 | / | ||||||||||
LY540M10 | STC | 540 | 49.60 | 13.86 | 41.64 | 12.97 | 20.9 | |||||||||
NOCT | 408 | 46.43 | 11.09 | 38.99 | 10.47 | / | ||||||||||
LY545M10 | STC | 545 | 49.75 | 13.93 | 41.80 | 13.04 | 21.1 | |||||||||
NOCT | 412 | 46.55 | 11.13 | 39.20 | 10.51 | / | ||||||||||
LY550M10 | STC | 550 | 49.90 | 14.00 | 41.96 | 13.11 | 21.3 | |||||||||
NOCT | 416 | 46.68 | 11.17 | 39.43 | 10.55 | / | ||||||||||
Structural Properties | 525 | 49.15 | ||
430~460 W | 525~550 W | |||
Component Size | 2094x1038x35mm | 2278x1134x35mm | ||
Weight | 23.3kg | 28.6kg | ||
Junction Box | IP68 | |||
Output Wire | 4.0mm²;Wire length: positive and negative 30cm, Customized length. | |||
Connector | MC4 compatible. | |||
Mechanical Load | The front is up to 5400Pa, the back is up to 2400Pa. | |||

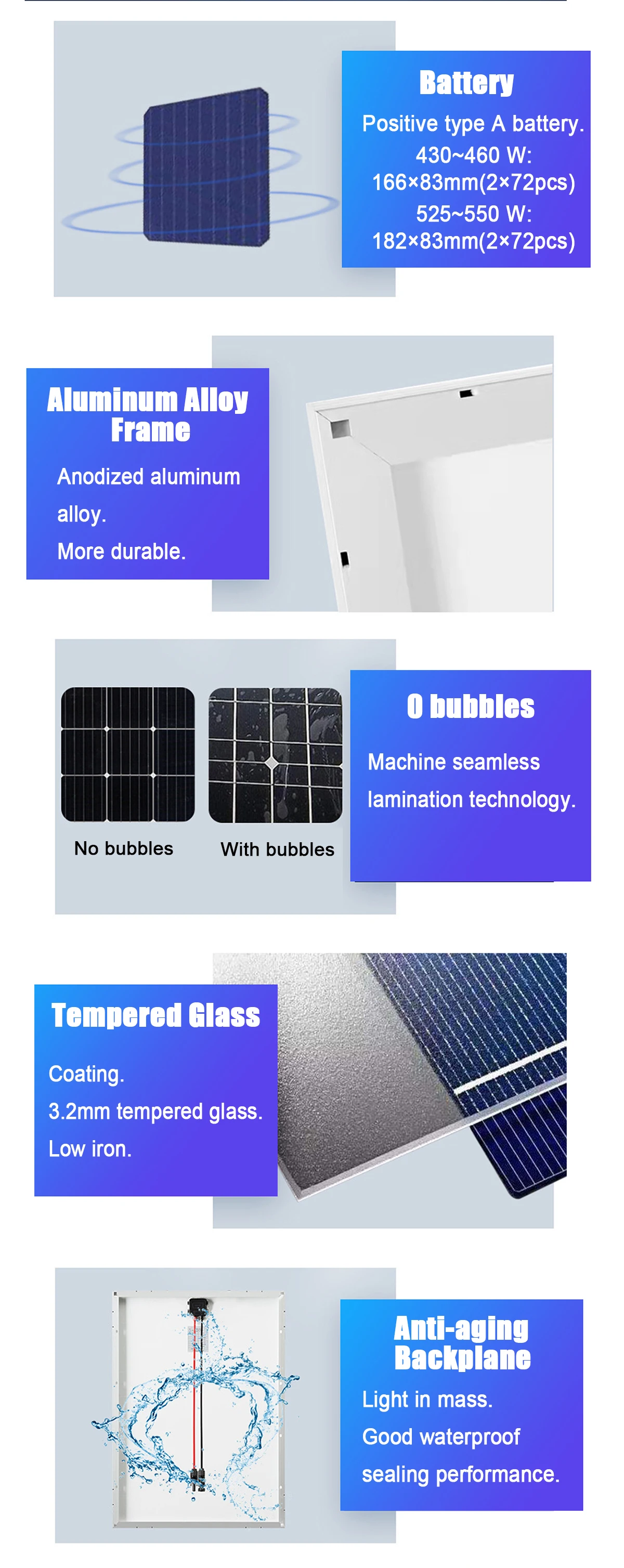

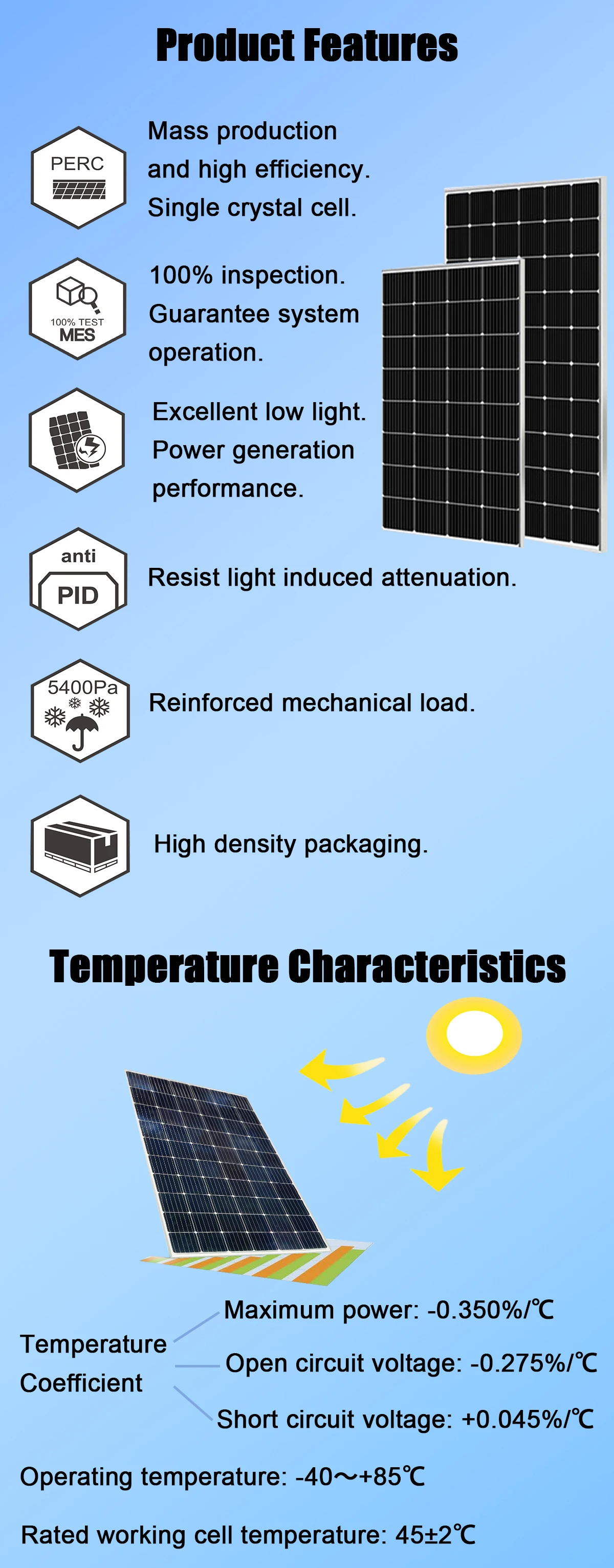

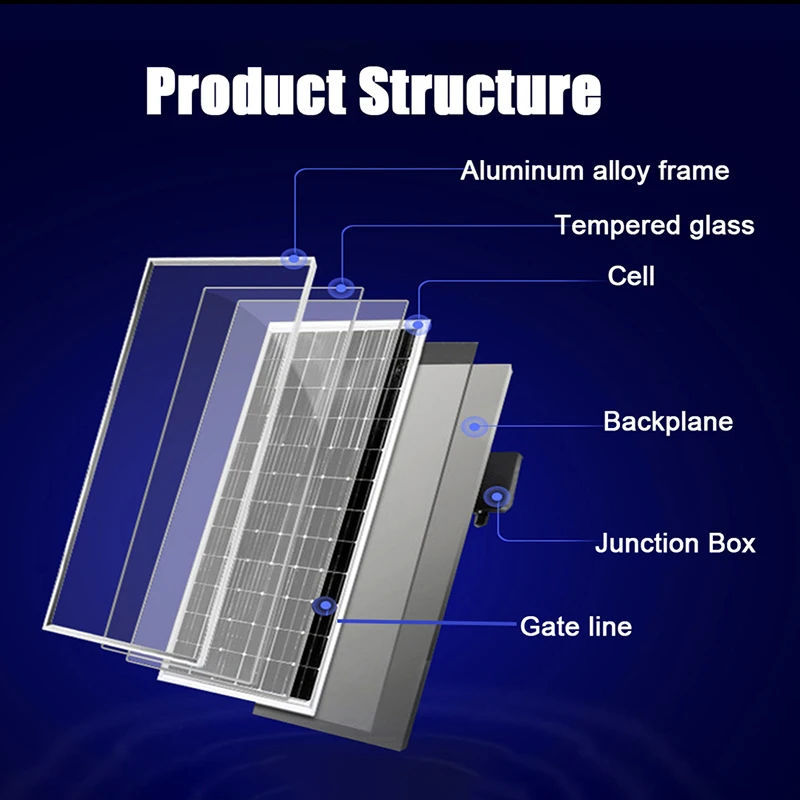

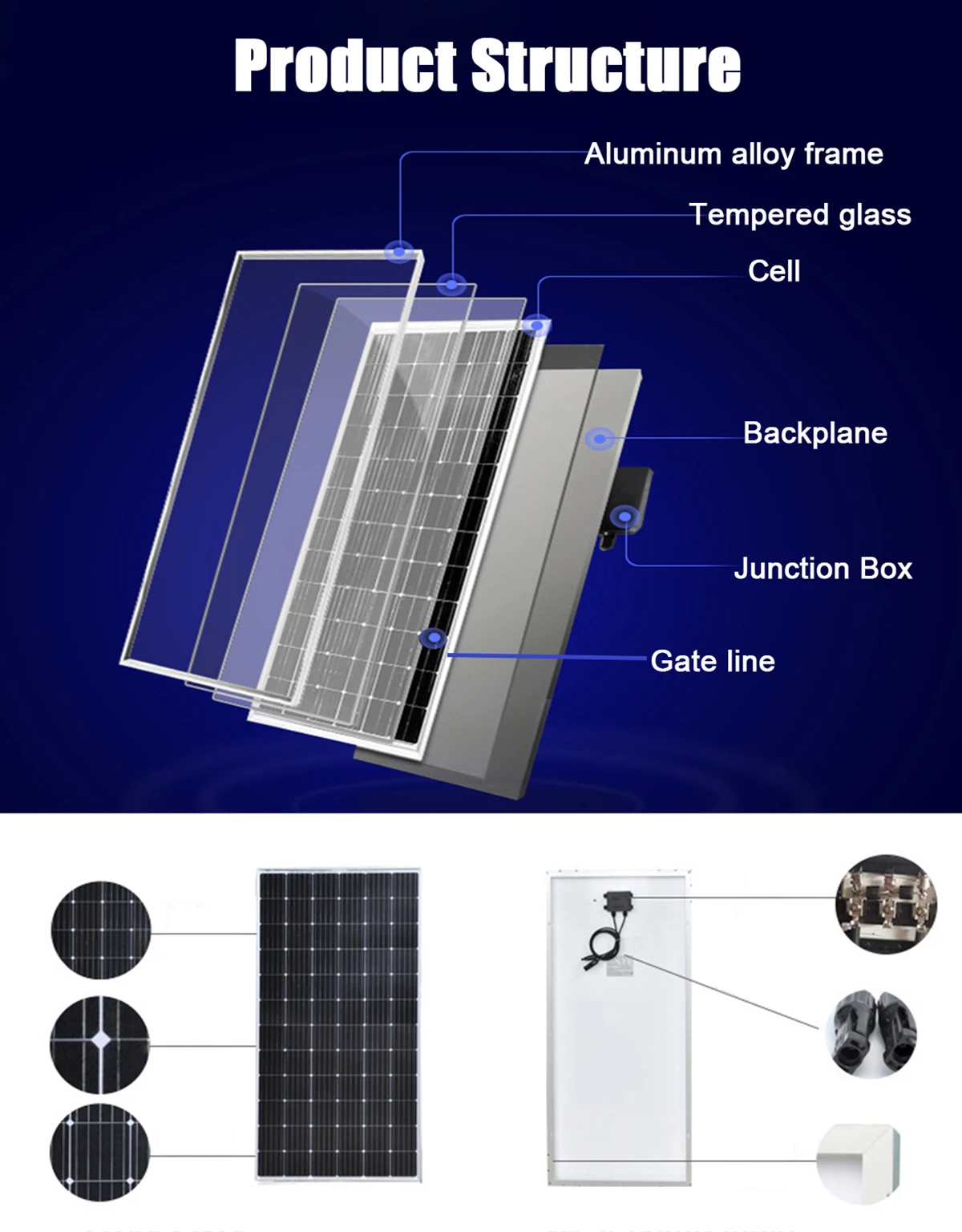

Product Features

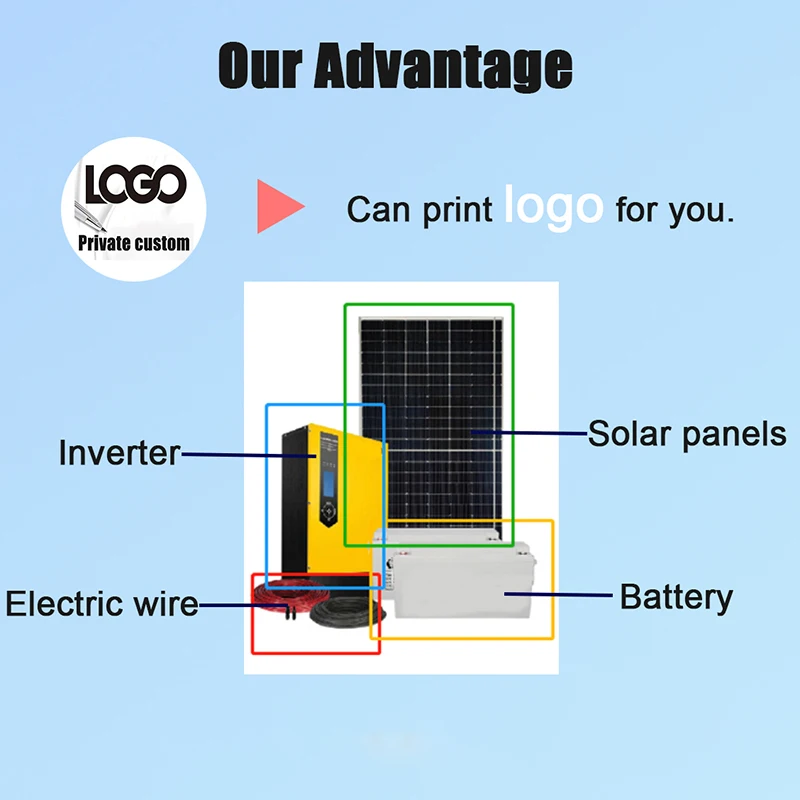

Our Advantages

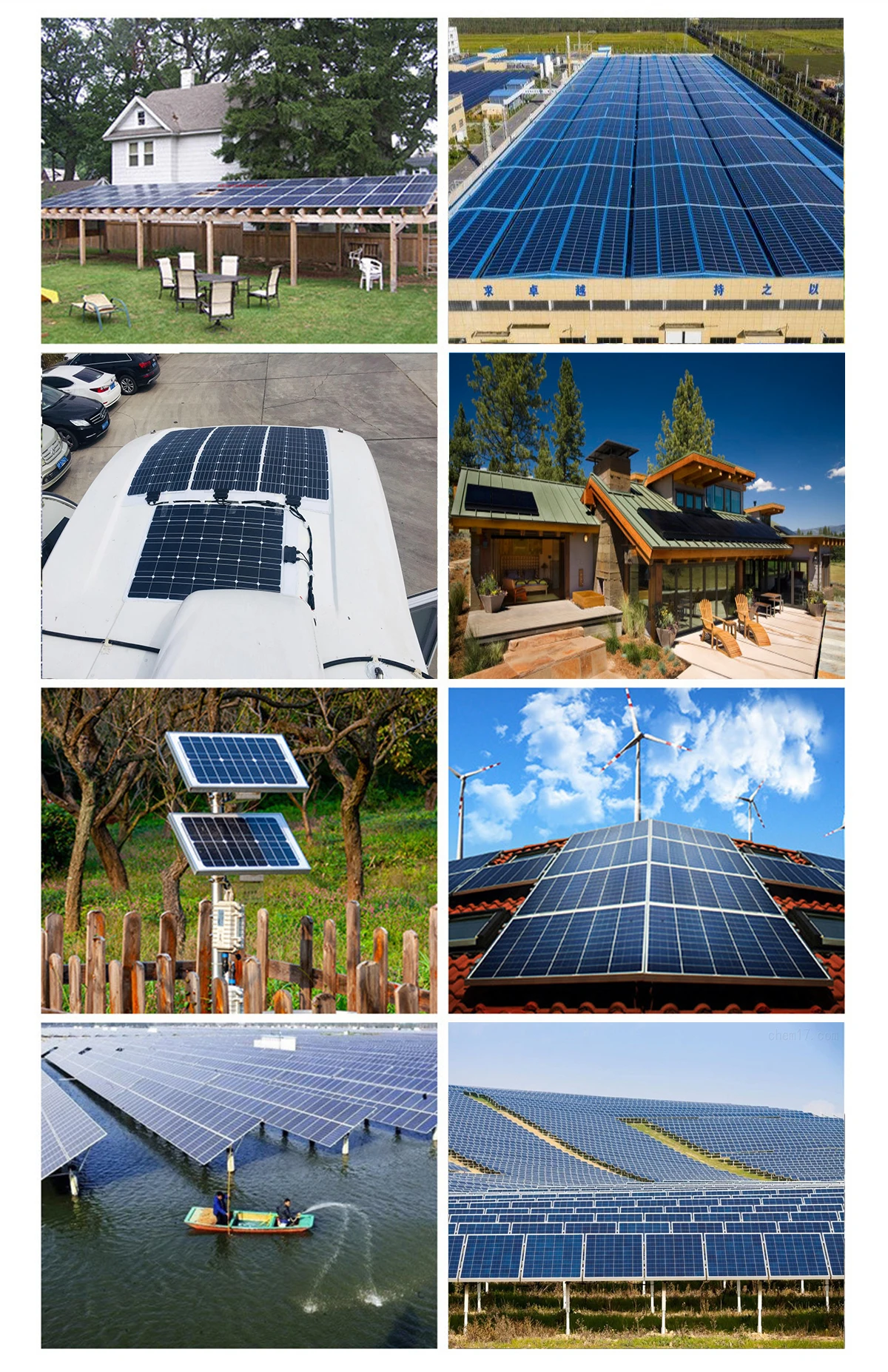

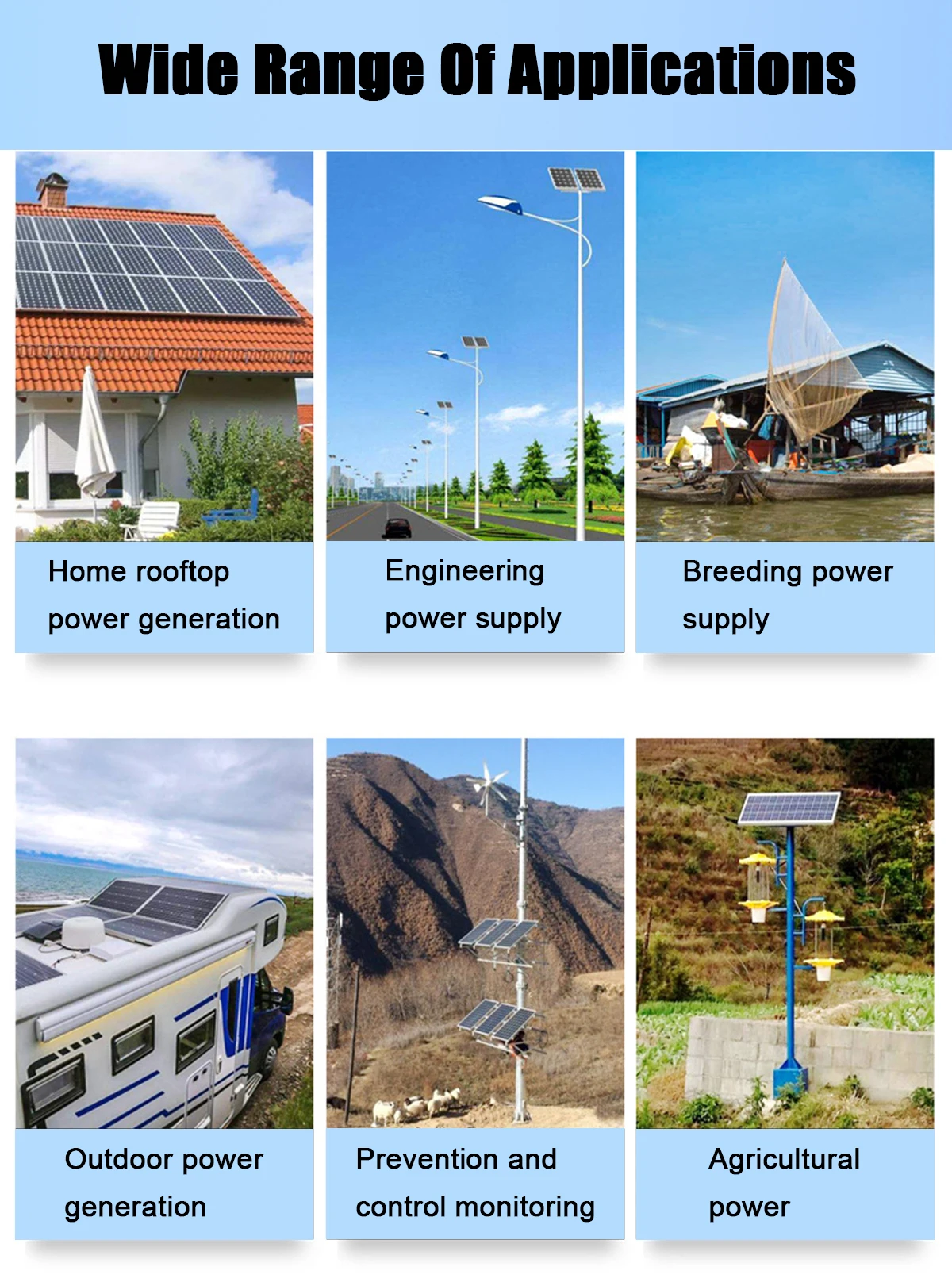

Application

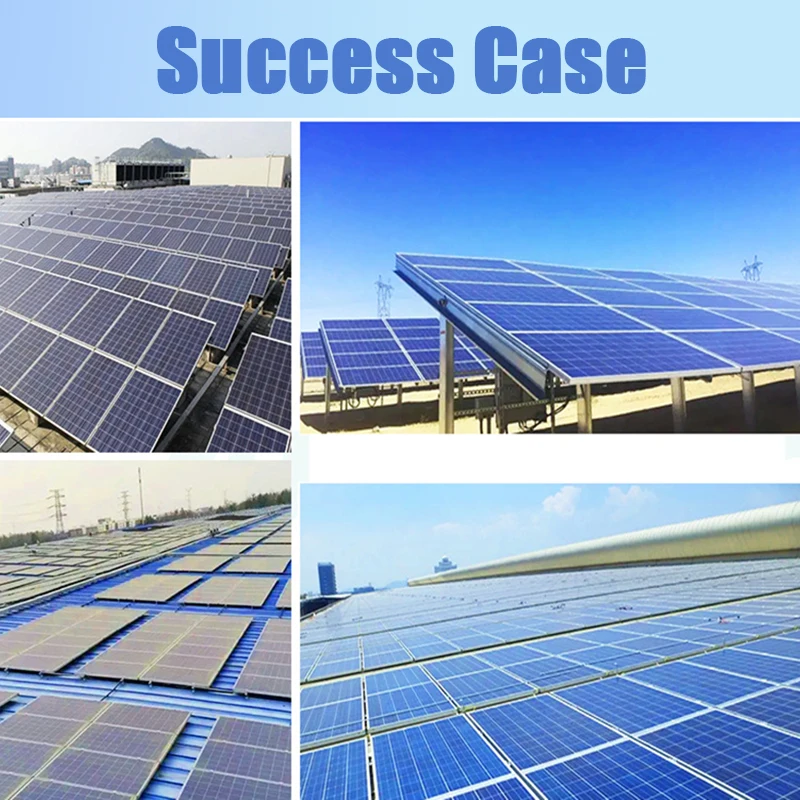

Real Case Show

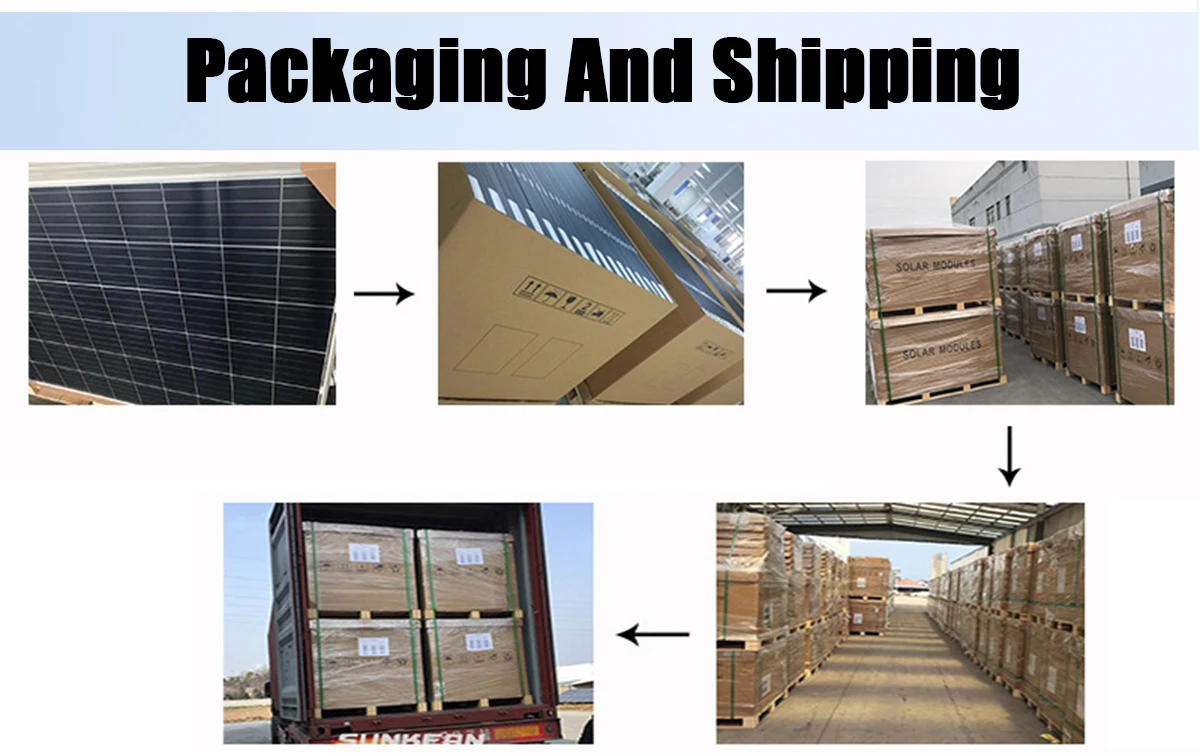

Packaging And Shipping
Container packaging | ||||||||
430~460 W | 525~550 W | |||||||
2094x1038x35mm | 2278x1134x35mm | |||||||
Container | 20’GP | 40’HQ | 20’GP | 40’HQ | ||||
Quantity per pallet | 31 | 31 | 31 | 31 | ||||
Number of pallets per cabinet | 5 | 22 | 4 | 20 | ||||
Quantity per container | 155 | 682 | 124 | 620 | ||||
