Hot Sale Magnetic Drill BJ-13 Drilling Range Diameter 13mm
$94.50-$133.10
Magnetic drilling machine best quality DX 120X magnetic core drill with tapping function
- Category: >>>
- Supplier: Zhejiang Xinxing Tools Co. Ltd.
Share on (10000009314081):
Product Overview
Description
VR
Products Description
Product Type | DX-120 |
Motor rated power | 2500W |
Load speed | 80/125/175/300rpm |
Tool holder | MT4 |
Magnetic adhesion | 20000N |
The max cutter capacity | 120mm (4-3/4”) |
The max cutting depth | 100mm( 4" ) |
The max diameter of twist drill | 42mm ( 1-11/16" ) |
The min cutter depth | 15mm |
Stroke | 220mm |
Motor can adjust the height to | 60mm |

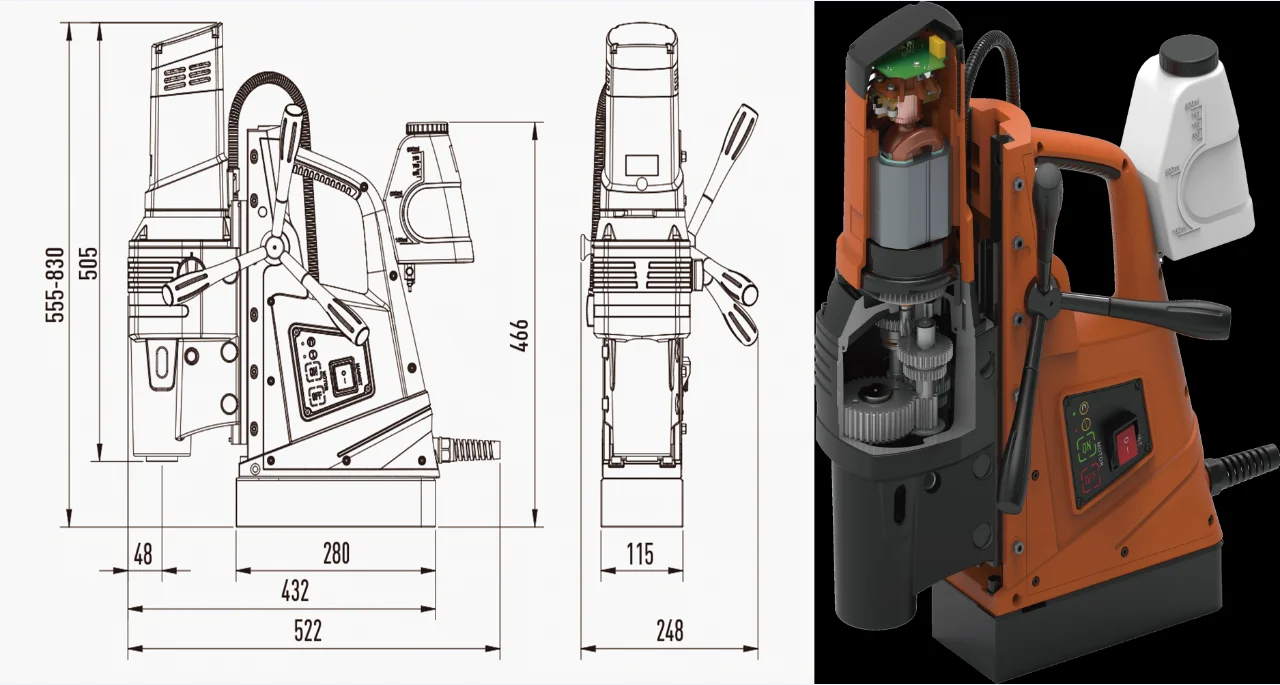

Magnetic drill machine dimension | 440*250*580mm |
Magnetic base size | 280*115*56.5mm |
Countersunk drilling | 10-80mm |
Total weight | 36.5KG |

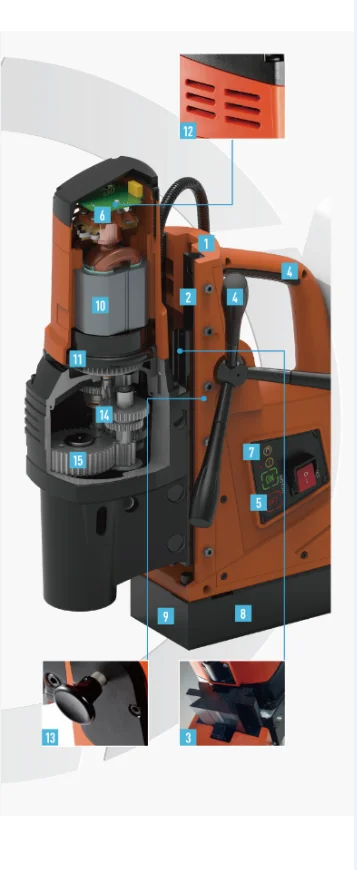

DX-120 MAG DRILL FEATURES
1.Aluminum machine body with tilted type and high-strength,balanced rigidity and aesthetics
2.Lightweight design of the rails and skateboards,surface-hardening treatment, excellent durability
3.Double dovetail skateboard structure, the motor is adjustable to meet more requirements for heights
4.Hands are ergonomically designed to reduce operating fatigue
5.Use the membrane switch to control, light and easy to operate
6.Motor overcurrent protection function
7.Power, magnetic indicator light, effectively to know the working status of the equipment
8.High penetration magnetic base suction, more reliable adsorption force
9.Magnetic base stand-by half-wave mode, more durable and safer
10.2500W High-power motor configuration, the drilling is stable
11.Air outlet guide design, prevent direct blowing at the operating position
12.The inclined protection design of the air inlet to avoids liquid or debris falling into the inside of the motor
13. Four speed adjustment, widely used.
13. Four speed adjustment, widely used.
14.High-speed gear with 7-level precision, noise reduction and long life
15. Sliding plate lock makes tool replacement & machine displacement safe and convenient
Product packaging

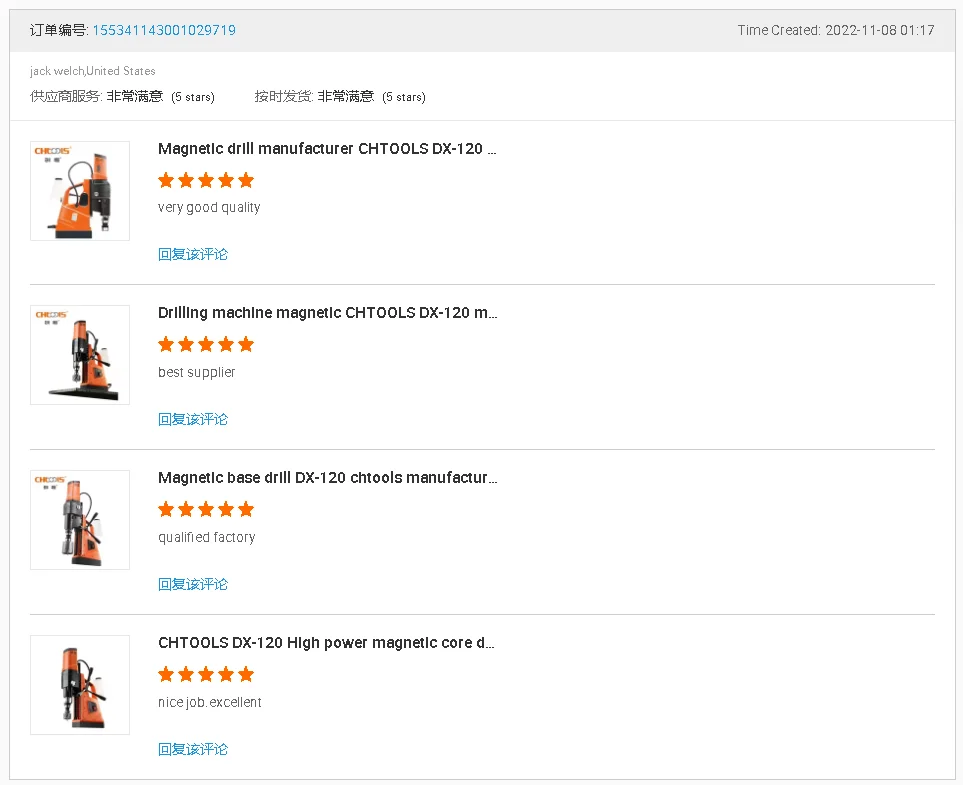

Comment & FAQ
FAQ：
- What do you do?
A: Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.
- Can you do OEM for us?
A: OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.
- Can you help us to do some change about your product?
A: Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.
- Can I get a sample?
A: Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.
- Are you a factory or trading company?
A: We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.
- Where is your company location?
A: We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing, Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.
More products
Company Profile
Zhejiang Xinxing Tools Co., Ltd. established in 1994, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance.
Our products include: Annular cutter, rail cutter, hole saw, spade drill, speed drill, step drill, countersink, magnetic drill machine, deep hole drill, taps, rebar cutter, etc.
We concentrate on manufacturing high-quality cutting tools, normalize ISO9001:2015 quality control system under operation strictly, and ensure unified high standard quality requirements.
We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory.
We concentrate on manufacturing high-quality cutting tools, normalize ISO9001:2015 quality control system under operation strictly, and ensure unified high standard quality requirements.
We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory.
