Wide range 0.01 2000 Winner2008A wet disperison laser particle size analyzer for sale
- Category: >>>
- Supplier: Jinan Winner Particle Instrument Stock Co. Ltd.
Share on (10000009354111):
Product Overview
Description
High accuracy lab ISO13320 0.01-2000 um wet method Wide Range laser particle size analyzer price
Product Description
Details Images

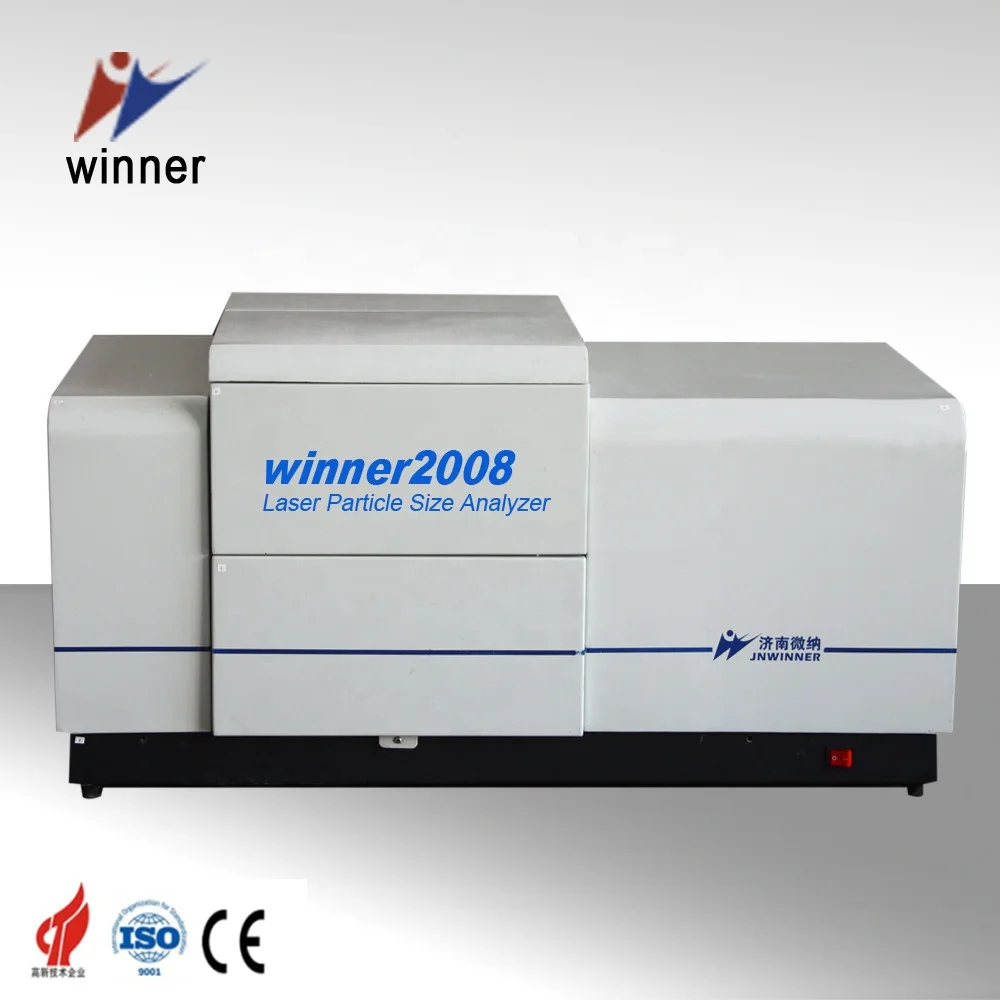

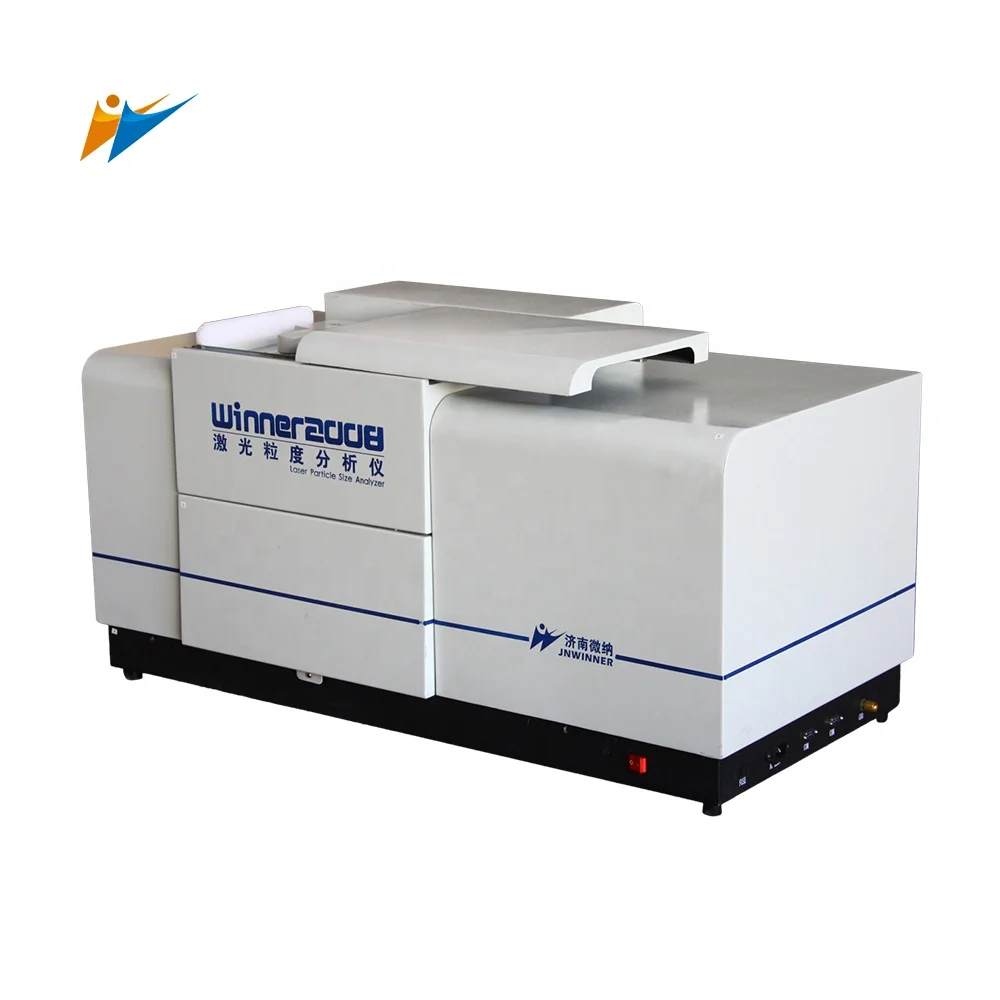

Winner2008A full automatic wet laser particle size analyzer measure size is from 0.01 to 2000 micron, Which offer reliable and repeatable particle size analysis for a diverse range of applications.It use dual-beam& multi-spectral detection systems and side light scatter test technology to significantly improve precision and performance of test, on behalf of the domestic advanced level in the field.
Main Features:
1)Full built-in dispersion system set mechanical stirring, ultrasonic dispersion, and circulation path in one, Big power-circulating pump and Optimization design of pipeline,effectively prevent large particle sediment.
2) Optical Calibration System is composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state..
3)Original Unconstrained free fitting technology make particle analysis not be restricted by any functions, truly reflect particles distribution.
4)Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Double spectrum design and Dual-laser orthogonal light increase the measurement rang, and its precision achieves from 0.01μm to 2000μm.
Laser Particle Size Analyzer Application Field
Cement, ceramic, medicine, emulsion, dope, dye, padding, chemical products, catalyst, drilling fluid, abrasive, lubricant, braize, cell, germ, food, additive, pesticide, explosive, graphite, photosensitive material, fuel, ink, metal and nonmetal powder, calcium carbonate, kaolin, water-coal-slurry and other powder materials
Specification
item | value |
Warranty | 1 year |
Customized support | OEM |
Place of Origin | China |
Shandong | |
Brand Name | Winner 2008A |
Size Range | 0.01μm-2000μm |
Channels Number | 127 pcs |
Accuracy error | <1% |
Repeatability error | <1% |
Dispersion Method | wet-turbulence dispersion mode |
Optical Path Calibration System | Automatic |
Net Weight | 58Kg |
Test Speed | <1 min for each time |
Dispersing Medium | Compressed air |
Operation System | Win XP/ Win 7 |

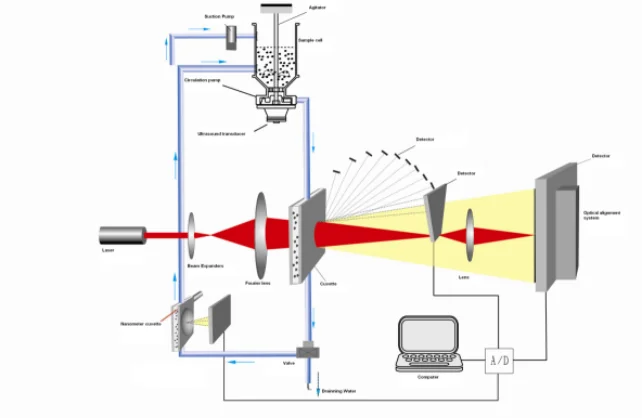

Principle

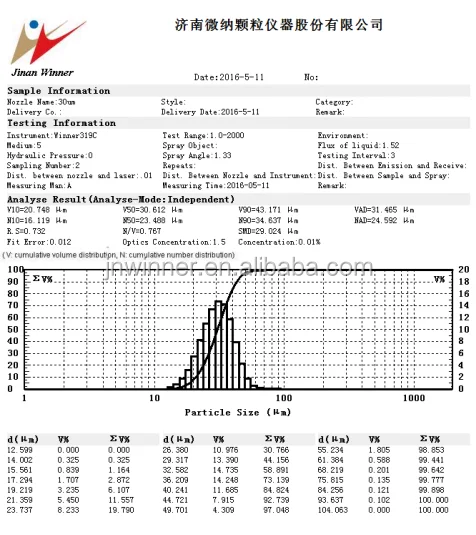

Demo Test Report
Our Services
Quality Assurance For Laser Particle Size Analyzer
Quality Assurance For Laser Particle Size Analyzer
1. Strictly conforming to ISO9001-2000 quality management system,
2. Strict control from purchasing materials, process inspection to final particle size distribution test,
3. QC department to execute quality control regulations,
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5, Laser particle size analyzer will be processed preventing -shake test before delivery.
After sale service
1. We will send our technician to install the laser particle size analyzer if customer need.( operation demo video CD will be offered also.)
1. We will send our technician to install the laser particle size analyzer if customer need.( operation demo video CD will be offered also.)
2. Offer free-training service.
3. The quality assurance date is 1 year since finishing payment, Technology support in all a life. And after that, we will collect the cost if provide repair accessories.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
Company Profile
Jinan Winner Particle Instrument Co., Ltd. have have been specialized in particle size analyzer for more than 30 years, since we undertake National Science Project-particle size analyzer development in 1985.
We are the 1st manufacturer to produce Nano-particle size analyzer in China!
Our particle size analyzer will enable you understand materials well, and save your time and cost. Reliable data enables scientists, researchers and engineers to evolve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality, and optimize output.
By now, We have Laser Particle size analyzer, Image particle size analyzer, Spray particle size analyzer, particles counter and Nano-particles size analyzer and so on.
We are dedicated to offer you the best particle size analysis solution.
Your satisfaction is our eternal target!
We are the 1st manufacturer to produce Nano-particle size analyzer in China!
Our particle size analyzer will enable you understand materials well, and save your time and cost. Reliable data enables scientists, researchers and engineers to evolve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality, and optimize output.
By now, We have Laser Particle size analyzer, Image particle size analyzer, Spray particle size analyzer, particles counter and Nano-particles size analyzer and so on.
We are dedicated to offer you the best particle size analysis solution.
Your satisfaction is our eternal target!
Packing & Delivery
Winner particle testing equipment is Wooden box package.
We would ship machine by DHL, FeDex, China express, by sea and by air.
Certifications
Recommend Products
Exhibition
Our Customers
Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 10 first particle size analysis technology in China!
We created more than 10 first particle size analysis technology in China!
FAQ
Purchase laser particle size analyzer need know points:
1) What materials need test?
If suspension/emulsion, must choose liquid dispersion particle size analyzer, and some materials are also reacted with water, so need liquid dispersion particle size analyzer also. Generally, cement, metal powders and pharamcy materials need dry dispersion model particle size analzyer.
1) What materials need test?
If suspension/emulsion, must choose liquid dispersion particle size analyzer, and some materials are also reacted with water, so need liquid dispersion particle size analyzer also. Generally, cement, metal powders and pharamcy materials need dry dispersion model particle size analzyer.
2) What size range need test?
By now, Based on MIE scattering, laser particle size analyzer can test the particle range is 0.01um-2000um.
If materials range is not so wide, for example, 10um-20um, smaller range of particle size distributon choose closer range model will be preciser, no need to buy large range model.
By now, Based on MIE scattering, laser particle size analyzer can test the particle range is 0.01um-2000um.
If materials range is not so wide, for example, 10um-20um, smaller range of particle size distributon choose closer range model will be preciser, no need to buy large range model.
3) What is dispersion media?
For liquid model, in order that sample can disperse well and circualte in the laser particle size analyzer, generally we need use water, alochol or organic solvent as dispersion media.For dry dispersion model, just use compressed air as dispersion media.In the current market, Dry laser particle size analyzer cost is higher than liquid dispersion models, so if can test well, liquid model is better.
For liquid model, in order that sample can disperse well and circualte in the laser particle size analyzer, generally we need use water, alochol or organic solvent as dispersion media.For dry dispersion model, just use compressed air as dispersion media.In the current market, Dry laser particle size analyzer cost is higher than liquid dispersion models, so if can test well, liquid model is better.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
