Product Overview
Description
This series of products, featuring a compact structure, can be applied in metallurgy, chemistry, food industry. They are safe and reliable, easy to operation and maintain.
Our Certificates
Features
1. Double wall, vertical structure, adopt vacuum powder insulation.
2. Compact structure, low daily evaporation rate, small footprint, centralized control, safe, reliable, easy operation and maintenance.
We have various sizes and styles of pressure regulators. Should you have any questions, pls feel free to contact us directly at any time!
1. Double wall, vertical structure, adopt vacuum powder insulation.
2. Compact structure, low daily evaporation rate, small footprint, centralized control, safe, reliable, easy operation and maintenance.
We have various sizes and styles of pressure regulators. Should you have any questions, pls feel free to contact us directly at any time!

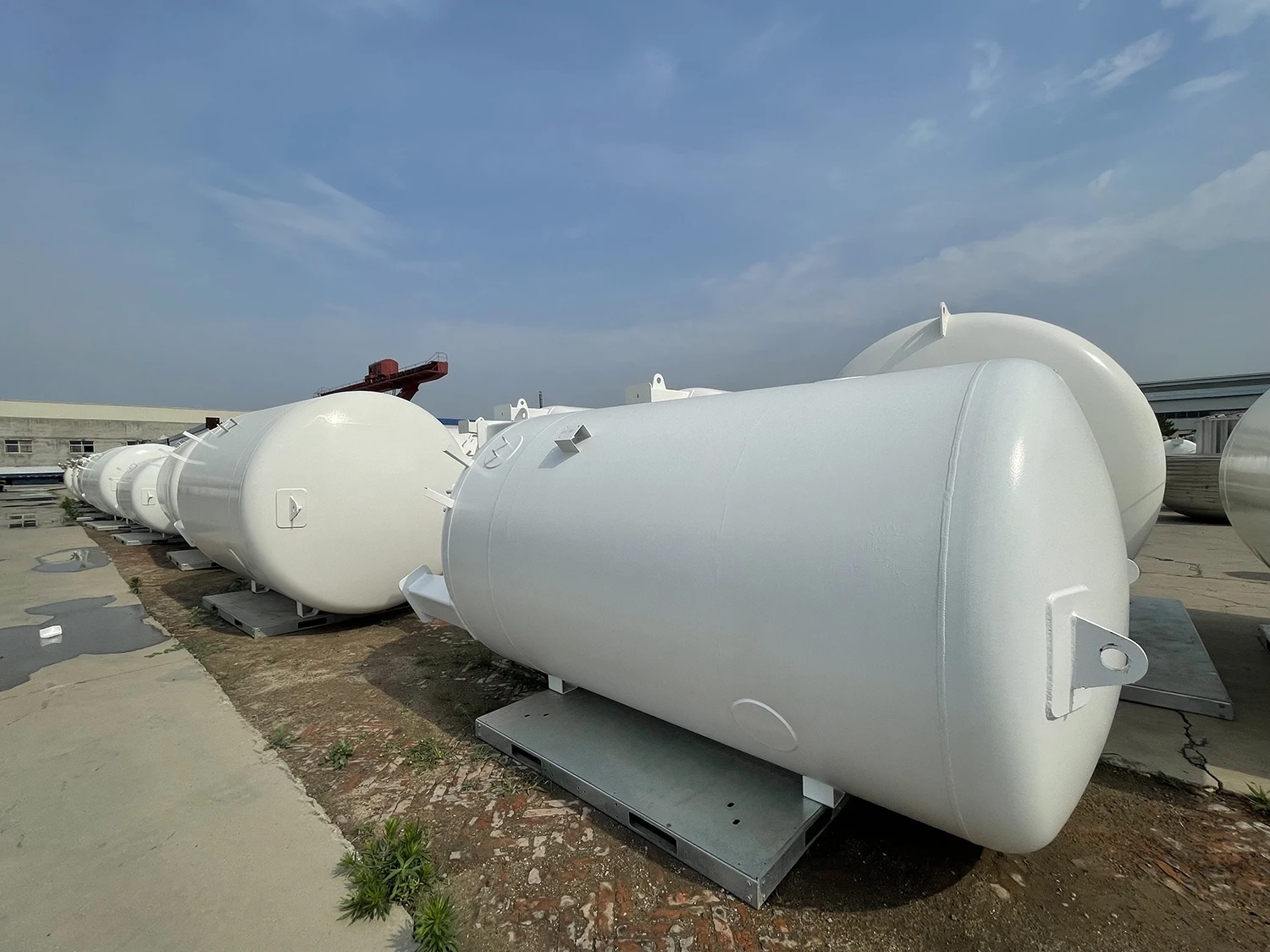

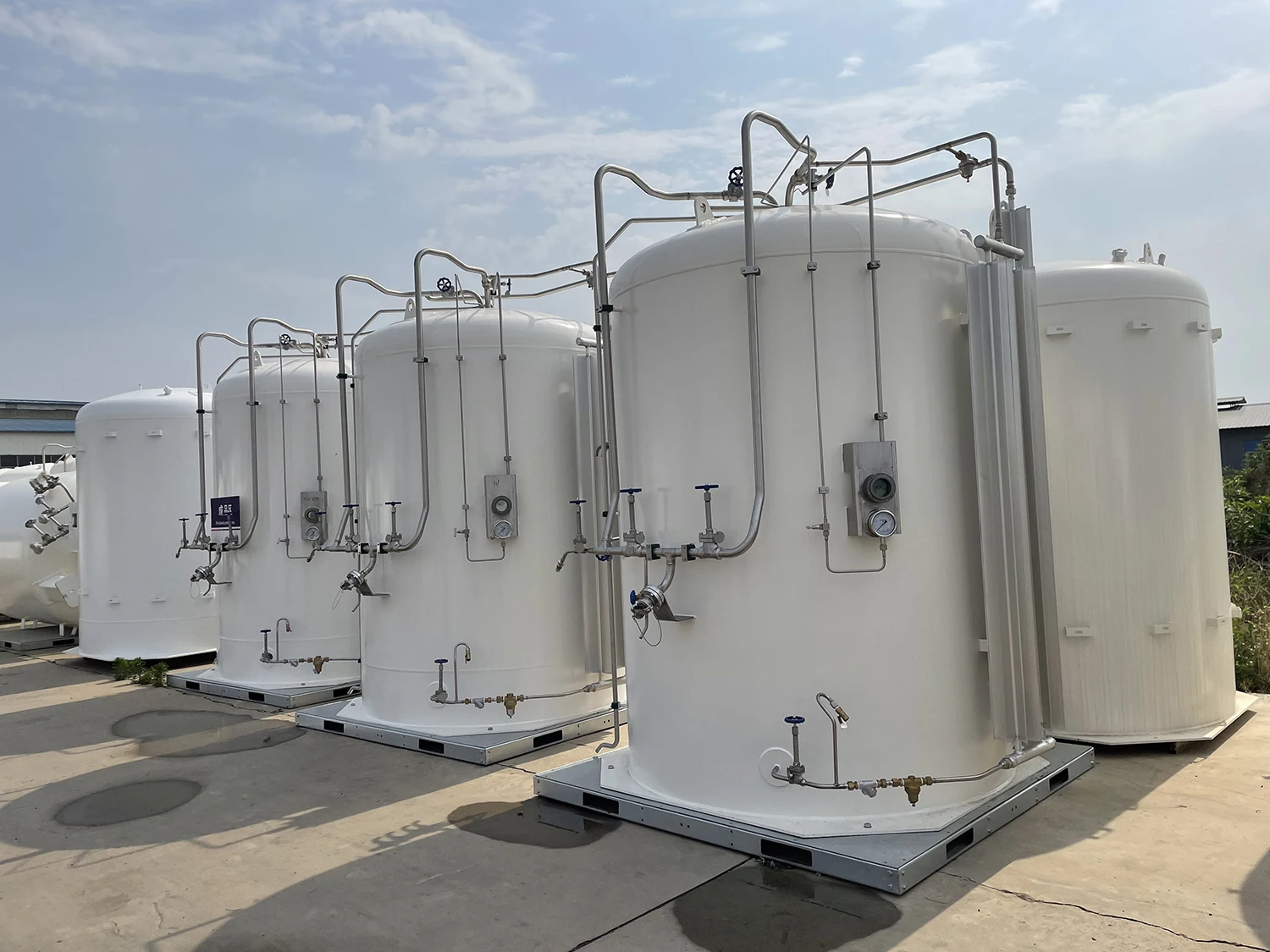

Product Display

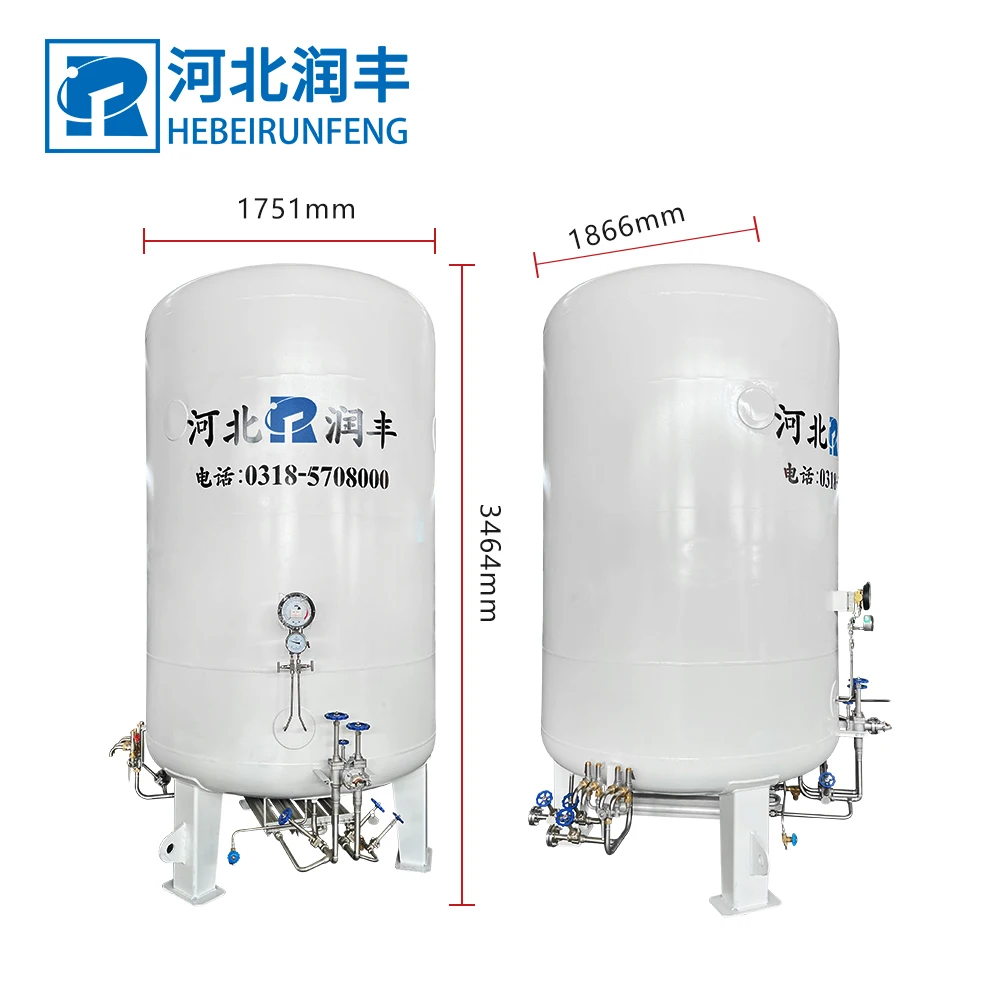

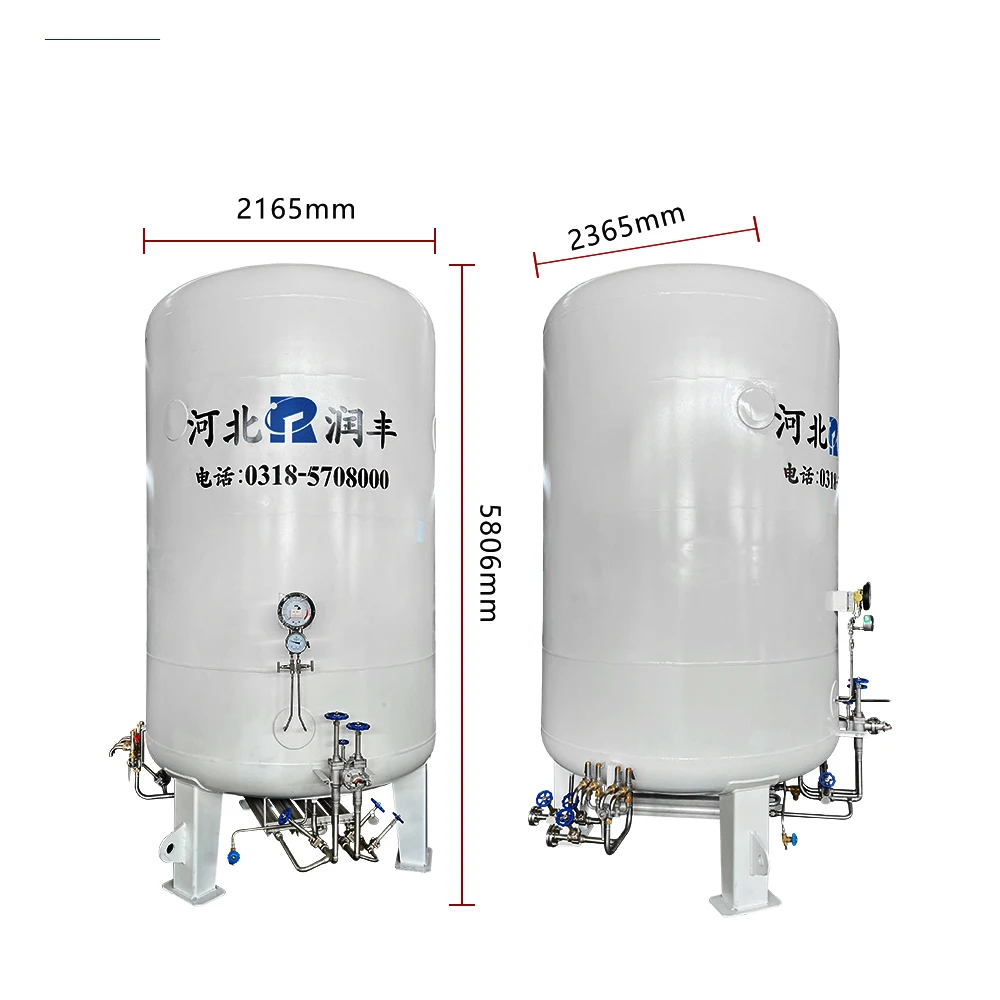

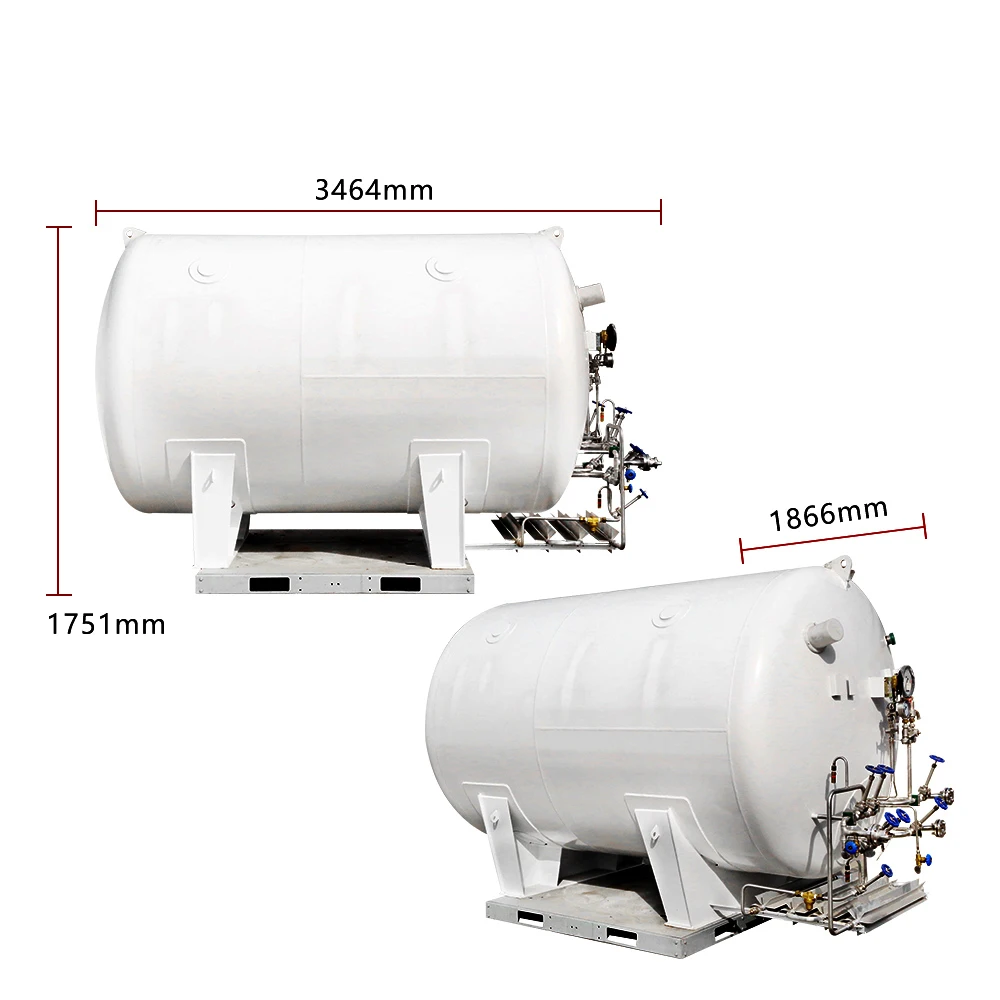

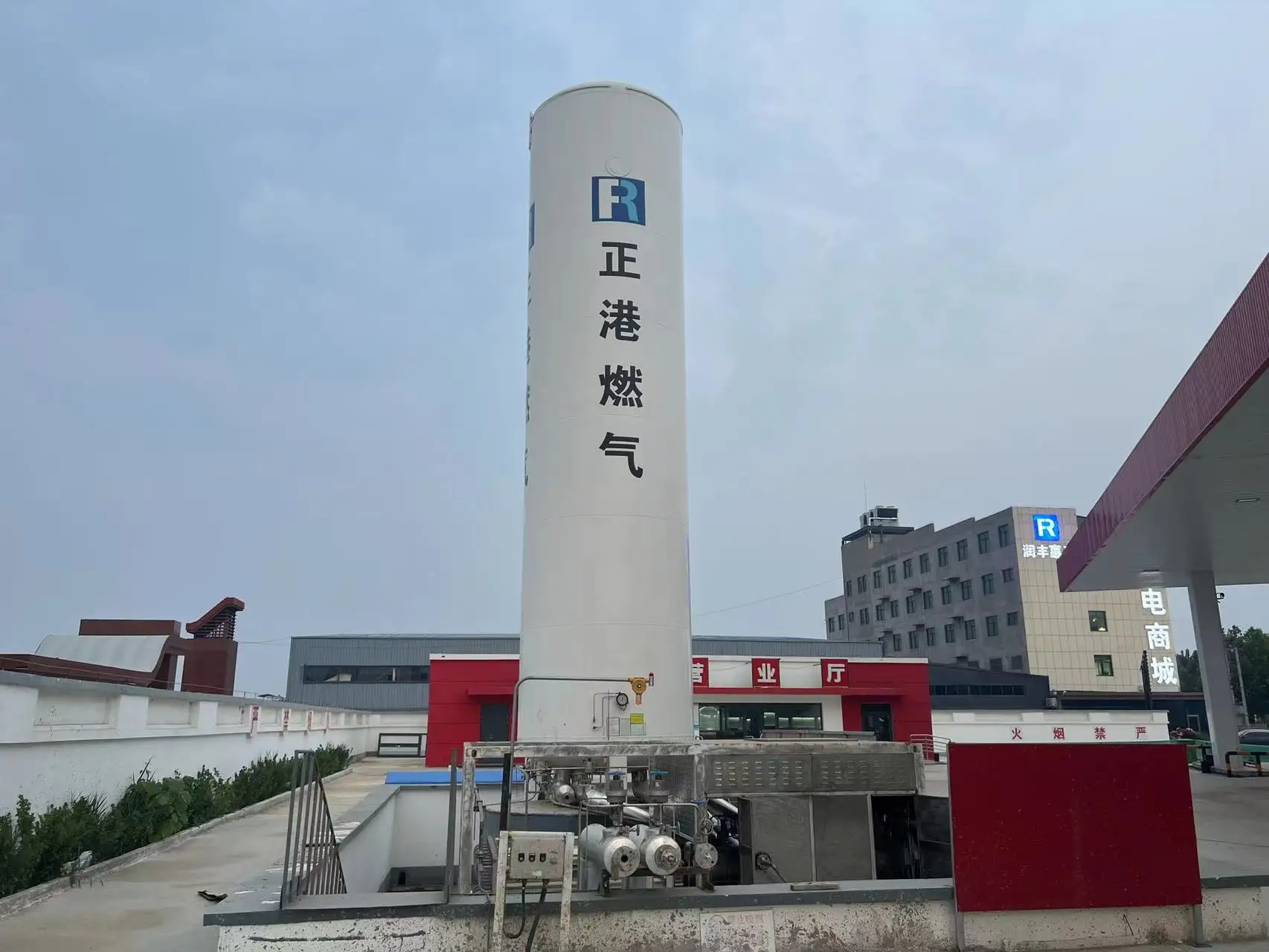

LIQUID CRYOGENIC STORAGE TANK
Vacuum powder insulation liquid cryogenic storage tank is used for storage and supply of cryogenic liquid like liquid oxygen,
liquid nitrogen,liquid argon and liquid carbon dioxide.
It has advantages of area-saving, safe, reliable and convenient maintenance, etc, and has m been widely used in gas,
chemical,mechanical, metallurgy, electronics, medical, glass, mining, nuclear power and other industries.

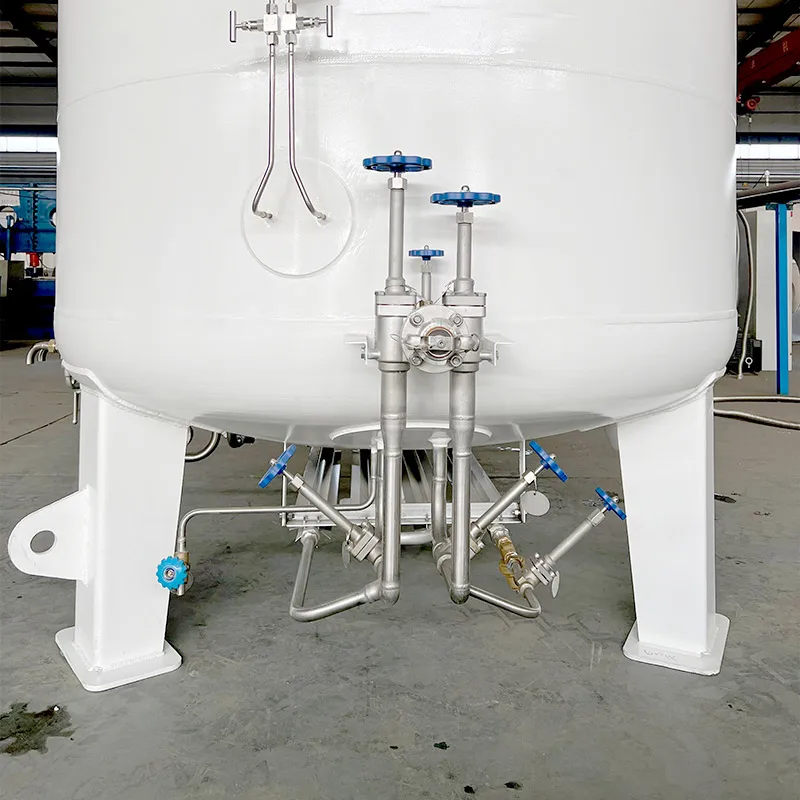

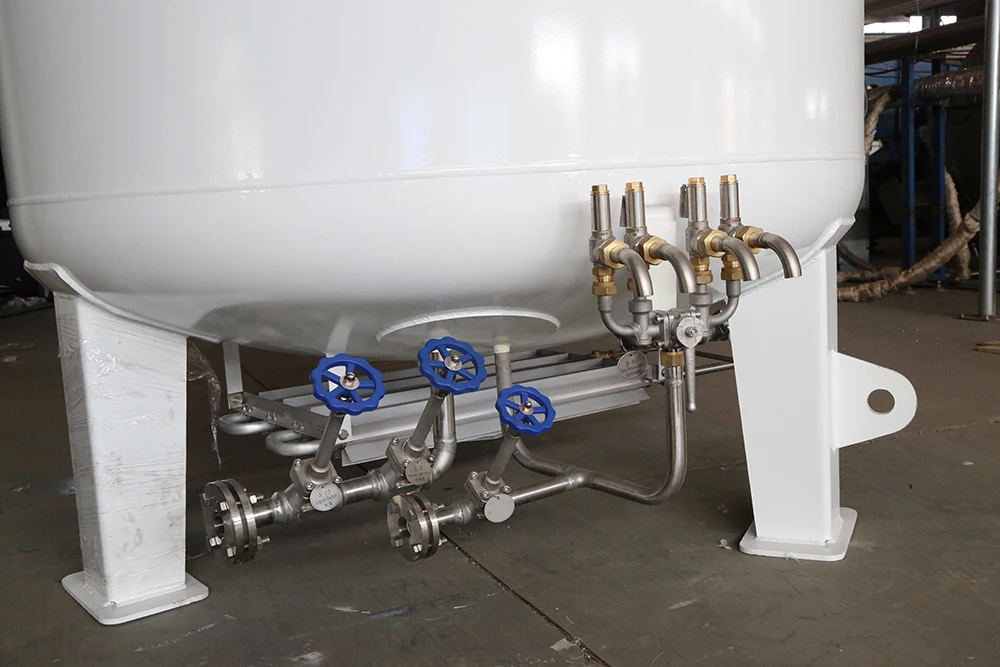

The tank supplies cryogenic liquid from the bottom. It can be connected with the exterior vaporizer and cryogenic pump. It can
also be designed and manufactured according to users' requirements.
liquid nitrogen,liquid argon and liquid carbon dioxide.
It has advantages of area-saving, safe, reliable and convenient maintenance, etc, and has m been widely used in gas,
chemical,mechanical, metallurgy, electronics, medical, glass, mining, nuclear power and other industries.
The tank supplies cryogenic liquid from the bottom. It can be connected with the exterior vaporizer and cryogenic pump. It can
also be designed and manufactured according to users' requirements.
LOX,LIN,LAr Cryogenic Liquid Tank | ||||||||||||||
Model | Water capacity | Working pressure(MPA) | Extemal dimension(mm) | Net weight(kg) | Full-load weight(kg) | |||||||||
LOX | LIN | LAr | ||||||||||||
CFLY05/1.0 | 5m3 | 1 | 2216*4405 | 4130 | 9830 | 8180 | 11130 | |||||||
CFL-Y05/1.75 | 5m3 | 1.75 | 2216*4405 | 4400 | 10100 | 8450 | 11400 | |||||||
CFL-Y10/1.0 | 10m3 | 1 | 2216*7098 | 6250 | 17920 | 14620 | 20520 | |||||||
CFL-Y10/1.75 | 10m3 | 1.75 | 2216*7098 | 6861 | 18261 | 14961 | 20861 | |||||||
CFL-Y15/0.8 | 15m3 | 0.8 | 2616*6520 | 7380 | 24480 | 22530 | 28380 | |||||||
CFL-Y15/1.75 | 15m3 | 1.75 | 2616*6520 | 8501 | 25601 | 20651 | 29501 | |||||||
CFL-Y20/0.8 | 20m3 | 0.8 | 2616*8030 | 8925 | 31725 | 25125 | 36925 | |||||||
CFL-Y20/1.75 | 20m3 | 1.75 | 2616*8030 | 10378 | 33178 | 26578 | 38378 | |||||||
CFL-Y30/0.8 | 30m3 | 0.8 | 2616*11070 | 12166 | 46366 | 36466 | 54166 | |||||||
CFL-Y30/1.75 | 30m3 | 1.75 | 2616*11070 | 14300 | 48500 | 38600 | 56300 | |||||||
CFL-Y50/0.8 | 50m3 | 0.8 | 3020*12685 | 19494 | 76494 | 59994 | 89494 | |||||||
CFL-Y50/1.75 | 50m3 | 1.75 | 3020*12685 | 23050 | 80050 | 63550 | 93050 | |||||||
CFL-Y100/0.8 | 100m3 | 0.8 | 3520*17585 | 33800 | 147800 | 114800 | 174800 | |||||||
CFL-Y100/1.6 | 100m3 | 1.6 | 3520*17585 | 40550 | 154550 | 121550 | 181550 | |||||||
Relatd Products
Company Profile

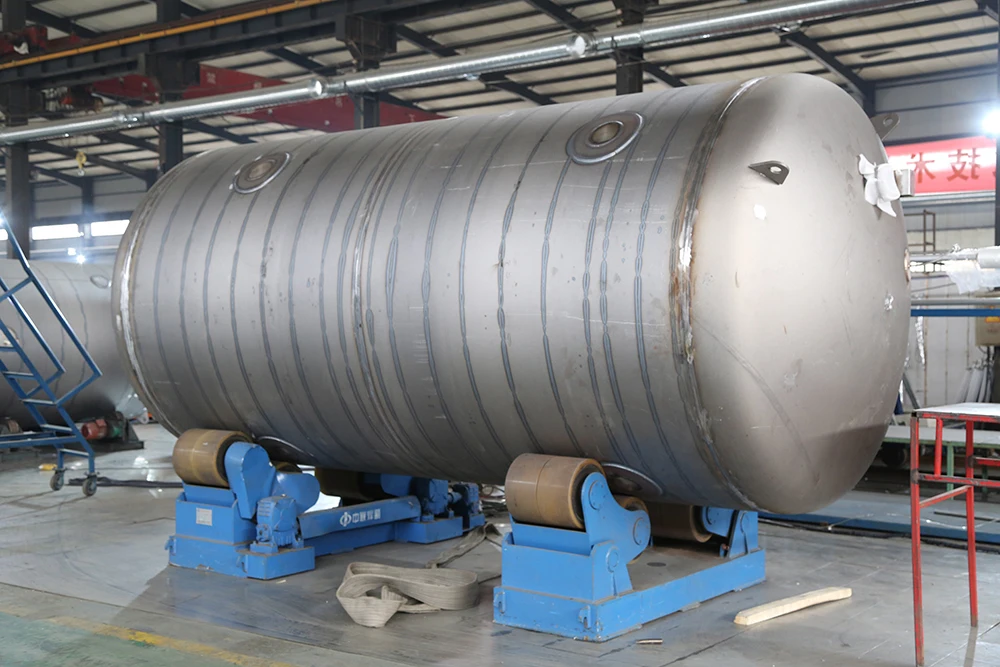

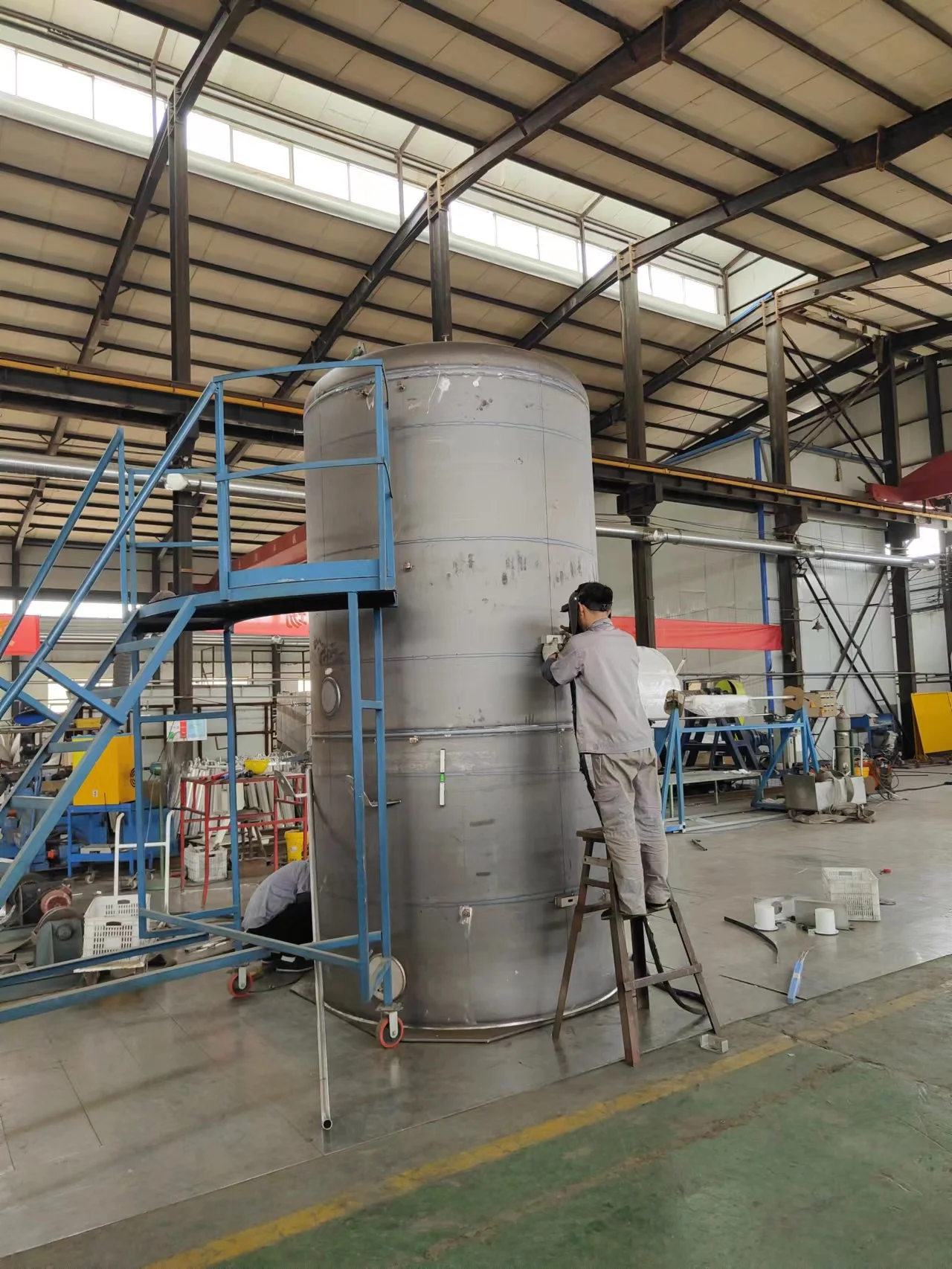

Our Factory
Our Exhibition

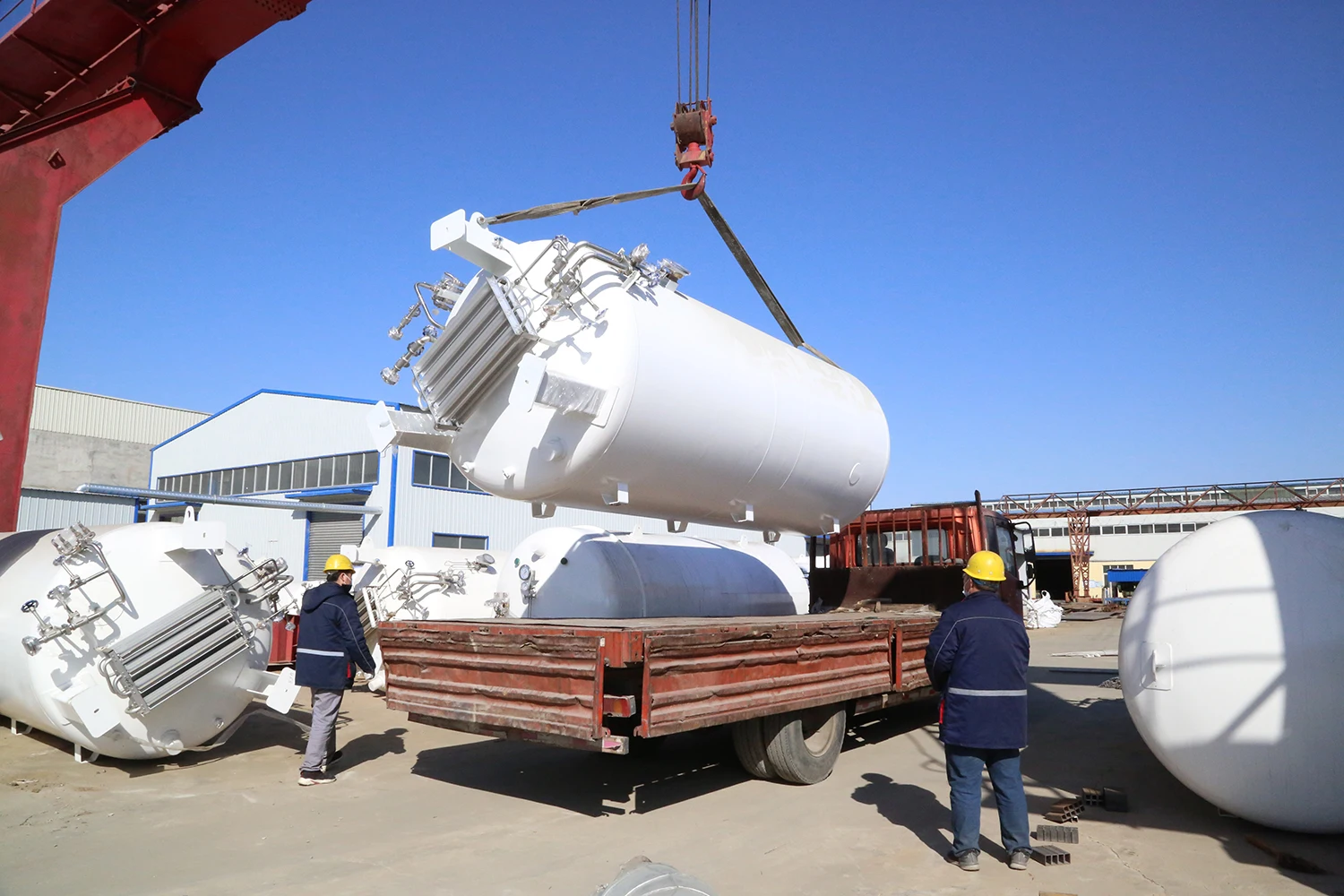

Our Packing
For packing: We can packing it according to customer requirements.

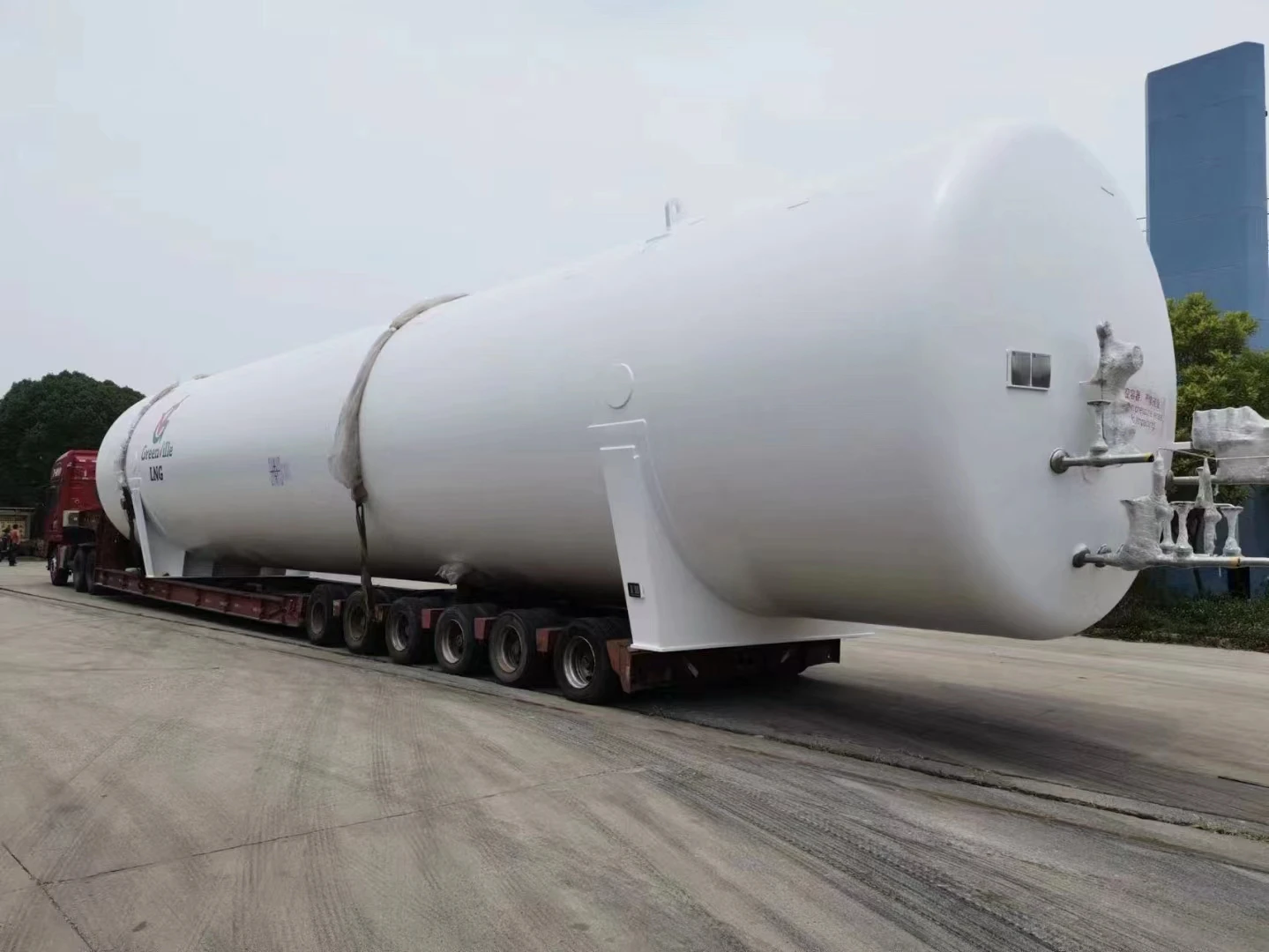

For shipment: We have agent forwarder, can help customers find
best freight cost, and we suggest customers do business by CIF.
best freight cost, and we suggest customers do business by CIF.
FAQ
1. What information needed if we sent you the inquiry of the tanks?
The capacity, working pressure and the working medium is most important, and then your special request is also very important. If possible, tell us the usage, this will help us recommend the most appropriate tanks for you.
The capacity, working pressure and the working medium is most important, and then your special request is also very important. If possible, tell us the usage, this will help us recommend the most appropriate tanks for you.
2. How about quality of your products?
All the cryogenic liquid tanks are new. All the material come from our direct suppliers, and all confirm with the national standard.
3. How can you guarantee your tanks quality?
For cryogenic liquid storage tank, leaking gas is one of the most important problems, so we make the leak testing more than 5 times to guarantee quality.
4. Do your tanks include the cryogenic pump and vaporizer?
We can also provide cryogenic pump or vaporizer if clients requires.
All the cryogenic liquid tanks are new. All the material come from our direct suppliers, and all confirm with the national standard.
3. How can you guarantee your tanks quality?
For cryogenic liquid storage tank, leaking gas is one of the most important problems, so we make the leak testing more than 5 times to guarantee quality.
4. Do your tanks include the cryogenic pump and vaporizer?
We can also provide cryogenic pump or vaporizer if clients requires.
