Product Overview

Description

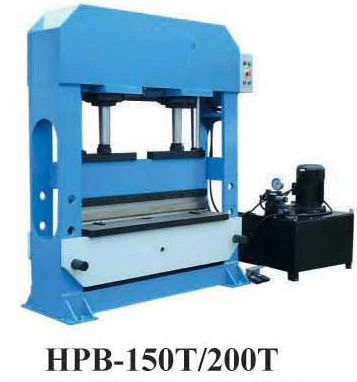

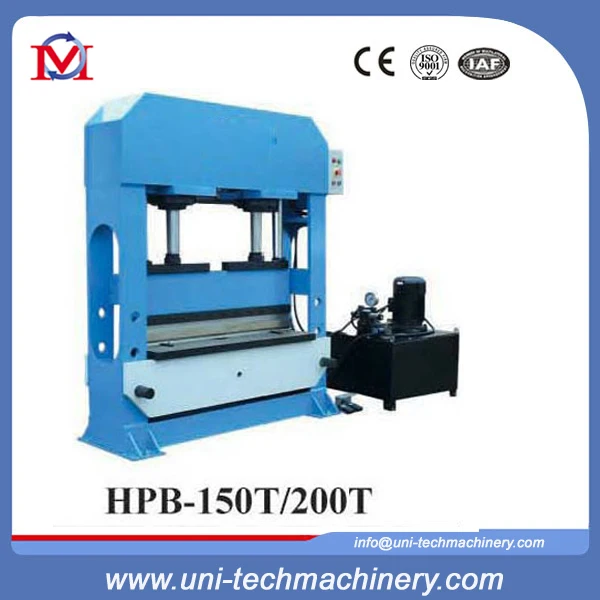

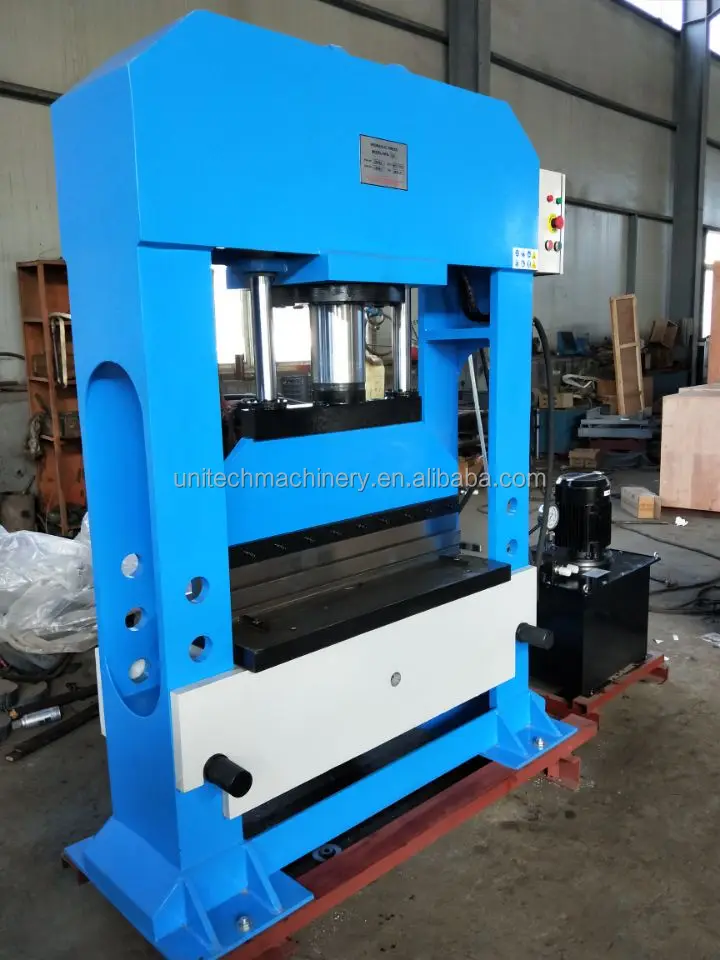

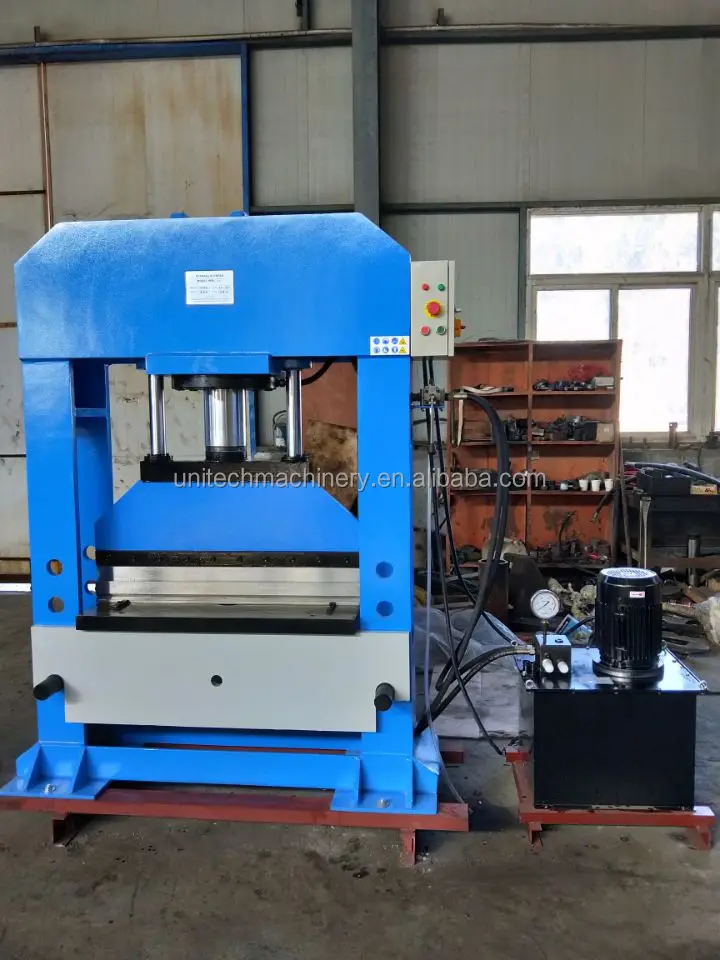

150 ton 100ton 50ton hydraulic press with bending function

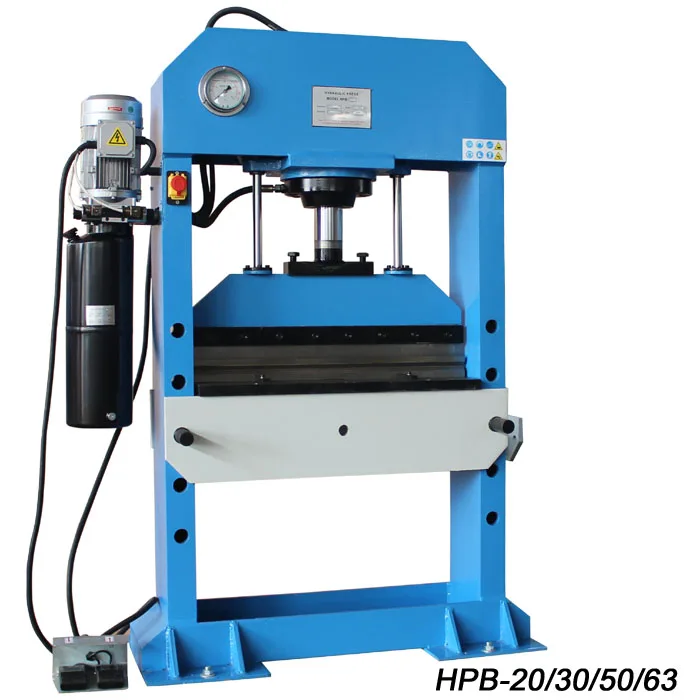

Model	HPB-20	HPB-30	HPB-50	HPB-63
Capacity (KN)	200	300	500	630
Pressure (Mpa)	25	25	25	30
Travel (mm)	200+270	300+270	220+405	220+405
Table size (mm)	200×360	300×400	400×800	400×800
Packing size (mm)	1060×500×1400	1160×550×1600	1500×650×1950	1500×650×1950
Net weight (kg)	550	650	1100	1200

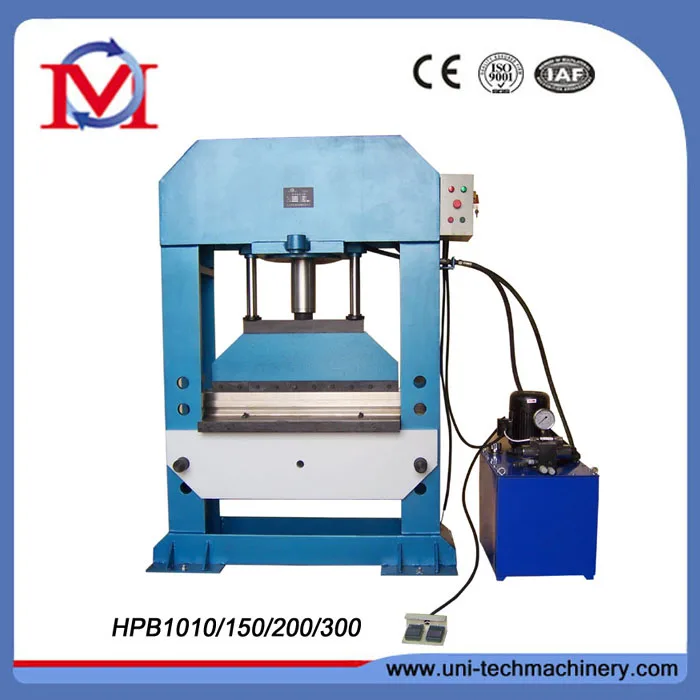

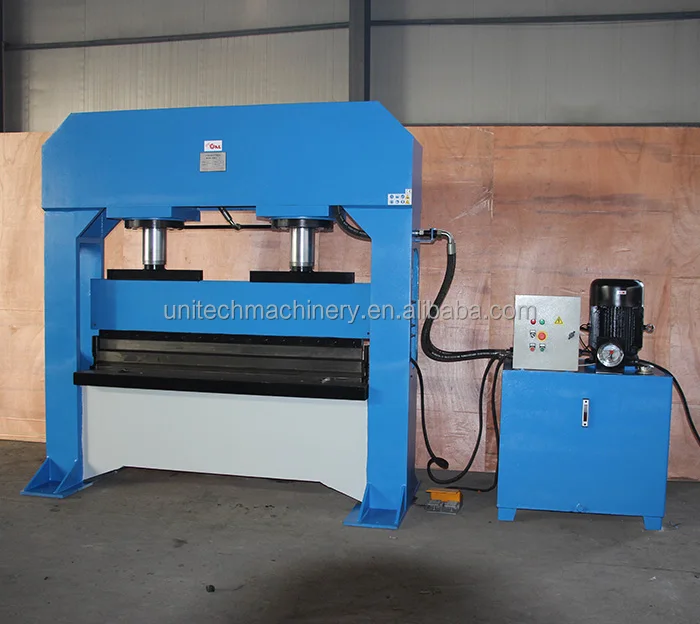

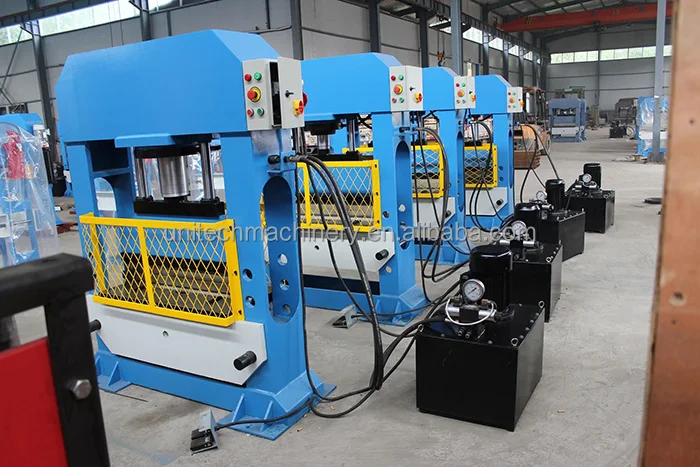

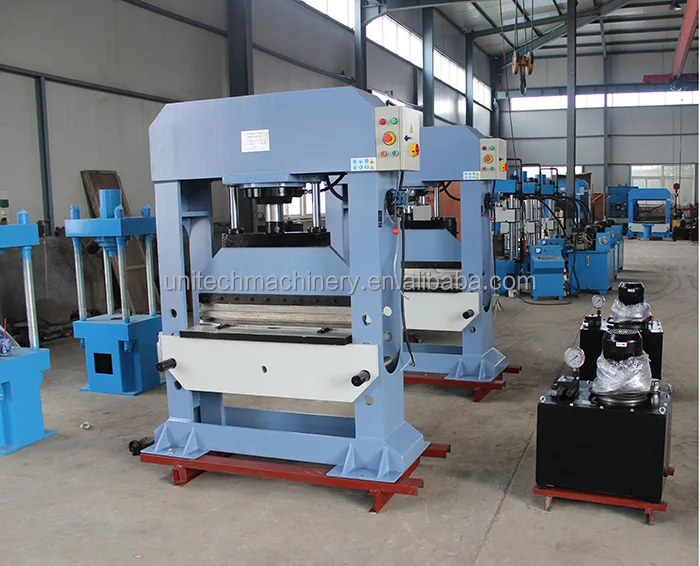

Model	HPB-1010	HPB-150	HPB-200	HPB-300
Capacity (KN)	1000	1500	2000	3000
Pressure (Mpa)	30	30	30	30
Travel (mm)	250+405	250+405	300+405	300+405
Table size (mm)	460×980	460×980	500×1000	700×1200
Packing size (mm)	1730×730×2250	1730×730×2250	1940×950×2350	2100×950×2700
	730×630×960	730×630×960	900×800×1060	1100×1200×1350
Net weight (kg)	1420	1750	2400	4200









Main features:

1. HP series hydraulic press are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.

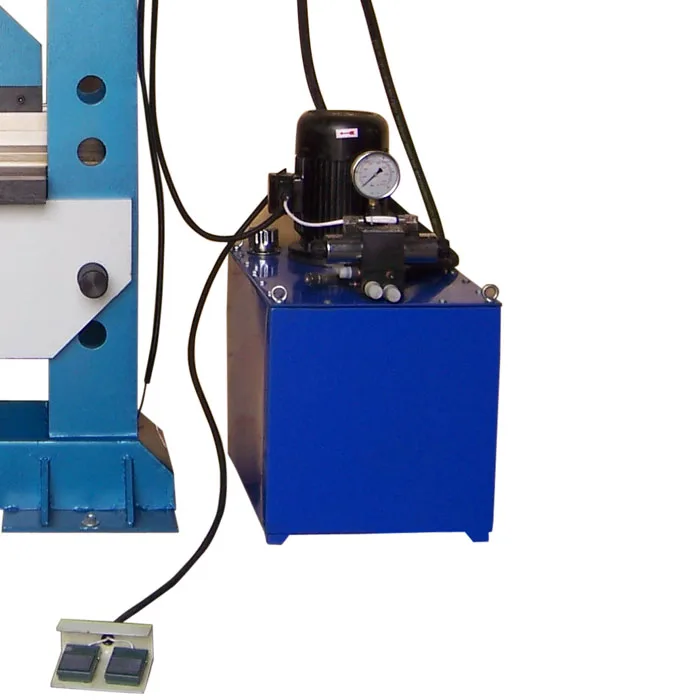

2. The machine supplied oil by Italy CNK and CBZ pump.

3. It could save 60 percent energy compared with the traditional model.

4. The efficiency increased to 2-3 times.

5. It takes the advantages of small volume, high pressure, simple structure and light weight.

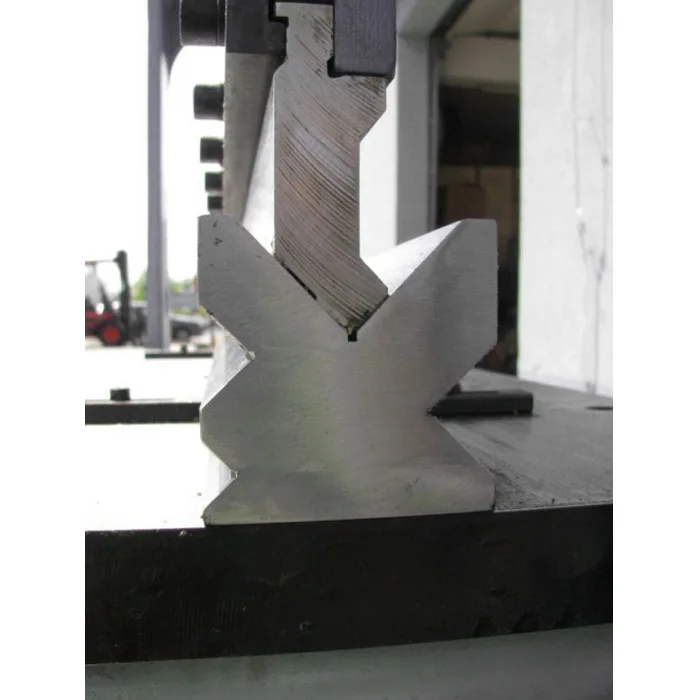

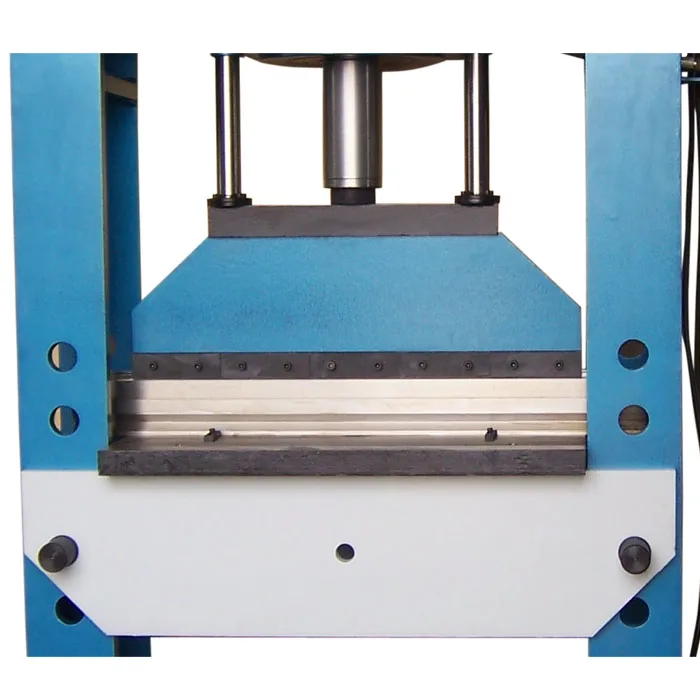

6. Function of press braking and bending
