ROIREU SB 3P X 0.2SQ Medium Speed Operation Unshielded Type Cable XLPE Insulation
ROIREU-SB 3P X 0.2SQ Medium Speed Operation Unshielded Type Cable XLPE Insulation
ROIREU-SB 3P X 0.2SQ Medium Speed Operation Unshielded Type Cable XLPE Insulation
ROIREU-SB 3P X 0.2SQ Medium Speed Operation Unshielded Type Cable XLPE Insulation

ROIREU SB 3P X 0.2SQ Medium Speed Operation Unshielded Type Cable XLPE Insulation

Share on (10000009377195):


Price:

Quantity:


Product Overview

Description



Product Description




ROIREU-SB 3P X 0.2SQ
Medium Speed Operation Shield Type Cable

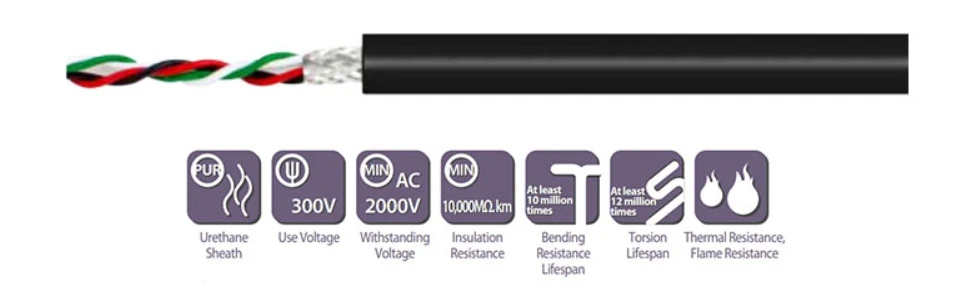

Characteristic


• XLPE Insulation/Oil Resistance, Thermal Resistance, Flexure Resistance PUR Sheath/Tin Coated Wire Braid Shield
• Use Temperature Range : Flexing -10℃ ~ +90℃ / Fixed -40℃ ~ +90℃
• Use Voltage : 300V
• Withstanding Voltage : AC 2000V/1min
• Insulation Resistance : Min. 10,000MΩ. Km
• Bending Resistance Lifespan : at least 10 million times
• Torsion Lifespan : at least 12 million times
• Flexure Diameter (mm) : cable outer diameter x 10
• UL style No. 20233 (300V, 80℃)
• Medium Speed Cableveyor & Torsion Movement Part Applied

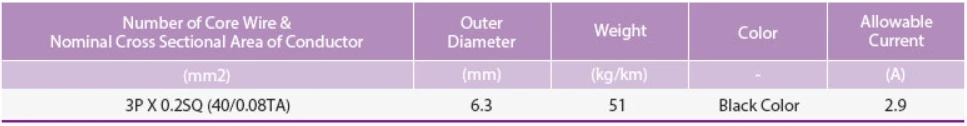

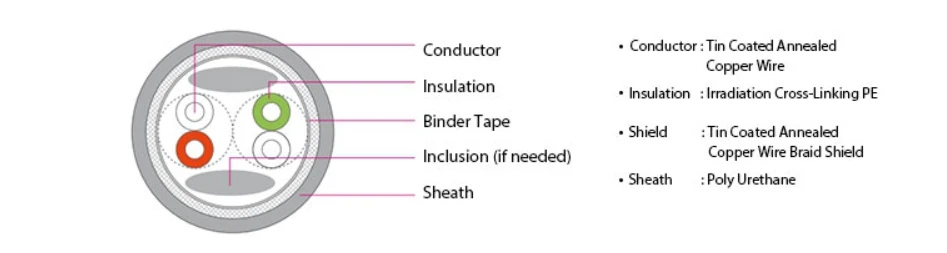

Construction




Approval




ROIREU-SB
