Product Overview
Description
Our Advantages
1.More intelligent，various products and size available，connectable to various feeder line.
2.More convenient，PLC touch screen operation, easy to operate and understand.3.More stable，high sensitivity sensor,reduce defective ratio, durable sealing cutting blades, and easier to maintain.
4.More advanced technology，double frequency converter controller / servo motor for choice.
Product Description
Specification For Packaging Machine KP-250X / KP-350X / KP-450X | ||||||
Model | KP-250X | KP-350X | KP-450X | |||
Film Width | Max.250mm | Max.350mm | Max.450mm | |||
Bag Length | 65-190mm or 120-280mm | 150-450mm | ||||
Bag Width | 30-110mm | 50-160mm | 50-180mm | |||
Product Height | Max.45mm | Max.65mm | Max.80mm | |||
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | |||
Packing Speed | 40-230 bag/min | 40-230 bag/min | 40-150 bag/min | |||
Power | 220V 50/60Hz 2.4KW | 220V 50/60Hz 2.8KW | 220V 50/60Hz 2.8KW | |||
Machine Dimension (mm) (L)x(W)x(H) | 3920x670x1320 | 4020x720x1320 | 4150x820x1450 | |||
Machine Weight | About 500kg | About 550kg | About 650kg | |||
Specification For Packaging Machine KP-600X / KP-700X | ||||
Model | KP-600X | KP-700X | ||
Film Width | Max.600mm | Max.700 | ||
Bag Length | 160-500mm | 180-600mm | ||
Bag Width | 100-280mm | 100-330mm | ||
Product Height | Max.110mm | Max.110mm | ||
Film Roll Diameter | Max.320mm | Max.320mm | ||
Packing Speed | 20-150 bag/min | 20-130 bag/min | ||
Power | 220V 50/60Hz 2.8KW | 220V 50/60Hz 2.8KW | ||
Machine Dimension (mm) (L)x(W)x(H) | 4300x920x1460 | 4380x980x1480 | ||
Machine Weight | About 680kg | About 720kg | ||
Flow packaging machine is suitable for packing all kinds of material, which such as：Potatoes, onions, carrots, tomatoes, cauliflower, other fresh vegetables and fruits, bread, sandwiches, pasta, meat and fish, and a variety of lumpy daily necessities, etc.
Main Functions and Technical Features:
1.Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
3.Interface features easy and quick setting and operation.
4.Control is realized through software, easy for function adjusting and upgrade.
5.Positioned stop function, without sticking knife and save material.
6.Temperature independent PID control, suitable for more different materials of packaging.
7.Self failure diagnosis and reminder, easy to maintenance.
1.Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
3.Interface features easy and quick setting and operation.
4.Control is realized through software, easy for function adjusting and upgrade.
5.Positioned stop function, without sticking knife and save material.
6.Temperature independent PID control, suitable for more different materials of packaging.
7.Self failure diagnosis and reminder, easy to maintenance.

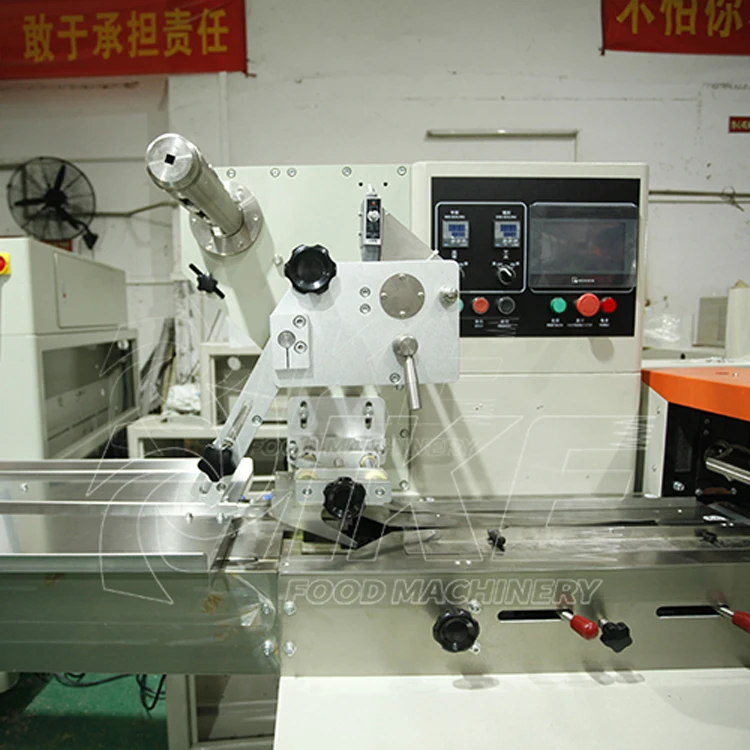

Master Control System
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed, cutting position)
Date Printer
Print production and expiration dates, adjustable date format.

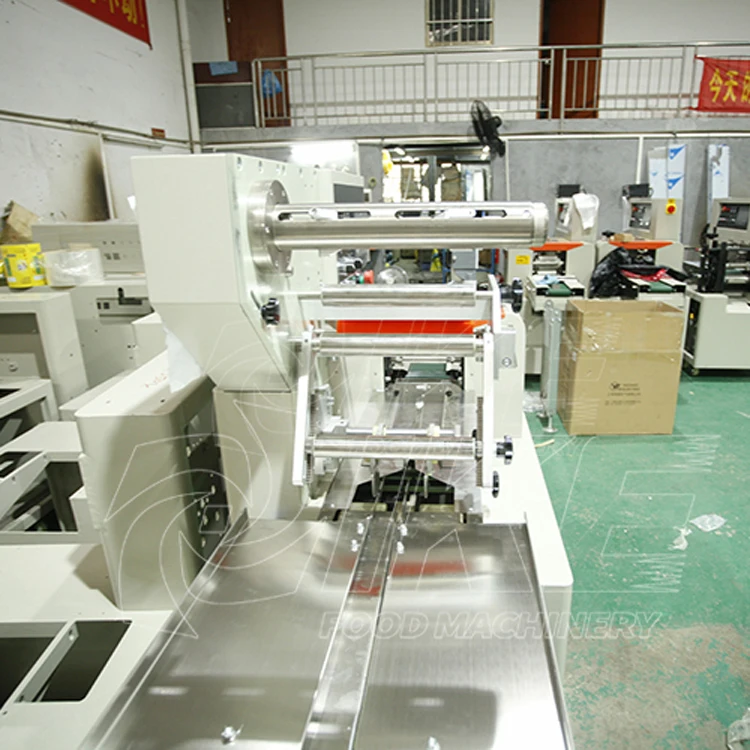

Bag Former
Different models with different range of bag dimension,adjustable bag length, packing speed and cutting position.

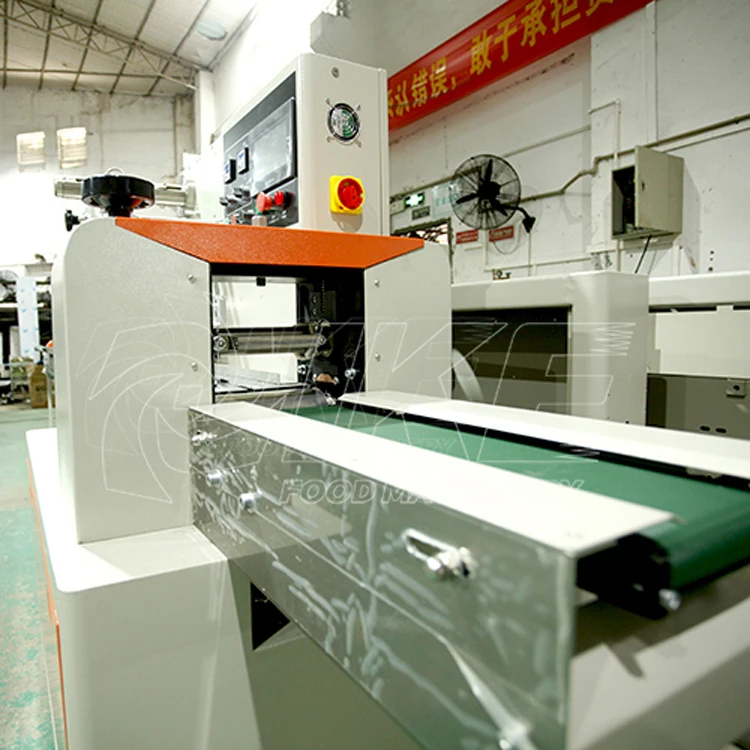

Food Grade Stainless Steel Conveyor
Safe, sanitary, durable，put the products by manual or automatic.
Buy Together Often
1.IKE Food Washing Machine 2.IKE Food Cutting Machine 3.IKE Screening Machine 4.IKE Conveyor Belt Machine
Company Introduction
IKE factory,Over 25 years of R&D experience since 1994; Production plant covers an area of 110,000 sqm;
Monthly output 10,000 sets of food machinery; 200 in-house production workers.
We have attended 5~6 overseas exhibitions every year.
Recommend Products
Packing&Shipping
1.Export package standard in plywood,special requirment is negotiated.
2.Normally goods will be shipped by ocean,other request,please contact us.
FAQ
1.Are you a direct manufacturer?
Yes,we are the manufacturer and also have the export sales deparment,welcome to visit our factory.
Yes,we are the manufacturer and also have the export sales deparment,welcome to visit our factory.
2.What products can you produce?
We mainly produce equipment for vegetable, fruits, meat, fish,nuts ,Medicinal materials, scented tea, pet feed,etc.
We mainly produce equipment for vegetable, fruits, meat, fish,nuts ,Medicinal materials, scented tea, pet feed,etc.
3.Can you do customized prouducts?
Yes,we are mainly doing customized products according to the customers’ requirements.
Yes,we are mainly doing customized products according to the customers’ requirements.
4.How to guarantee the quality of your goods?
All our prouducts meet the national standard as well as international standard like CE.
All our prouducts meet the national standard as well as international standard like CE.
5.Should you have any question,please feel free to contact us.
