  • Industrial TUV Liquid Nitrogen Gas Flask Dewar Flask Dewar Tank With Factory Price
Industrial TUV Liquid Nitrogen Gas Flask Dewar Flask Dewar Tank With Factory Price
Industrial TUV Liquid Nitrogen Gas Flask Dewar Flask Dewar Tank With Factory Price
Industrial TUV Liquid Nitrogen Gas Flask Dewar Flask Dewar Tank With Factory Price
Industrial TUV Liquid Nitrogen Gas Flask Dewar Flask Dewar Tank With Factory Price
Industrial TUV Liquid Nitrogen Gas Flask Dewar Flask Dewar Tank With Factory Price
Industrial TUV Liquid Nitrogen Gas Flask Dewar Flask Dewar Tank With Factory Price
Industrial TUV Liquid Nitrogen Gas Flask Dewar Flask Dewar Tank With Factory Price

Industrial TUV Liquid Nitrogen Gas Flask Dewar Flask Dewar Tank With Factory Price

Share on (10000009399024):


Price:$950.00 - $1,000.00

Quantity:


Product Overview

Description



Our Certificates






Specification

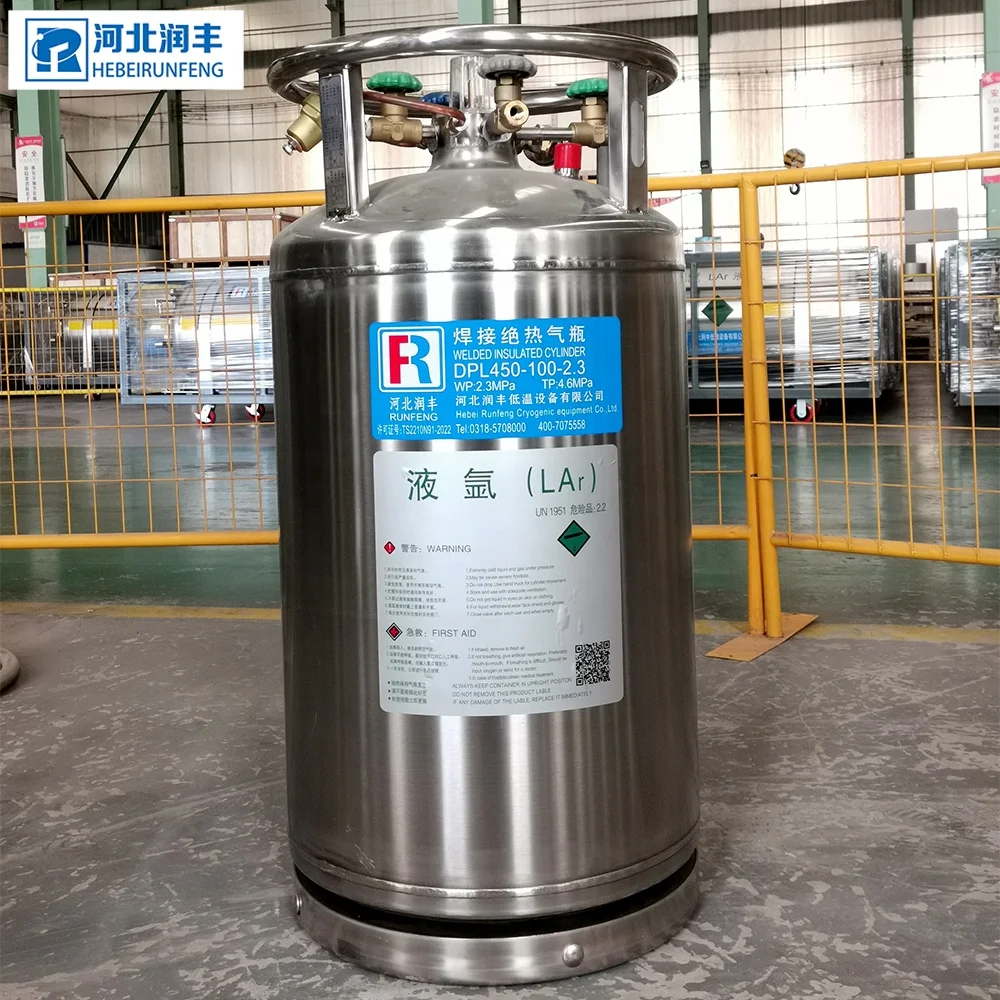

The DPL series containers are high performance vacuum insulated, it is designed to store and transport cryogenic liquid oxygen,nitrogen or argon. Containers can be used for over road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications in a long holding time, with self-Pressure built gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h. if you require a greater vaporizing volume, we can provide an external vaporizer.


Product Model
DPL-100
DPL-175
DPL-195
DPL-210
DPL-410
DPL-450
Diameter*Height(mm)
454*1247
508*1500
508*1620
508*1707
750*850*1770
750*850*1900
Working Pressure(MPa)
1.33
1.42.01
2.88
1.42.01
2.88
1.42.01
2.88
1.43.17
1.43.17
Pressure Relief Valve(MPa)
1.59
1.592.41
3.45
1.592.41
3.45
1.592.41
3.45
1.593.45
1.593.45
Inner Container Bursting Disc(MPa)
2.60
2.603.62
5.17
2.603.62
5.17
2.603.62
5.17
2.605.70
2.605.7
Maximum Liquid Capacity(L)
100
175
195
210
410
450
Usable Liquid Capacity(L)
95
166
185
197
389
427
Normal Evaporation Rate ((LN2))
≤2.1%
≤2.1%
≤2.1%
≤2.1%
≤1.8%
≤1.8%
Tare Weight(Kg)
70
110
117
123
282
289


The Filling Quality
Oxygen(kg)
100
172
191
205
443
487
Nitrogen(Kg)
73
121
135
145
315
346
Argon(Kg)
127
208
233
250
548
602
Natural Gas (Kg)
----
70.1
76
86.3
161
176
CO2(Kg) High Pressure only
----
138
154
164
325
357
N2O(Kg) High Pressure only
----
191
213
227
448
492


Product Description














Hot product

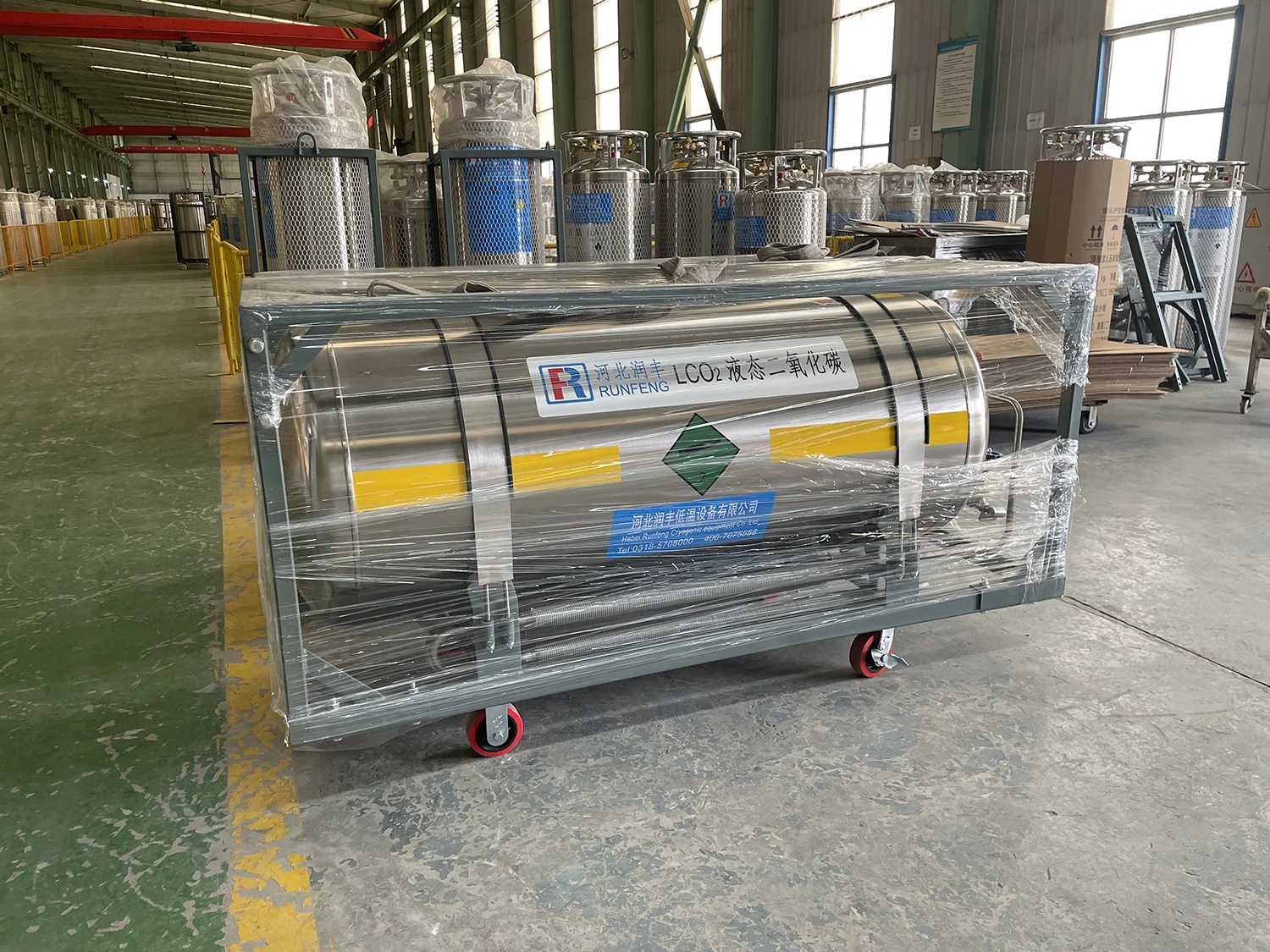

Packing & Delivery

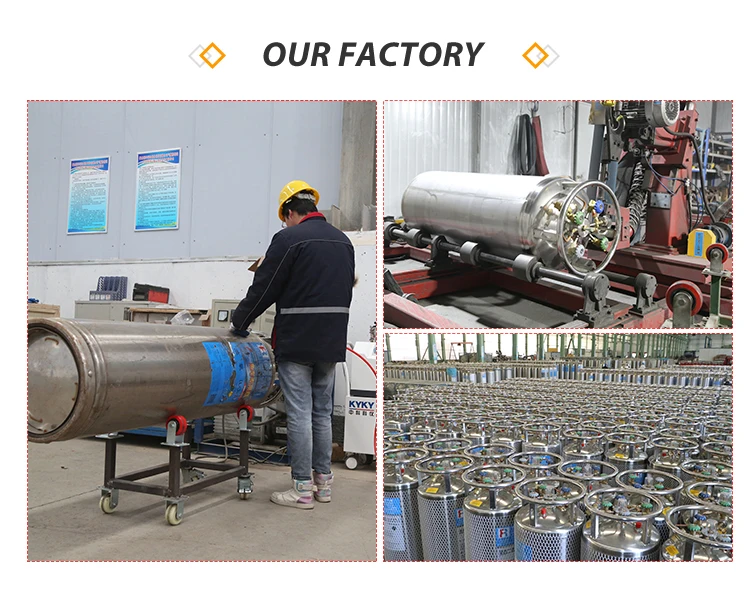

Company Profile








Our Exhibition




FAQ


1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(60.00%),Eastern Europe(15.00%),Southeast Asia(10.00%),South Asia(5.00%),South America(2.00%),Africa(2.00%),Northern Europe(2.00%),Southern Europe(2.00%),Mid East(00.00%),Western Europe(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Micro Bulk Tank,Vertical Storage Tank,Horizontal Storage Tank,Dewar Bottle,Vaporizer

4. why should you buy from us not from other suppliers?
Hebei Runfeng Low Temperature Equipment Co.Ltd. is one of the members of Hebei Runfeng Enterprise Group, specially engaged
in the design, manufacture, research and development and corresponding technical services of cryogenic pressure vessel

5. what services can we provide?
Accepted Delivery Terms: CFR,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
