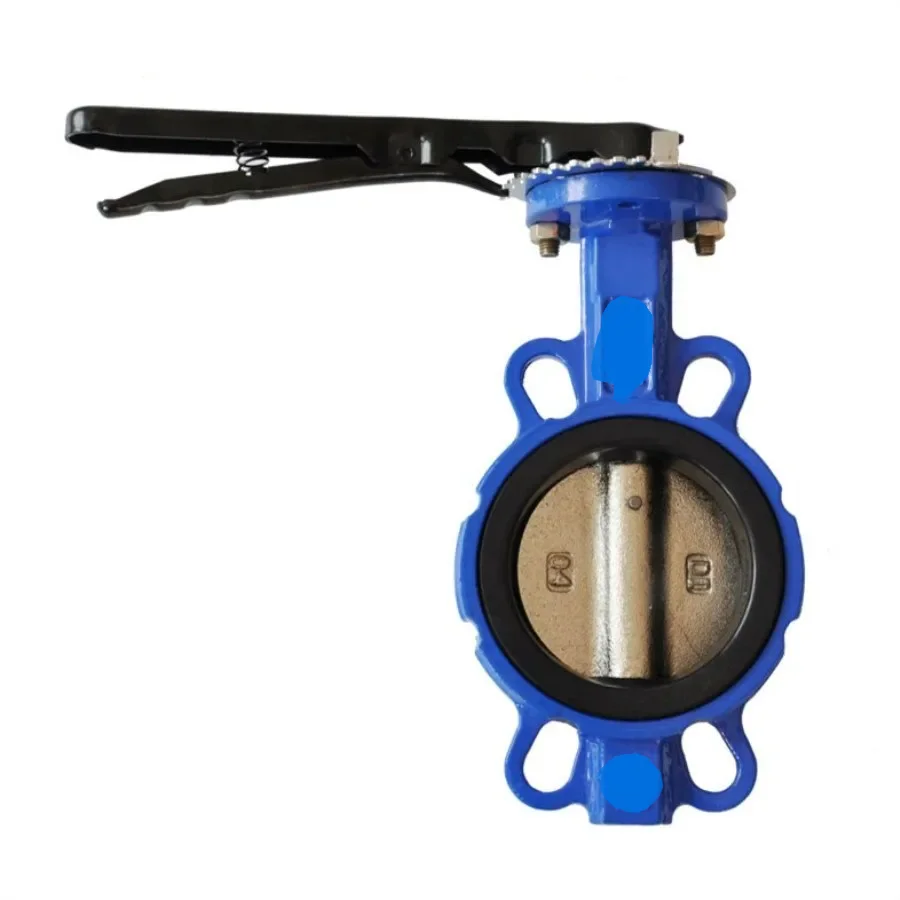

Professional Manufacturer Cast Iron EPDM Molding Wafer Type Butterfly Valve For Hot and Cold Domestic Water
Professional Manufacturer Cast Iron EPDM Molding Wafer Type Butterfly Valve For Hot and Cold Domestic Water
Professional Manufacturer Cast Iron EPDM Molding Wafer Type Butterfly Valve For Hot and Cold Domestic Water
Professional Manufacturer Cast Iron EPDM Molding Wafer Type Butterfly Valve For Hot and Cold Domestic Water
Professional Manufacturer Cast Iron EPDM Molding Wafer Type Butterfly Valve For Hot and Cold Domestic Water
Professional Manufacturer Cast Iron EPDM Molding Wafer Type Butterfly Valve For Hot and Cold Domestic Water
Professional Manufacturer Cast Iron EPDM Molding Wafer Type Butterfly Valve For Hot and Cold Domestic Water

Professional Manufacturer Cast Iron EPDM Molding Wafer Type Butterfly Valve For Hot and Cold Domestic Water

Share on (10000009405358):


Price:$13.00 - $14.20

Quantity:


Product Overview

Description









Item
Value
Warranty
2 years
Customized support
OEM
Place of Origin
India
Province
Telangana
Model Number
N/A
Brand Name
C-Way
Product name
Butterfly Valve
Material
Cast Iron
Body
IS 210 Gr FG 200
Size
15mm to 400mm
Working Pressure
10.546 Kg/m3
Application
commercial light industrial utilities
Type
Wafer Type
Temperature Range
-30°C - 120°C
OEM
Avaliable
Package
Plastic Bag + Cardboard Box + Wooden






Product Description :

C-Way Engineering Exports offer a wide range of Butterfly Valves which are manufactured as per the high quality standards.Butterfly Valve is Highly Durable, Cost-effective, Low maintenance and Reliable performance. Our main aim is to deliver best engineering solutions to our all customer. We are quality and reliable butterfly valve manufacturers exporters in India.
C-Way Engineering Exports are a leading Manufacturer of Butterfly Valve such as High Performance butterfly valve, Wafer End Butterfly Valve and Flanged End Butterfly Valve from India. Our butterfly valve is suitable for a wide range of applications.We are providing special material combination as per buyers’ request.Butterfly valve is a quarter turn valve that used to isolates or regulates the flow. It consists a disc which allows or blocks the passage of fluids. The operation of butterfly valve is similar to ball valve, where the handle will be pivoted 90 degree to
open or close the valve. Butterfly valves are widely installed on pipeline system due to its lower costs and lighter weight characteristics.
Cast iron butterfly valves, commonly referred to as gray iron butterfly valve, are made of an alloy containing iron and 2-4%carbon, and may contain trace amounts of other impurities like sulfur or phosphorus. The cast iron butterfly valves are a cheap option for non-critical applications. The cast iron butterfly valves are not new. Cast iron has been known for centuries, and it’s known as a very durable material for butterfly valves. It has excellent damping qualities, meaning that when intense vibrations disturb the cast iron butterfly valve, it is unlikely to suffer any damage. However, the cast iron butterfly valves have low ductility.
It is normally impractical for marine use butterfly valves because pipes and valves tend to bend slightly as a ship moves on water, and this can cause the iron to crack. In fact any bending of the material of these butterfly valves will cause it to
crack.
These types of cast iron butterfly valves are most commonly used in applications that require high amounts of flow along with quick, tight shut off. Some applications include hot and cold domestic water, HVAC, condenser and chilled water. These applications are often found in commercial or light industrial utilities.



Technical Specifications
* Body: IS 210 Gr.FG 200
* Disc: IS 210 Gr.FG 200/ASTM A 351 Gr.CF8
* Seat : Moulded EPDM
* Valve Body Material: Cast Iron
* Shaft: SS 304
* Std. : BS 5155
* Operation :Flow –Control Lever
* Ends :Wafer Type to suit ANSI B 16.1
* Test pressure: Body: 225 Psig(16Kg/cm2)
: Seat: 165Psig(11.5Kg/Cm2)
* Size Range : 15mm to 400mm
* Face to face dimension: API609
* Applicable Medium: General oil, gas & water
* ANSI 150# Wafer Type Connection
* Working Pressure: 150 PSI
* Temperature Range: -30°C - 120°C
* Inspection and test: API 598 Main Technical Parameter Nominal Pressure 1.6 MPa Test Pressure Shell 2.4 Sealing 1.76 Working Temperature -30 - 120 °C
Features:
* Without Lugs,(13% Cr.) Stem,S.G.Iron Disc
* EPDM liner, Nitrile/Neoprene/EPDM Rubber
* Lining Test Pressure PN-10/PN-16
* Cast Iron Wafer Type Butterfly Valve
* Without Lugs,(13% Cr.) Stem,S.S. Disc, EPDM
* Liner, Nitrile / Neoprene/EPDM Rubber Lining
Applications:
* Hot and cold domestic water
* HVAC condenser
* Chilled water
* Commercial or light industrial utilities
