Заводское Новое поступление, контрольный монитор формы

Product Overview

Description

Photon Cloud mold protector is currently the first and only mold protector that can use embedded

Limux systerm. It is recognized by the industry that it has unparalleled stabilily compared with

traditional Windows system, and can be stable operation without rebooting for many years.

Hardware equipment products undergo rigorous quality testing. and their performance and

effectiveness catch up with similar products at home and abroad. Product sofware responds

quickly, with advanced fealures such as built-in light correction and position correction. The

interface design of the product is simple and easy to understand. The front-line employees

only need to operate 2 buttons to meet daily production without complicated leaming process.

The company has mastered advanced optical technology and machine vision inspection

technology as well as rich customer on-site construction experience; according to the customer's

 previous design investment, it provides corresponding in-mold and out-of-mold and product

incoming and finished product Inspection solutions .We are happy to share our past with our

customers and create new machine vision solutions for injection molding machines.

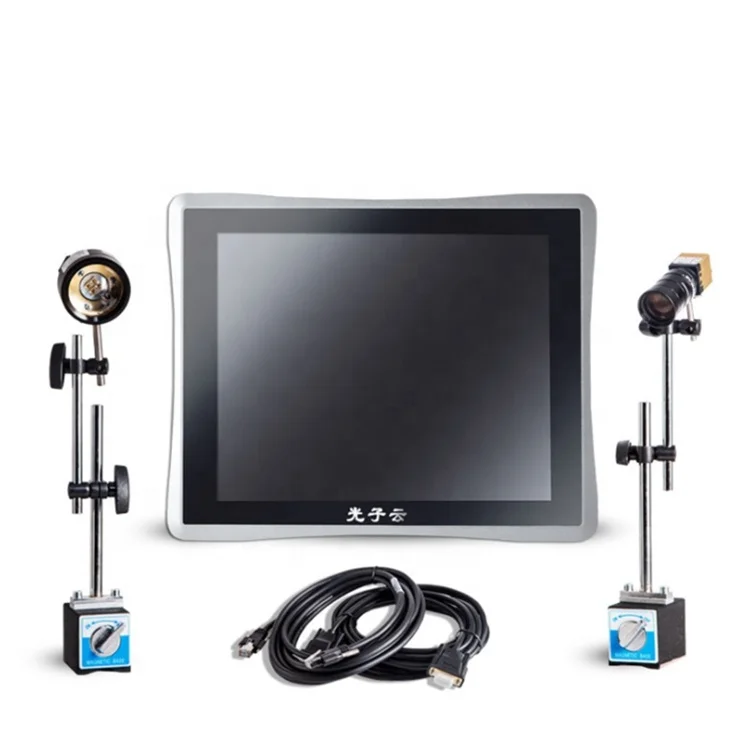

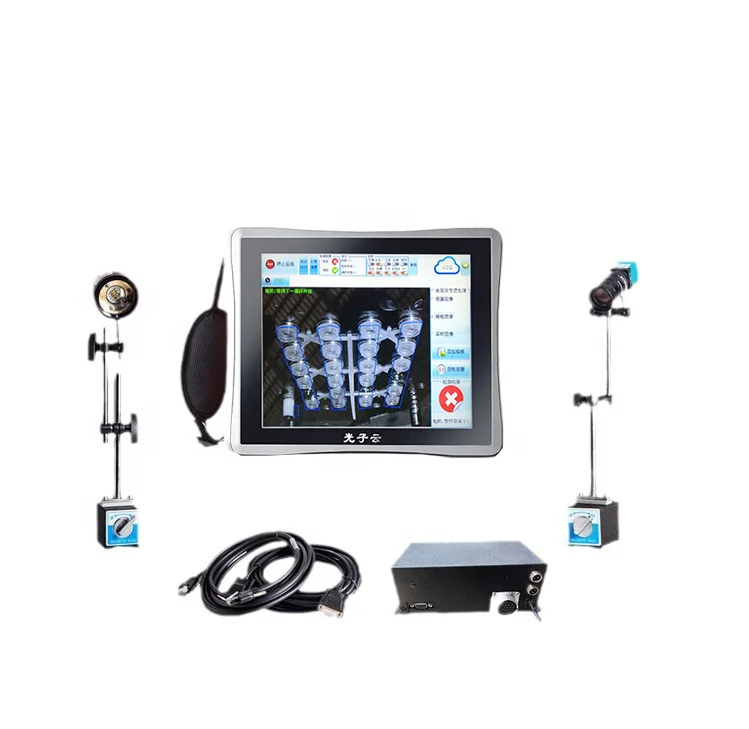

Configuration Name	Configuration Details	Quantity
Brand name	Photon cloud
Product name	Machine vision inspection Mold Monitor For Injection Molding Machine

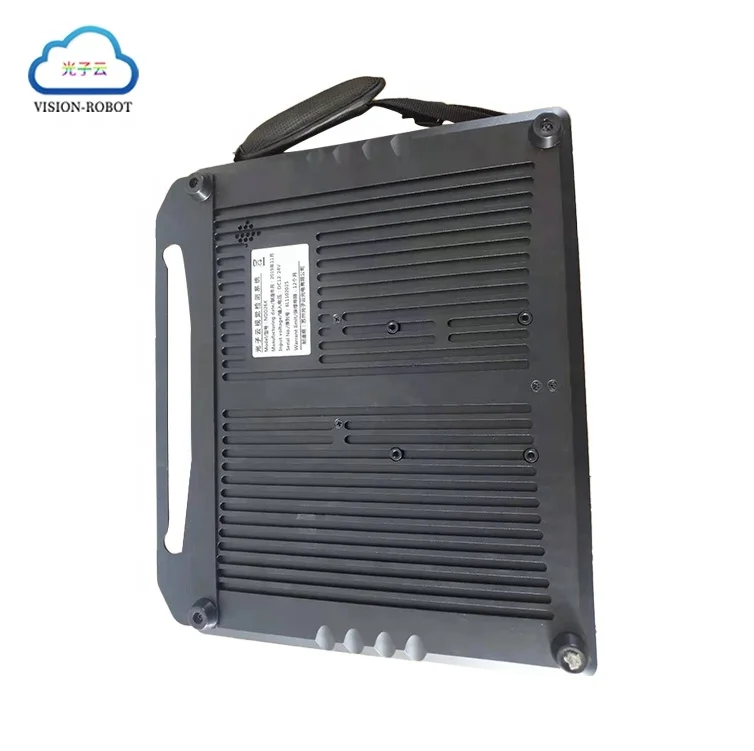

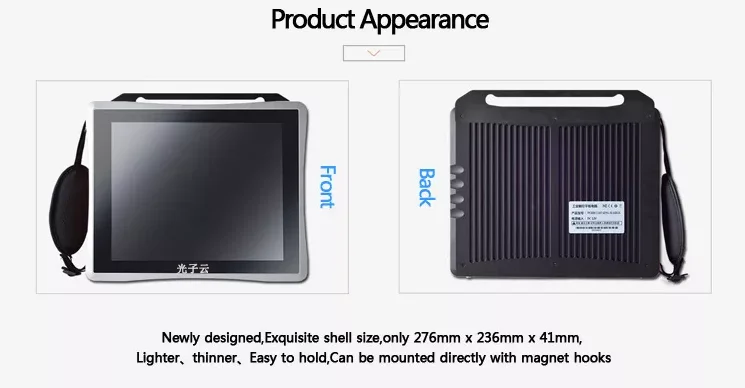

Industrial Panel PC	10.4 screen, 3855U cpu, 2G DDR3 memory, 32G SSD	1 set
Industrial Camera	RJ45 camera with lock, real American photosensitive chip. The target surface of the camera is as high as 1/2 of the picture is clear and real, and the picture is stabilized by the built-in exclusive algorithm. The surface is beautiful and eye-catching with colored hard oxygen.	1-2 pieces
Industrial Infrared Light Source	Using near-infrared 850nm light source, imported high-quality lamp beads are stable without light decay, 10-24v wide voltage input. Built-in protection circuit, socket thread design is effectively foolproof.	1-2 pieces
Industrial Lens	High-definition zoom lens, large aperture can be adjusted to support zoom in and zoom out. 5-50mm wide focal length segment, with small picture distortion and strong adaptability.	1-2 pieces

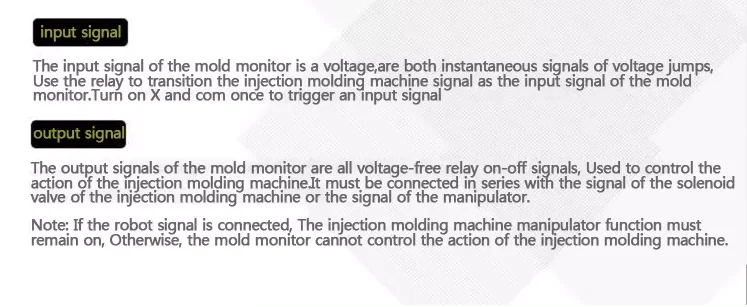

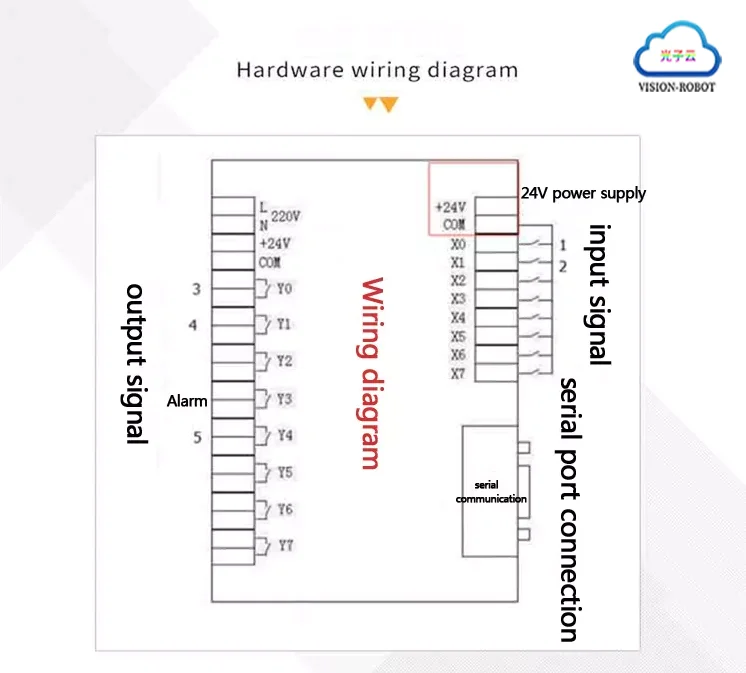

Signal Controller	STC 8in 8out	1pieces
Magnetic Base	100KG suction	2-4 pieces

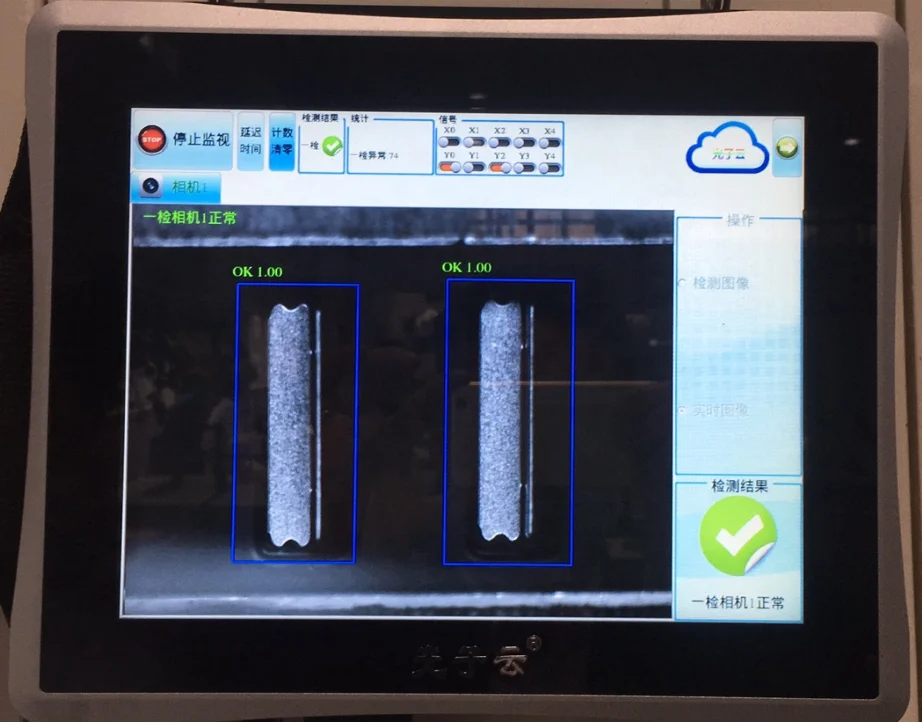

Vision Software	Enterprise-level LINUX system, V3.0	1 set

Mold monitor flowchart

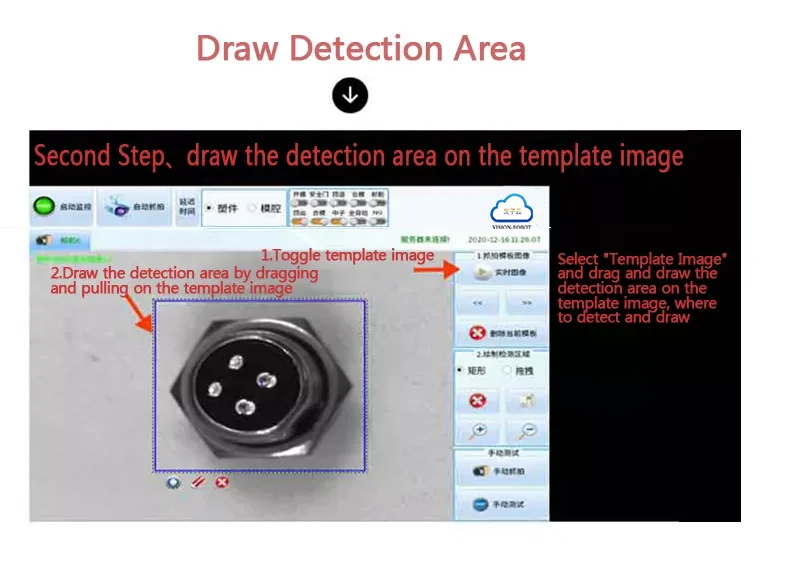

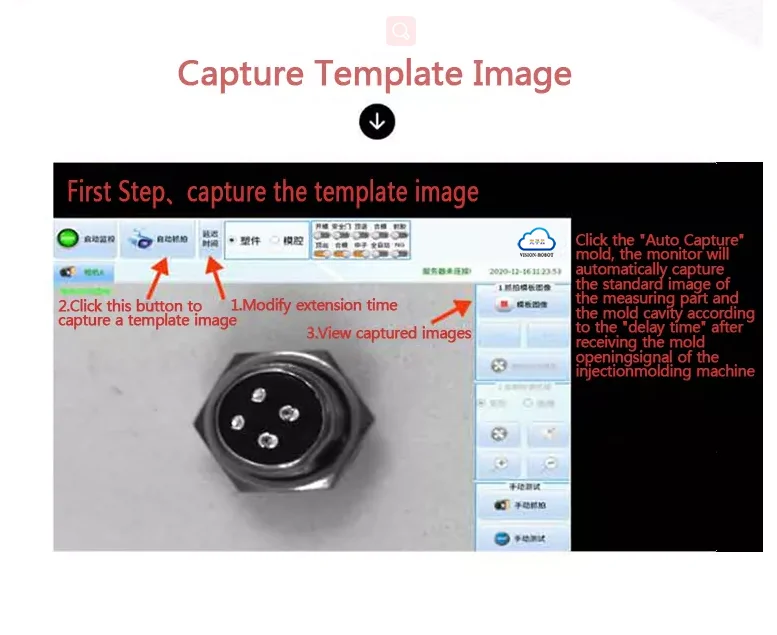

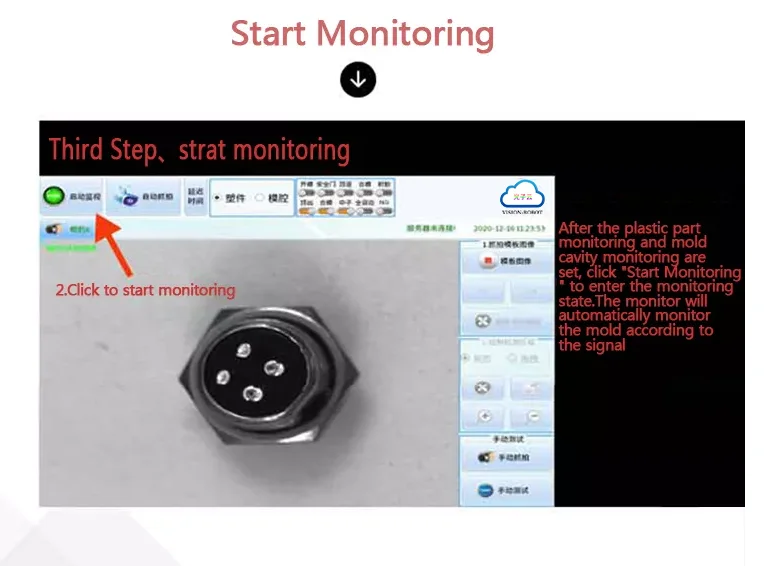

Software Tutorial
