simco CNC 620RW efficient production winding former toy spring coiling machine
- Category: >>>
- Supplier: TAIWAN SIMCO COMPANY
Share on (10000009423521):
Product Overview
Description
Product Information

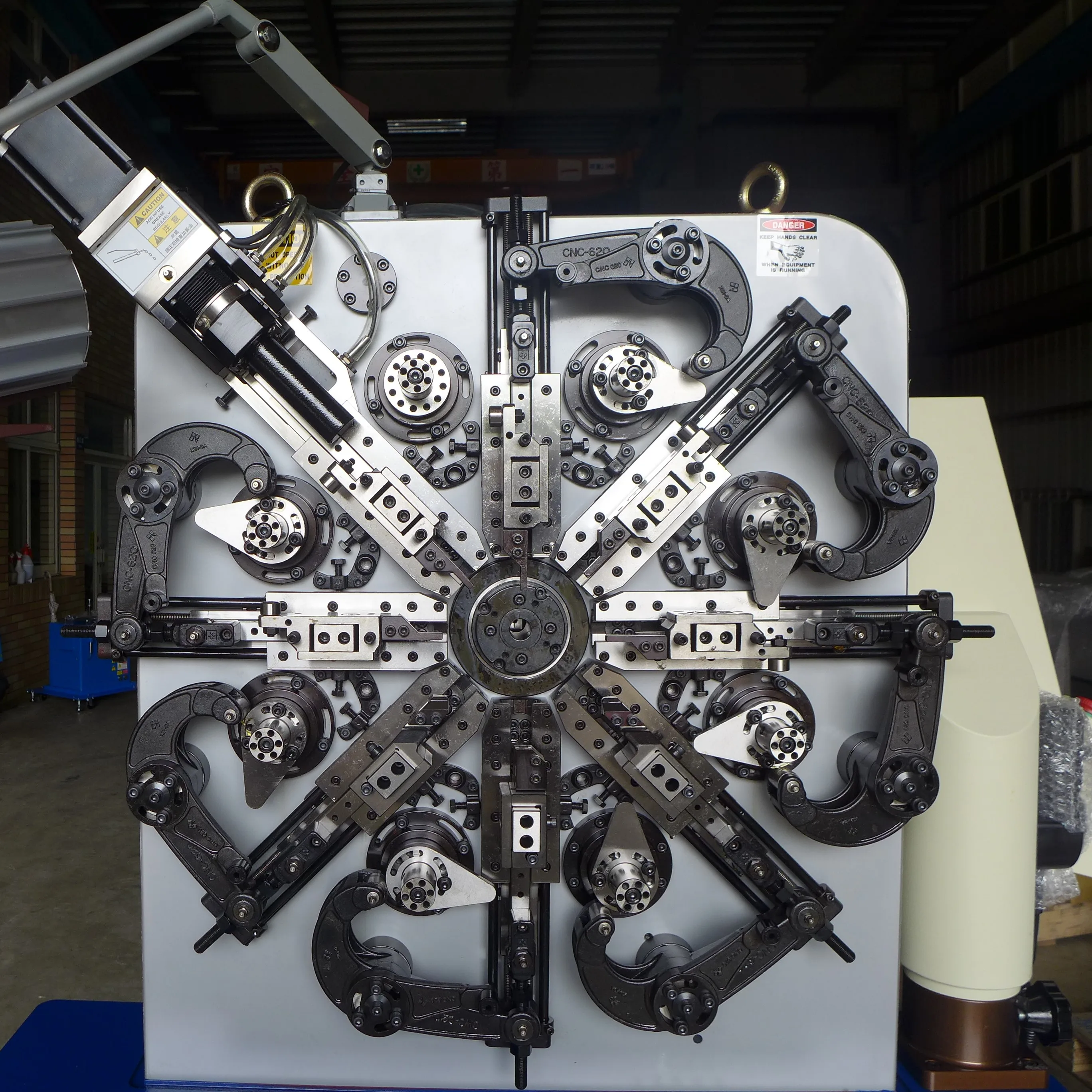

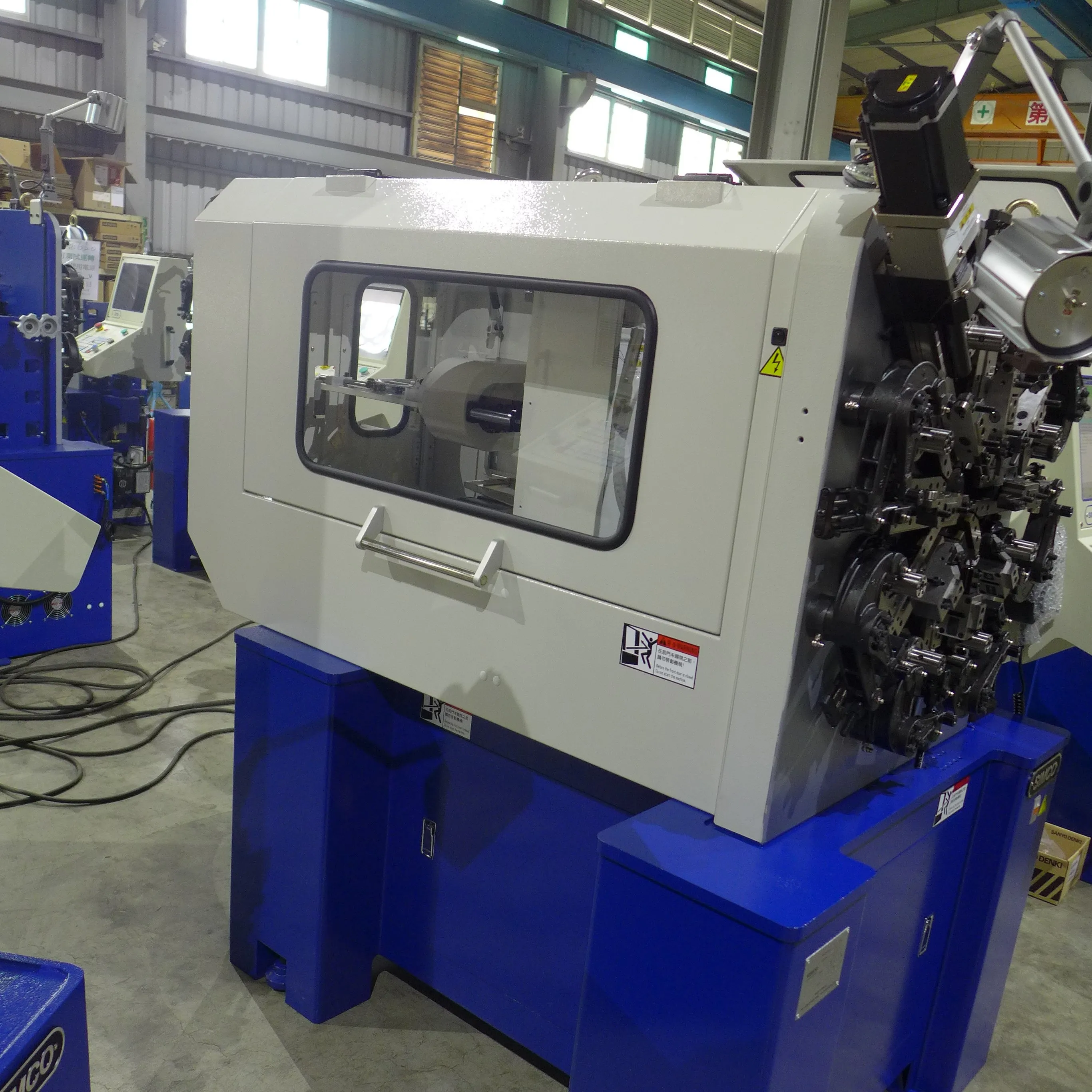

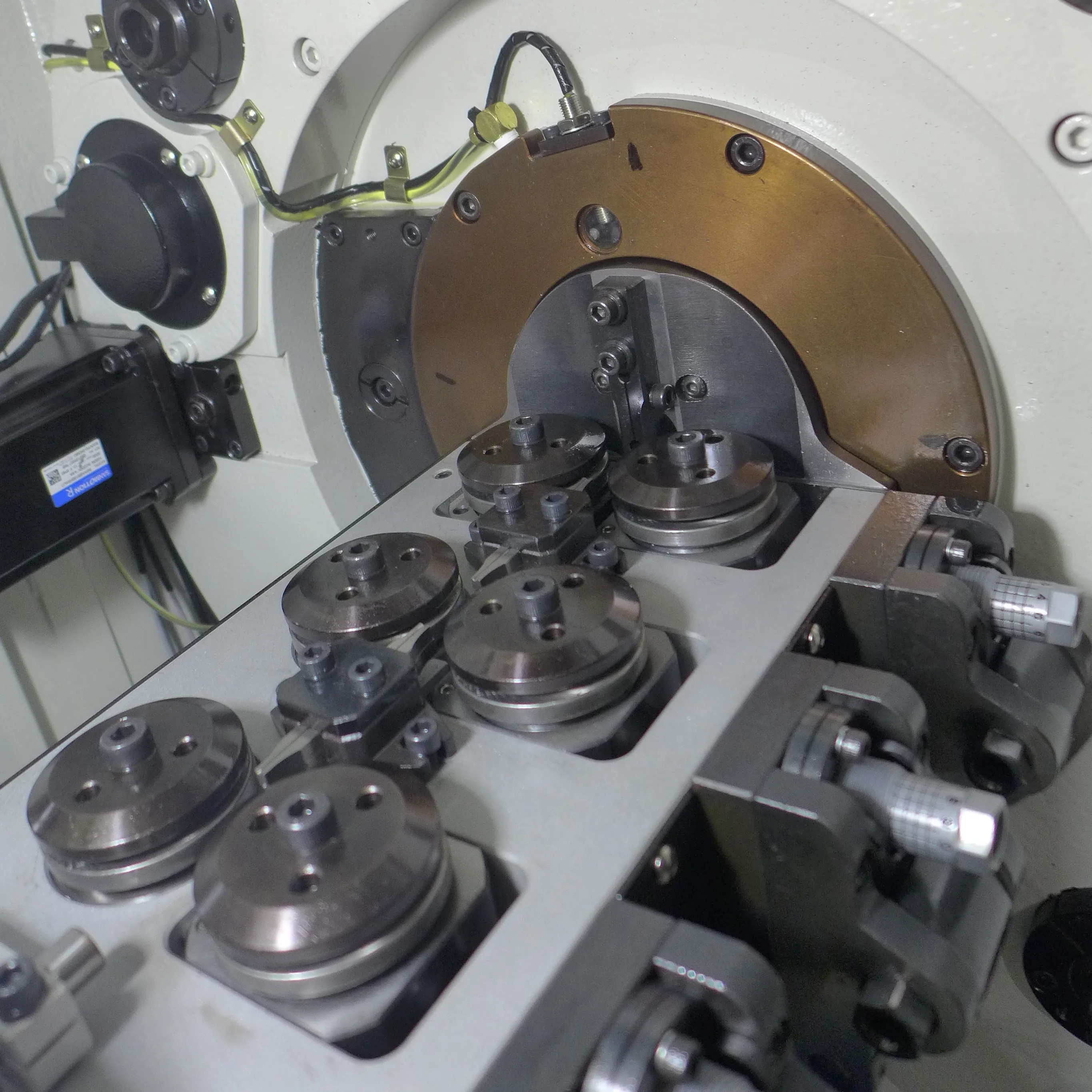

4-axis CNC Spring Forming Machine
(Feeding, Wire Rotary, Quill Rotary, Cam)
Wire Diameter: 0.4 - 2.3 mm
Max. Outer Diameter: 60 mm
Max. Leg Length: 40 mm
Power: 220/380/400/415/440V 3-phrase
Dimension: 1500L x 1600W x 1700H
Color: Blue
---------------------------------------------
(Feeding, Wire Rotary, Quill Rotary, Cam)
Wire Diameter: 0.4 - 2.3 mm
Max. Outer Diameter: 60 mm
Max. Leg Length: 40 mm
Power: 220/380/400/415/440V 3-phrase
Dimension: 1500L x 1600W x 1700H
Color: Blue
---------------------------------------------
Features:
1. Various cam with heat treat
2. Japanese servo drive and motor
3. Taiwanese controller system

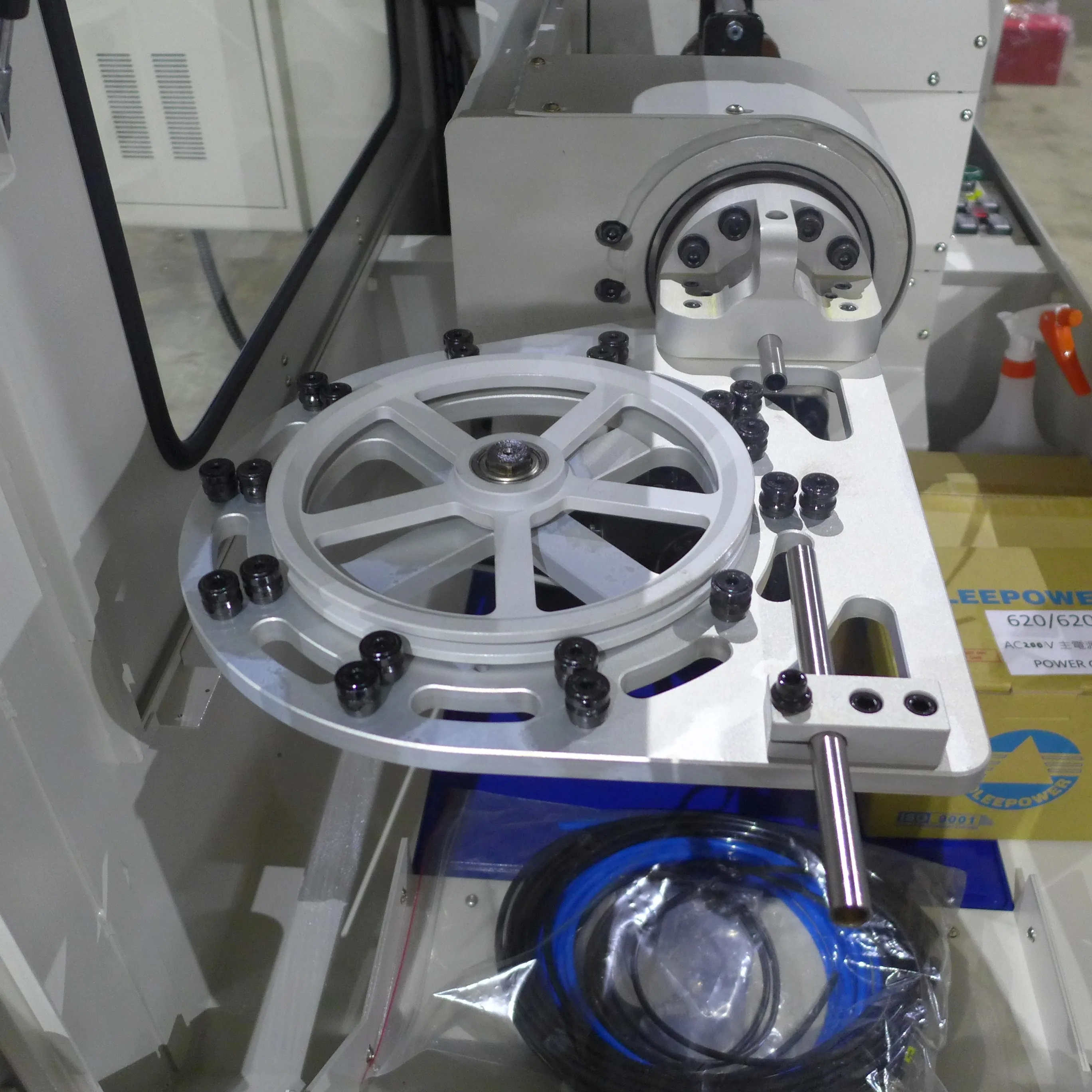

4. Fast release design for feeding unit
5. Application for most various springs
6. Option for hydraulic quill

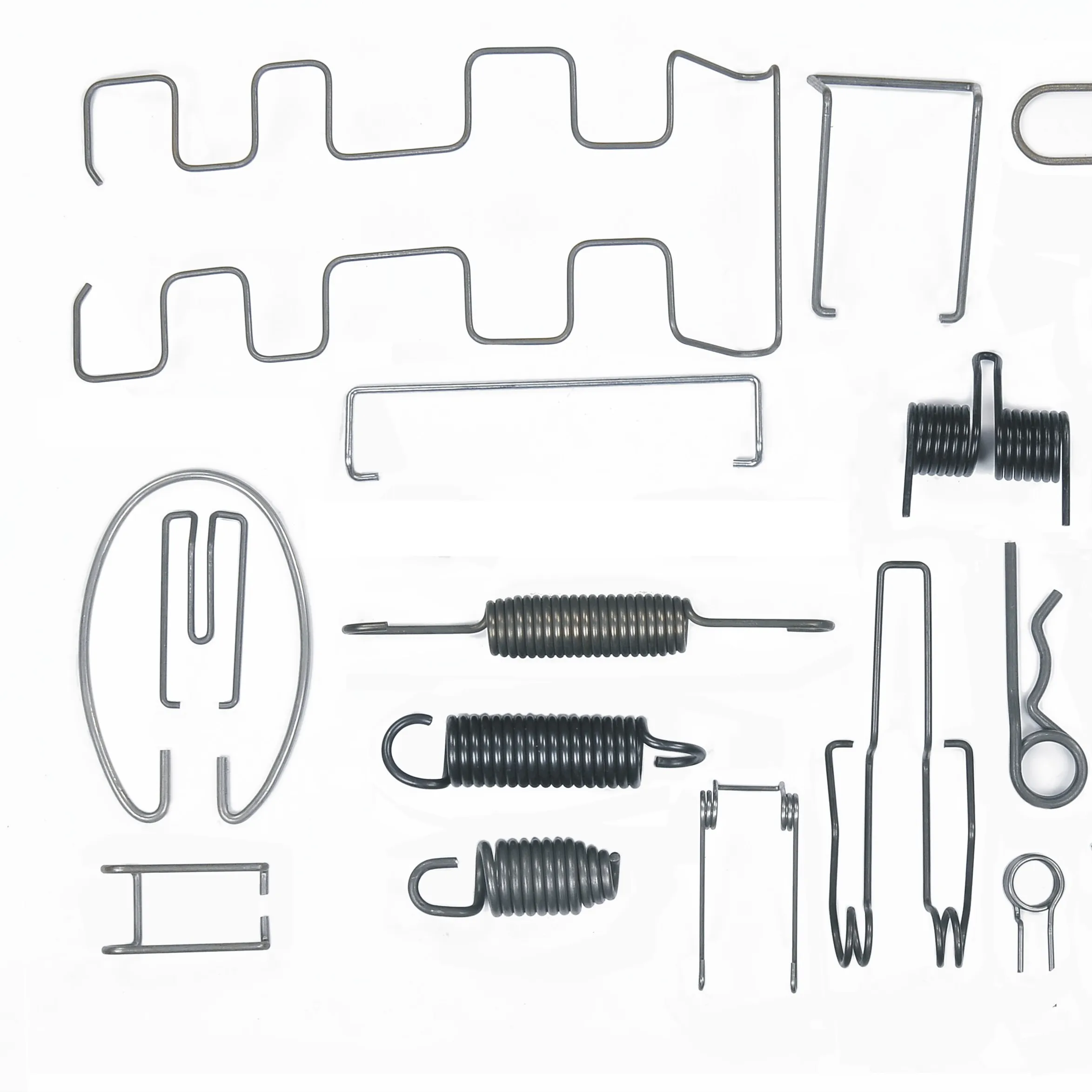

What the machine can produce
Reference for Other Models
CNC-620RW | CNC-635RW | CNC-650RW | |||
Standard Axes | 4 | ||||
Max. Axes | 8 | ||||
Wire Diameter (mm) | 0.4-2.3 | 2.0-4.0 | 3.0-5.0 | ||
Max. Outer Diameter (mm) | 60 | 70 | 120 | ||
Max. Leg Length (mm) | 40 | 60 | 100 | ||
Slide Stroke (mm) | 70 | 80 | 90 | ||
Power Suppler | 220V, 3∅ (transformer 380/400/415/440V is available) | ||||
Machine Dimension (mm) | 1500L x 1600W x 1700H | 1900L x 2600W x 1970H | 2050L x 2850W x 2050H | ||
Machine Weight (kg) | 1580 | 2900 | 4600 | ||
CNC-620RW
CNC-635RW
CNC-650RW
Company Profile
Certificate
Feedback
FAQ
Q: Do you have a factory manufacturing machines ?
A: Yes, we have been associated with reliable partners to produce quality machines for decades.
Q: Can you make customized machines ?
A: Yes, we will evaluate your need and offer best options.
Q: What method are you using to guarantee quality?
A: We ensure the quality by SOP of multiple inspections.
Q: What is your after-sales services?
A: - One year warranty under normal circumstances and correct operation.
A: Yes, we have been associated with reliable partners to produce quality machines for decades.
Q: Can you make customized machines ?
A: Yes, we will evaluate your need and offer best options.
Q: What method are you using to guarantee quality?
A: We ensure the quality by SOP of multiple inspections.
Q: What is your after-sales services?
A: - One year warranty under normal circumstances and correct operation.
- English manual , operation training in Taiwan.
- Technical instruction, and online service support.
- Support on machine and software upgradation.
- Overseas technical support.(Chargeable)
Q: What is your delivery time?
A: It depends ! Regular standard machines can be delivered within 3-4 weeks.
Q: How do I install the machine when I receive it?
A: We will provide you with technical instruction such as machine manual, videos or on-line support.
Q: How can I choose machines that I need?
A: We recommend the best machines according to your product drawings, production capacity and budget.
- Technical instruction, and online service support.
- Support on machine and software upgradation.
- Overseas technical support.(Chargeable)
Q: What is your delivery time?
A: It depends ! Regular standard machines can be delivered within 3-4 weeks.
Q: How do I install the machine when I receive it?
A: We will provide you with technical instruction such as machine manual, videos or on-line support.
Q: How can I choose machines that I need?
A: We recommend the best machines according to your product drawings, production capacity and budget.
