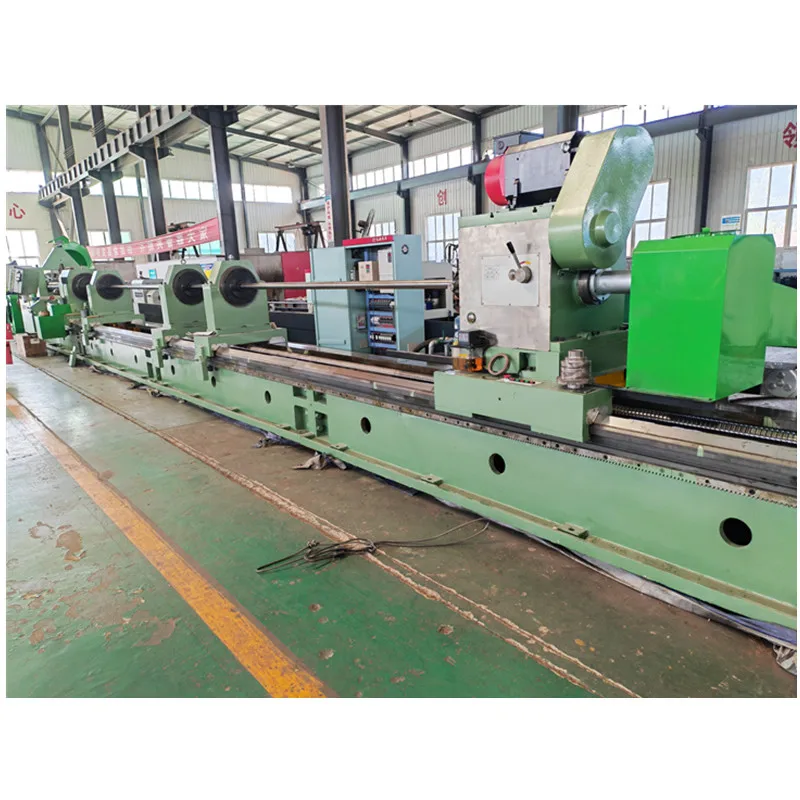

Deep hole drilling and boring machine T2150
The machine is specialized in machining cylindrical deep-hole workpieces, such as spindle holes for machine tools, various mechanical hydraulic cylinders, cylindrical through-holes for cylinders, blind holes and stepped holes. The processing accuracy can reach IT7~IT8 or above, and the surface roughness can reach Ra0.4μm. The machine tool can not only undertake drilling and boring, but also can perform burnishing processing, and the internal chip removal method is used for drilling. The machine bed is rigid and has excellent precision. The spindle has a wide range of speeds, and the feed system is driven by an AC servo motor, which can adapt to the needs of various deep hole machining processes. The pressure head is fastened and the workpiece is tightly clamped with hydraulic device. The instrument display is safe, stable and reliable. Pressure head and job clamping is hydraulic control.
|
SPECIFICATION | TECHNICAL DATA |
T2150 | ||
capacity | Max Boring diameter | φ500mm |
Max drilling diameter | φ150mm | |
Max.boring depth | 1000-15000mm | |
Workpiece clamped dia.range | φ100-φ650mm | |
| Height from spindle center to bed | 630mm |
Spindle bored diameter | φ75mm | |
Taper of spindle bore | 85mm 1:20 | |
Range of spindle bore | 3.15-315r/min 21steps | |
| Feed speed range(infinite) | 5-600mm/min |
Carriage rapid-moving speed | 2m/min | |
| Main motor power | 37KW |
Hydraulic pump motor power | 1.5KW | |
Carriage rapid motor power | 3KW | |
Feed motor power | 7.5KW AC servo | |
Cooling pump motor power | 5.5KW | |
| Rated prdssure for cooling system | 0.36Mpa |
Flow of cooling system | 600L/min | |
Rated working pressure for hydraulic system | 6.3Mpa | |
Max.axial force for pressure head | 68KN | |
Max.clamping force by pressure head on workpiece | 20KN |
Our company have more than 15 years experience in design, manufacturing and sales of deep hole drilling machine, have more than 4 million USD in fixed assets. The company occupies an area of 60 acres with two plants and employs more than 200 people.
Contact information :
Dezhou Hongxin Machine Tool Co., Ltd
Webiste: www.dzhxjc.com, www.deepholedrillmachine.com
email:hongxinmachines at 163.com
Mobile /wechat/whatsapp: 0086 13853472753
Tel: 0086-534-8122876
Fax: 0086-534-8122877
Factory 1 Address :No 7 Shanshui street Hengde industry park Yunhe area Dezhou
Factory 2 Address: NO1 HAOWANGZHANG INDUSTRY PARK, WUCHENG COUNTY ,DEZHOU
Our advantage:
1 Has two manufacture plants, covered area more than 20,000m2, each year produce more than 200 sets of machine.
2 Big quantity machine parts(beds, headstock, drill box) in stock, 2 months delivery is available, The bed will be kept for 3-6 months before machining for natural aging
3 Big quantity standard parts such as gear, hardware parts in warehouse for fast delivery.
4 Strong parts machining capacity to keep machine accuracy. Such as : bed milling, bed grinding, headstock boring ,turning.
